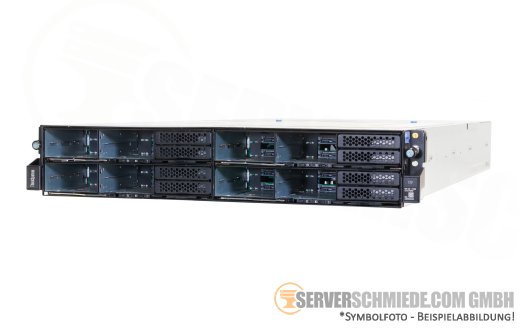

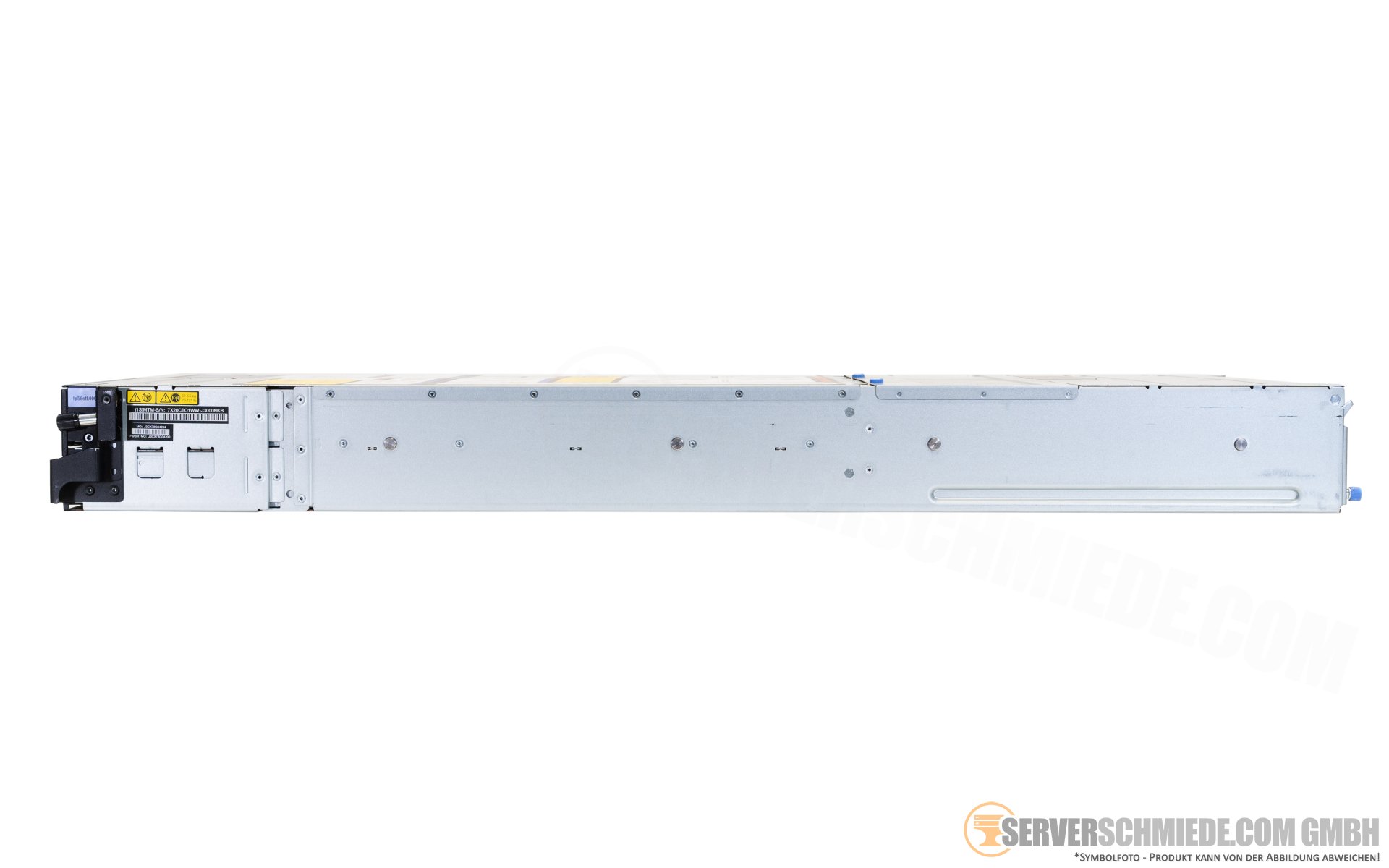

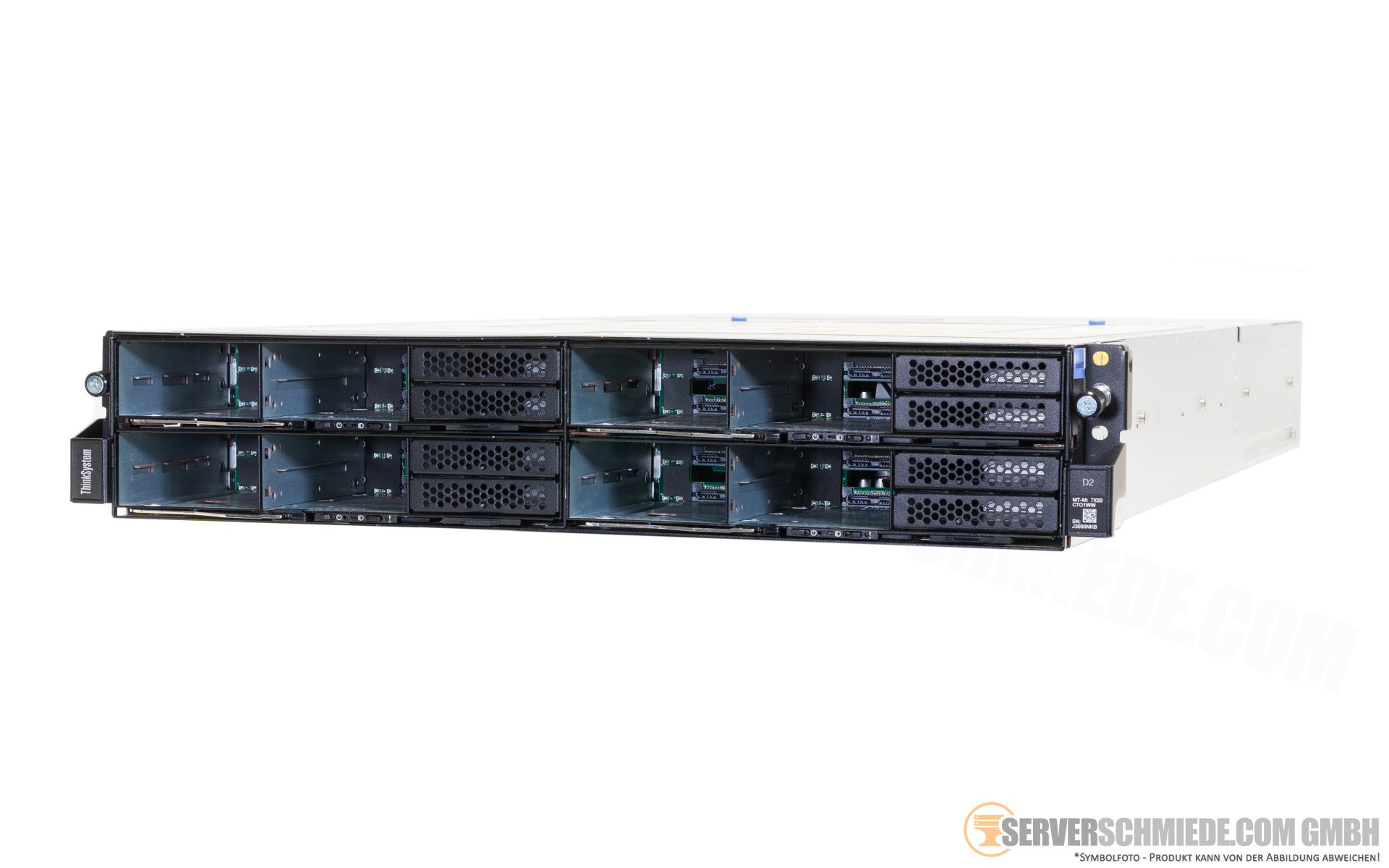

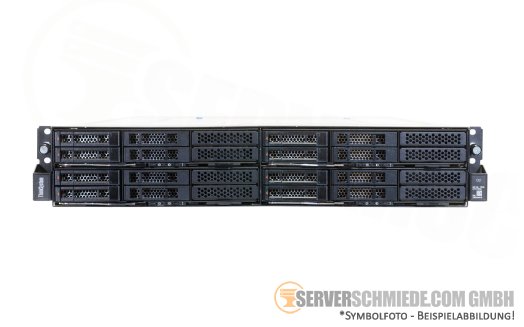

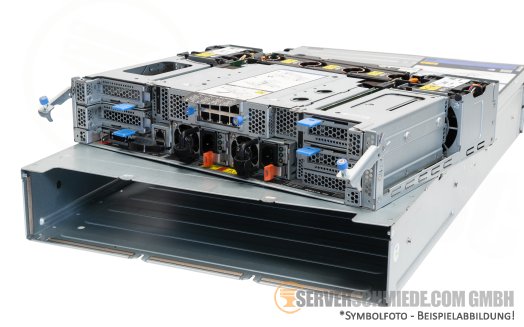

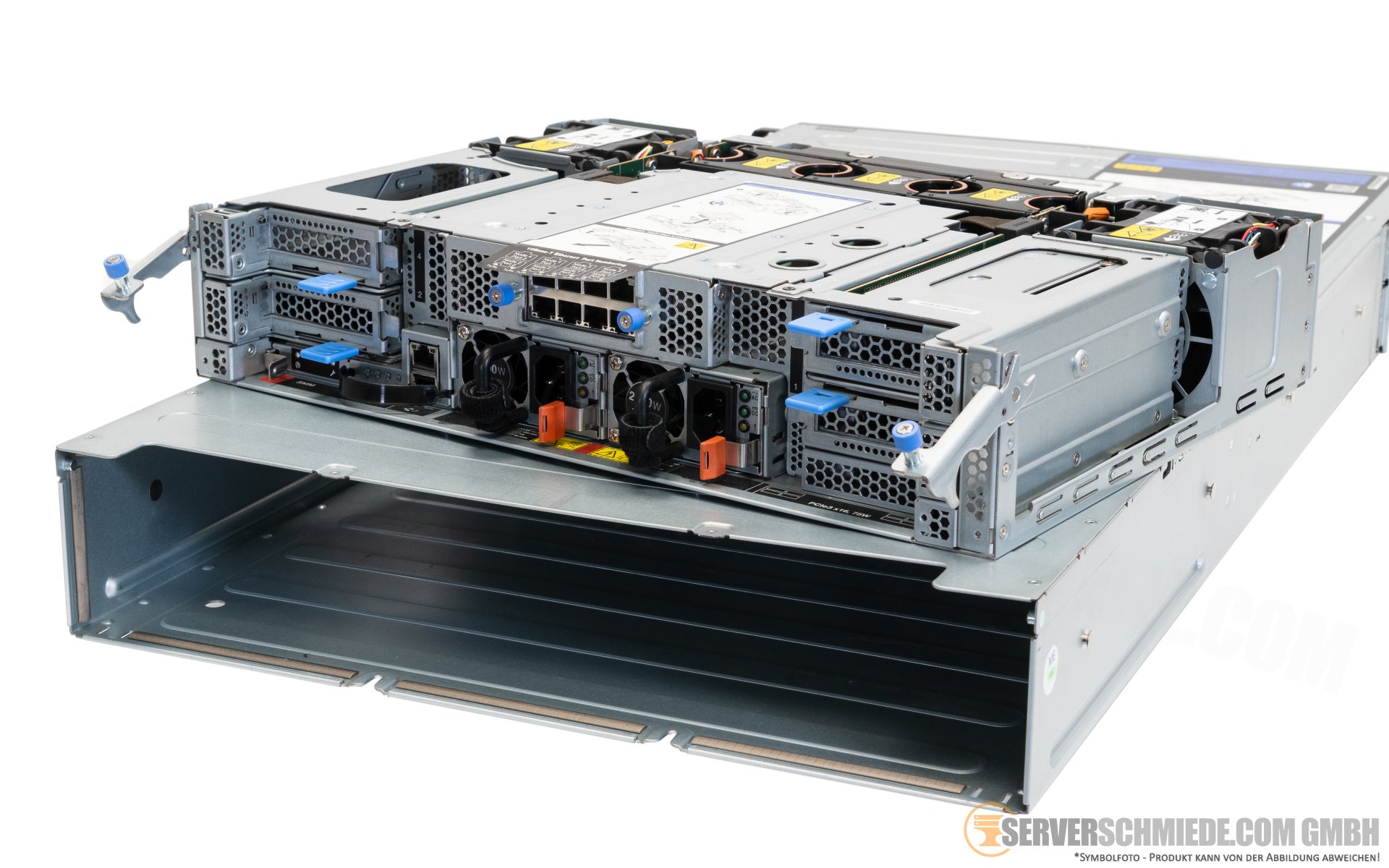

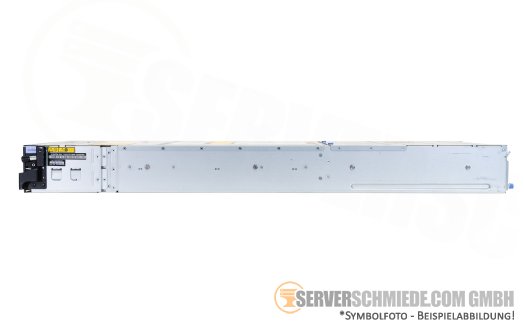

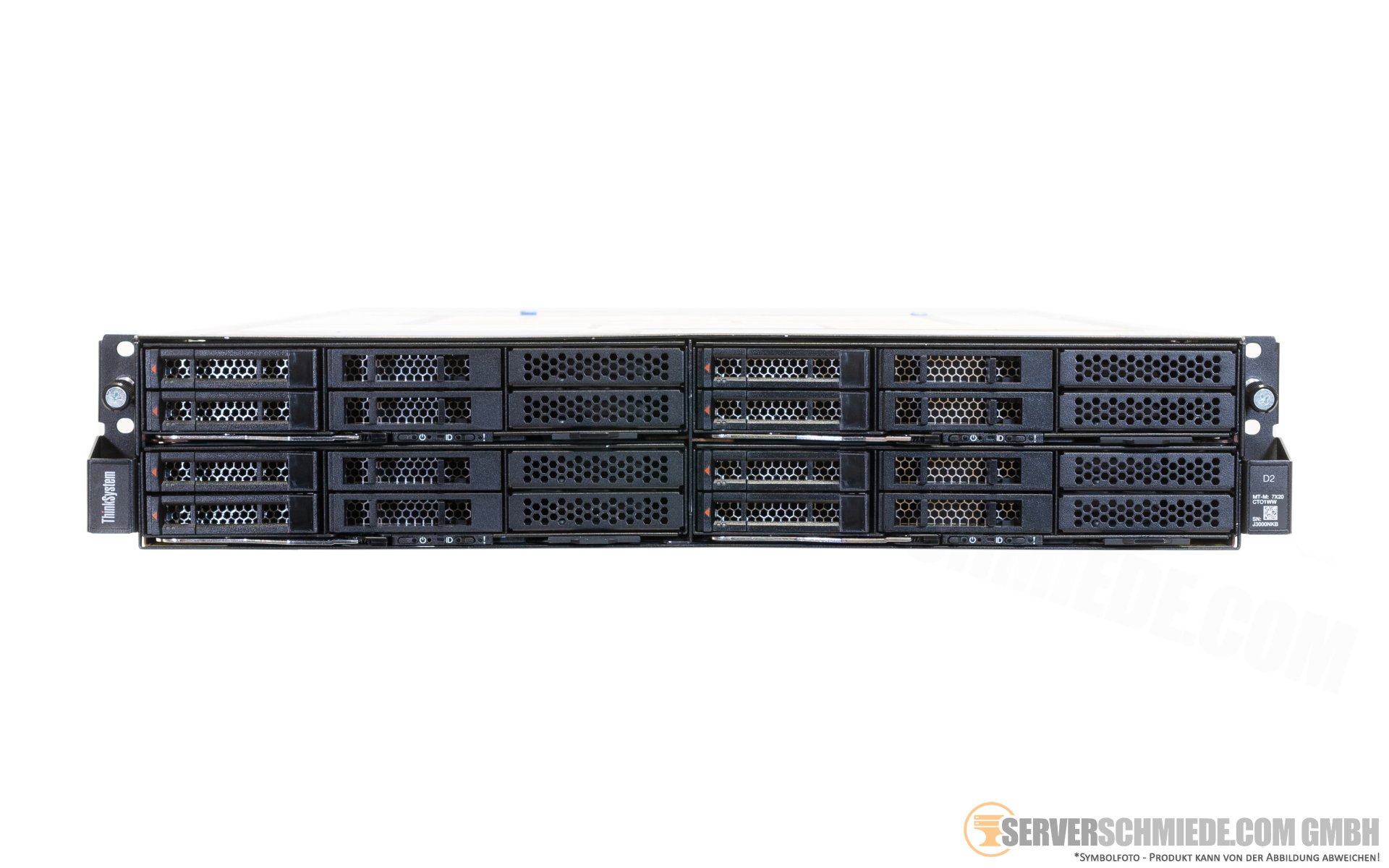

Lenovo ThinkSystem D2 Enclosure 4x SD530 Node Server 19" 2U 8x Intel Xeon Silver 4114 4x 32GB DDR4 4x 480GB SSD 2x 2000W Bundle

Product No.: M432B04
Base price: 2.351,80 €
incl. 19% MwSt | excl. Shipping
Price excl. VAT: 1.976,30 €
Availability:
Shipping time: 2-5 days + shipping time (excl. weekend, excl. business holidays)
Weight KG: 50.00kg

Included components:

  • Server
     IBM Lenovo ThinkSystem D2 SD530 4-Node Server 2x Intel XEON LGA 3647 per node (8x CPU 64x DDR4) vmware Server
  • CPU
     8 x Intel Xeon Silver 4114 SR3GK 10C Server Prozessor 10x 2,20 GHz 13MB 3647 CPU
  • Heatsink
     4 x IBM Lenovo D2 SD530 Heatsink CPU Kühler CPU 1 00MW524 00MW612
  • 4 x IBM Lenovo D2 SD530 Heatsink CPU Kühler CPU 2 00MW523
  • RAM
     4 x 32GB Registered ECC DDR4 SDRAM (2x 16GB DIMM)
  • StorageController
     4x IBM Lenovo 530-8i for ThinkSystem Blade SD530 D2 12G SAS Raid Controller 00MW544 7X21 Raid 0, 1, 5, 6, 10, 50
  • SSD
     4 x 480GB 2,5" HP 832414-B21 Intel DC S3610 Datacenter Enterprise 24/7 Raid SATA SSD 3700TBW
  • HDD-Trays
     4 x IBM Lenovo 2,5" SFF HotSwap HDD Tray Gen M5 00E7600 x3550 x3650 M5 SR630 SR650
  • ServerErweiterung
     Lenovo ThinkSystem D2 SD530 VGA USB KVM Console Breakout module + cable
  • PowerSupply
     2 x Lenovo IBM 2000W PSU Netzteil for SD530 01GV274
  • Kabel
     2 x Kaltgerätekabel IEC connector ca. 1,40m C13 - Schuko 10A
  • Support
     12 Monate Bring In Basis Garantie ohne Vorab Austausch ohne Service ohne Reparaturgarantie *

Vendor:
Lenovo
Type:
Server
Bauart:
19" 2 HE
Model:
ThinkSystem D2 - 4x SD530 Node
HDD bays:
16x HotSwap HDD Bays Backplane
Optical drive:
ohne
Networking:

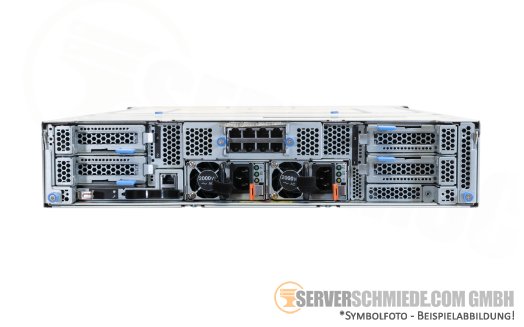

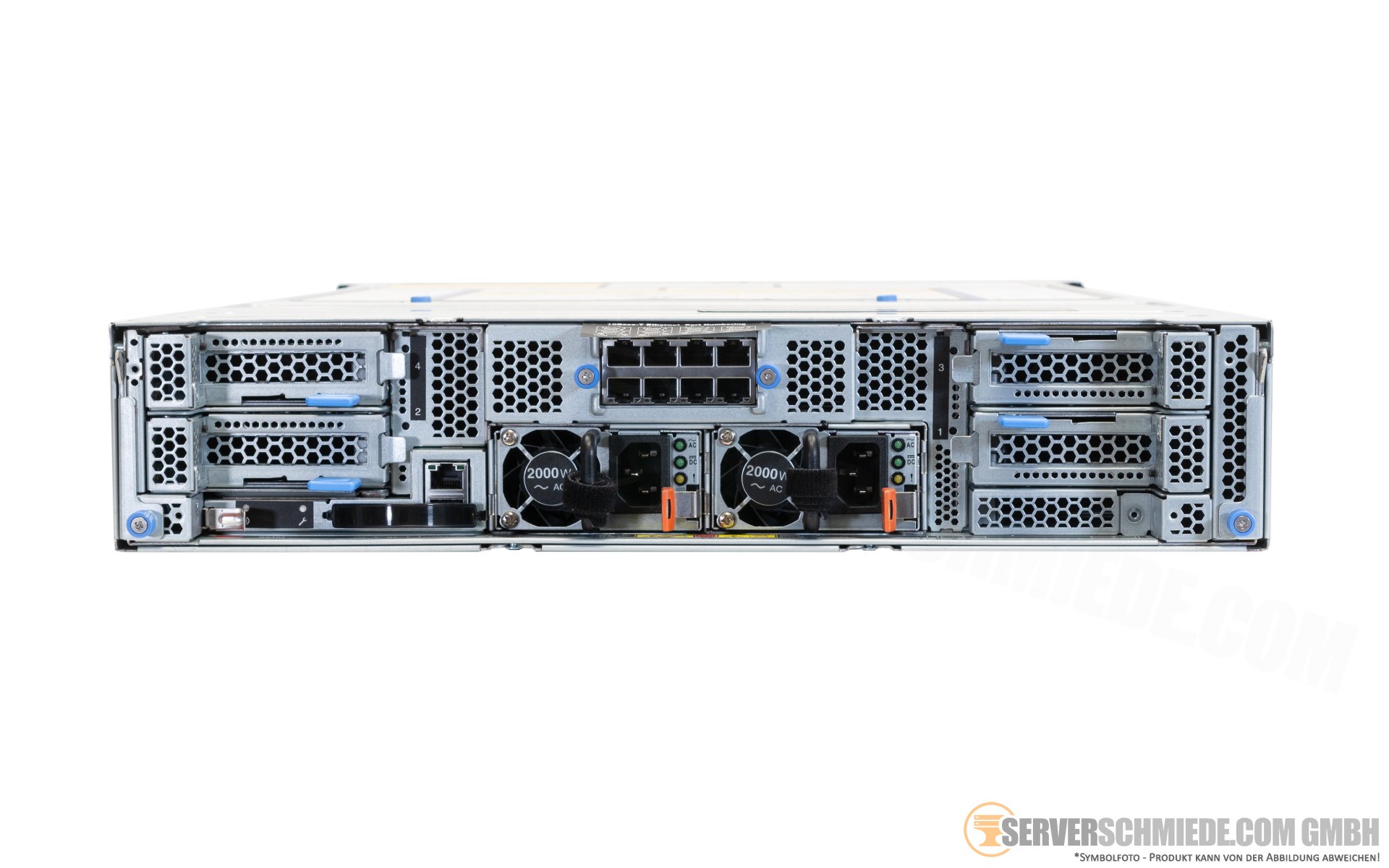

8-Port EIOM 10GbE RJ-45 cooper (2 Ports per Node) X557-AT2
Internal interfaces:
Lenovo IBM Thinksystem D2 7X20-CTO1WW
1x SMM Managament Modul
1x 8-Port EIOM 10GbE RJ-45 cooper (2 Ports je Noden) X557-AT2
up to 2x PSU

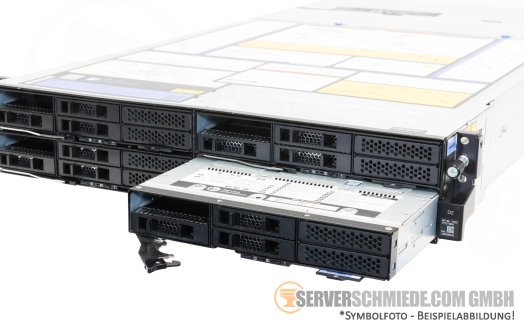

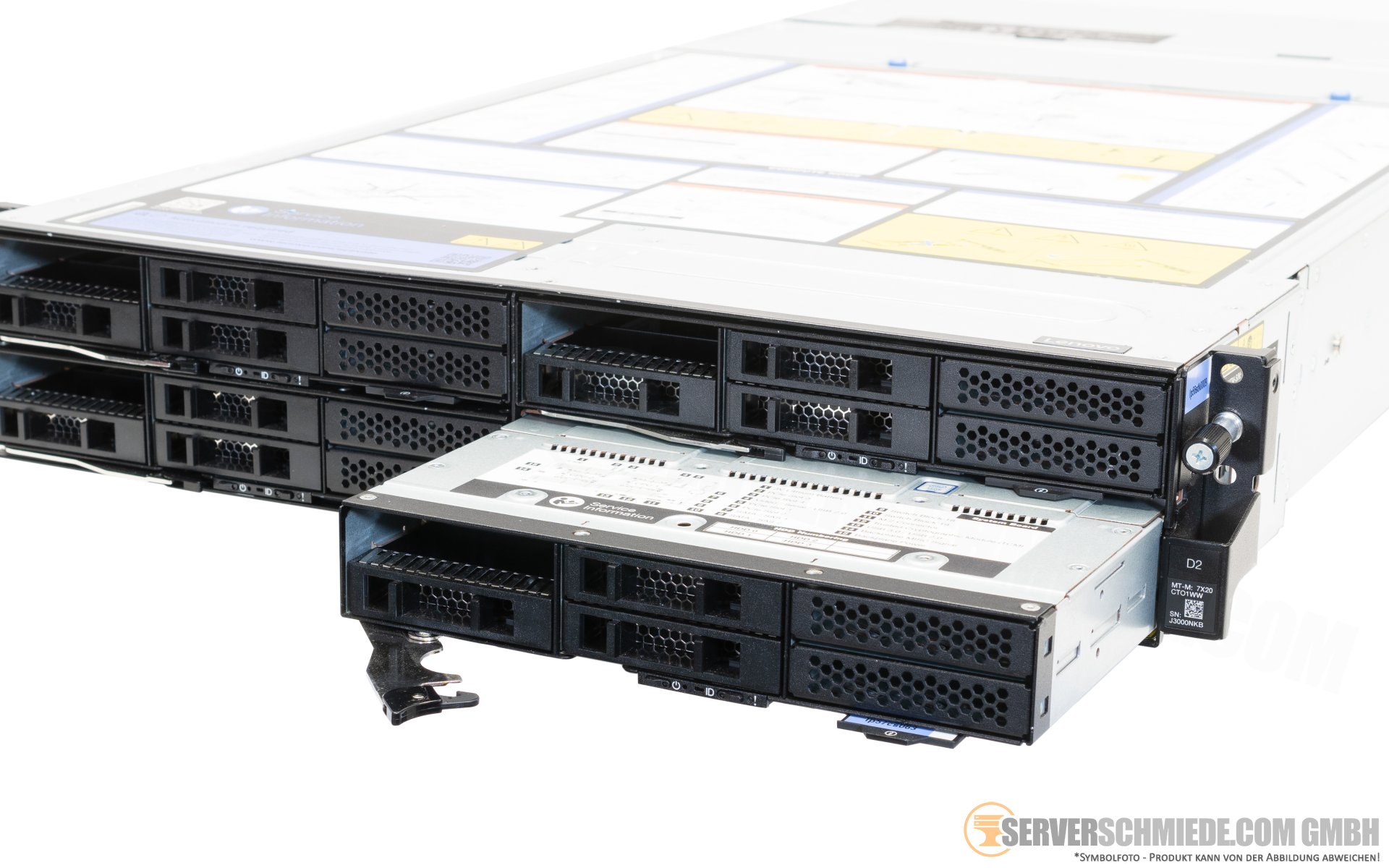

4x ThinkSystem SD530 Server Node
4x PCIe 3.0 x16-Steckplätzen (1x per Node)

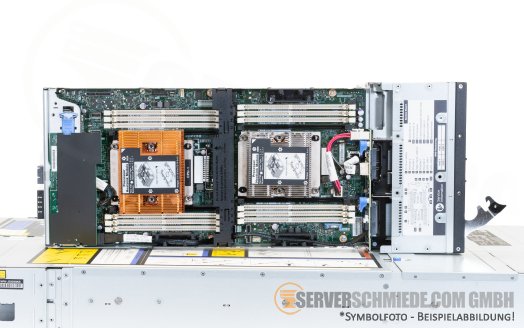

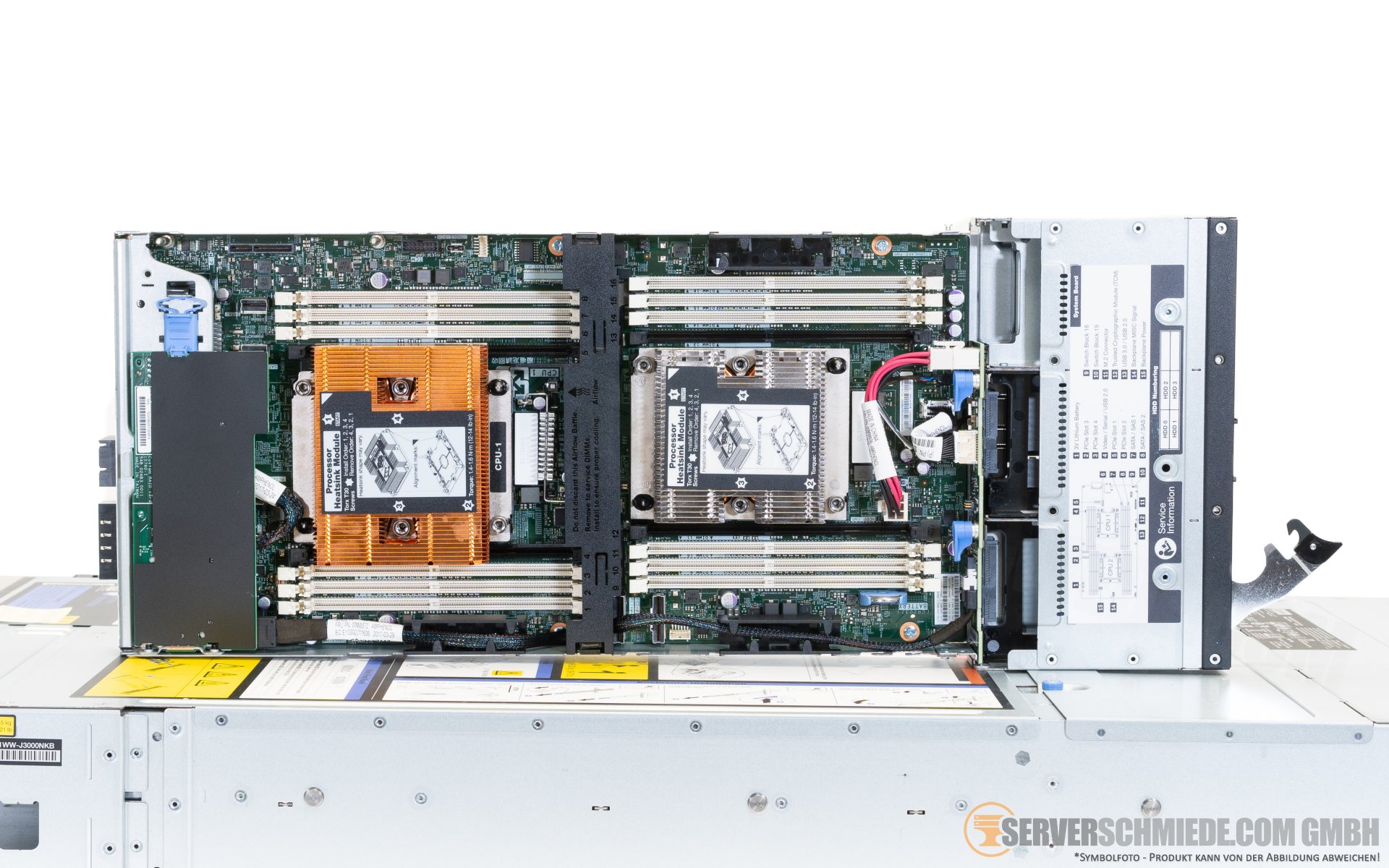

Lenovo SD530 7X21-AUXN Per Node:

2x Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
16x DDR4 288pin ECC DIMM banks up to 4TB RAM
optional Lenovo RAID Controller 530-8i SAS 12G ThinkSystem SD530 RAID 0, 1, 5, 6, 10, 50, 60
4x Hot-swap 2.5" SAS SATA HDD SSD Bays (16x in total 4x per node)
External interfaces:

GPU:
onboard
Powerunits:
up to 2x HotSwap PSU
Compatible operating systems:
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11* *compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
