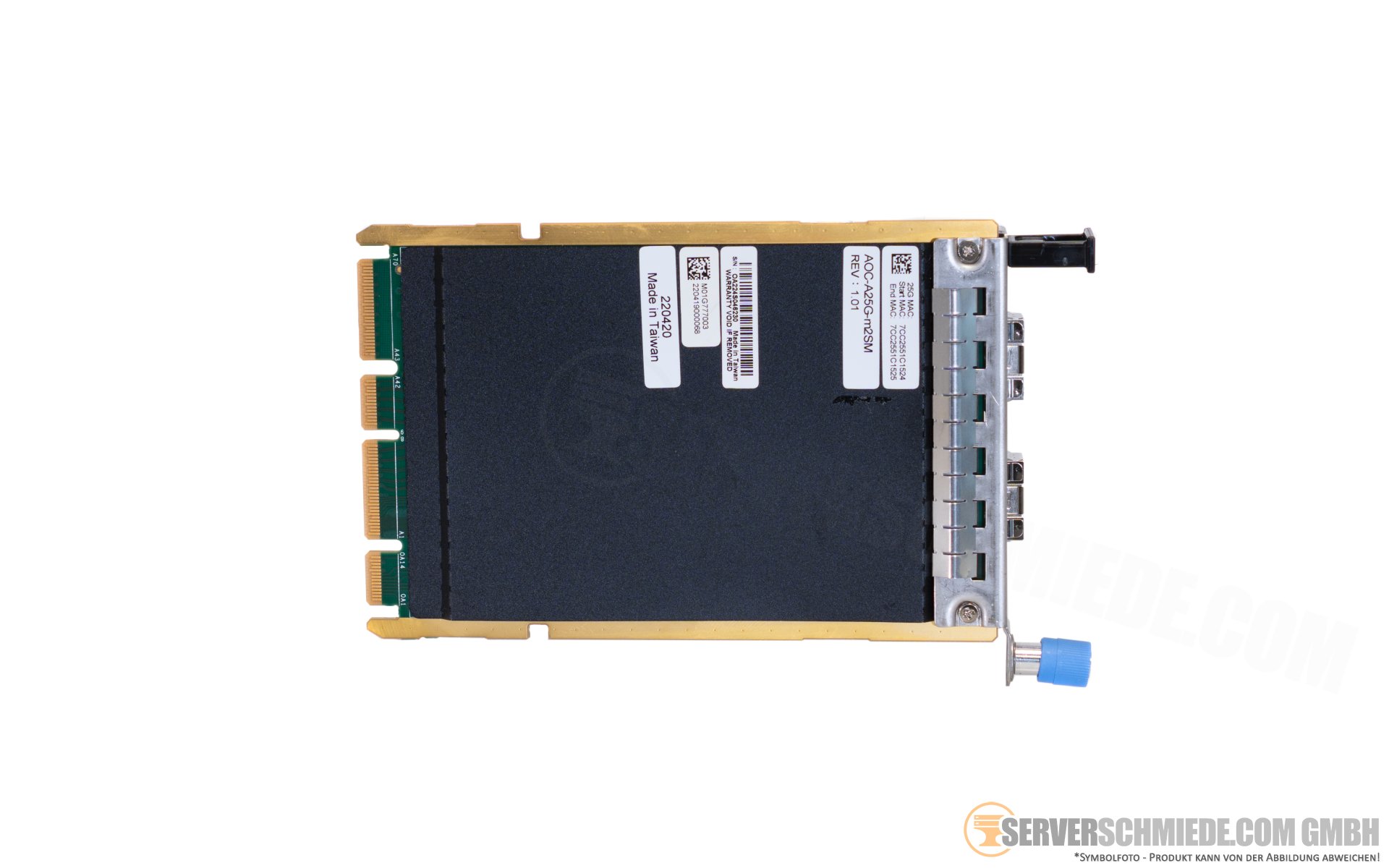

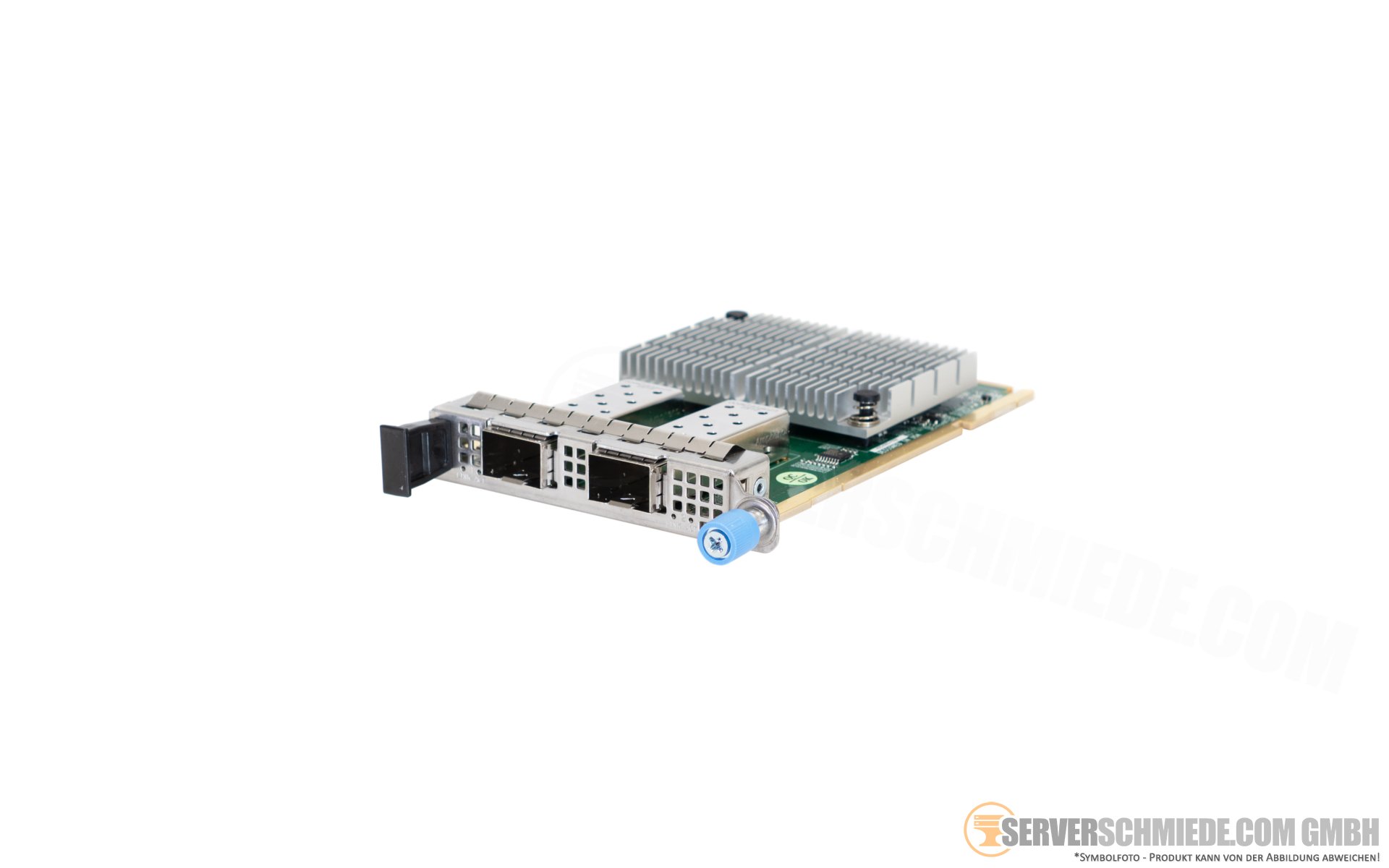

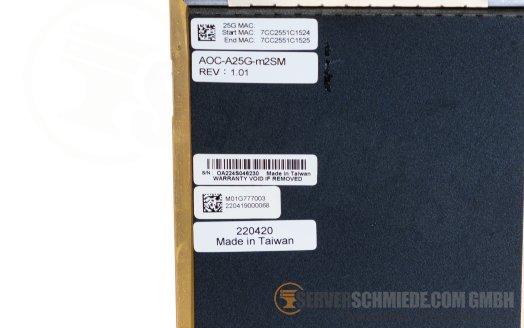

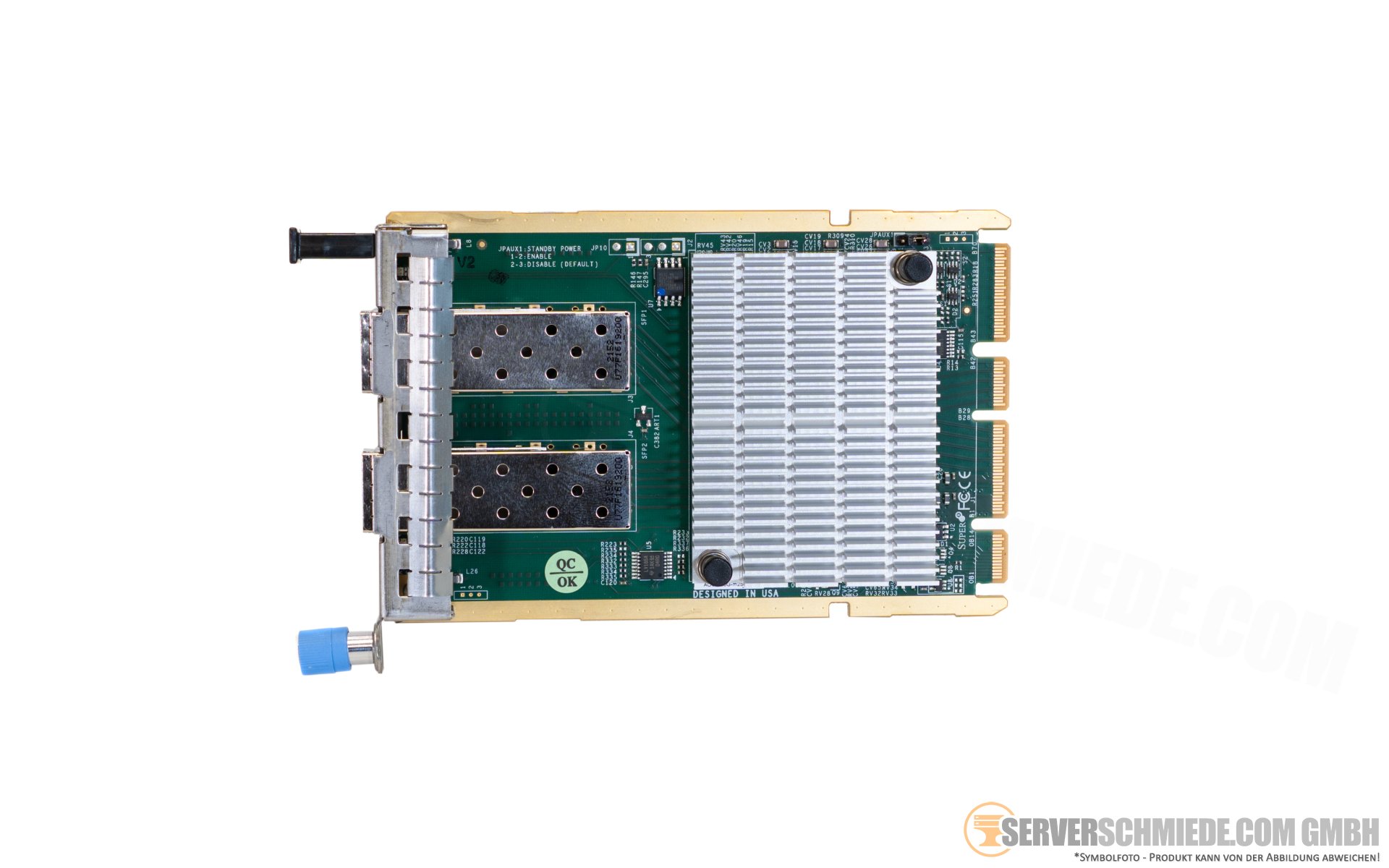

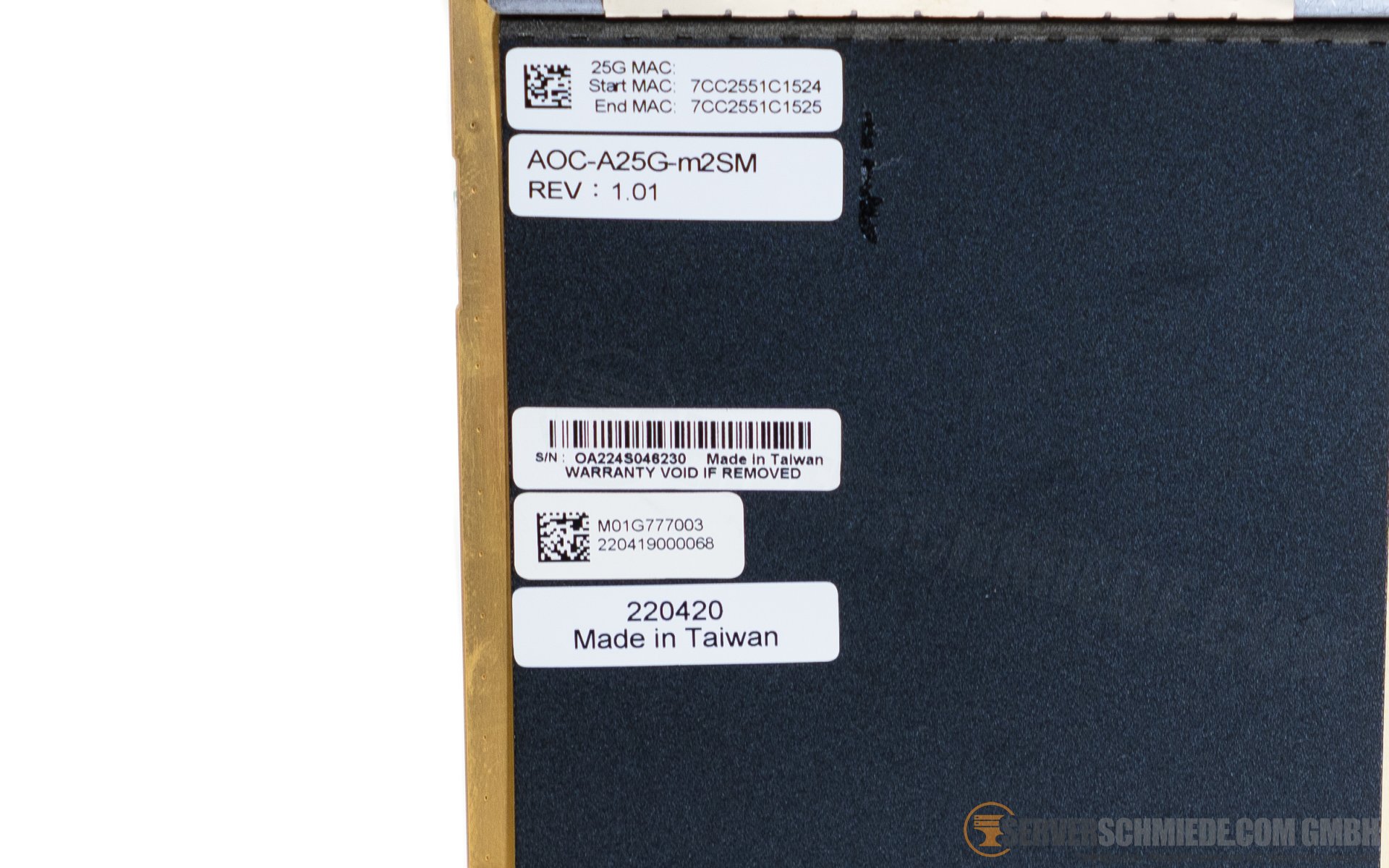

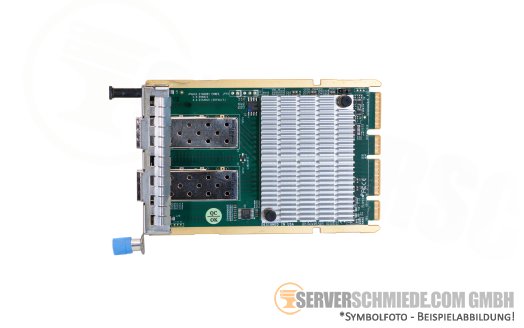

Supermicro AOC-A25G-m2SM 2x 10/25Gb SFP28 AIOM Controller Ethernet Netzwerk

Supermicro Advanced I/O Module (AIOM) 2-port 25Gb Network Adapter

Supermicro® Advanced I/O Modules (AIOM) are the latest form factor designed to provide a wide range of networking options as well as other I/O technologies.
The AOC-A25G-m2SM is one of the most feature rich and low power consumption 25GbE controllers in the market.
Based on the Mellanox ConnectX-6 Lx controller with features such as VXLAN, NVGRE, RDMA, and others, it provides unparalleled density, performance, and functionality.
The Supermicro® AOC-A25G-m2SM is the most versatile 25GbE controller in the market with the best total cost of ownership for 25GbE deployments in cloud, telco, and enterprise data centers.

Advanced I/O Module (AIOM) Form Factor
Mellanox ConnectX-6 Lx 25GbE controller
Support for 25GbE and 10GbE Speed
Dual SFP28 connectors
RDMA over Converged Ethernet
VXLAN, NVGRE and Geneve
Asset Management Features with thermal sensor
Network Controller Sideband Interface (NC-SI) for Remote Management

General:
Advanced I/O Module (AIOM) Form Factor
Mellanox ConnectX-6 Lx 25GbE controller
Dual SFP28 ports

Storage Accelerations:
NVMe over Fabric offloads for target
Storage protocols: iSER, NFSoRDMA,
SMB Direct, NVMe-oF, and more

RDMA over Converged Ethernet:
RoCE v1/v2
Zero-Touch RoCE: no ECN, no PFC
RoCE over overlay networks
IPsec over RoCE
Selective repeat
GPUDirect®
Dynamically Connected Transport (DCT)
Burst buffer offload

Management and Control:
SMBus 2.0
Network Controller Sideband Interface (NC-SI)
NC-SI, MCTP over SMBus and MCTP over PCIe - Baseboard Management Controller interface
PLDM for Monitor and Control DSP0248
PLDM for Firmware Update DSP026

Remote Boot:
Remote boot over Ethernet
Remote boot over iSCSI
UEFI support for x86 and Arm servers
PXE boot

Standards:
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3by 25G supporting all FEC modes
IEEE 802.3ad, 802.1AX Link Aggregation
IEEE 802.3az Energy Efficient Ethernet (supports only “Fast-Wake” mode)
IEEE 802.3ap based auto-negotiation and KR startup
IEEE 802.1Q, 802.1P VLAN tags and priority
IEEE 802.1Qaz (ETS)
IEEE 802.1Qbb (PFC)
IEEE 802.1Qbg
IEEE 1588v2
IEEE 1149.1 and IEEE 1149.6 JTAG
PCI-E 3.0 and 4.0

Power Consumption:
Maximum: 15W

Operating Conditions:
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 90% non-condensing relative humidity at 35°C

Physical Dimensions:
Card PCB dimensions: 76mm x 115mm (W x D)
