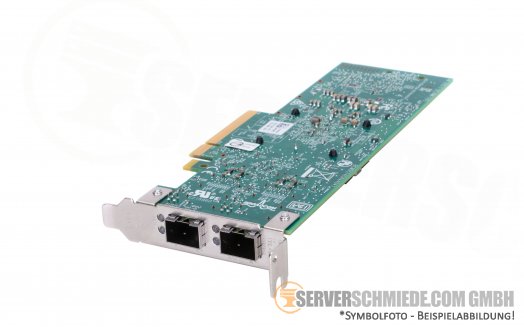

Dell Broadcom 57414 2x 10/25Gb SFP28 PCIe x8 LAN Network Controller 0CX94X 024GFD
Product description
Vendor / OEM: Broadcom / Dell
Model: CX94X
PN: BCM57414 CX94X 024GFD 0CX94X
Controller Type: Netzwerk
Host Bus: PCIe x8
Interface: 2x SFP+ 25 Gb
Formfactor: Full or Low Profile (configurable)
Net weight: 0,097 kg
Dimensions: L: 16,8 cm | B: 7 cm | H: 1,5 cm
The Broadcom® BCM957414A4142CC is a dual-port 25 Gb/s,
PCI-Express Gen3 x8 Network Interface Card that supports both SFP28/SFP+ optical modules and copper-direct attach cable.
The card uses the Broadcom BCM57414 25GbE MAC controller with the integrated dual-channel 25GbE SFI transceiver.
Dual-port pluggable media interface, which may be equipped with 25G SFP28 or 10G SFP+ optical transceiver or with copper direct-attach cable.
Fully compliant to the SFF-8402 standard.x8 PCI Express v3.0 compliant.
SR-IOV with up to 128 VFs.
Function Level Reset (FLR) support.
TruFlow™ flow processing engine.
Virtual Network Termination–VXLAN, NVGRE, Geneve, GRE encap/decap.
vSwitch acceleration.
Tunnel-aware stateless offloads.
DCB support: PFC, ETS, QCN, DCBx.
RDMA over converged Ethernet (RoCE).
SMBus 2.0.
MCTP over SMBus.
PCIe-based UART and KCS.
Jumbo frames up to 9 KB.
Advanced Congestion Avoidance.
Multiqueue, NetQueue, and VMQ.
IPv4 and IPv6 offloads.
TCP, UDP, and IP checksum offloads.
Large Send Offload (LSO).
Large Receive Offload (LRO).
TCP Segmentation Offload (TSO).
Receive-side Scaling (RSS).
Transmit-side Scaling (TSS).
VLAN insertion/removal
PCI-Express Gen3 x8 Network Interface Card that supports both SFP28/SFP+ optical modules and copper-direct attach cable.
The card uses the Broadcom BCM57414 25GbE MAC controller with the integrated dual-channel 25GbE SFI transceiver.
Dual-port pluggable media interface, which may be equipped with 25G SFP28 or 10G SFP+ optical transceiver or with copper direct-attach cable.
Fully compliant to the SFF-8402 standard.x8 PCI Express v3.0 compliant.
SR-IOV with up to 128 VFs.
Function Level Reset (FLR) support.
TruFlow™ flow processing engine.
Virtual Network Termination–VXLAN, NVGRE, Geneve, GRE encap/decap.
vSwitch acceleration.
Tunnel-aware stateless offloads.
DCB support: PFC, ETS, QCN, DCBx.
RDMA over converged Ethernet (RoCE).
SMBus 2.0.
MCTP over SMBus.
PCIe-based UART and KCS.
Jumbo frames up to 9 KB.
Advanced Congestion Avoidance.
Multiqueue, NetQueue, and VMQ.
IPv4 and IPv6 offloads.
TCP, UDP, and IP checksum offloads.
Large Send Offload (LSO).
Large Receive Offload (LRO).
TCP Segmentation Offload (TSO).
Receive-side Scaling (RSS).
Transmit-side Scaling (TSS).
VLAN insertion/removal
Item condition: refurbished, Grade A. The item has been completely tested / refurbished.
manufacturer information:
Broadcom
3421 Hillview Ave, Palo Alto
California, 94304
USA
https://www.broadcom.com/support
Broadcom Inc.
Charles de Gaulle Strasse 2
81737 München
Deutschland
https://www.broadcom.com/support
Product No.: A23220
Base price: 221,00 €
incl.
19% MwSt | excl. Shipping
Price excl. VAT: 185,71 €
Availability:
Shipping time: 1-2 Days + shipping
Weight KG: 0.10kg
