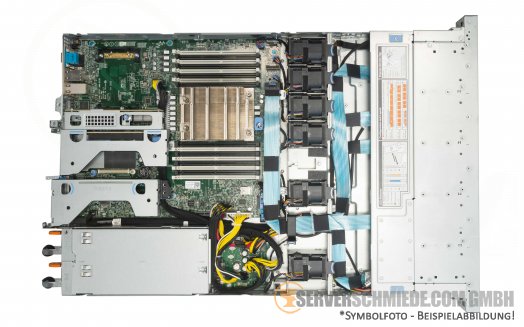

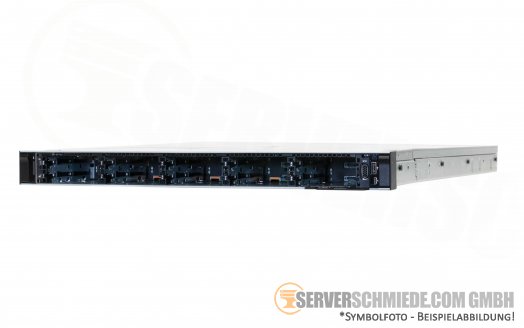

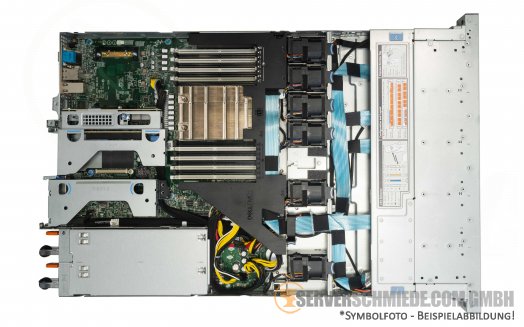

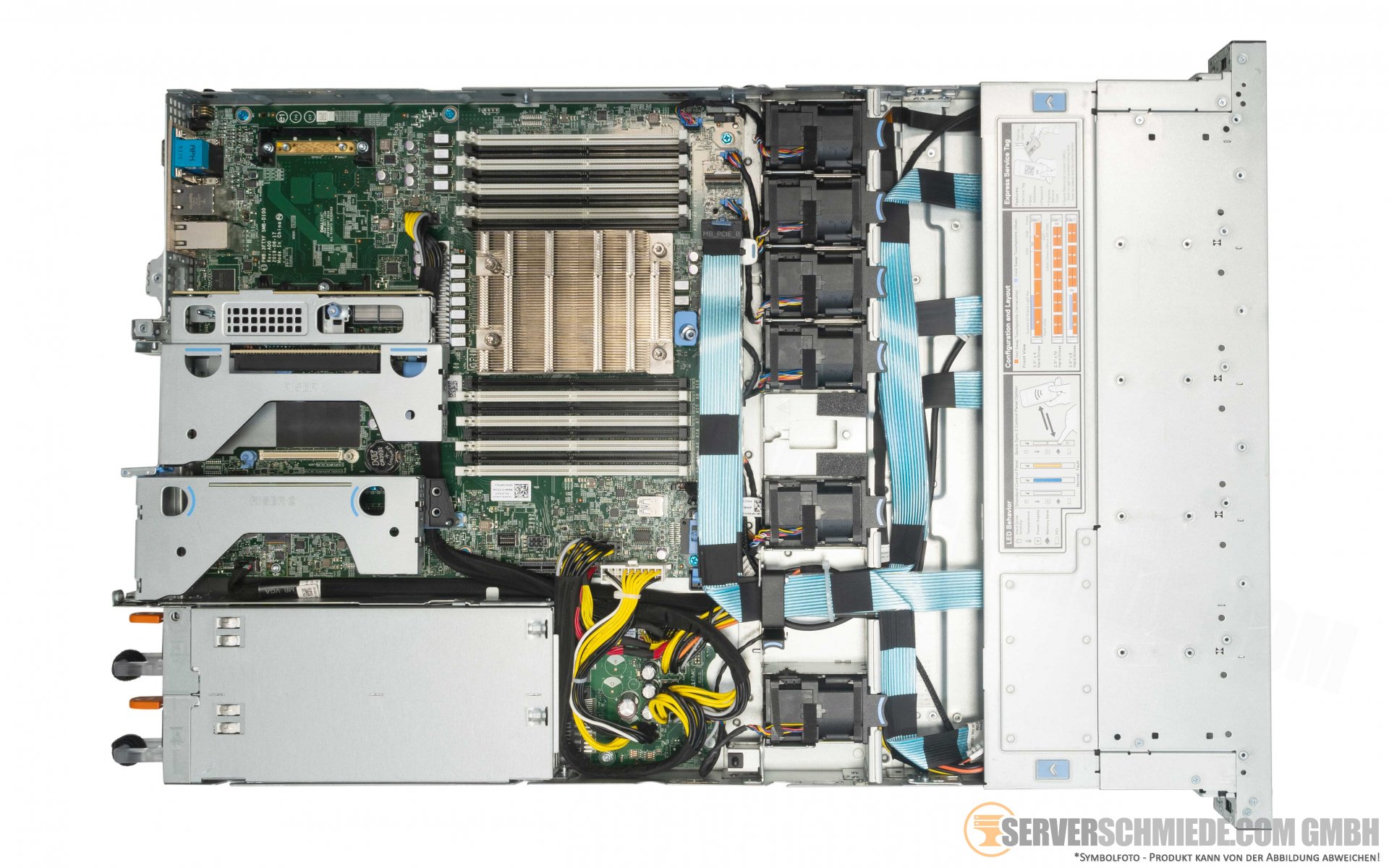

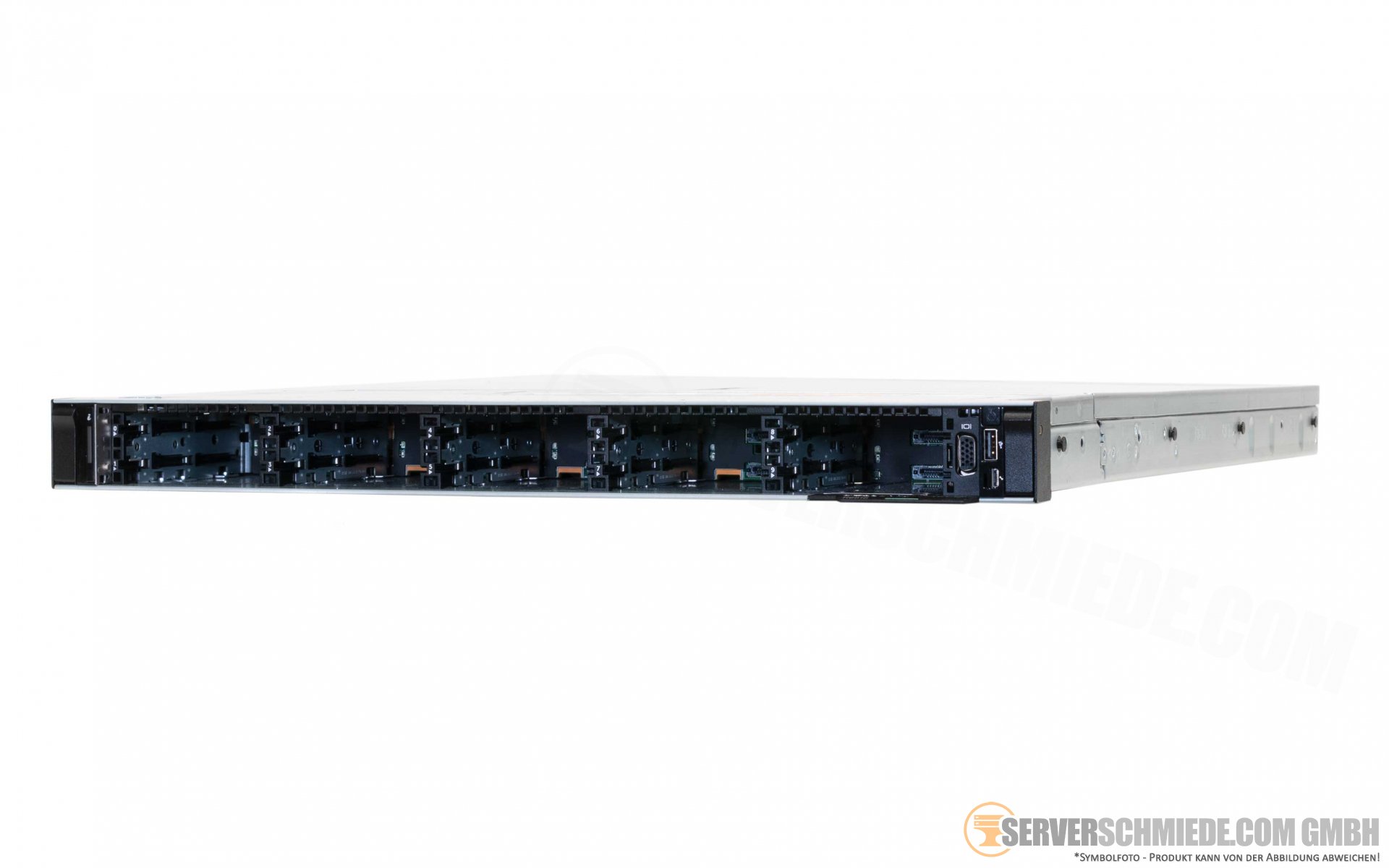

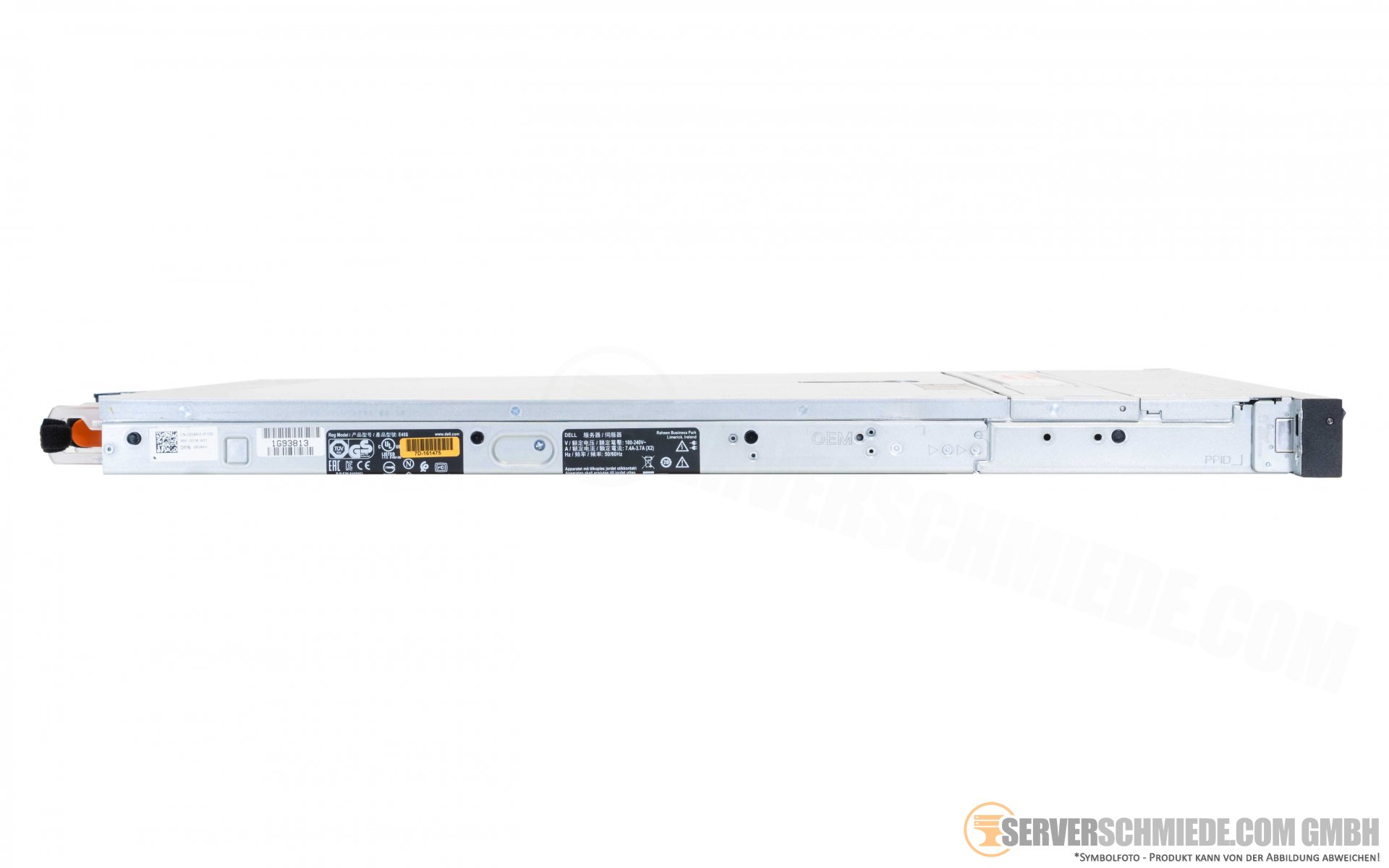

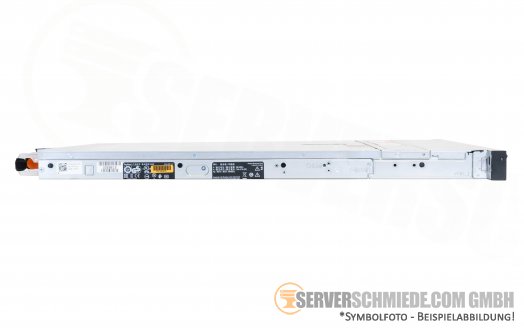

Dell PowerEdge R6515 1U Server 10x 2,5" SFF SAS NVMe AMD EPYC Gen2 Gen3 DDR4 ECC Raid 2x PSU
Product description
Vendor: Dell
Unit type: Server
Type: 19" 1 HE
Model: PowerEdge R6515

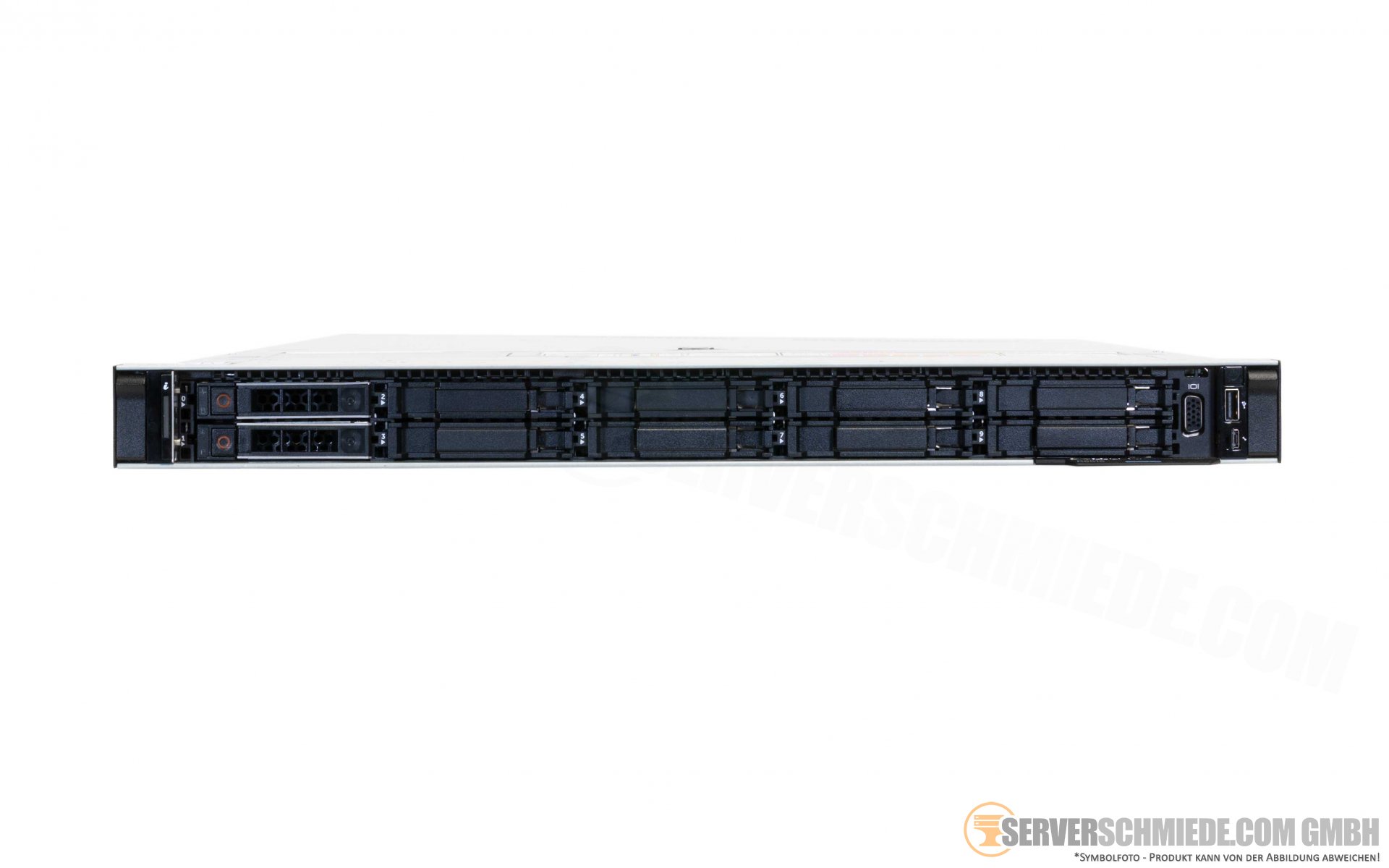

HDD bays: 10x HotSwap HDD Bays SAS/S-ATA Backplane
without selected hdds or trays are no hdd trays included in delivery
without selected hdds or trays are no hdd trays included in delivery
Optical drive: ohne
Networking: optional selectable

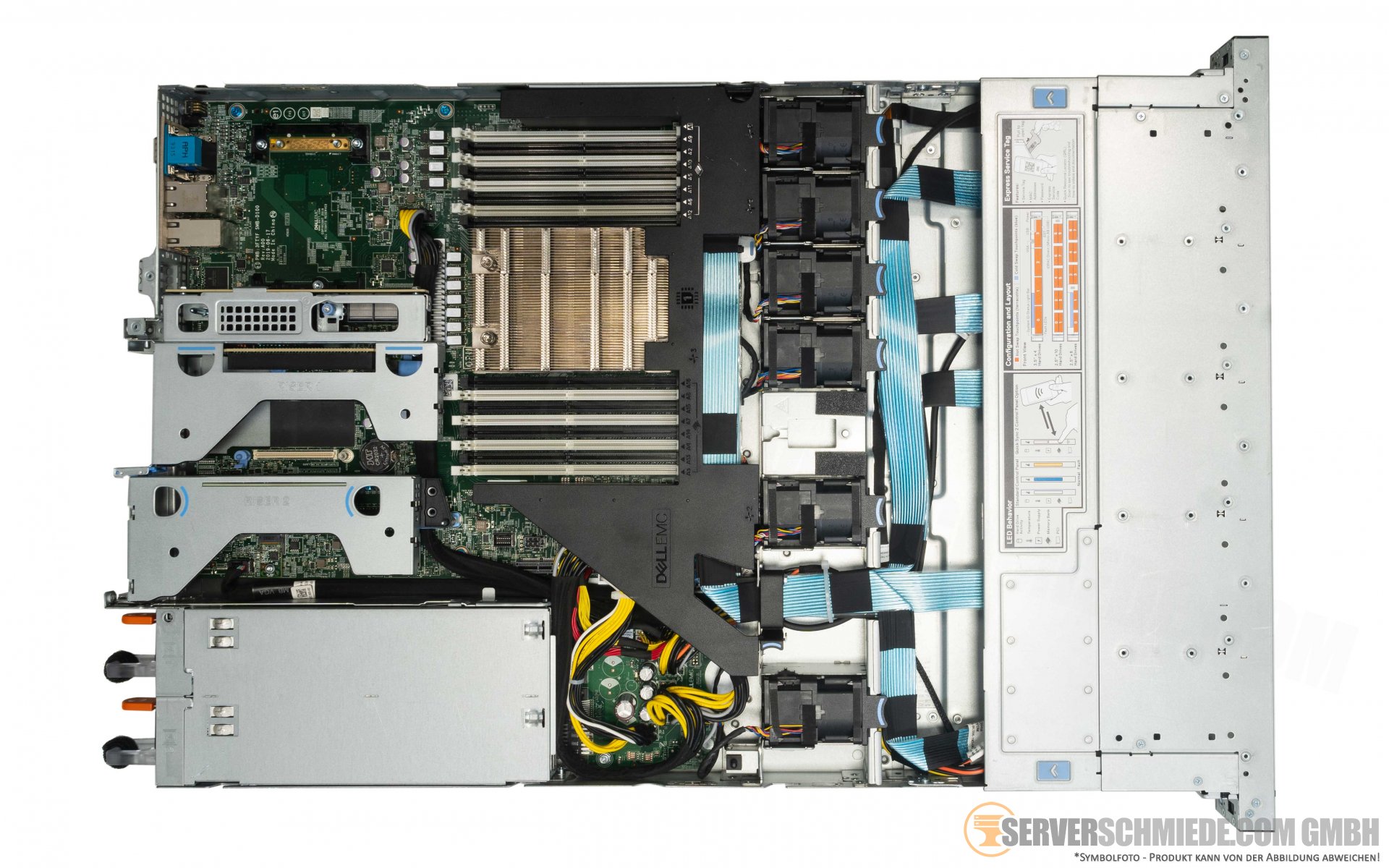

Internal interfaces:
information
1x FCLGA4094 SP3 AMD CPU Sockel für 2. & 3. Generation 7002 EPYC Rome CPU bis zu 64 Core per CPU
16x DDR4 288pin ECC DIMM banks up to 1TB RAM
No chipset – System on Chip (SoC) design
(NVMe Software Raid with all NVMe SSDs possible)
2x Riser Interface:
Primary Riser CPU 1
Primary Riser 1 CPU 1:
1. PCIe 3.0 x16 - x16 Connector - Half-height,Half-length slot
Secondary Riser CPU 1
Secondary Riser 1 CPU 1:
1. PCIe 4.0 x16 - x16 Connector - Half-height,Half-length slot
integrated Storage Controller
S150 Storage Controller
Interfaces

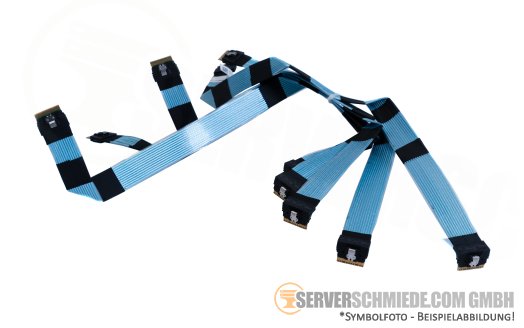

2x SFF-8654 S150 Storage Controller SATA / NVMe
4x SFF-8654 S150 Storage Controller NVMe only
1x OCP 2.0 Type 1 Connector A module Slot
1x SFF-8611 for up to 2x SATA
1x USB 3.0 connector
1x MicroSD card slot
information
1x FCLGA4094 SP3 AMD CPU Sockel für 2. & 3. Generation 7002 EPYC Rome CPU bis zu 64 Core per CPU
16x DDR4 288pin ECC DIMM banks up to 1TB RAM
No chipset – System on Chip (SoC) design
(NVMe Software Raid with all NVMe SSDs possible)
2x Riser Interface:
Primary Riser CPU 1
Primary Riser 1 CPU 1:
1. PCIe 3.0 x16 - x16 Connector - Half-height,Half-length slot
Secondary Riser CPU 1
Secondary Riser 1 CPU 1:
1. PCIe 4.0 x16 - x16 Connector - Half-height,Half-length slot
integrated Storage Controller
S150 Storage Controller
Interfaces
2x SFF-8654 S150 Storage Controller SATA / NVMe
4x SFF-8654 S150 Storage Controller NVMe only
1x OCP 2.0 Type 1 Connector A module Slot
1x SFF-8611 for up to 2x SATA
1x USB 3.0 connector
1x MicroSD card slot

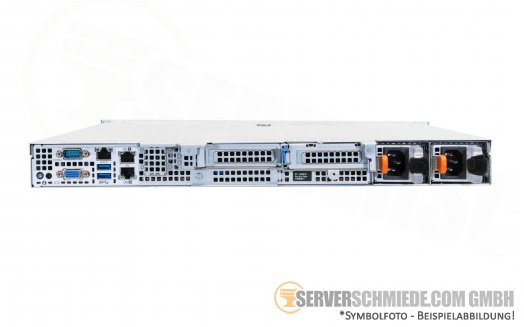

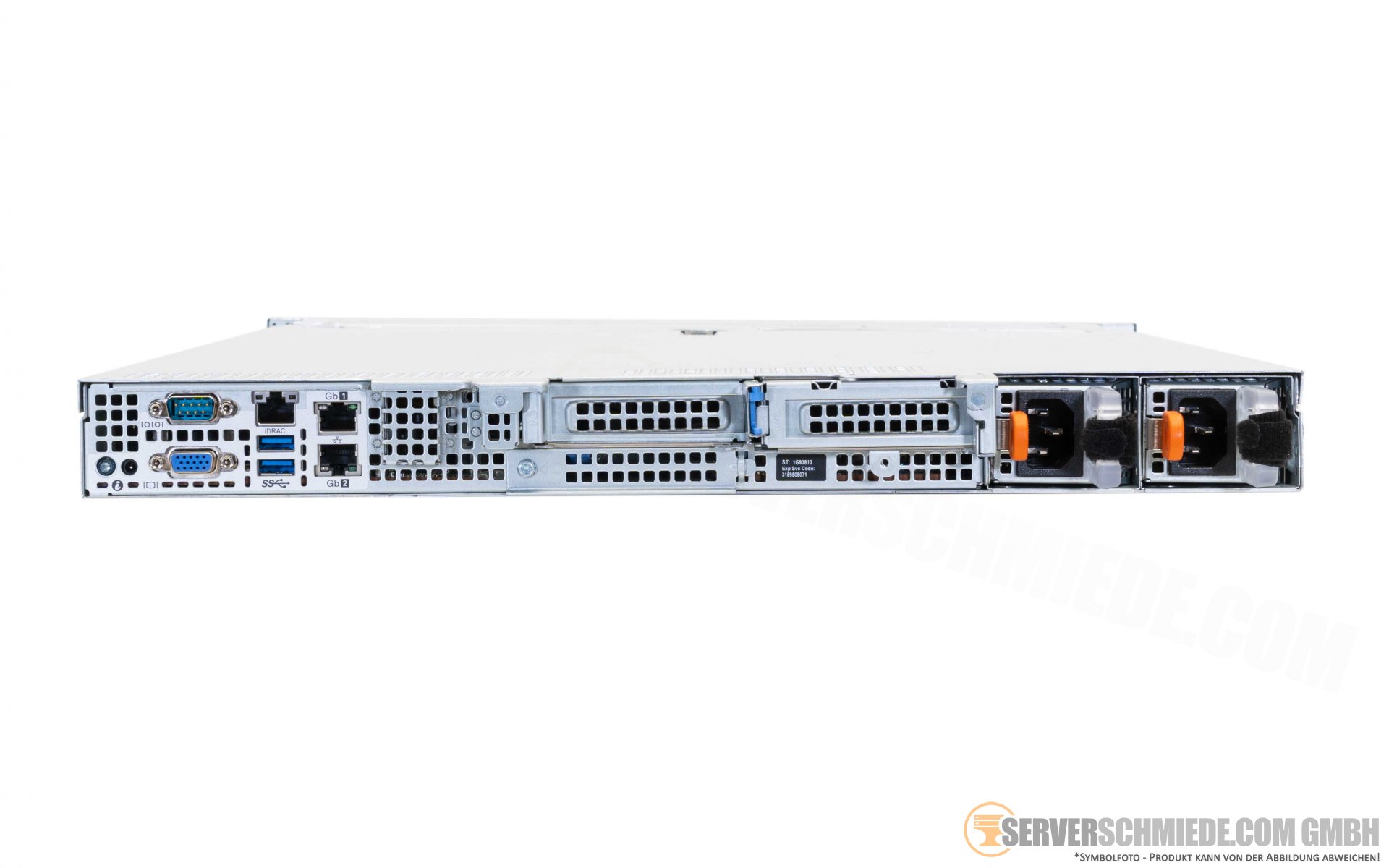

External interfaces:
3x USB 3.0 (1x front)
2x RJ-45 1GbE onboard
1x RJ-45 Servermanagement IDRAC9 Port
2x VGA 15pol. D-SUB (1x rear, 1x front)
3x USB 3.0 (1x front)
2x RJ-45 1GbE onboard
1x RJ-45 Servermanagement IDRAC9 Port
2x VGA 15pol. D-SUB (1x rear, 1x front)
Videocard: onboard
Powerunits: up to 2x Dell HotSwap Power supply
Net weight: 11 kg
Installation depth: 69,5 cm
Dimensions: L: 72 cm | B: 48,2 cm | H: 4,3 cm
Compatible operating systems:
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Item condition: refurbished, Grade A
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
manufacturer information:
Dell Technologies
One Dell Way,
Round Rock TX 78682
USA
https://www.dell.com/support/incidents-online/de-de/ContactUs/Dynamic
Product No.: SK0421
Base price: 2.621,00 €
incl.
19% MwSt | excl. Shipping
Price excl. VAT: 2.202,52 €
Availability:
Shipping time: 2-5 days + shipping time (excl. weekend, excl. business holidays)
Weight KG: 27.00kg
