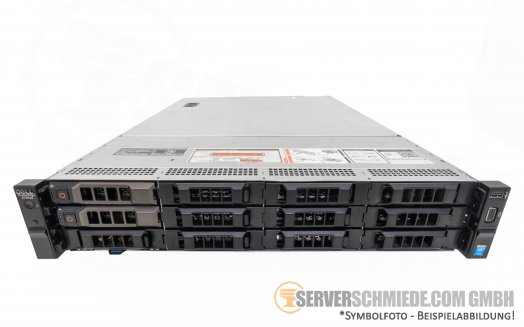

Dell PowerEdge R730xd 19" 2U 12x 3,5" LFF 2x Intel XEON E5-2600 v3 v4 PERC SAS SATA Raid 2x PSU -CTO-
Product description
Vendor: DELL
Unit type: Server
Type: 19" 2 HE
Model: PowerEdge R730xd
HDD bays: 12x HotSwap HDD Bays SAS/S-ATA 12Gb/6Gb Backplane

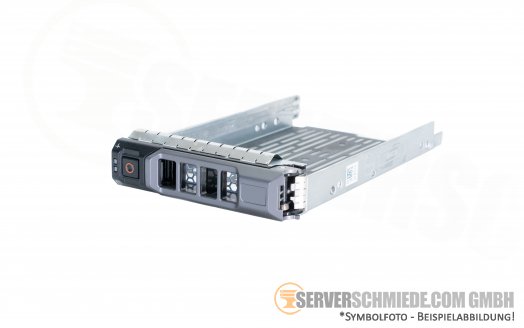

without selected hdds or trays are no hdd trays included in delivery
without selected hdds or trays are no hdd trays included in delivery
Optical drive: ohne
Networking: Quad-Port 1GbE BASE-T Rack Network Daughter Card
Internal interfaces:
information
2x FCLGA2011-3 Intel CPU Sockel for XEON E5-2600 v3 v4 Serie
24x DDR4 288pin ECC DIMM Banks up to 3TB RAM speed to 2400 MT/s
Intel C610 series chipset

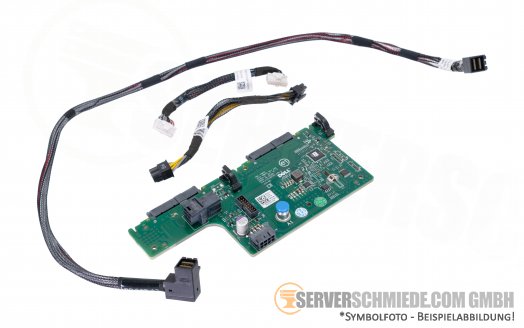

(2xSFF 2,5" Rearflex Backplane 06WNVX optional)

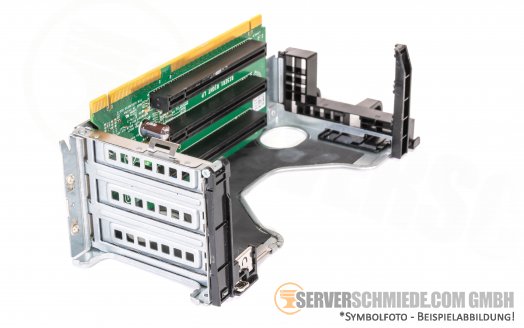

3x Riser interface:
Optional Riser 1 CPU 2
Optional Riser 1 CPU 2:
1. PCIe 3.0 x8 - x8 Connector - Half-height,Half-length slot
2. PCIe 3.0 x8 - x8 Connector - Half-height,Half-length slot
3. PCIe 3.0 x8 - x8 Connector - Half-height,Half-length slot
Riser 2 CPU 1
Riser 2 CPU 1:
1. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
Riser 3 CPU 1
Riser 3 CPU 1:
1. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
interfaces
2x SFF-8643 Connectors for up to 8x SATA
1x NDC Slot
1x TPM Slot
1x USB 3.0
2x SATA
information
2x FCLGA2011-3 Intel CPU Sockel for XEON E5-2600 v3 v4 Serie
24x DDR4 288pin ECC DIMM Banks up to 3TB RAM speed to 2400 MT/s
Intel C610 series chipset
(2xSFF 2,5" Rearflex Backplane 06WNVX optional)
3x Riser interface:
Optional Riser 1 CPU 2
Optional Riser 1 CPU 2:
1. PCIe 3.0 x8 - x8 Connector - Half-height,Half-length slot
2. PCIe 3.0 x8 - x8 Connector - Half-height,Half-length slot
3. PCIe 3.0 x8 - x8 Connector - Half-height,Half-length slot
Riser 2 CPU 1
Riser 2 CPU 1:
1. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
Riser 3 CPU 1
Riser 3 CPU 1:
1. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
interfaces
2x SFF-8643 Connectors for up to 8x SATA
1x NDC Slot
1x TPM Slot
1x USB 3.0
2x SATA
External interfaces:
1x USB 2.0 front
2x USB 3.0 back
1x USB 3.0 internal
4x RJ-45 LAN Gigabit 10/100/1000 Mbit
1x RJ-45 Management Port DELL iDRAC8 with Lifecycle Controller
2x VGA 15pol. D-SUB (1x front)
2x IEC power connection
1x Seriell RS232 interface
1x vFlash media reader
1x USB 2.0 front
2x USB 3.0 back
1x USB 3.0 internal
4x RJ-45 LAN Gigabit 10/100/1000 Mbit
1x RJ-45 Management Port DELL iDRAC8 with Lifecycle Controller
2x VGA 15pol. D-SUB (1x front)
2x IEC power connection
1x Seriell RS232 interface
1x vFlash media reader
Videocard: onboard
Powerunits: 2x Dell HotSwap 750W Power supply
Compatible operating systems:
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Item condition: refurbished, Grade A
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
Product No.: SK0130
Base price: 392,00 €
incl.
19% MwSt | excl. Shipping
Price excl. VAT: 329,41 €
Availability:
Shipping time: 2-5 days + shipping time (excl. weekend, excl. business holidays)
Weight KG: 26.00kg
