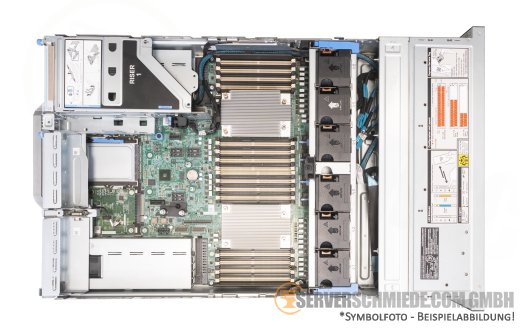

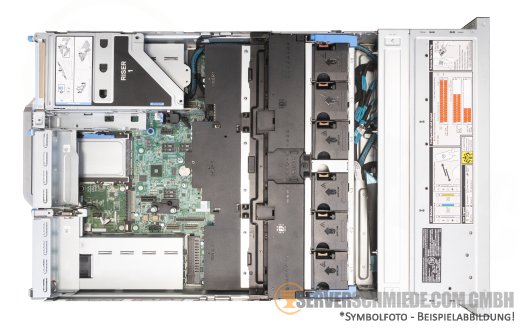

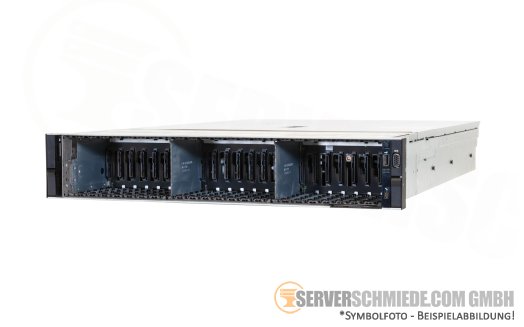

Dell PowerEdge R7525 2U Server 24x 2,5" SFF 16x SAS SATA 8x NVMe* 2x AMD EPYC Gen2 Gen3 DDR4 ECC Raid 2x PSU
Product description
Vendor: Dell
Unit type: Server
Type: 19" 2 HE
Model: PowerEdge R7525
HDD bays: 24x HotSwap HDD Bays SAS/S-ATA Backplane
without selected hdds or trays are no hdd trays included in delivery
without selected hdds or trays are no hdd trays included in delivery
Optical drive: ohne
Networking: 2x 1GbE LOM
Internal interfaces:
information
2x FCLGA4094 SP3 AMD CPU Sockel für 2. und 3. Generation 7002 7003 EPYC CPU
32x DDR4 288pin ECC DIMM banks up to RDIMM (2TB), LRDIMM (4TB)

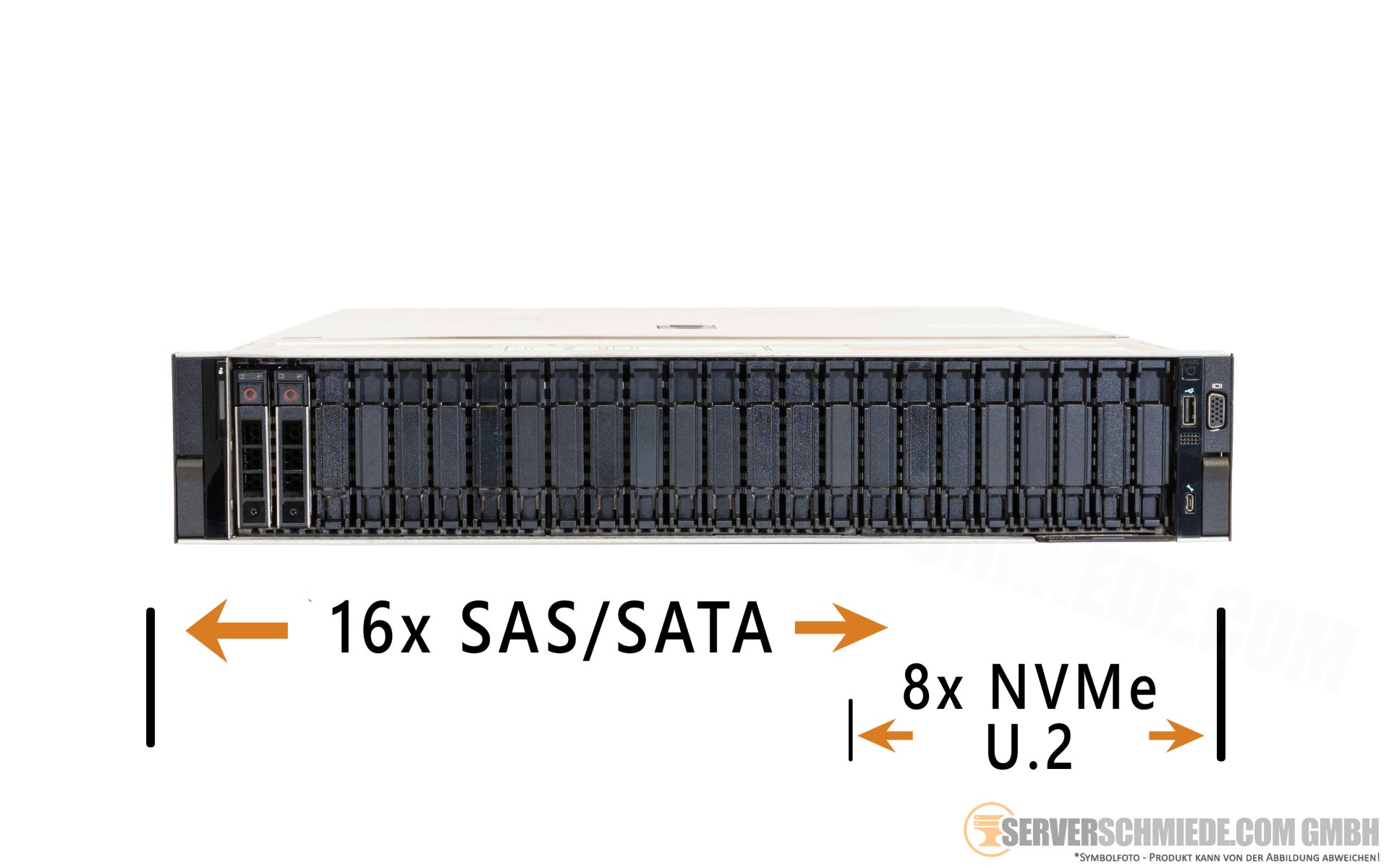

24x 2,5" SFF Backplane:

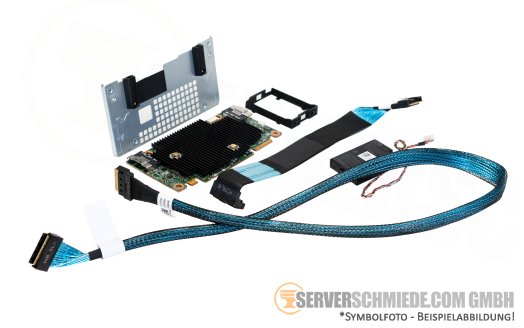

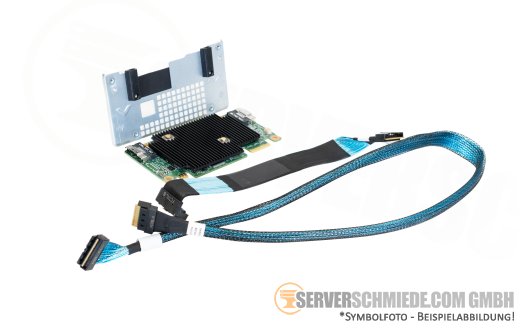

16x SAS / SATA via optional SAS front PERC controller

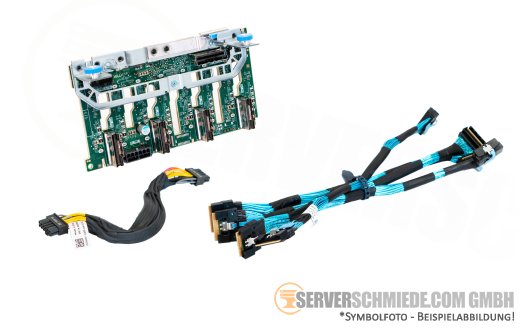

8x NVMe via optional onboard cabling or H755N NVMe front PERC (selectable under Server-Expansions)

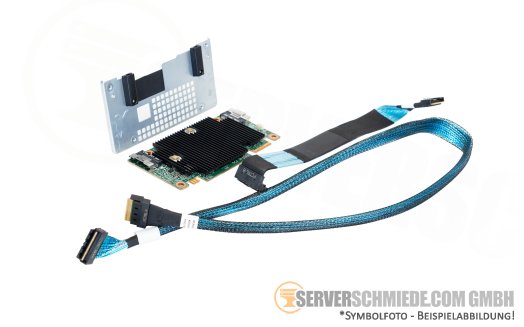

integrated Storage Controller
S150 Storage Controller

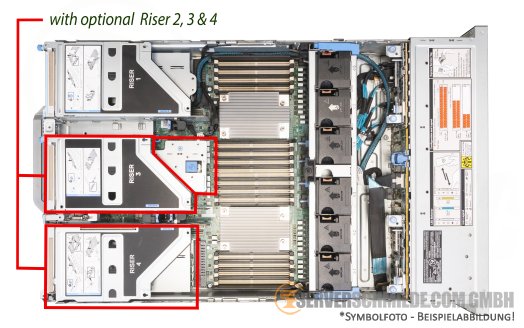

Riser configuration:
The PowerEdge R7525 system supports up to eight PCI express (PCIe) generation 4 expansion cards, that can be installed on the system
board using expansion card risers. The following table provides detailed information about the expansion card riser specifications:
Default Riser:
Riser 1:
2x PCIe 4.0 x16 (x8 lanes) - Full-Profile, Full-Length

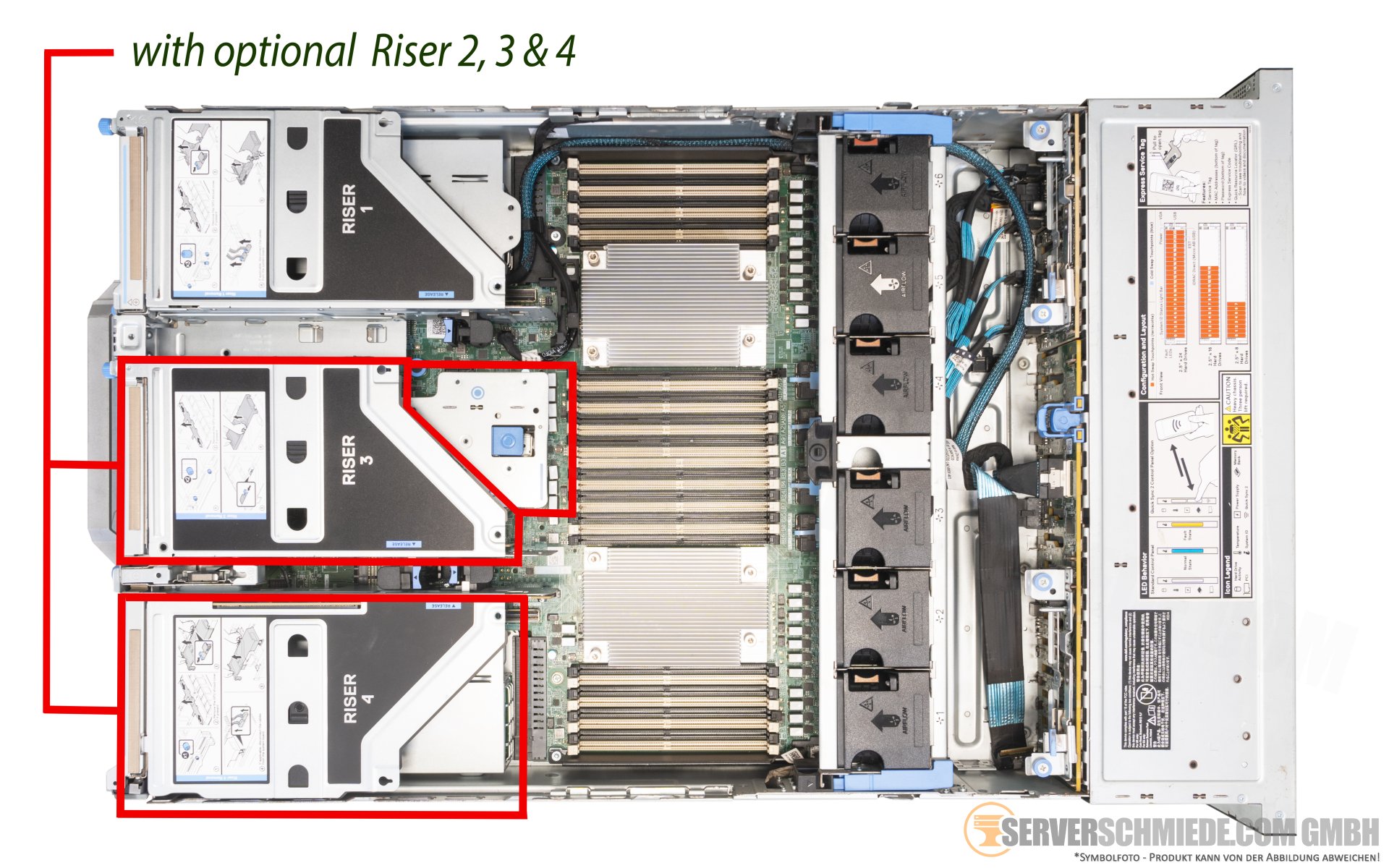

optional selectable Risers:
Riser 2:
2x PCIe 4.0 x16 (x16 lanes) - Low-Profile, Half-Length
Riser 3:
2x PCIe 4.0 x16 (x8 lanes) - Full-Profile, Full-Length
Riser 4:
2x PCIe 4.0 x16 (x8 lanes) - Full-Profile, Full-Length
information
2x FCLGA4094 SP3 AMD CPU Sockel für 2. und 3. Generation 7002 7003 EPYC CPU
32x DDR4 288pin ECC DIMM banks up to RDIMM (2TB), LRDIMM (4TB)
24x 2,5" SFF Backplane:
16x SAS / SATA via optional SAS front PERC controller
8x NVMe via optional onboard cabling or H755N NVMe front PERC (selectable under Server-Expansions)
integrated Storage Controller
S150 Storage Controller
Riser configuration:
The PowerEdge R7525 system supports up to eight PCI express (PCIe) generation 4 expansion cards, that can be installed on the system
board using expansion card risers. The following table provides detailed information about the expansion card riser specifications:
Default Riser:
Riser 1:
2x PCIe 4.0 x16 (x8 lanes) - Full-Profile, Full-Length
optional selectable Risers:
Riser 2:
2x PCIe 4.0 x16 (x16 lanes) - Low-Profile, Half-Length
Riser 3:
2x PCIe 4.0 x16 (x8 lanes) - Full-Profile, Full-Length
Riser 4:
2x PCIe 4.0 x16 (x8 lanes) - Full-Profile, Full-Length

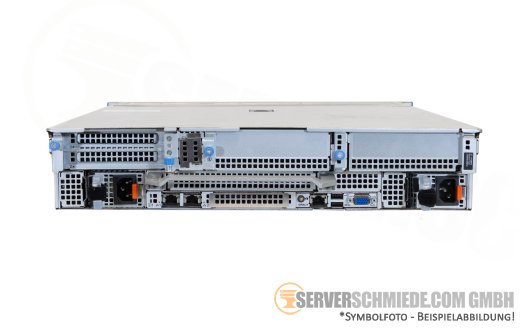

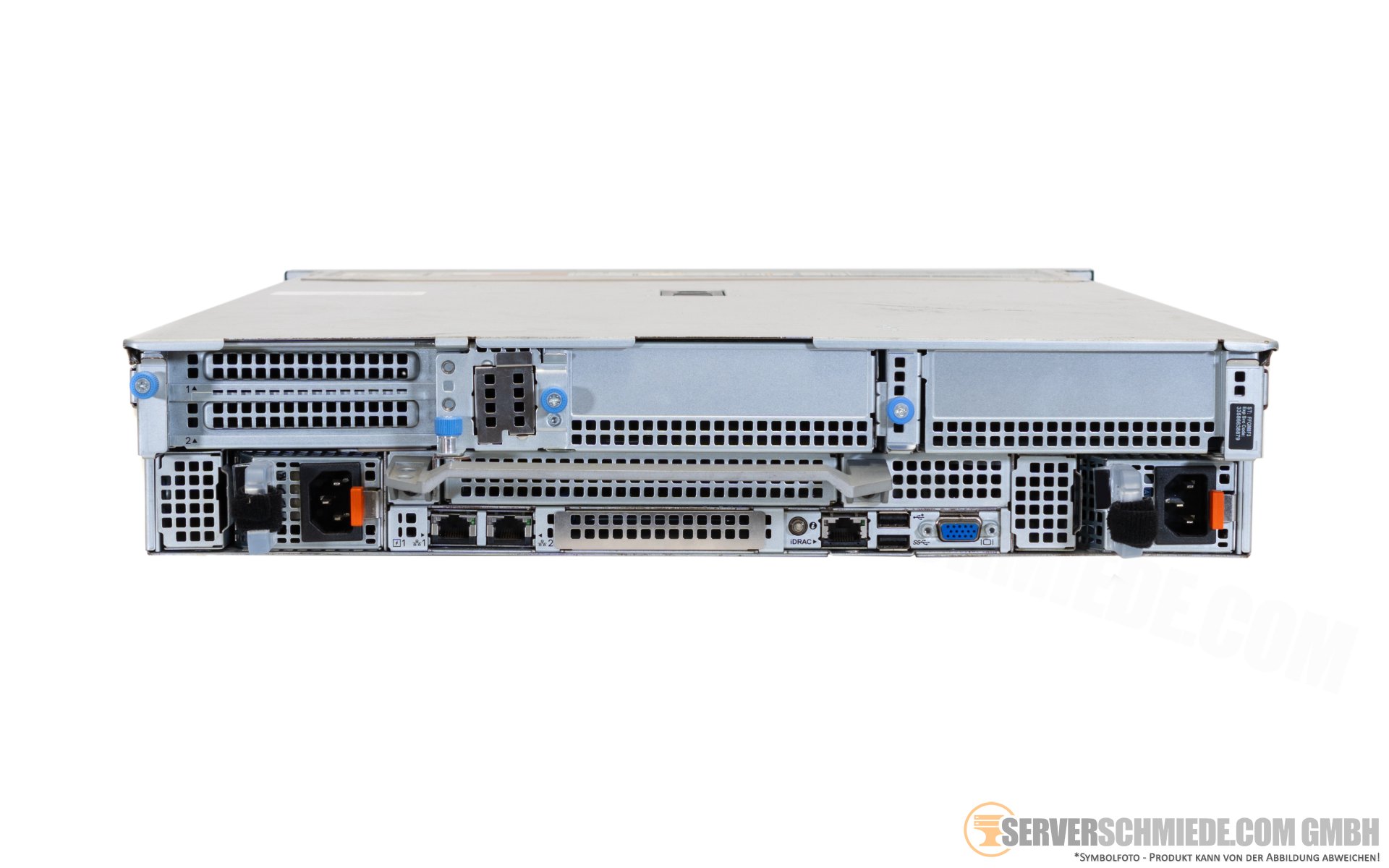

External interfaces:
2x 1 GbE RJ-45
1x RJ-45 Servermanagement IDRAC9 Port
1x USB 3.0
2x USB 2.0 (1x front)
2x VGA 15pol. D-SUB (1x rear, 1x front)
2x 1 GbE RJ-45
1x RJ-45 Servermanagement IDRAC9 Port
1x USB 3.0
2x USB 2.0 (1x front)
2x VGA 15pol. D-SUB (1x rear, 1x front)
Videocard: onboard
Powerunits: up to 2x Dell HotSwap Power supply
Net weight: 16,5 kg
Installation depth: 76 cm
Dimensions: L: 80 cm | B: 48 cm | H: 9 cm
Compatible operating systems:
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Item condition: refurbished, Grade A
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
manufacturer information:
Dell Technologies
One Dell Way,
Round Rock TX 78682
USA
https://www.dell.com/support/incidents-online/de-de/ContactUs/Dynamic
Product No.: SK0524
Base price: 3.721,00 €
incl.
19% MwSt | excl. Shipping
Price excl. VAT: 3.126,89 €
Availability:
Shipping time: 2-5 days + shipping time (excl. weekend, excl. business holidays)
Weight KG: 27.00kg
