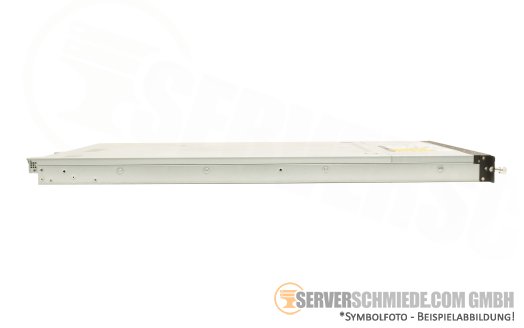

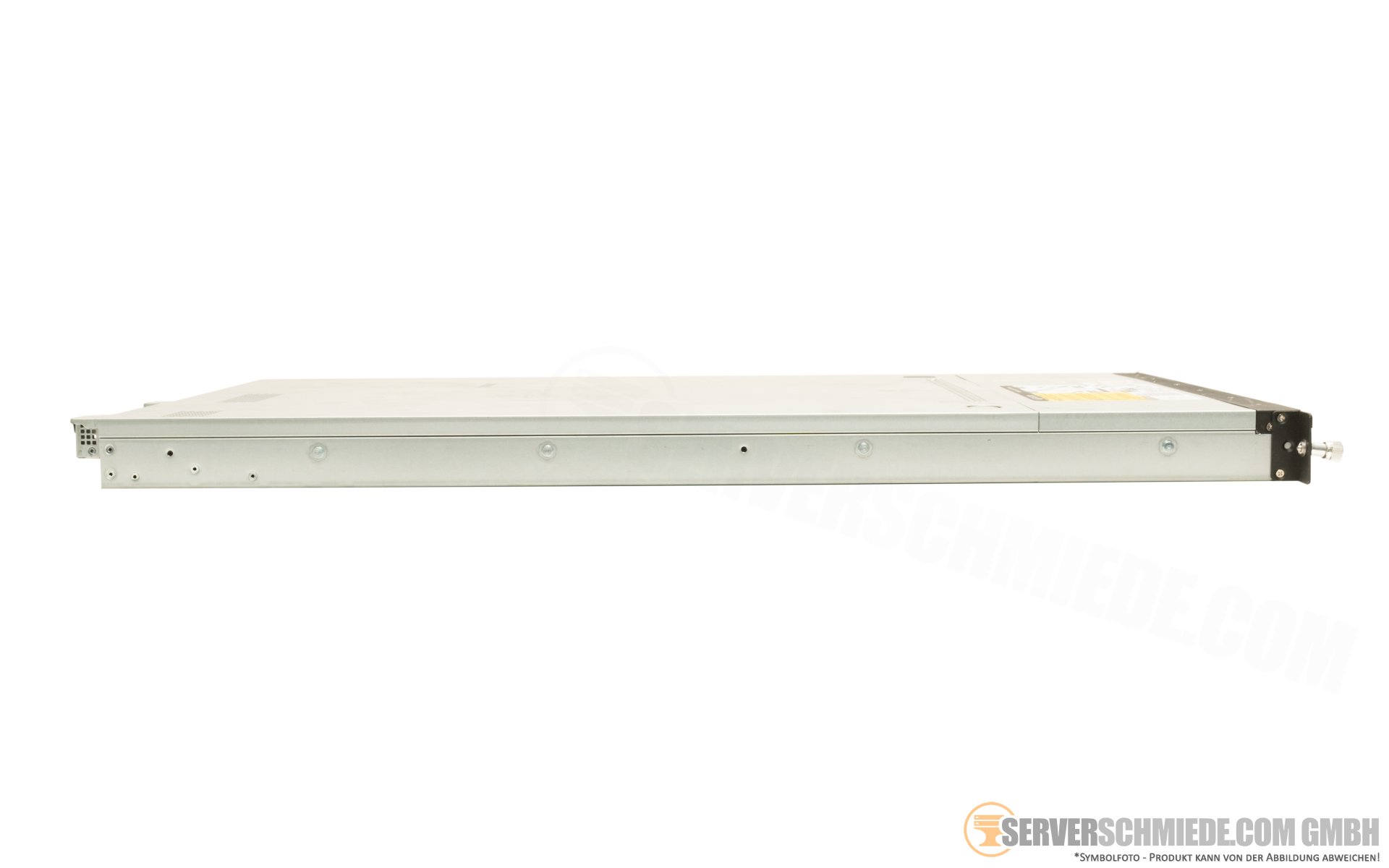

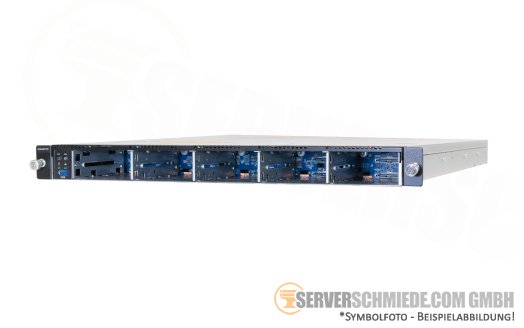

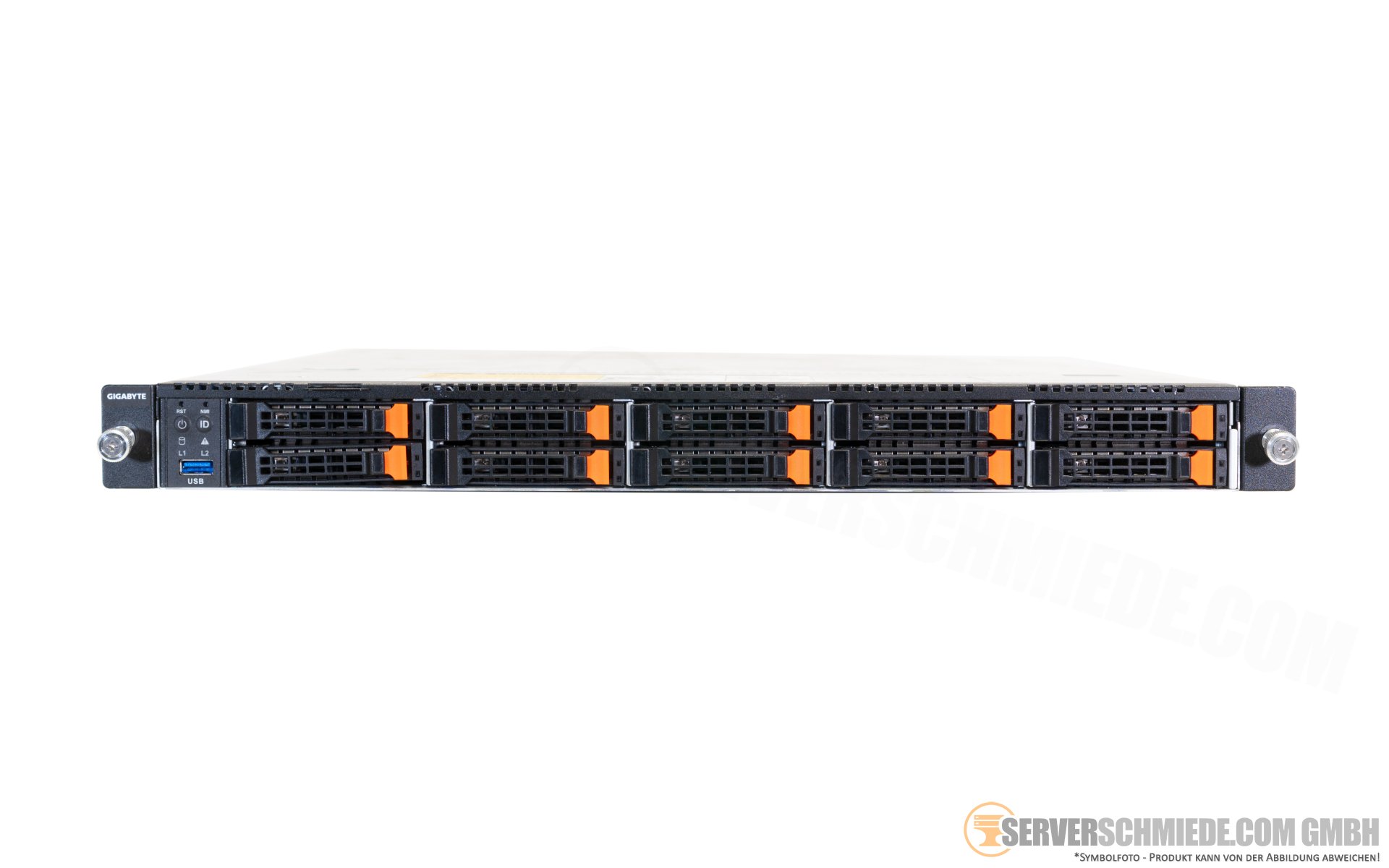

Gigabyte R182-Z92 MZ92-FS0 1U Server 10x 2,5" SFF NVMe 2x AMD EPYC Gen2 Gen3 DDR4 ECC 2x PSU +NEW+
Product description
Vendor: Gigabyte
Unit type: Server
Type: 19" 1 HE
Model: R182-Z92

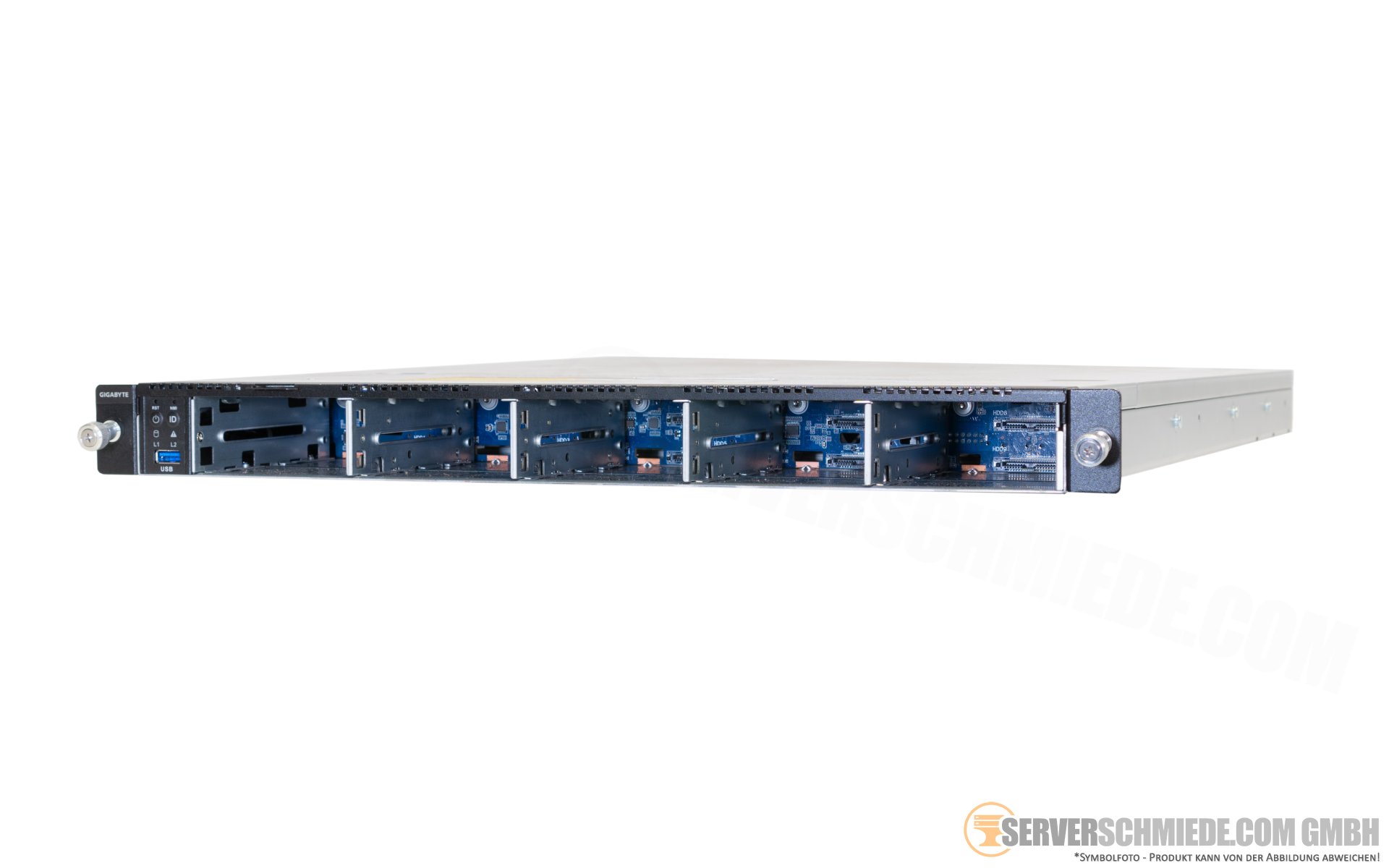

HDD bays: 10x HotSwap HDD Bays SAS/S-ATA Backplane
without selected hdds or trays are no hdd trays included in delivery
without selected hdds or trays are no hdd trays included in delivery
Optical drive: ohne
Networking: 2x OCP (2.0 & 3.0) Slot optional selectable
Internal interfaces:
information

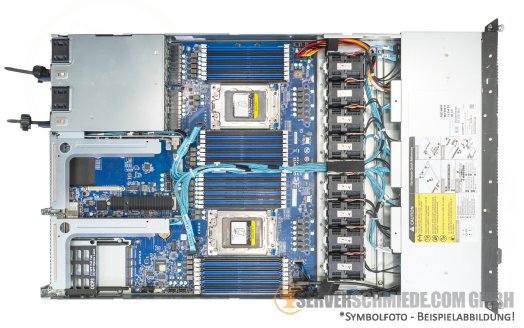

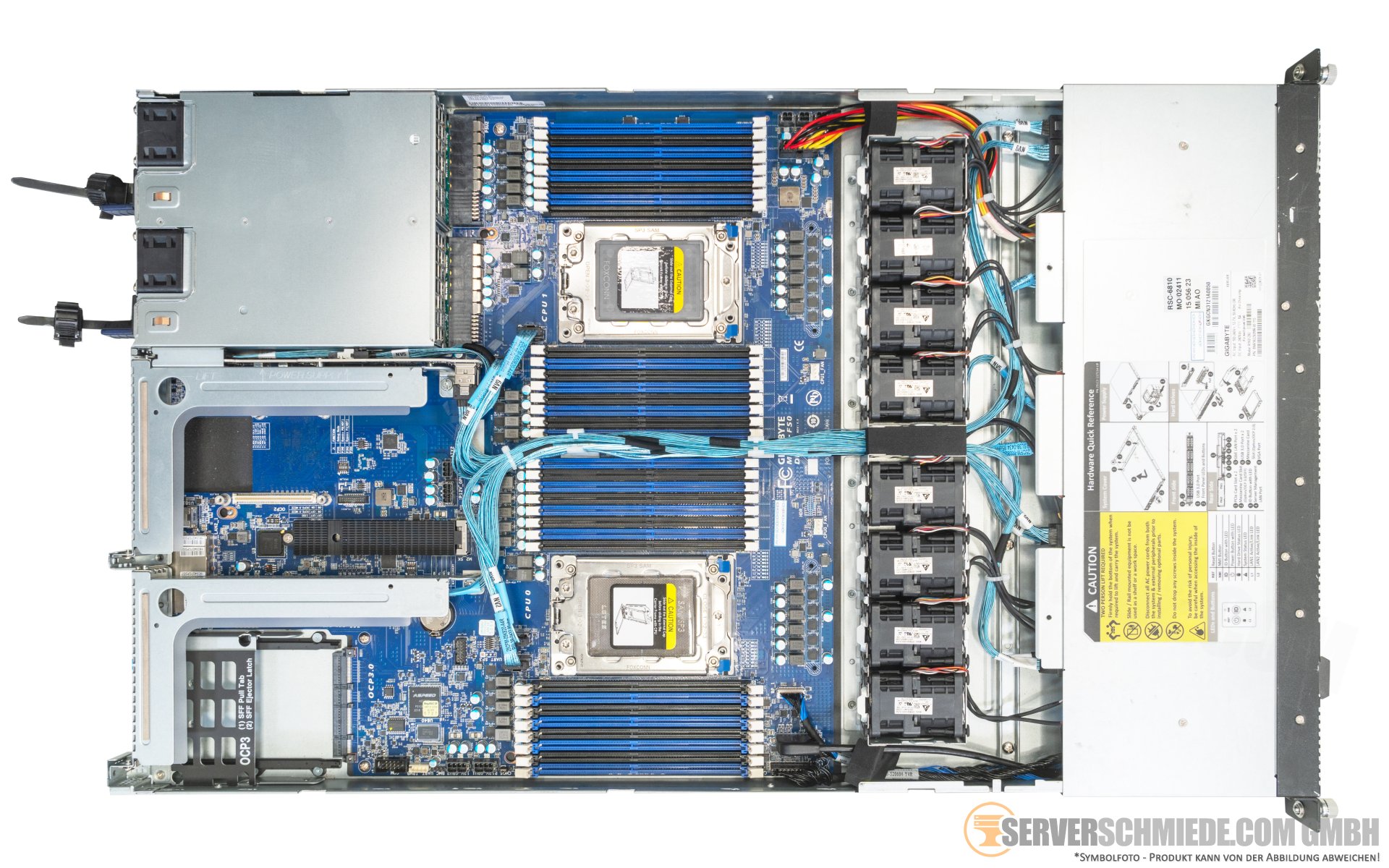

Mainboard GIGABYTE MZ92-FS0
2x FCLGA4094 SP3 AMD CPU Sockel für 2. & 3. Generation EPYC CPU bis zu 64 Core per CPU
32x DDR4 288pin ECC DIMM banks up to 8TB RAM
No chipset – System on Chip (SoC) design
(NVMe Software Raid with all NVMe SSDs possible)
2x Riser Interface:
Primary Riser 1:
1. PCIe 4.0 x16 - x16 Connector - Full-height,Half-length slot
Secondary Riser 1:
1. PCIe 4.0 x16 - x16 Connector - Full-height,Half-length slot
Interfaces
1x OCP 3.0 mezzanine slot (PCIe Gen4 x16)
1x OCP 2.0 mezzanine slot (PCIe Gen3 x8; via CPU 2)
1x M.2 slot, M-key, PCIe Gen3 x4, supports 2242/2260/2280/22110
1x TPM Header
information
Mainboard GIGABYTE MZ92-FS0
2x FCLGA4094 SP3 AMD CPU Sockel für 2. & 3. Generation EPYC CPU bis zu 64 Core per CPU
32x DDR4 288pin ECC DIMM banks up to 8TB RAM
No chipset – System on Chip (SoC) design
(NVMe Software Raid with all NVMe SSDs possible)
2x Riser Interface:
Primary Riser 1:
1. PCIe 4.0 x16 - x16 Connector - Full-height,Half-length slot
Secondary Riser 1:
1. PCIe 4.0 x16 - x16 Connector - Full-height,Half-length slot
Interfaces
1x OCP 3.0 mezzanine slot (PCIe Gen4 x16)
1x OCP 2.0 mezzanine slot (PCIe Gen3 x8; via CPU 2)
1x M.2 slot, M-key, PCIe Gen3 x4, supports 2242/2260/2280/22110
1x TPM Header

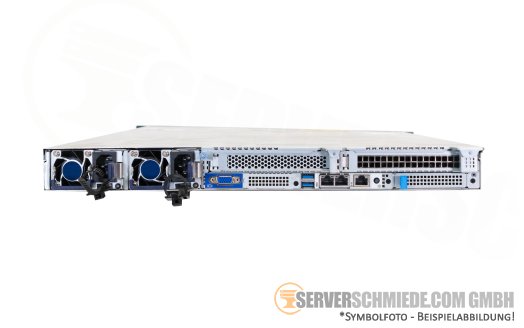

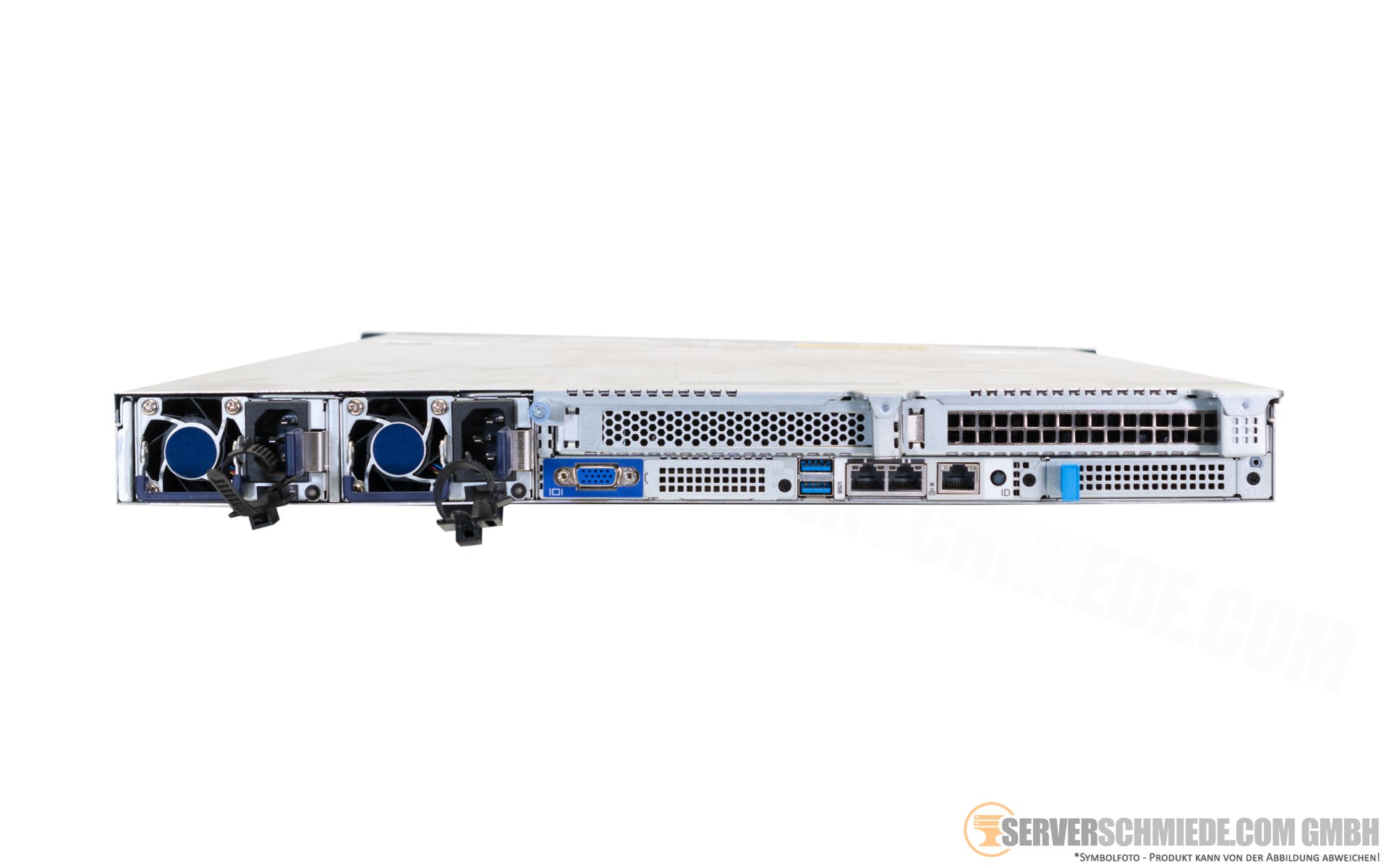

External interfaces:
3x USB 3.0 (1x front)
2x RJ-45 1GbE i350-AM2 onboard
1x RJ-45 Servermanagement IPMI Aspeed AST2500 Port
1x VGA 15pol. D-SUB
3x USB 3.0 (1x front)
2x RJ-45 1GbE i350-AM2 onboard
1x RJ-45 Servermanagement IPMI Aspeed AST2500 Port
1x VGA 15pol. D-SUB
Videocard: onboard
Powerunits: up to 2x 1200W HotSwap Power supply
Net weight: 10,26 kg
Dimensions: L: 78 cm | B: 48,5 cm | H: 4,5 cm
Compatible operating systems:
Windows: Windows Server 2016, 2019, 2022*, 2025*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Windows: Windows Server 2016, 2019, 2022*, 2025*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Item condition: refurbished, Grade A
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
manufacturer information:
GIGA-BYTE Technology Co., Ltd.
No. 6, Baoqiang Road, Xindian District
New Taipei City 231
Taiwan
https://www.gigabyte.com/Support
GIGA-BYTE Technology Co., Ltd.
Am Stadtrand 63
22047 Hamburg
Deutschland
https://www.gigabyte.com/Support
Product No.: SK0615
Base price: 1.821,00 €
incl.
19% MwSt | excl. Shipping
Price excl. VAT: 1.530,25 €
Availability:
Shipping time: 2-5 days + shipping time (excl. weekend, excl. business holidays)
Weight KG: 27.00kg
