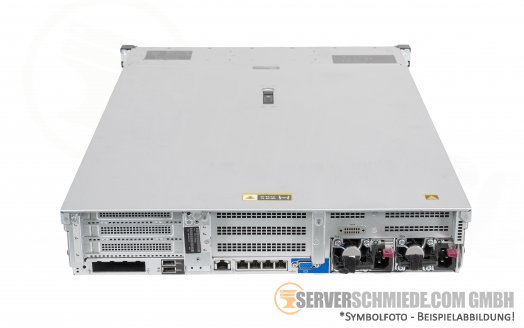

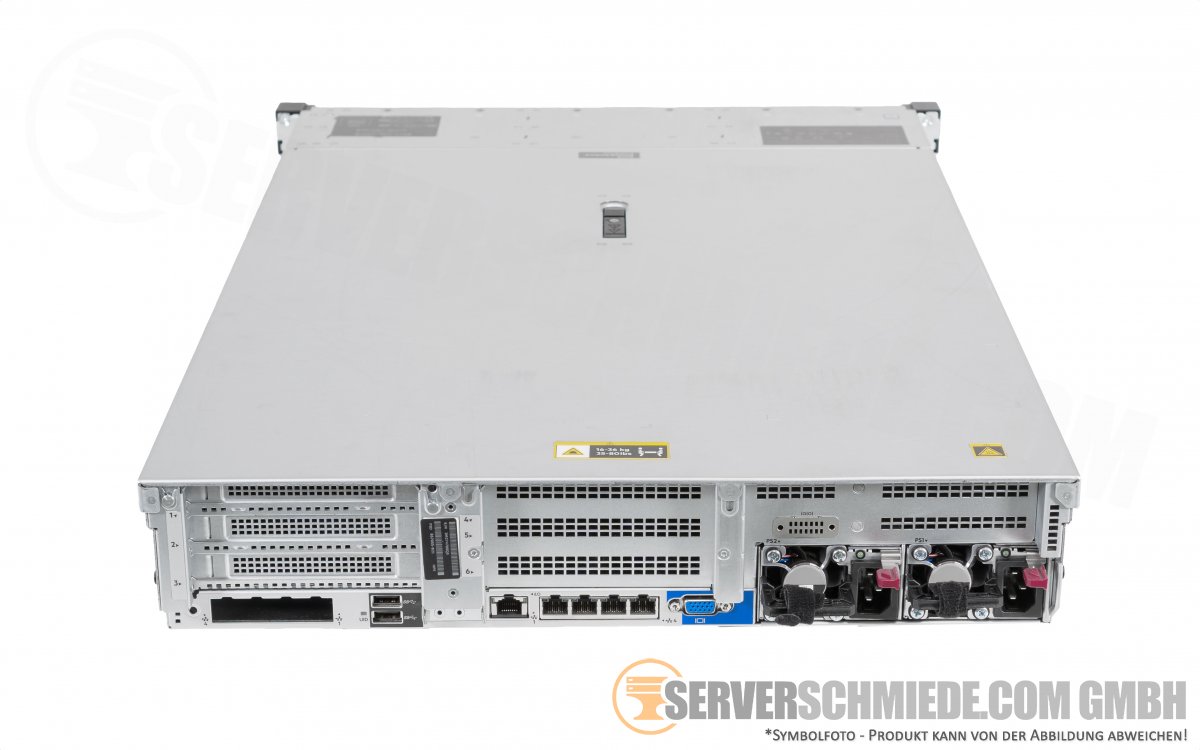

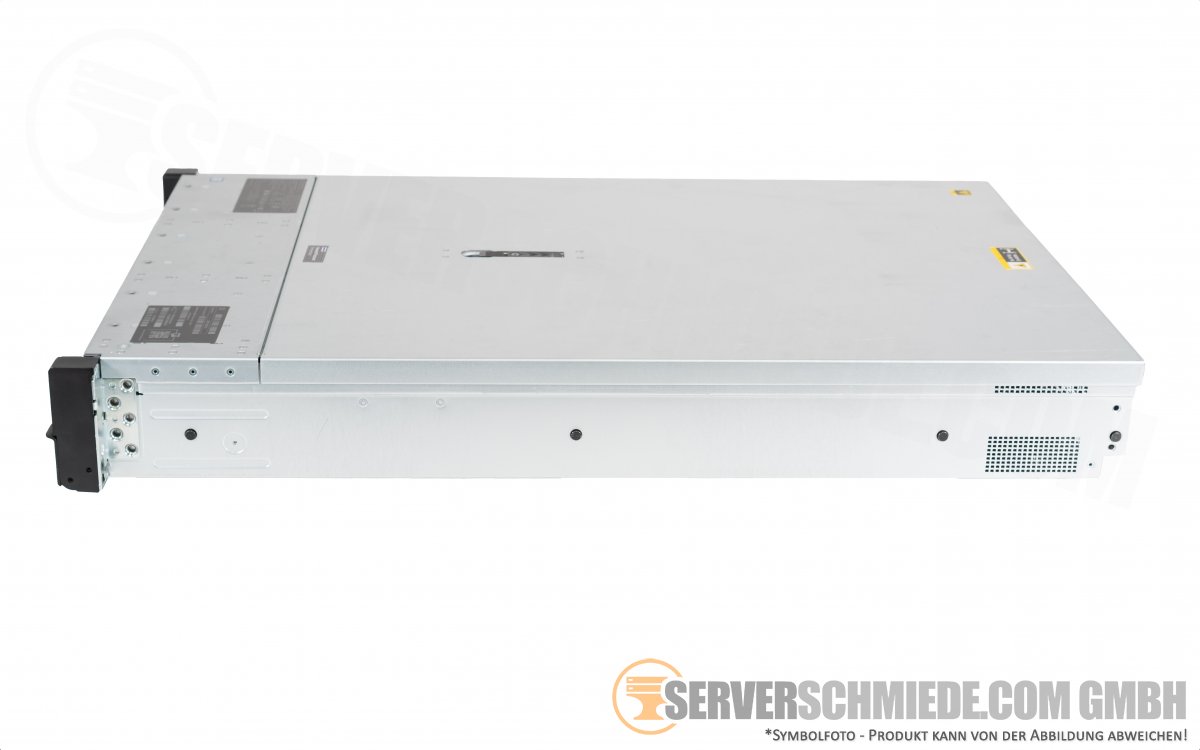

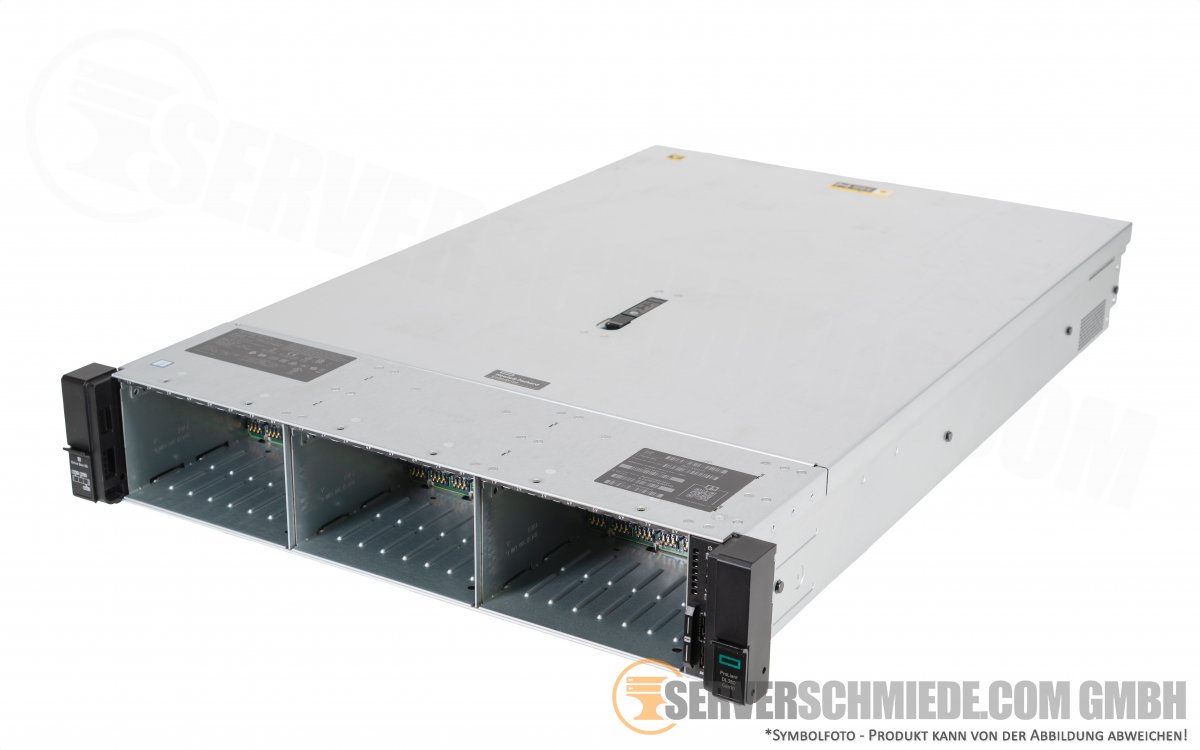

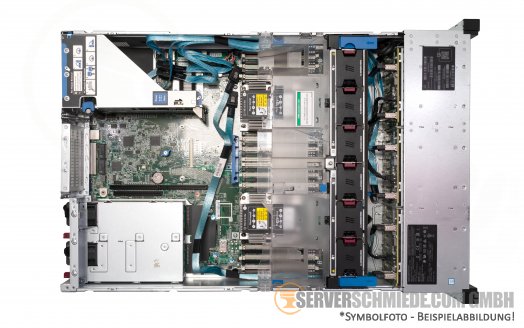

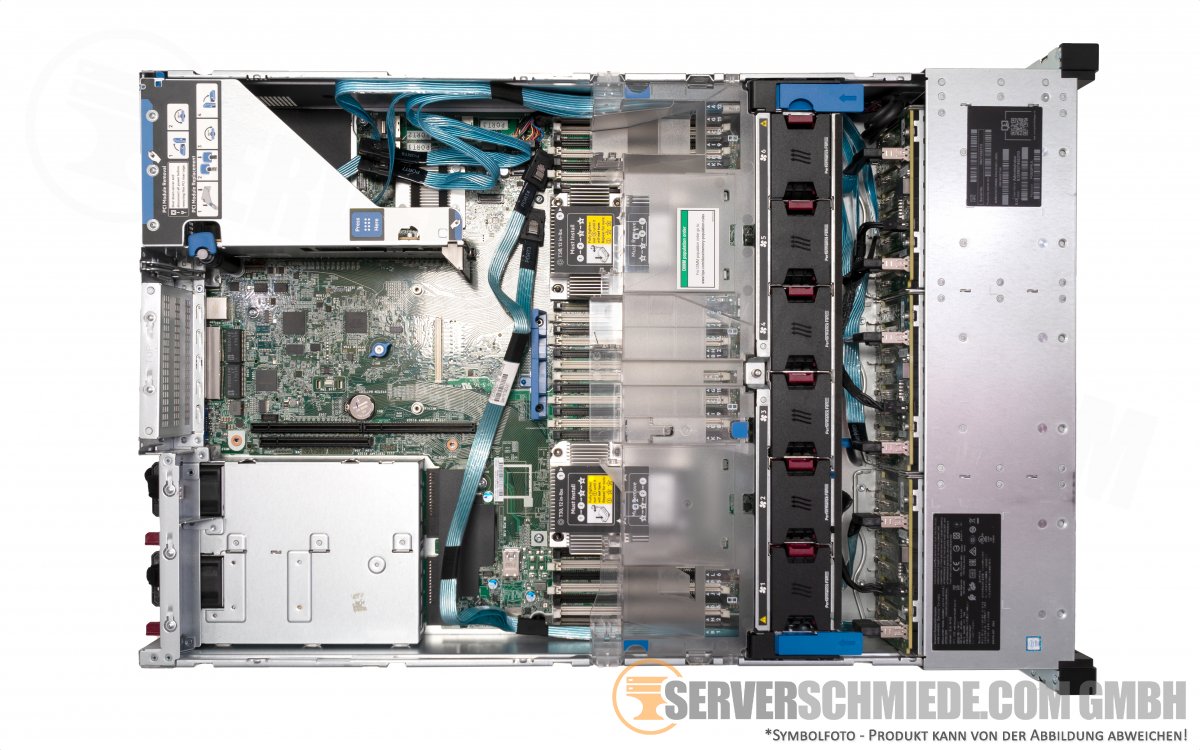

HP ProLiant DL380 Gen10 G10 19" 2U Server 24x 2,5" SFF 2x Intel XEON Scalable LGA3647 DDR4 ECC Raid 2x PSU -CTO-
without selected hdds or trays are no hdd trays included in delivery
information

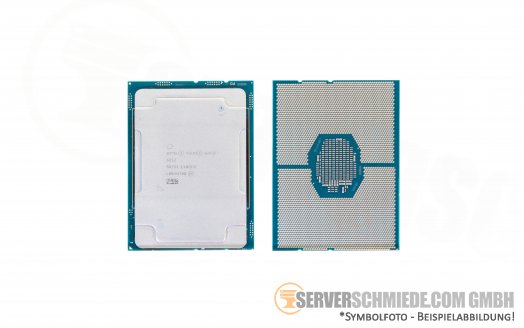

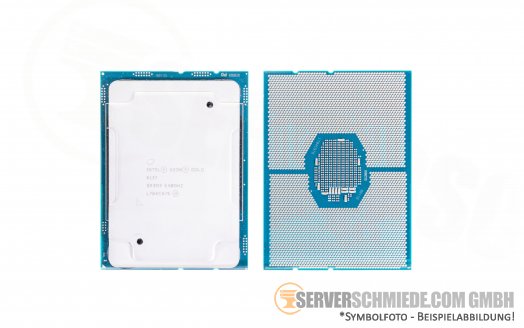

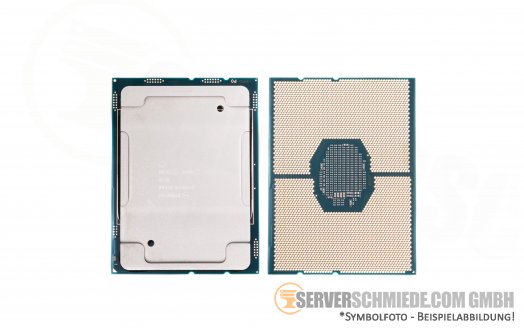

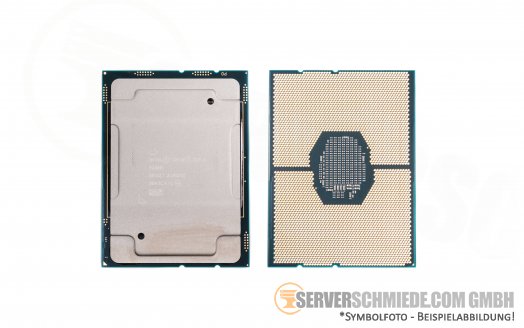

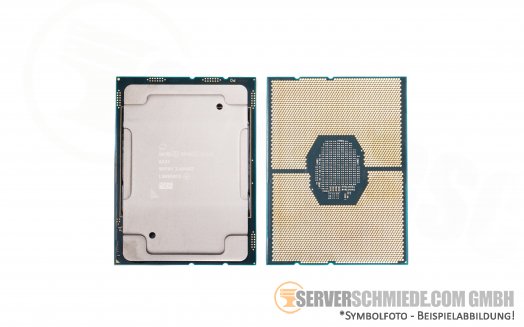

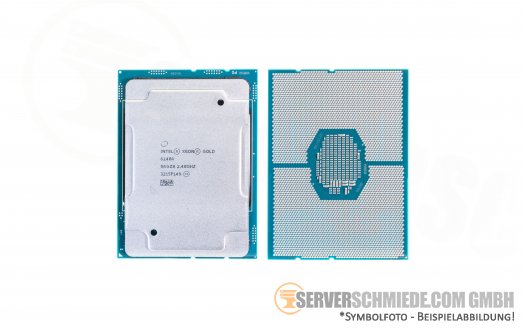

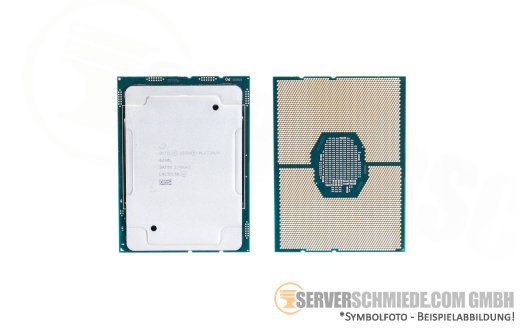

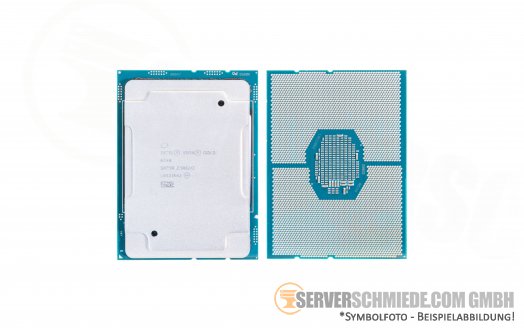

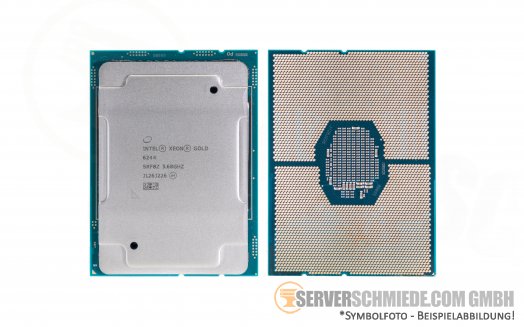

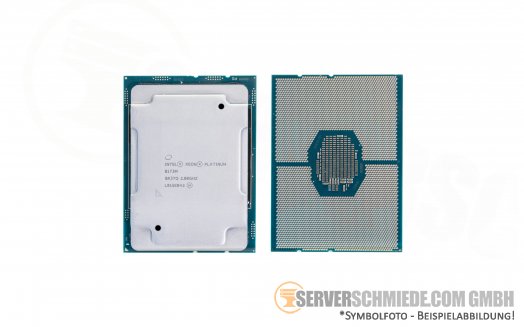

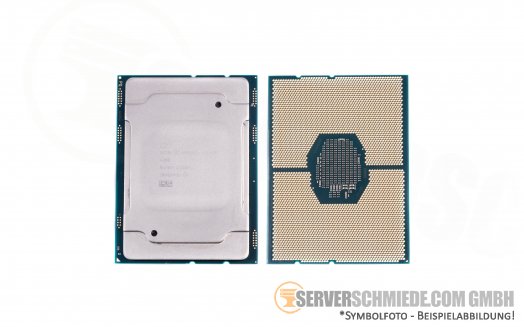

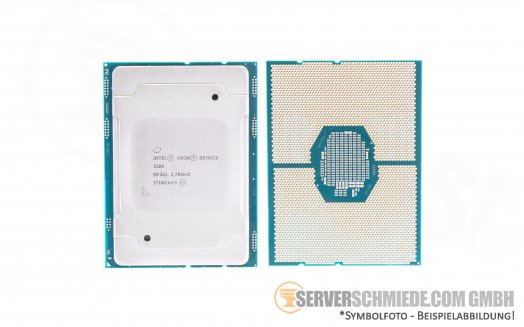

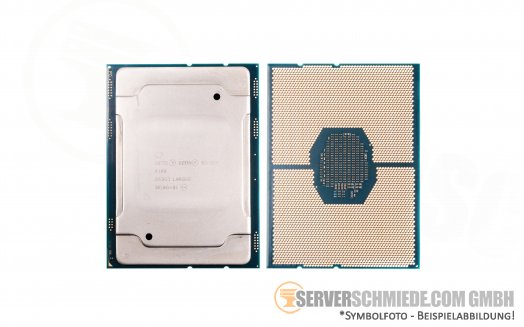

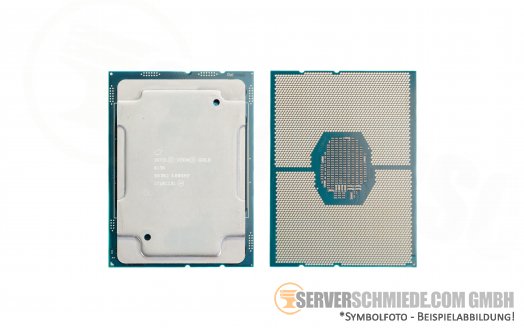

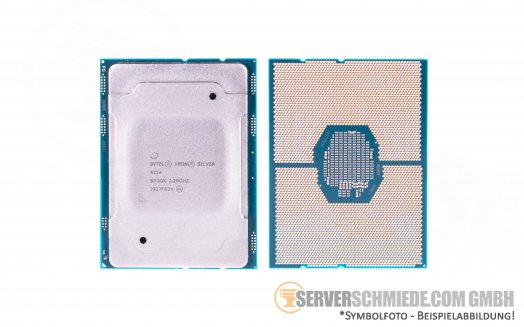

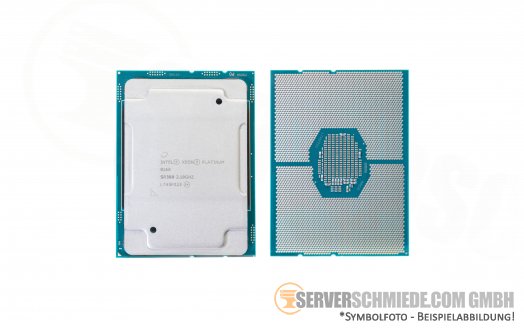

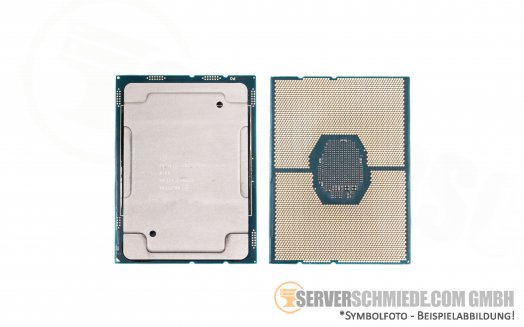

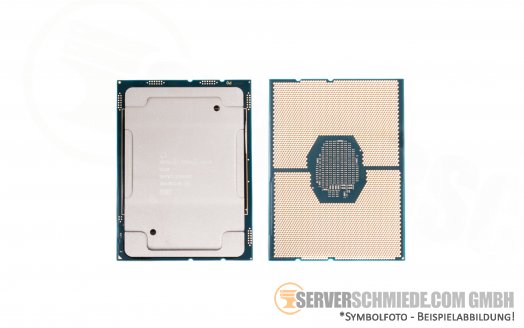

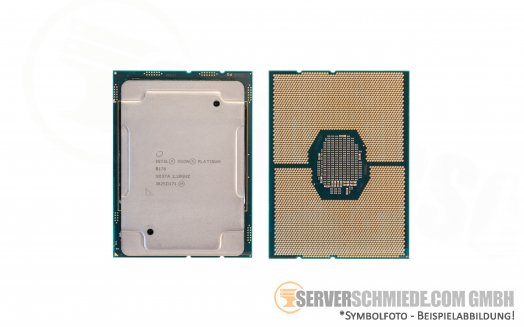

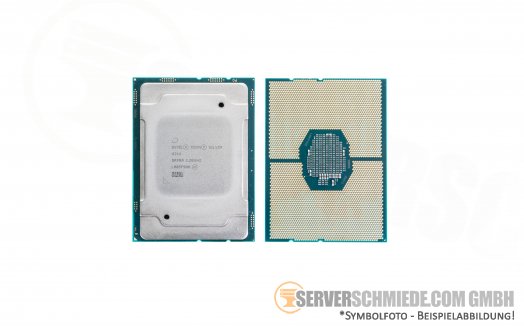

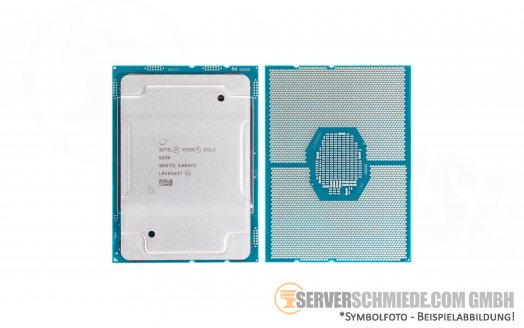

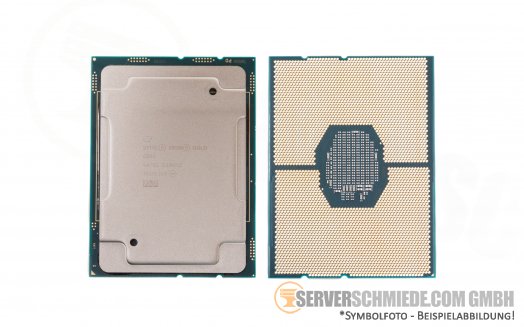

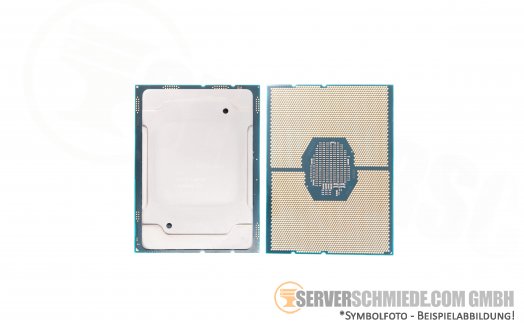

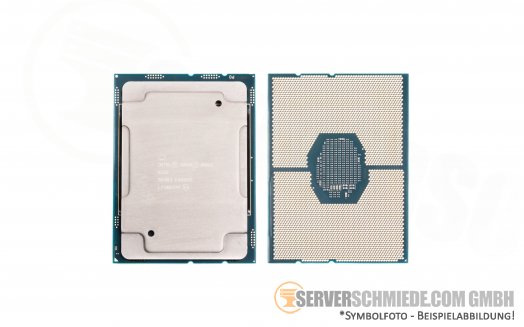

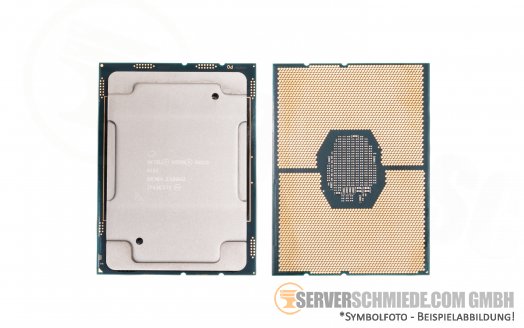

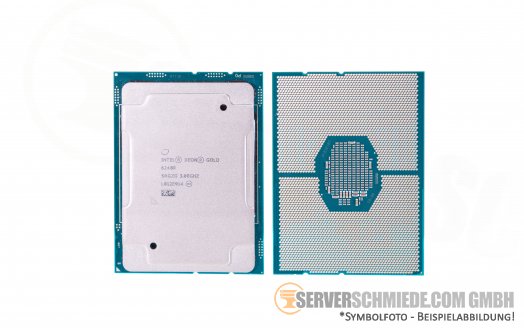

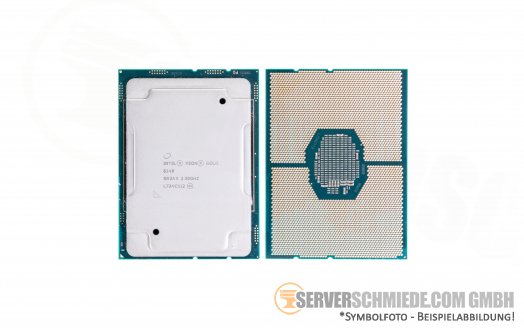

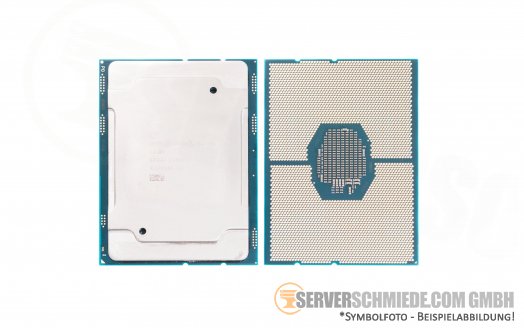

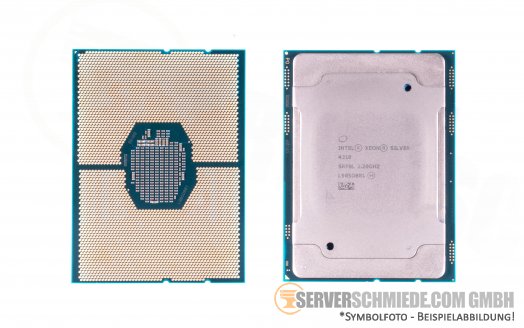

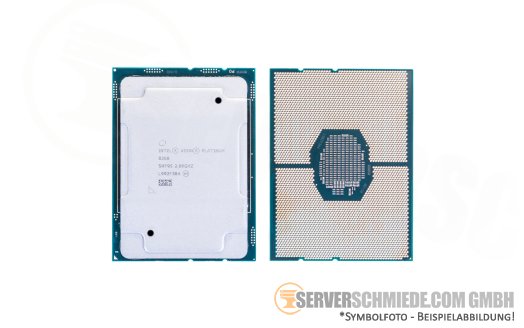

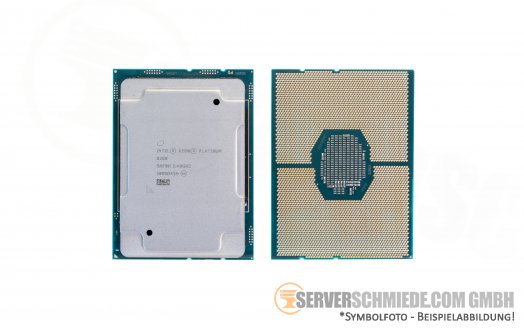

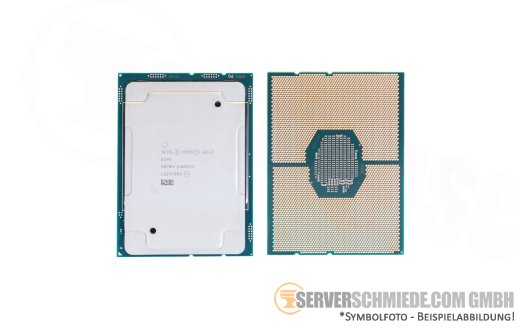

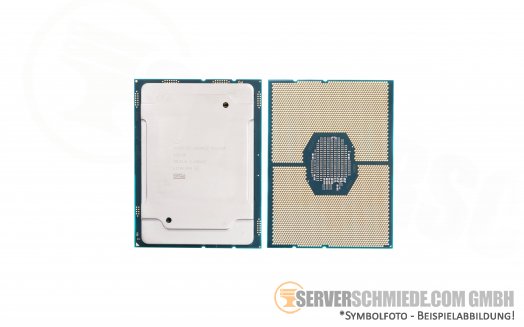

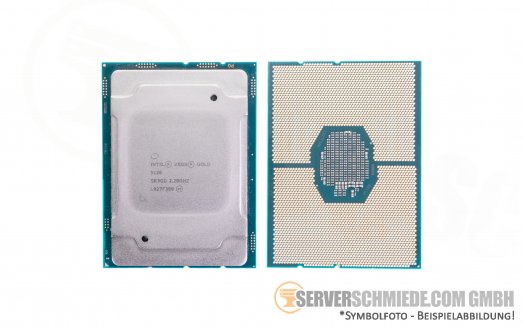

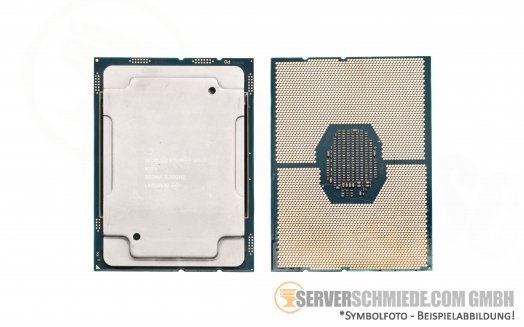

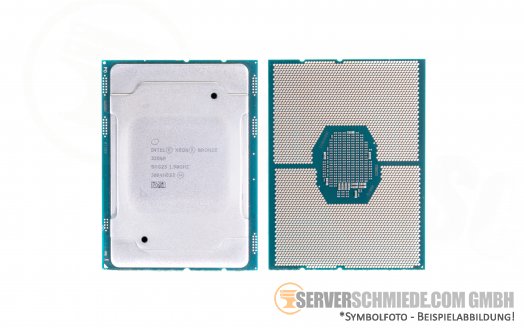

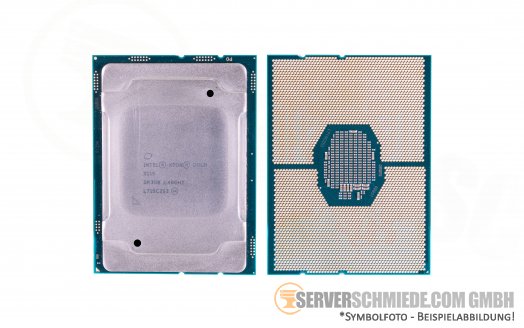

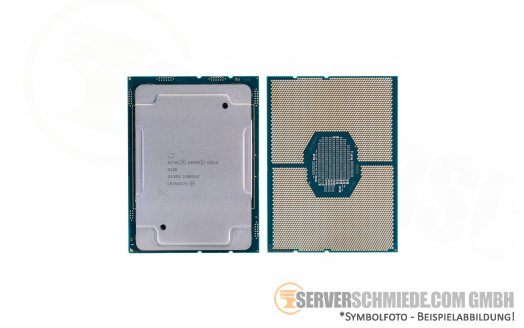

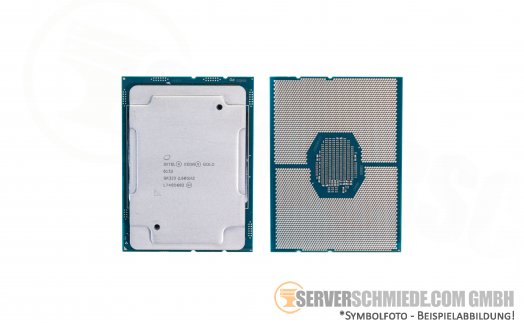

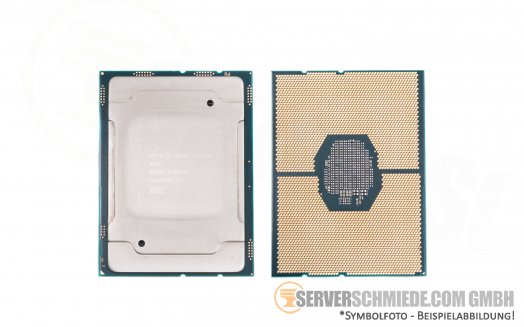

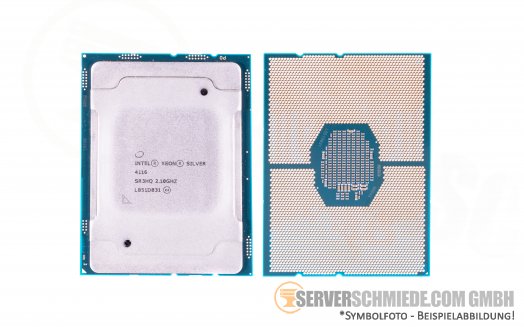

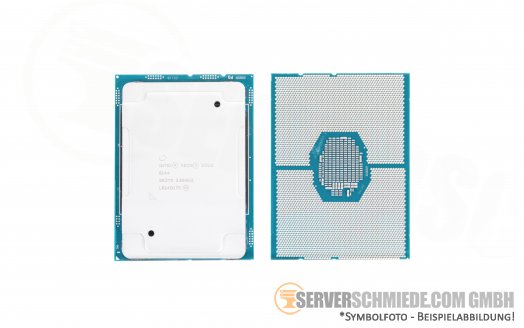

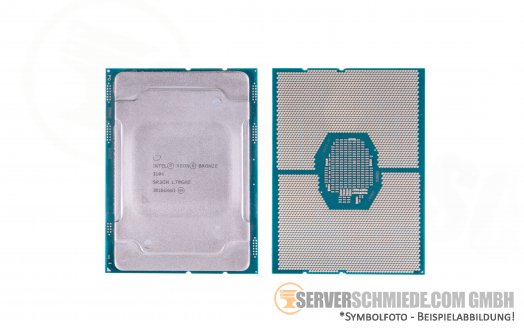

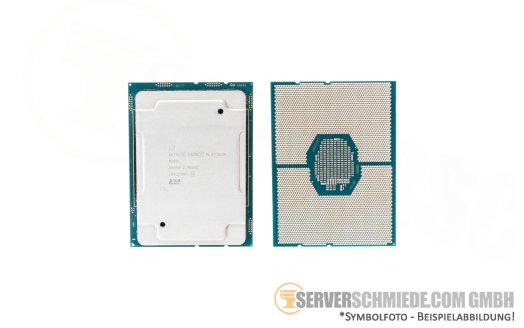

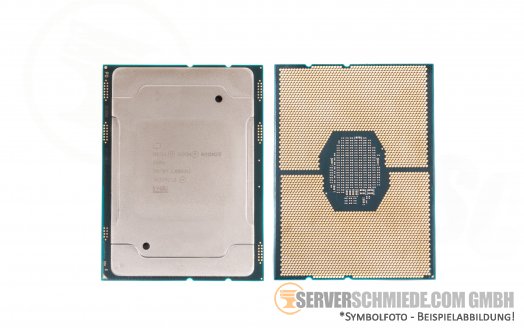

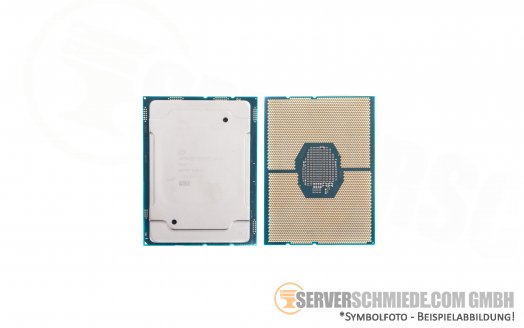

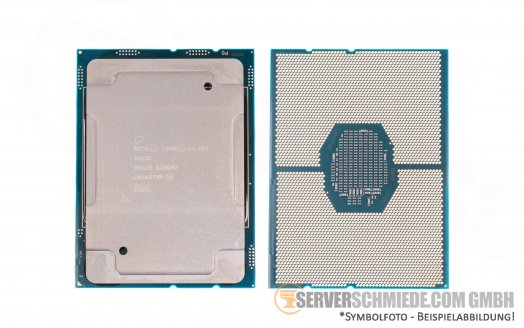

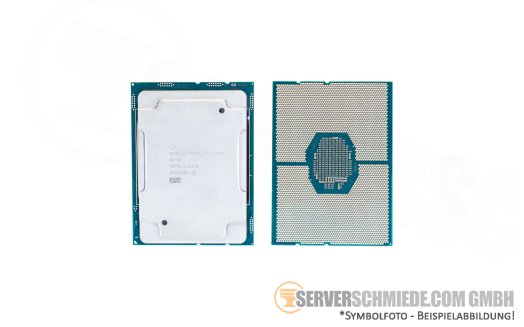

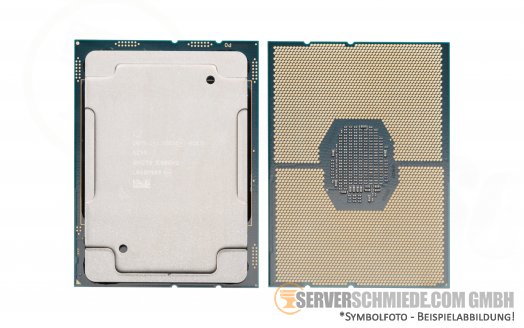

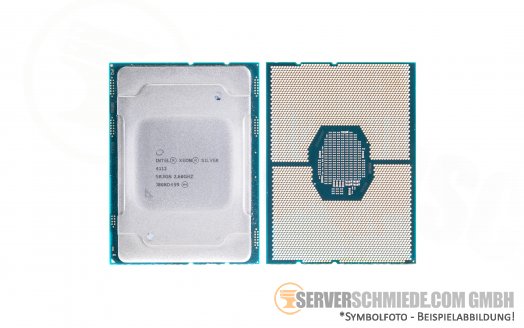

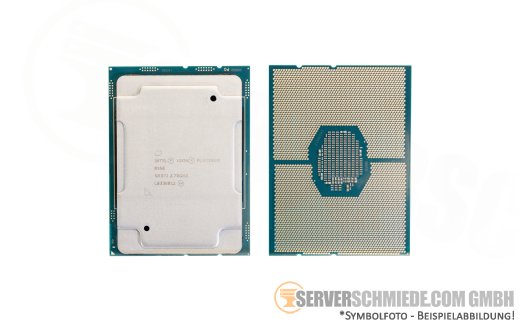

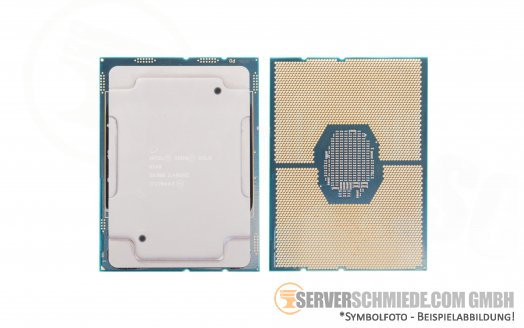

2x FCLGA3647 Intel CPU Sockel für Skalierbare Intel® Xeon® Prozessoren - bis 28 Core CPU
24x DDR4 288pin ECC DIMM banks up to 3TB RAM
Intel® C621 Series Chipset

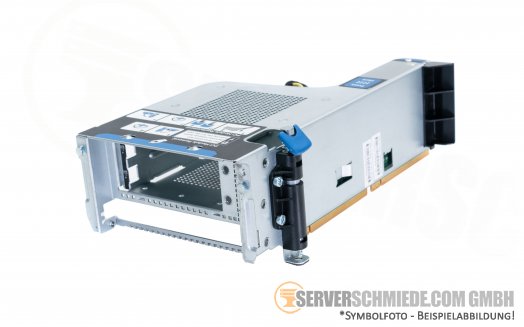

3x Riser interface:
Primary Riser CPU 1
Option Primary Riser 1 CPU 1:
1. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x16 Connector - Full-height,Full-length slot
3. PCIe 3.0 x8 - x8 Connector - Full-height,Half-length slot

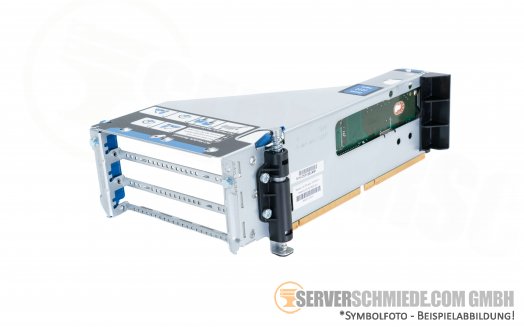

Optional Secondary Riser CPU 2
Option Secondary Riser 1 CPU 2:
1. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x16 Connector - Full-height,Full-length slot
3. PCIe 3.0 x8 - x8 Connector - Full-height,Half-length slot

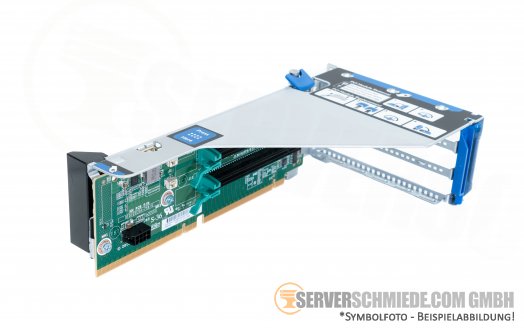

Option Secondary Riser 2 CPU 2:
1. -none-
2. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
3. PCIe 3.0 x16 - x16 Connector - Full-height,Half-length slot
Option Secondary Riser 3 CPU 2:
1. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
2. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
3. -none-

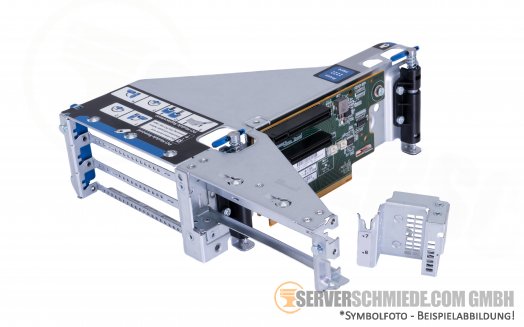

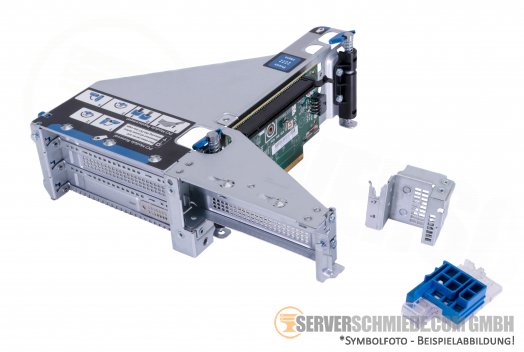

Optional Tertiary Riser CPU 2
Option Tertiary Riser 1 CPU 2:
1. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
Option Tertiary Riser 2 CPU 2:
2. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
Integrated Storage Controller
S100i Storage Controller
Interfaces
3x SFF-8087 for up to 10x SATA
1x USB 3.0 connector
1x MicroSD card slot

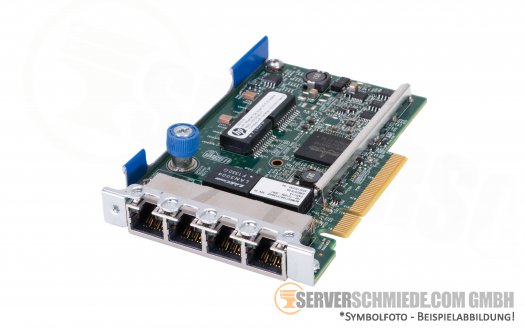

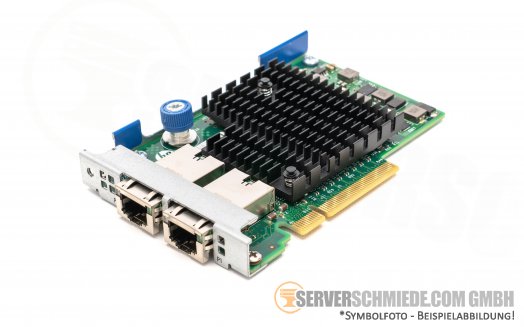

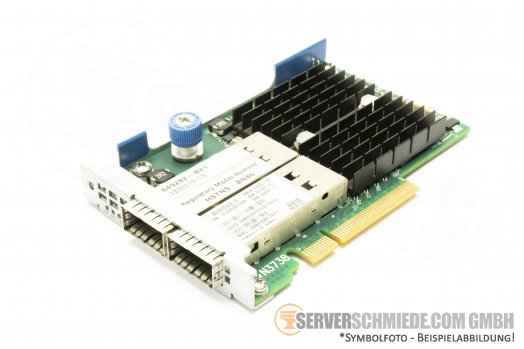

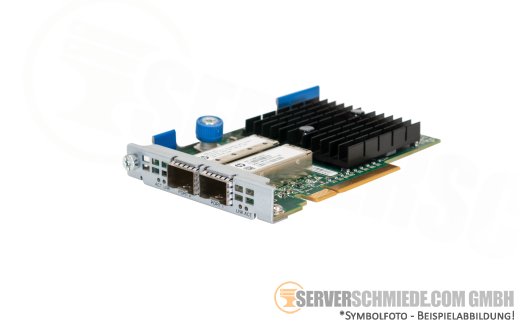

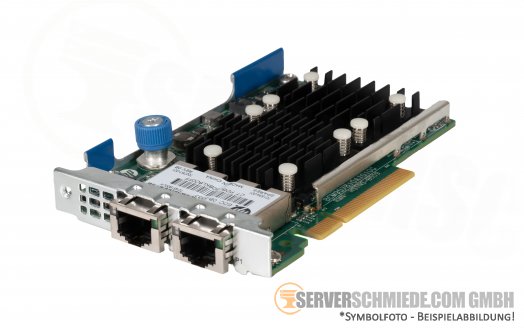

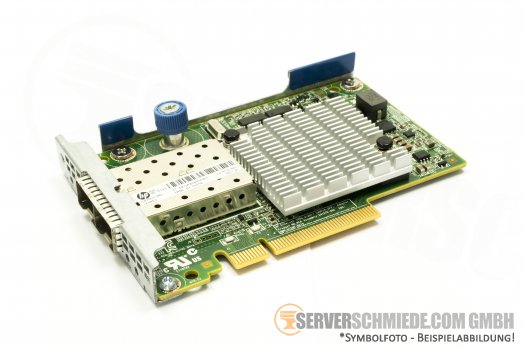

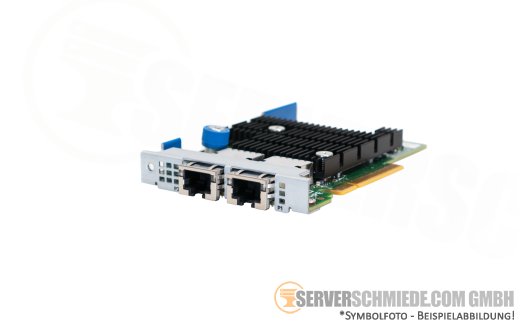

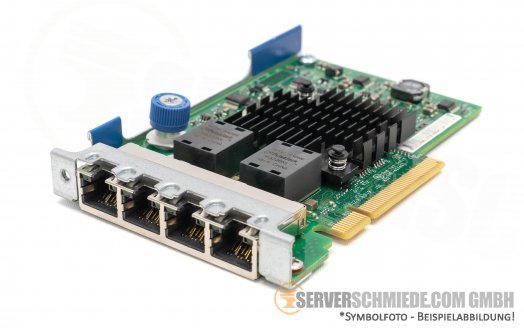

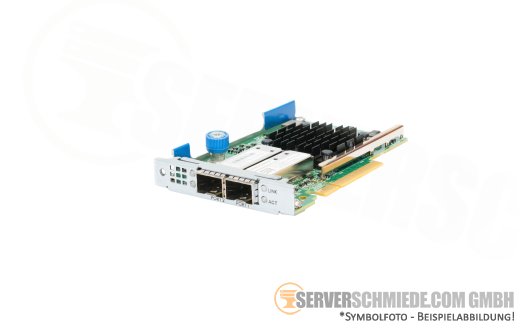

1x FlexibleLOM slot
2x SATA
3x USB 3.0 (1x front)

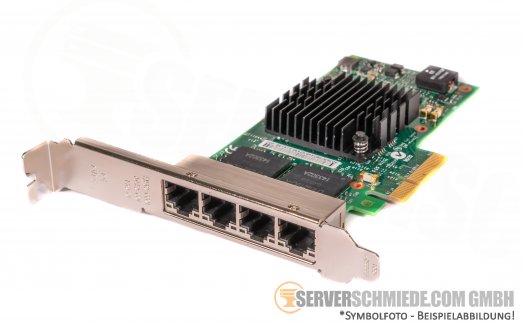

4x 1GbE LAN RJ-45 Copper
1x RJ-45 Servermanagement iLO4 Port
1x VGA 15pol. D-SUB

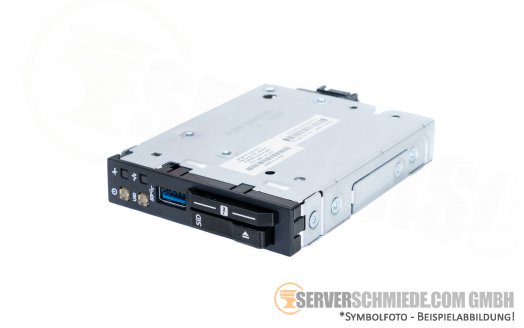

1x iLO Front Service Port
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*

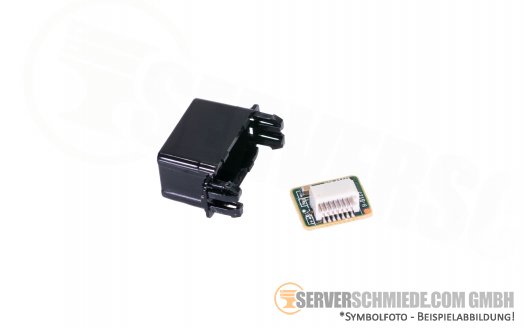

*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
(DE)
HP ProLiant DL380 Gen10
Der HP ProLiant DL380 Gen10 2U Rack-Server bietet erstklassige Leistung und Flexibilität für anspruchsvolle Unternehmensanwendungen.
Ausgestattet mit bis zu zwei Intel Xeon Scalable Prozessoren und DDR4 ECC RAM, liefert dieser Server maximale Rechenleistung und Datensicherheit. Die 24x 2,5'' SFF-Laufwerksschächte bieten flexible Speicheroptionen, während die RAID-Unterstützung für höchste Datenverfügbarkeit sorgt.
Mit dualen Netzteilen (PSU) gewährleistet der DL380 Gen10 einen unterbrechungsfreien Betrieb - ideal für datenintensive Workloads und Virtualisierung.
(EN)
HP ProLiant DL380 Gen10
The HP ProLiant DL380 Gen10 2U Rack Server provides solid performance and flexibility for demanding enterprise applications.
Powered by up to two Intel Xeon Scalable processors and DDR4 ECC RAM, it delivers maximum computing power and data security. With 24x 2.5" SFF drive bays, it offers flexible storage options, and integrated RAID support ensures high data availability.

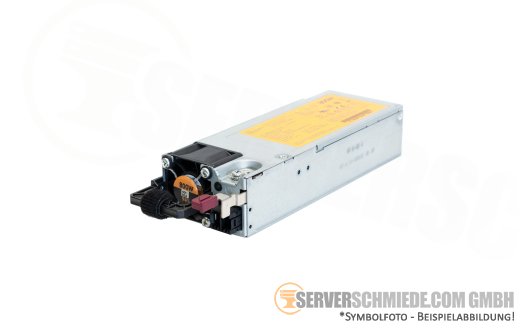

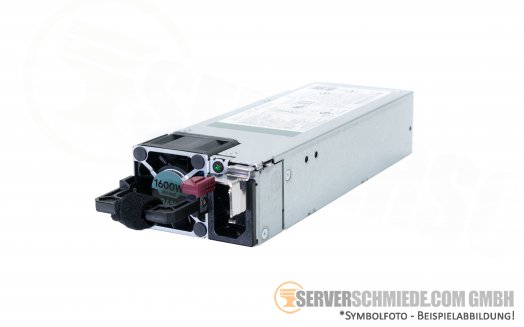

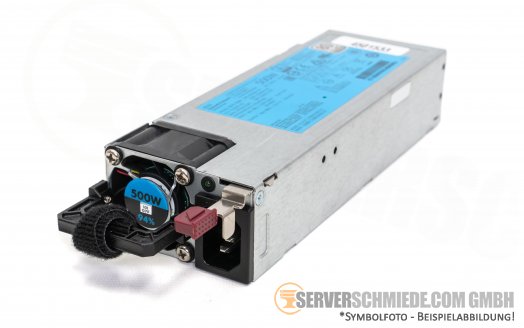

Dual power supplies (PSU) guarantee continuous operation, making this server ideal for data-heavy workloads and virtualization.
