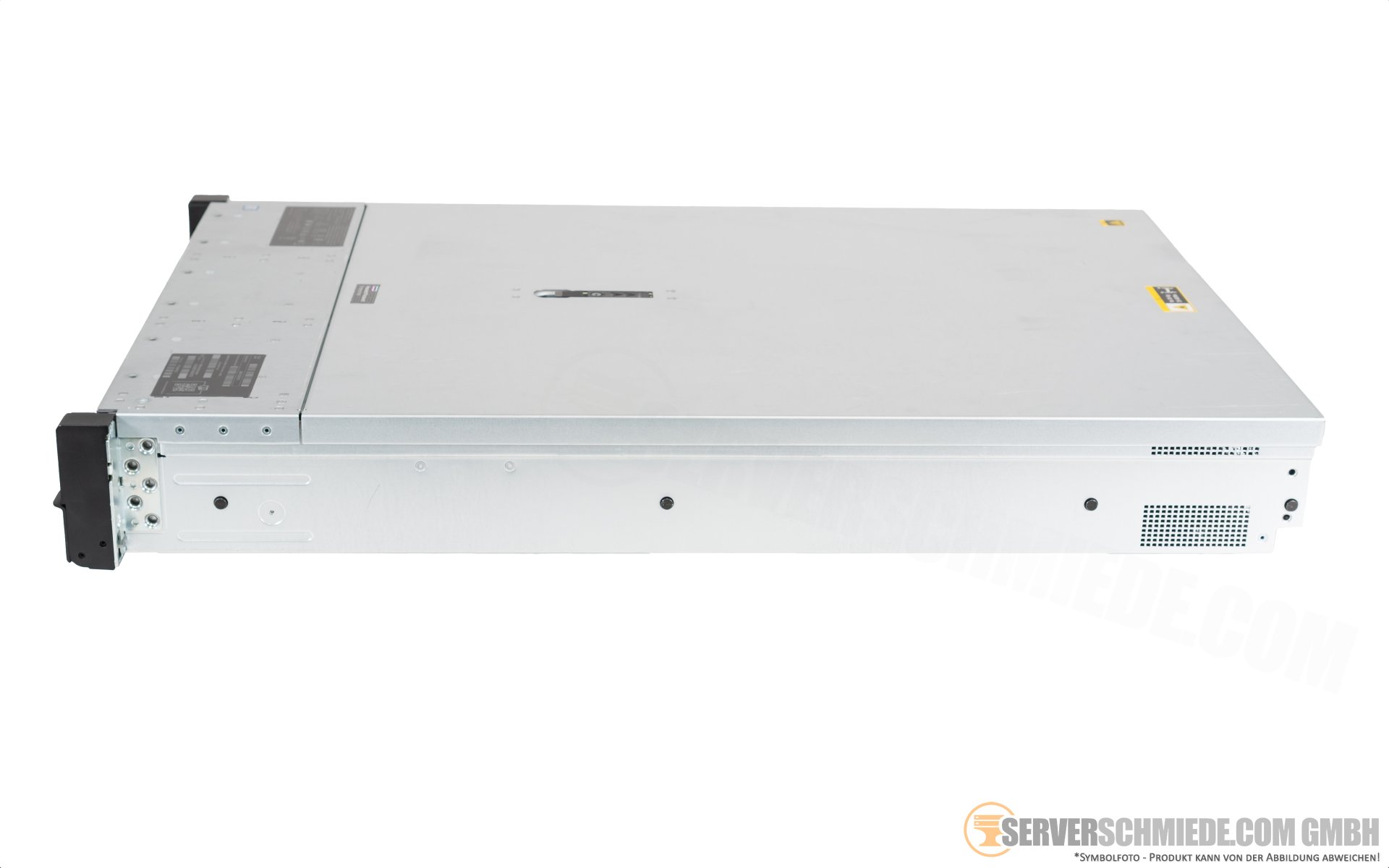

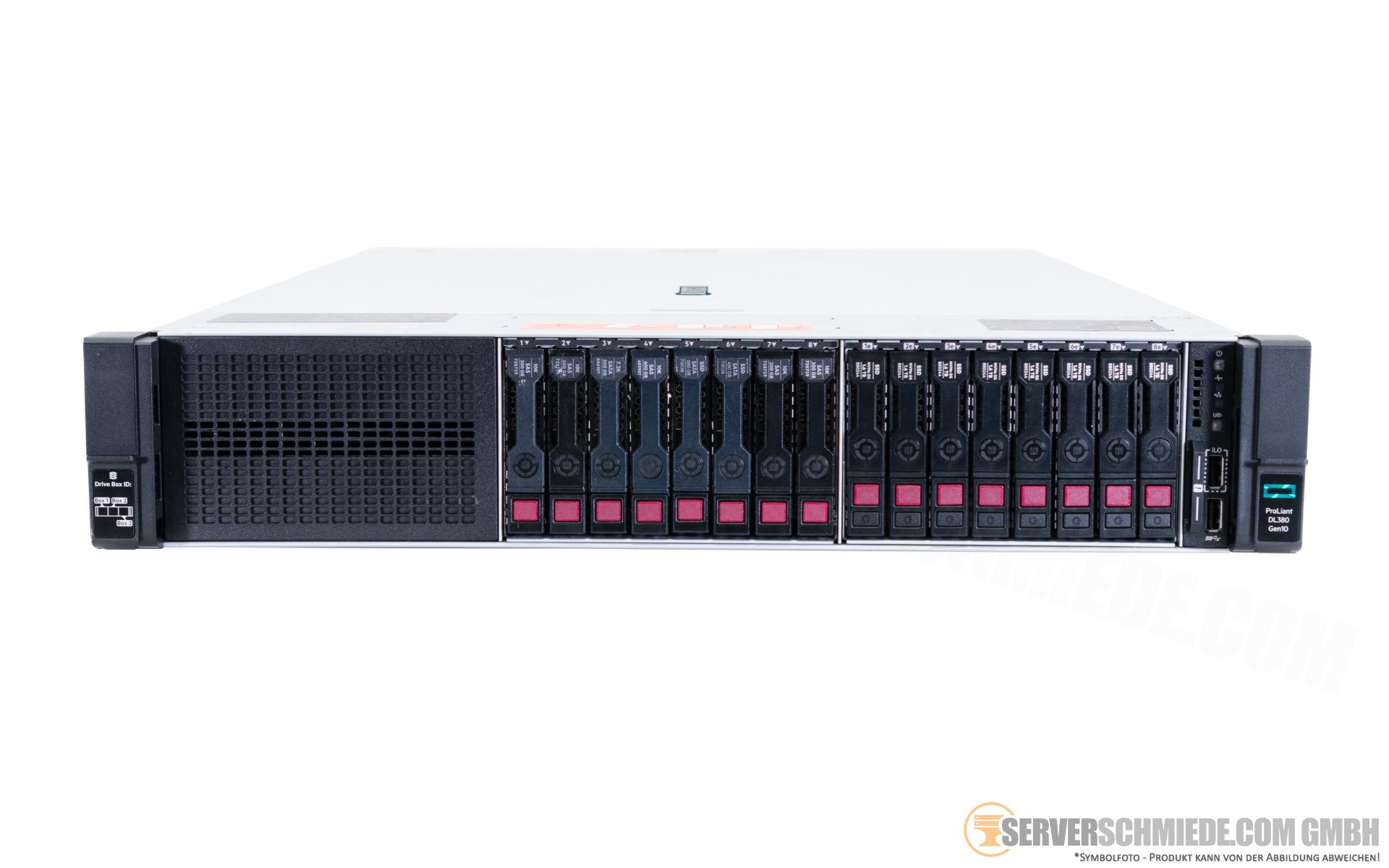

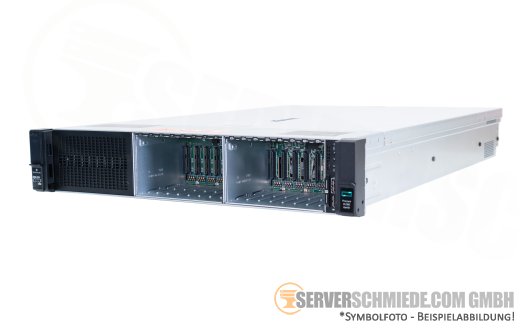

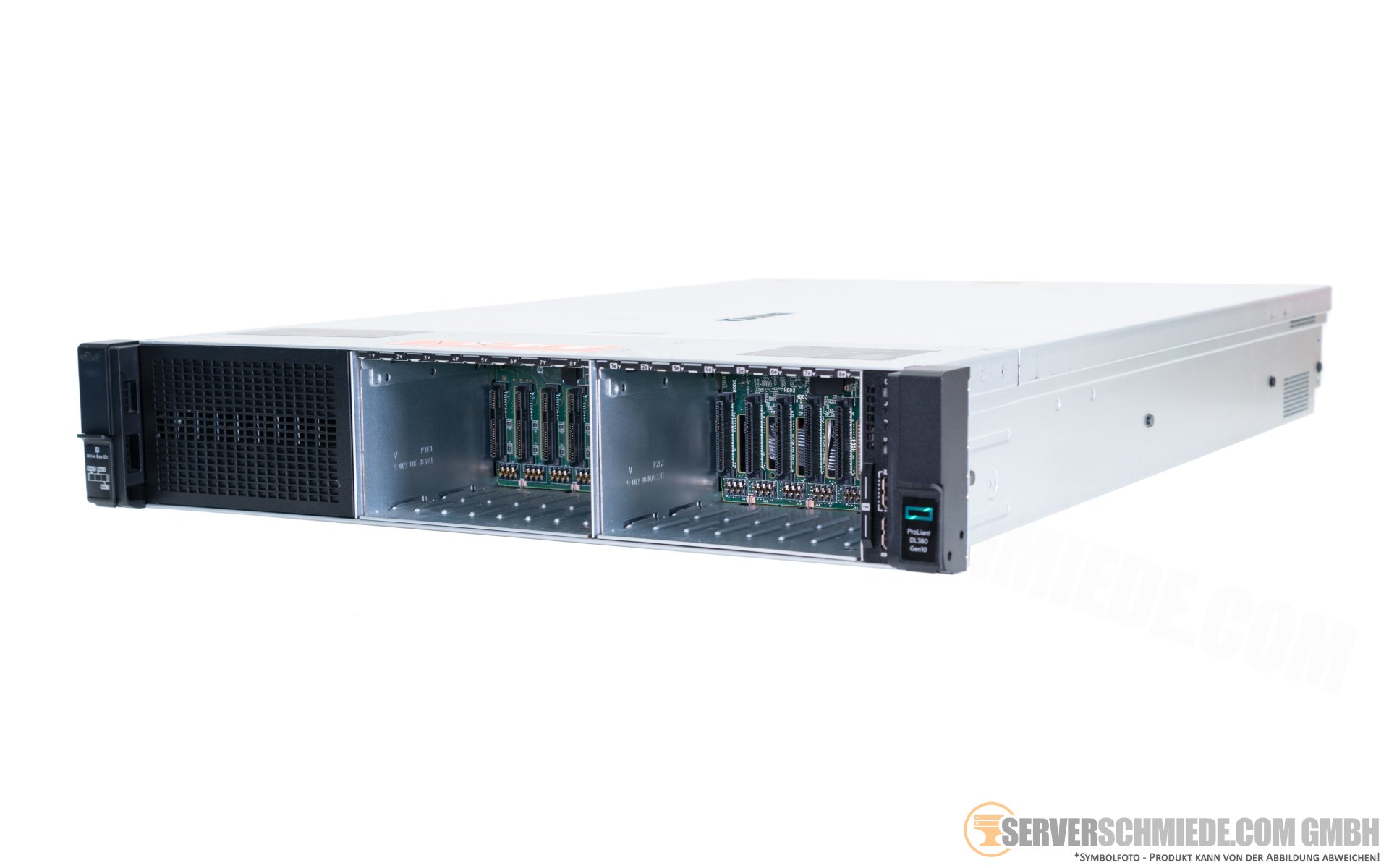

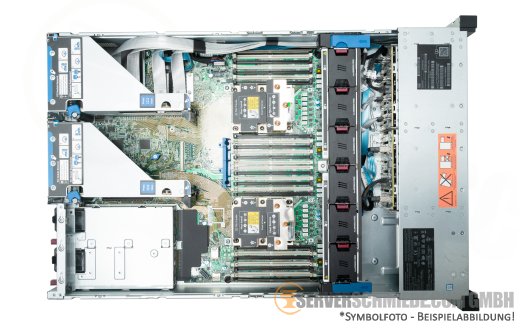

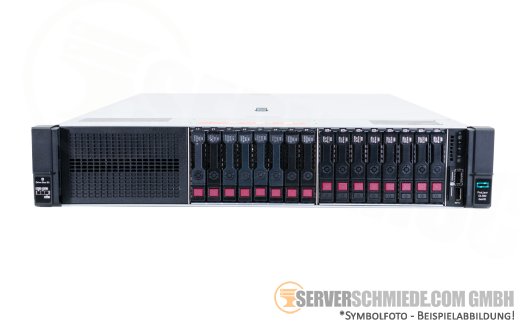

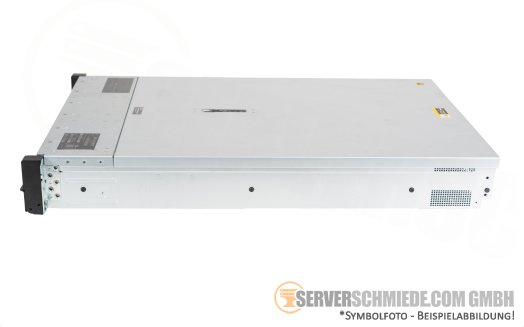

HP ProLiant DL380 Gen10 G10 2U Server 8x SAS + 8x U.2 NVMe 2,5" SFF 2x Intel XEON Scalable LGA3647 2x PSU
without selected hdds or trays are no hdd trays included in delivery
information

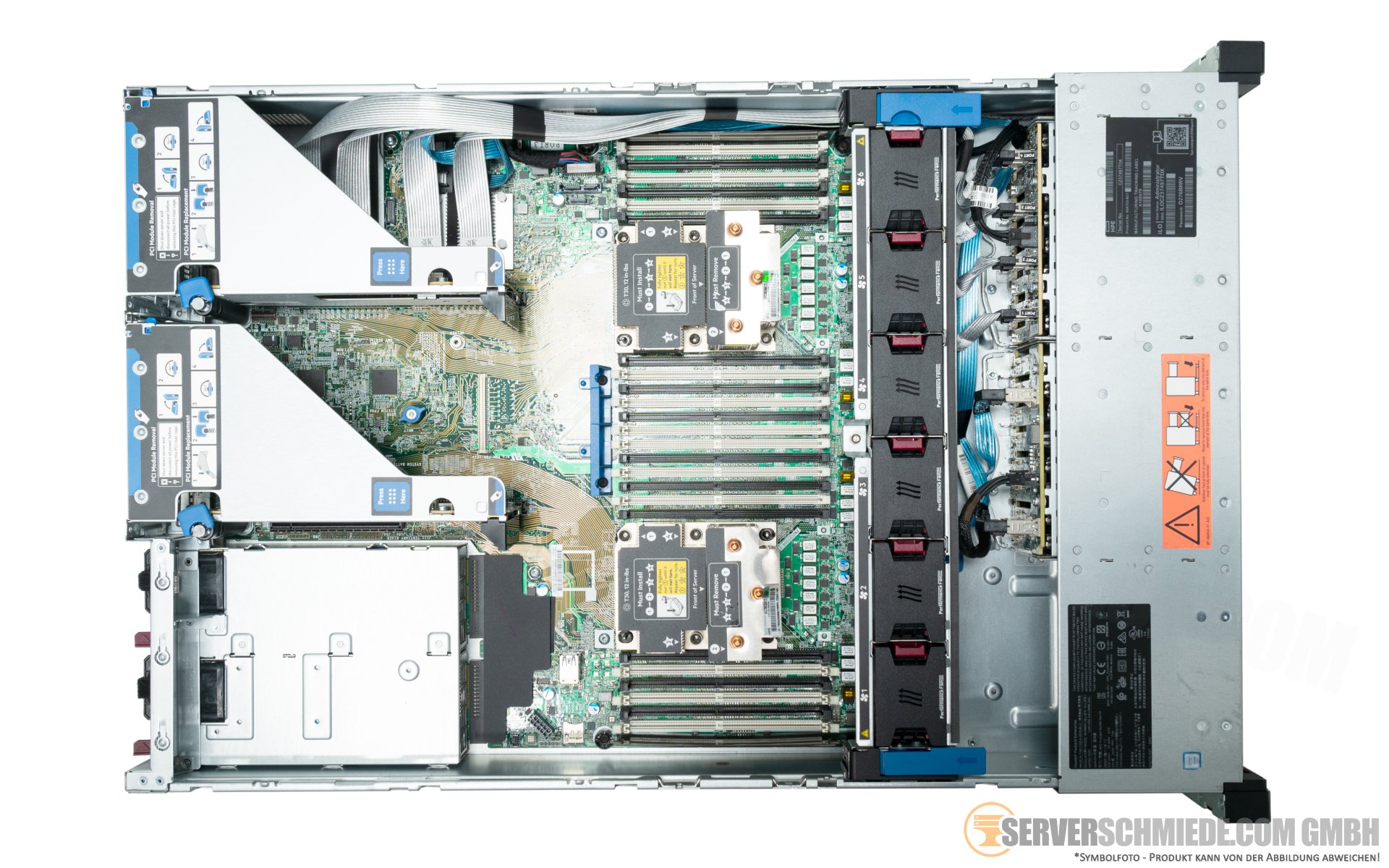

2x FCLGA3647 Intel CPU Sockel für Skalierbare Intel® Xeon® Prozessoren - bis 28 Core CPU
24x DDR4 288pin ECC DIMM banks up to 3 TB RAM
Intel® C621 Series Chipset
(Cables for 8xNVMe Bay included)
(8xSFF SAS/SATA Controller Optional)
3x Riser interface:
Primary Riser CPU 1
Primary Riser 1 CPU 1:
1. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x16 Connector - Full-height,Full-length slot
3. PCIe 3.0 x8 - x8 Connector - Full-height,Half-length slot
Secondary Riser CPU 2
Option Secondary Riser 1 CPU 2:
1. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x16 Connector - Full-height,Full-length slot
3. PCIe 3.0 x8 - x8 Connector - Full-height,Half-length slot
Option Secondary Riser 2 CPU 2:
1. -none-
2. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
3. PCIe 3.0 x16 - x16 Connector - Full-height,Half-length slot
Option Secondary Riser 3 CPU 2:
1. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
2. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
3. -none-
Optional Tertiary Riser CPU 2
Option Tertiary Riser 1 CPU 2:
1. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
Option Tertiary Riser 2 CPU 2:
2. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
Integrated Storage Controller
S100i Storage Controller

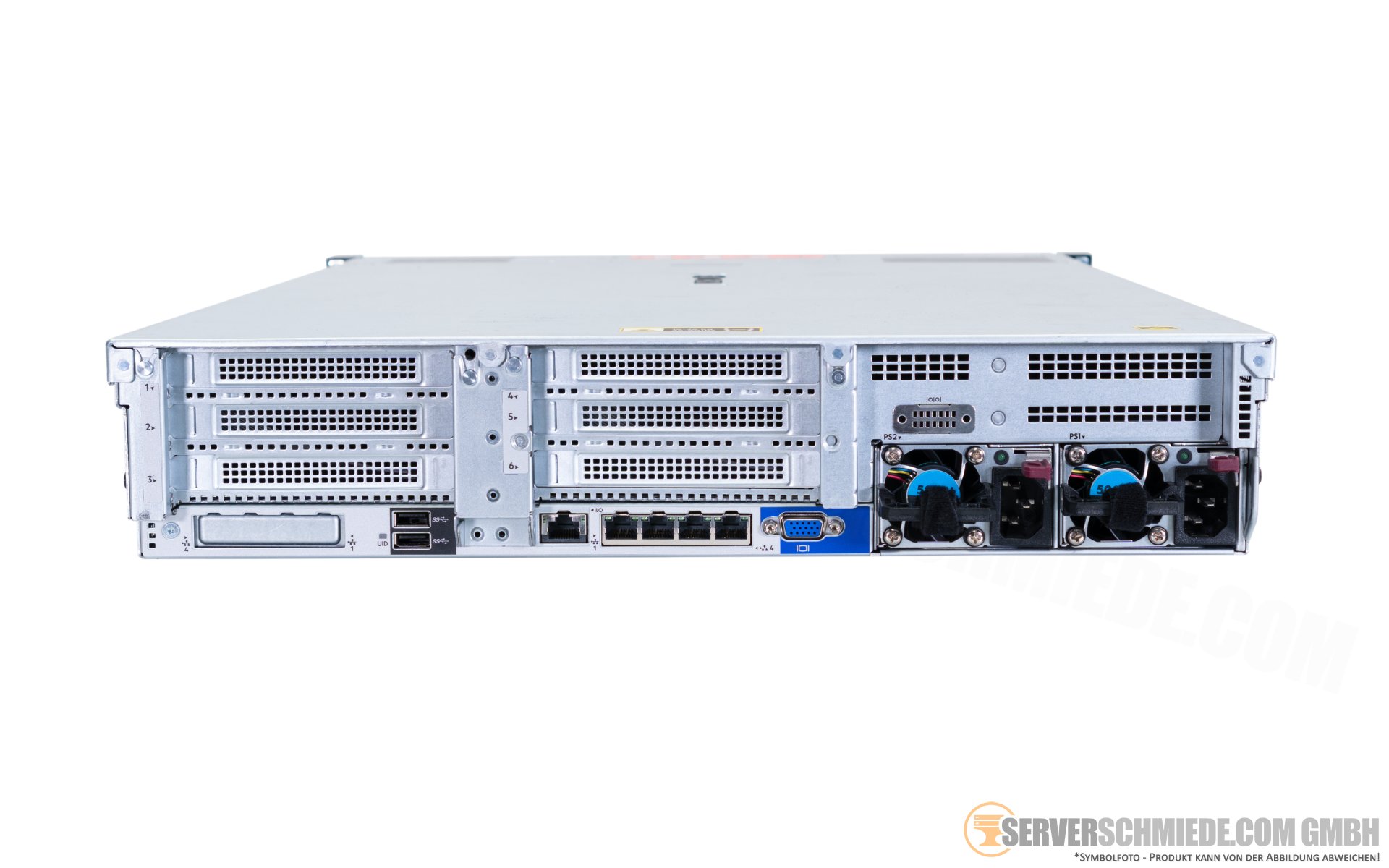

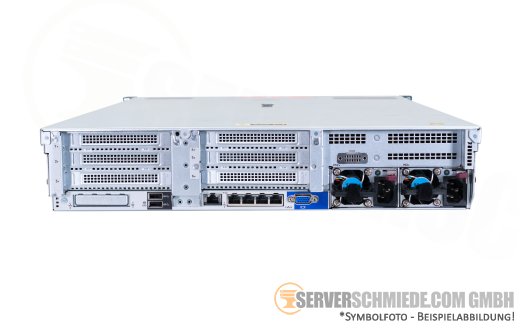

Interfaces
3x SFF-8087 for up to 10x SATA
1x USB 3.0 connector
1x MicroSD card slot
1x FlexibleLOM slot
2x SATA
3x USB 3.0 (1x front)
4x 1GbE LAN RJ-45 Copper
1x RJ-45 Servermanagement iLO5 Port
1x VGA 15pol. D-SUB
1x iLO Front Service Port
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
(DE)
HP ProLiant DL380 Gen10
Der HP ProLiant DL380 Gen10 2U Rack-Server bietet herausragende Leistung und Flexibilität für anspruchsvolle Unternehmensanwendungen.
Augestattet mit bis zu zwei Intel Xeon Scalable Prozessoren im Dual-Betrieb und Unterstützung von 8 SAS- sowie 8 U.2 NVMe 2,5" SFF-Laufwerken, kombiniert dieser Server blitzschnellen Speicherzugriff mit einer enormen Speicherkapazität. Mit dualen Netzteilen (PSU) und umfassender RAID-Unterstützung ist der DL380 G10 auf maximale Zuverlässigkeit und Ausfallsicherheit ausgelegt.
Perfekt geeignet für datenintensive Workloads, Virtualisierung und hybride Cloud-Umgebungen - dieser Server erfüllt die höchsten Ansprüche moderner Rechenzentren.
(EN)
HP ProLiant DL380 Gen10
Our HP ProLiant DL380 Gen10 2U Rack Server delivers exceptional performance and flexibility for demanding enterprise applications.
Powered by up to two Intel Xeon Scalable processors in a dual-socket configuration and equipped with 8x SAS and 8x U.2 NVMe 2.5" SFF drives, this server delivers ultra-fast performance and robust storage capabilities.
With dual power supplies (PSU) and comprehensive RAID support, the DL380 Gen10 is built for maximum reliability and uptime.
Ideal for data-heavy workloads, virtualization, and hybrid cloud environments, this server meets the highest standards of modern data centers.
