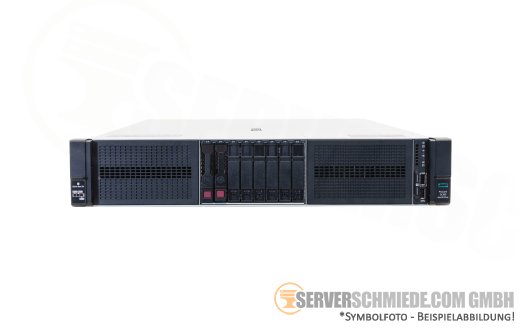

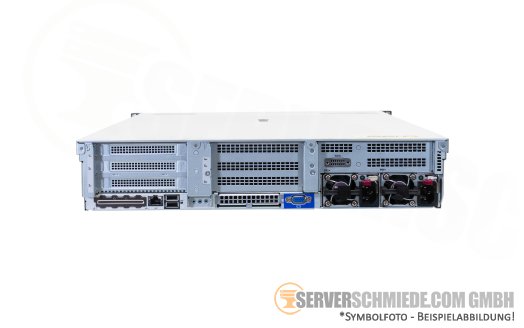

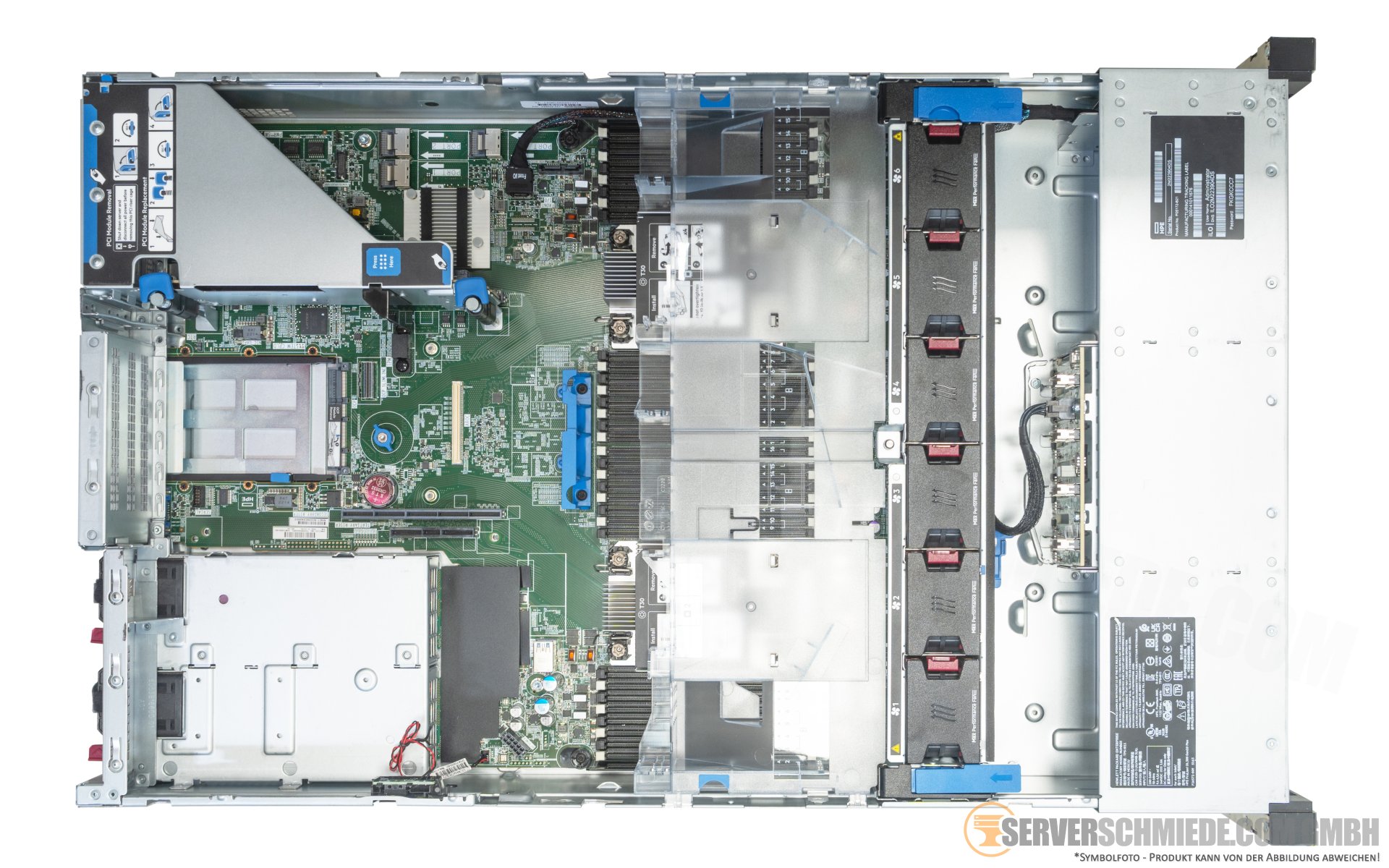

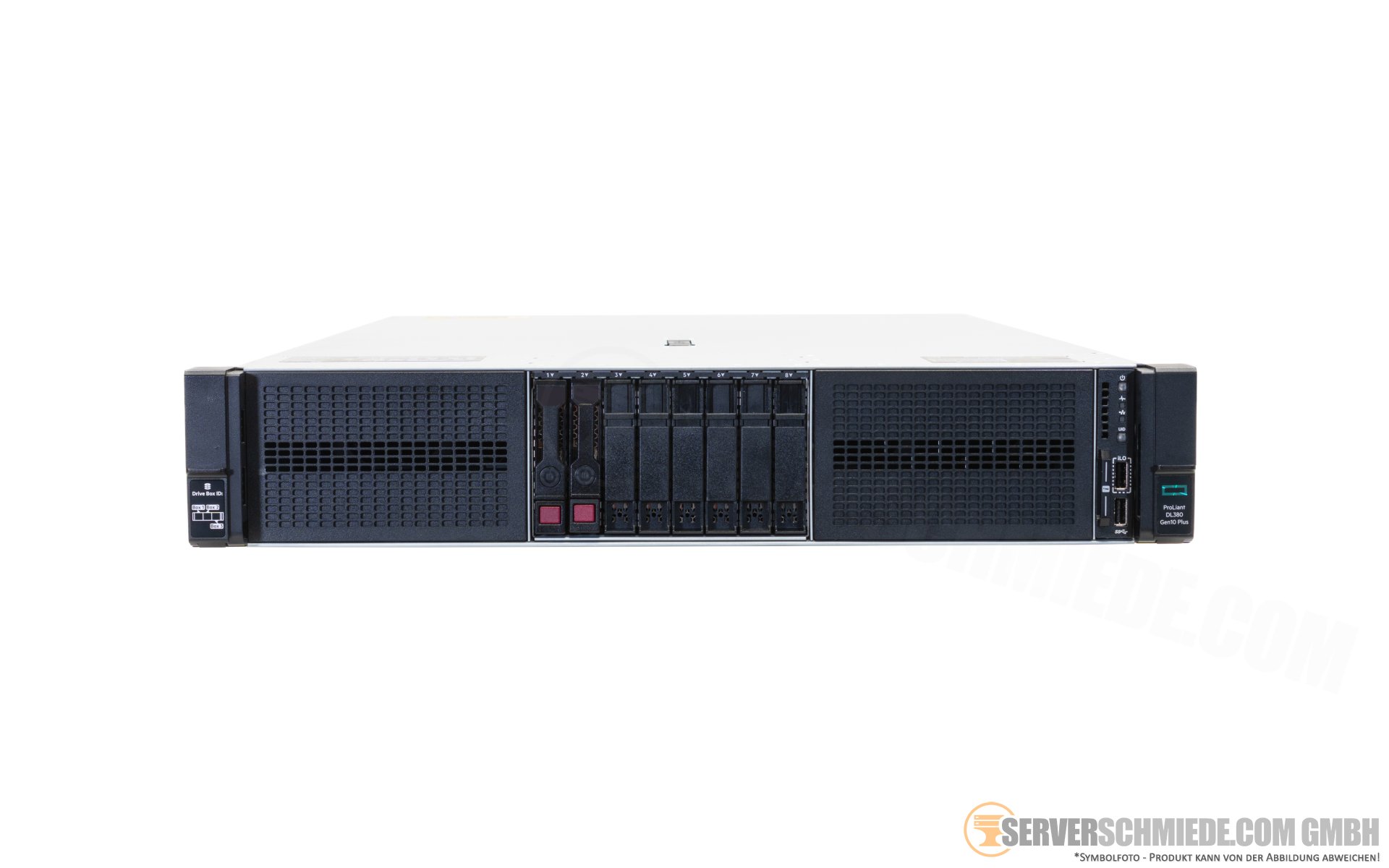

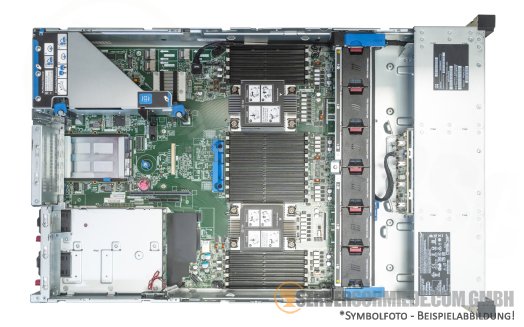

HP ProLiant DL380 Gen10 Plus 2U Server 8x 2,5" SFF U.2 NVMe x4 2x Intel XEON Scalable LGA4189 DDR4 ECC Raid 2x PSU
Product description
Vendor: HP
Unit type: Server
Type: 19" 2 HE
Model: ProLiant DL380 Gen10Plus

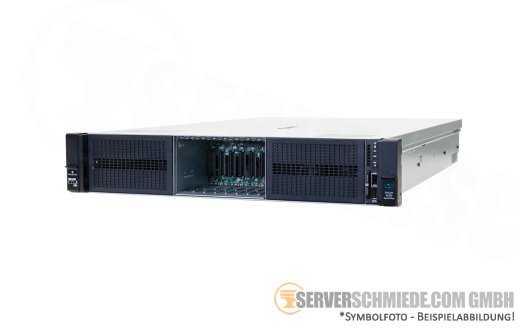

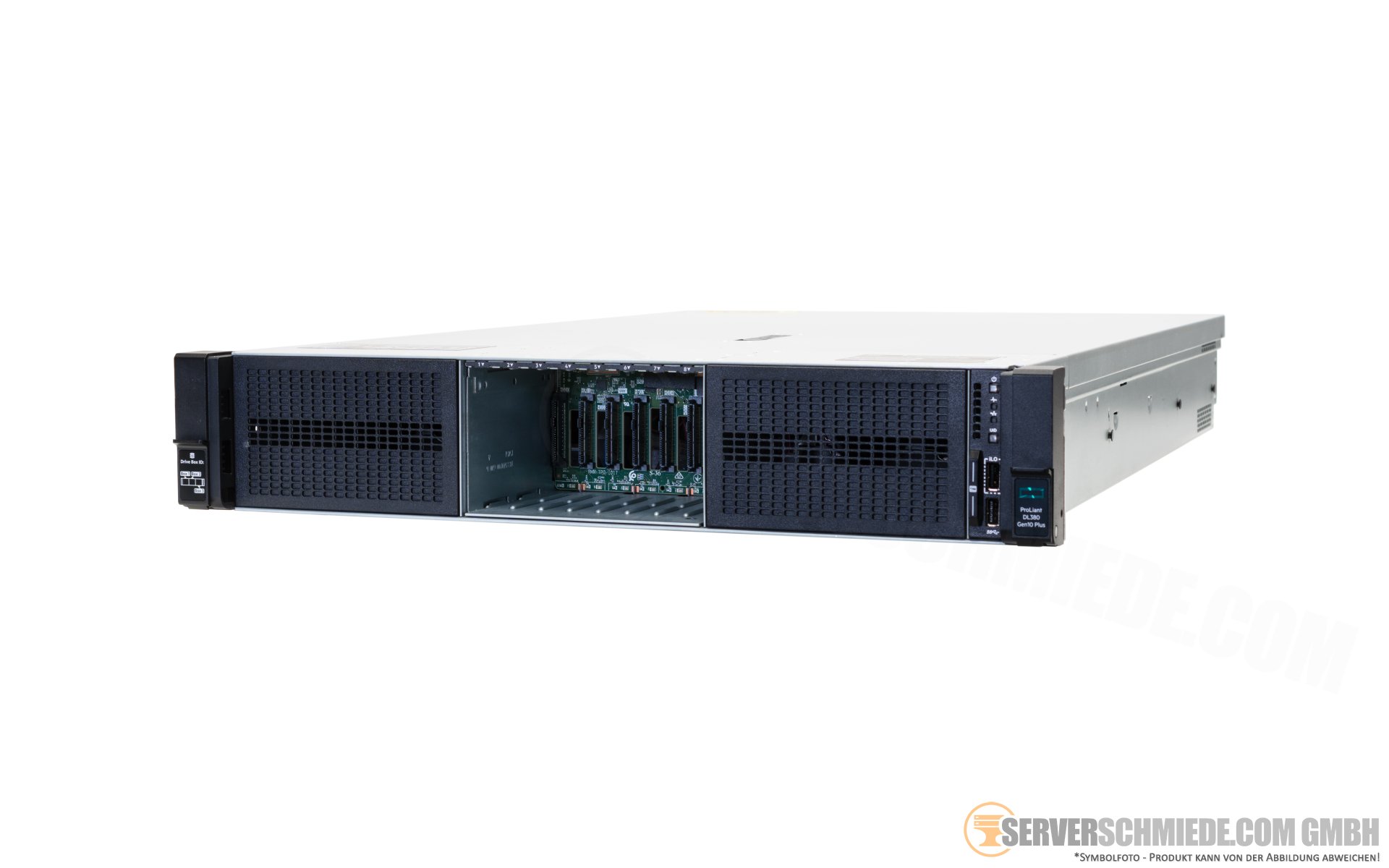

HDD bays: 8x HotSwap HDD Bays U.2 NVMe Backplane
without selected hdds or trays are no hdd trays included in delivery
without selected hdds or trays are no hdd trays included in delivery
Optical drive: ohne
Networking: optional selectable

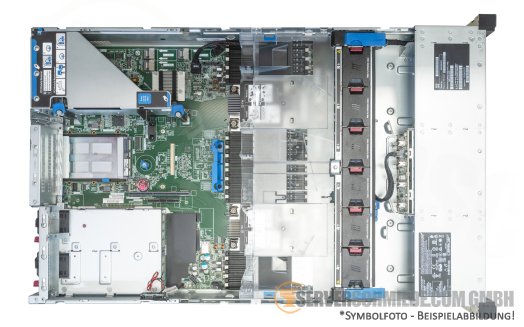

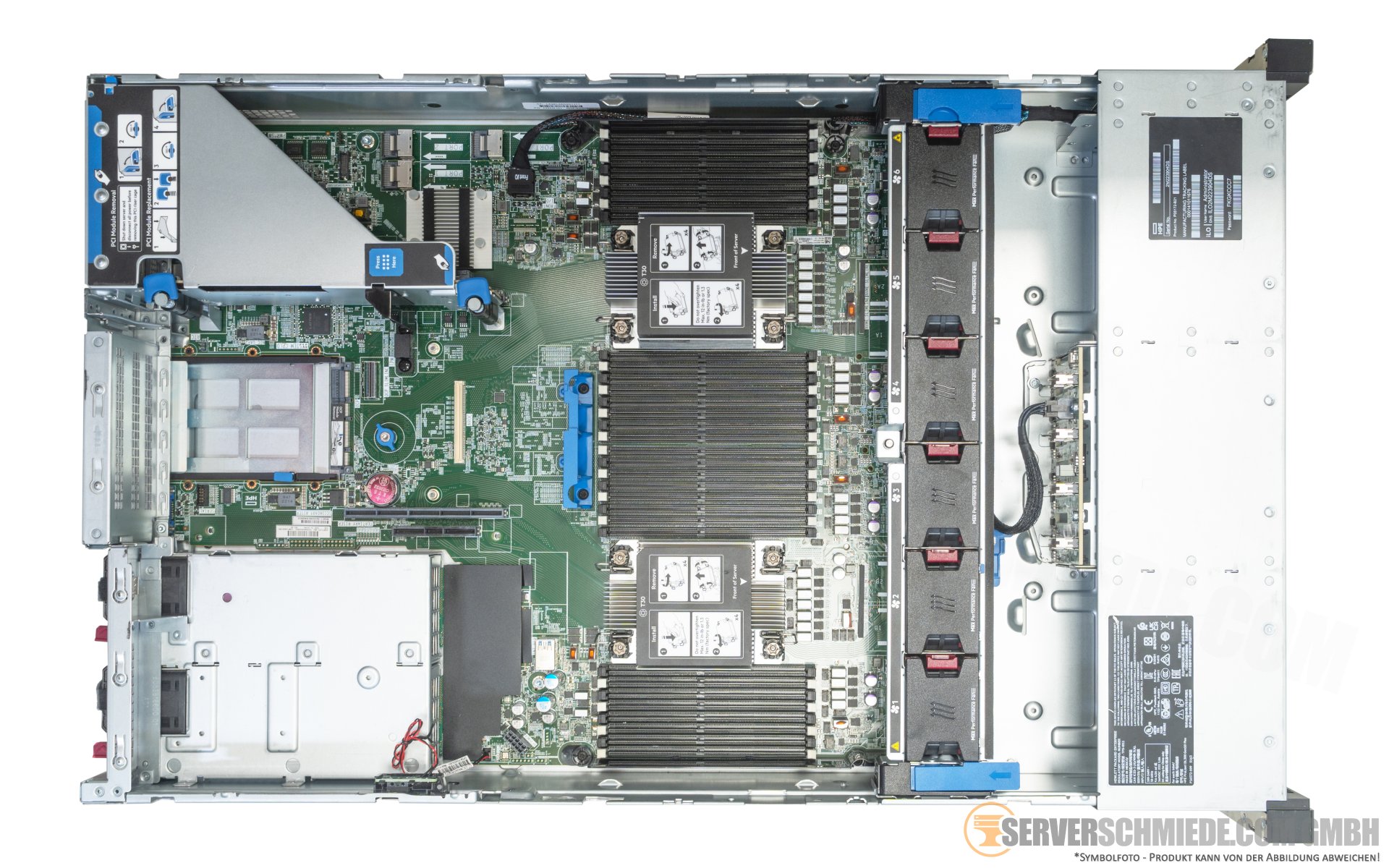

Internal interfaces:
2x FCLGA4189 Intel CPU Sockel für 3. Generation Skalierbare Intel® Xeon® Prozessoren - bis 40 Core CPU
Intel® C621 Series Chipset
32x DDR4 288pin ECC DIMM banks up to 11,2TB RAM
up to 3x Riser interface:
Primary Riser CPU 1
Default Primary Riser 1 CPU 1
1. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
2. PCIe 4.0 x16 - x16 Connector - Full-height,full-length slot
3. PCIe 4.0 x8 - x16 Connector- Full-height,half-length slot
Option Primary Riser 2 CPU 1
1. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
2. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
Option Primary Riser 3 CPU 1
1. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
2. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
3. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
Secondary Riser CPU 2
Option Secondary Riser 1 CPU 2:
4. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
5. PCIe 4.0 x16 - x16 Connector - Full-height,full-length slot
6. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
Option Secondary Riser 2 CPU 2:
4. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
5. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
6.
Option Secondary Riser 2 CPU 2:
4.
4. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
5. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
Tertiary Riser CPU 2
Option Tertiary Riser 1 CPU 2:
7. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
8.
Option Tertiary Riser 2 CPU 2:
7. PCIe 4.0 x8 - x8 Connector - Full-height,full-length slot
8. PCIe 4.0 x8 - x8 Connector - Full-height,full-length slot
maximal mit Primary, Secondary sowie Tertiary Riser, 8x Full Profile PCIe Interface möglich
3x SFF-8087 SR100i Storage Controller up to 12x SATA Software Raid (Windows only)
1x OCP modules Slot
1x USB 3.0 connector
1x S-ATA
2x FCLGA4189 Intel CPU Sockel für 3. Generation Skalierbare Intel® Xeon® Prozessoren - bis 40 Core CPU
Intel® C621 Series Chipset
32x DDR4 288pin ECC DIMM banks up to 11,2TB RAM
up to 3x Riser interface:
Primary Riser CPU 1
Default Primary Riser 1 CPU 1
1. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
2. PCIe 4.0 x16 - x16 Connector - Full-height,full-length slot
3. PCIe 4.0 x8 - x16 Connector- Full-height,half-length slot
Option Primary Riser 2 CPU 1
1. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
2. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
Option Primary Riser 3 CPU 1
1. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
2. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
3. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
Secondary Riser CPU 2
Option Secondary Riser 1 CPU 2:
4. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
5. PCIe 4.0 x16 - x16 Connector - Full-height,full-length slot
6. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
Option Secondary Riser 2 CPU 2:
4. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
5. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
6.
Option Secondary Riser 2 CPU 2:
4.
4. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
5. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
Tertiary Riser CPU 2
Option Tertiary Riser 1 CPU 2:
7. PCIe 4.0 x8 - x16 Connector - Full-height,full-length slot
8.
Option Tertiary Riser 2 CPU 2:
7. PCIe 4.0 x8 - x8 Connector - Full-height,full-length slot
8. PCIe 4.0 x8 - x8 Connector - Full-height,full-length slot
maximal mit Primary, Secondary sowie Tertiary Riser, 8x Full Profile PCIe Interface möglich
3x SFF-8087 SR100i Storage Controller up to 12x SATA Software Raid (Windows only)
1x OCP modules Slot
1x USB 3.0 connector
1x S-ATA

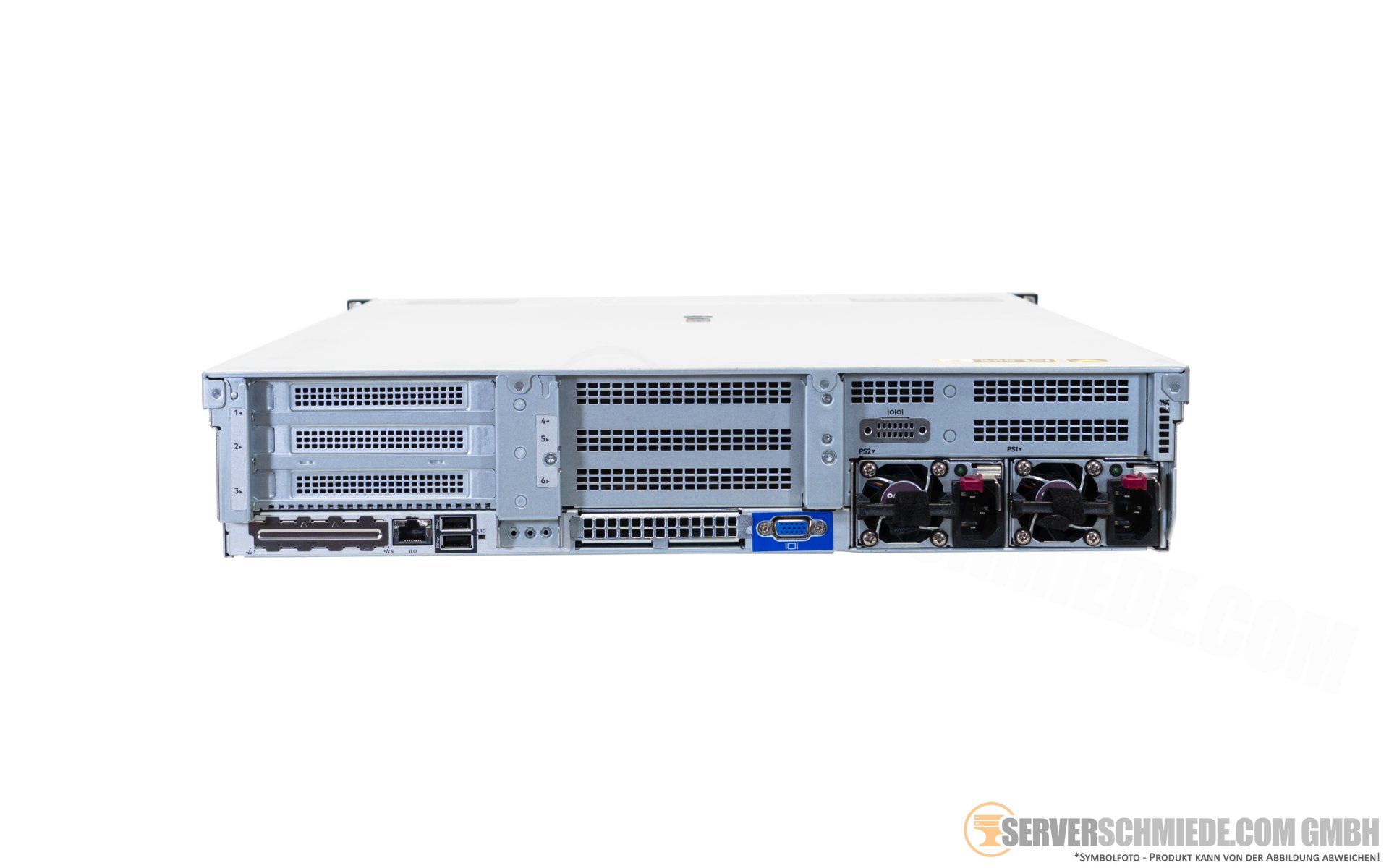

External interfaces:
3x USB 3.0 (1x front)
1x optional OCP Port to add different network controllers
1x RJ-45 Servermanagement iLO5 Port
1x VGA 15pol. D-SUB
1x iLO Front Service Port (Optional)
3x USB 3.0 (1x front)
1x optional OCP Port to add different network controllers
1x RJ-45 Servermanagement iLO5 Port
1x VGA 15pol. D-SUB
1x iLO Front Service Port (Optional)
Videocard: onboard
Powerunits: up to 2x HP HotSwap Power Supply
Net weight: 15 kg
Installation depth: 72,5 cm
Dimensions: L: 75 cm | B: 44,5 cm | H: 9 cm
Compatible operating systems:
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmox; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmox; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Item condition: refurbished, Grade A
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
manufacturer information:
enterprise.kunden@hpe.com
HP Deutschland
Herrenberger Straße 140
71034 Böblingen
Deutschland
Product No.: SK0755
Base price: 3.362,00 €
incl.
19% MwSt | excl. Shipping
Price excl. VAT: 2.825,21 €
Availability:
Shipping time: 3-5 days + shipping time (excl. weekend, excl. business holidays)
Weight KG: 26.00kg
