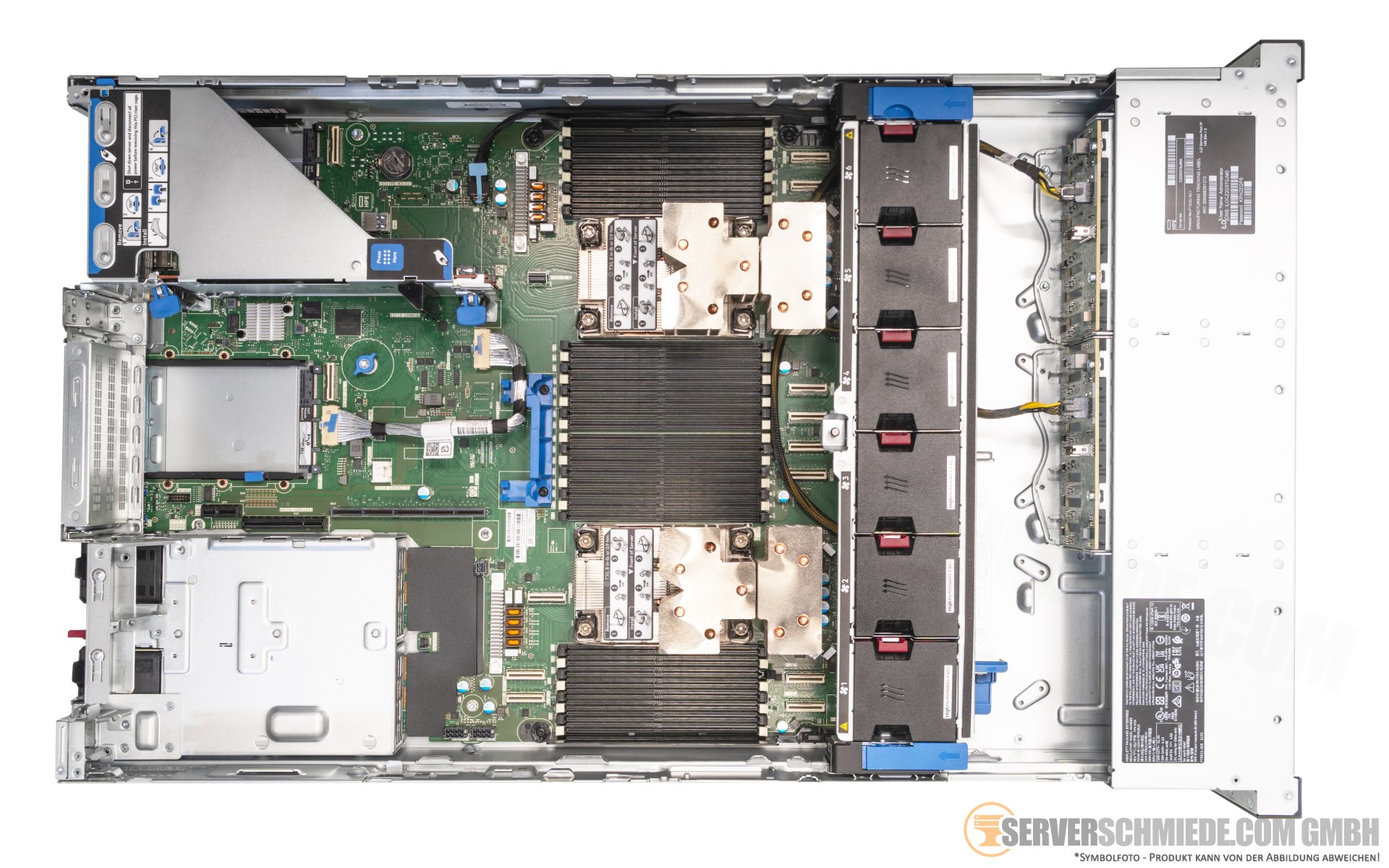

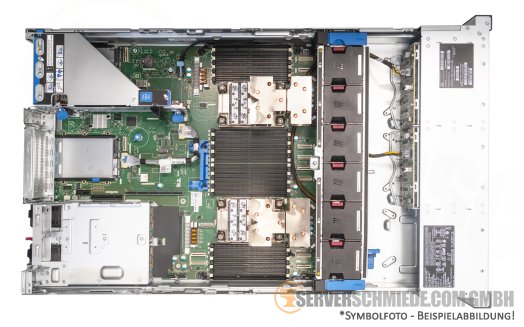

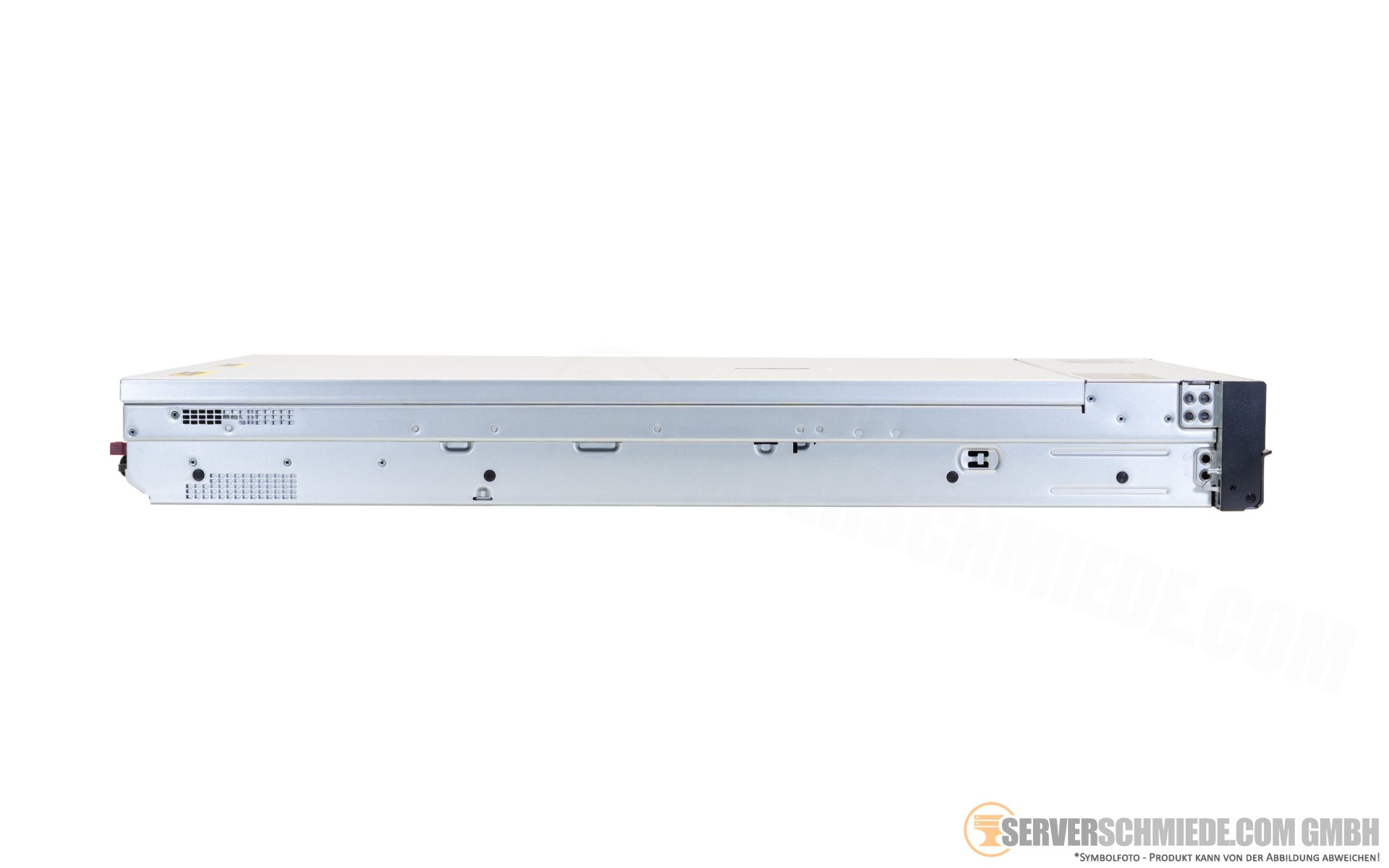

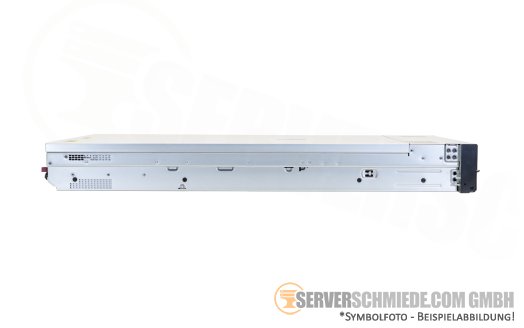

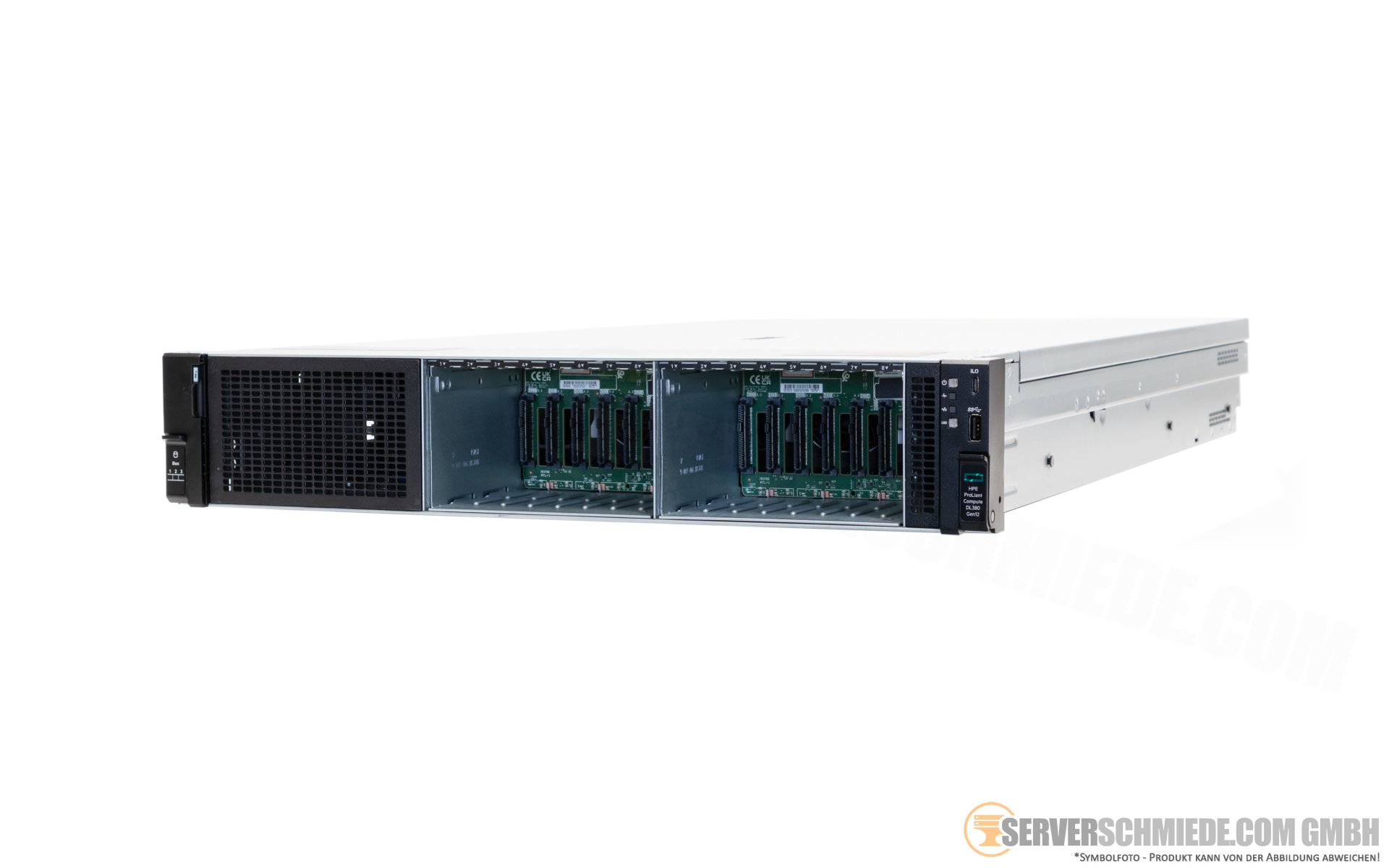

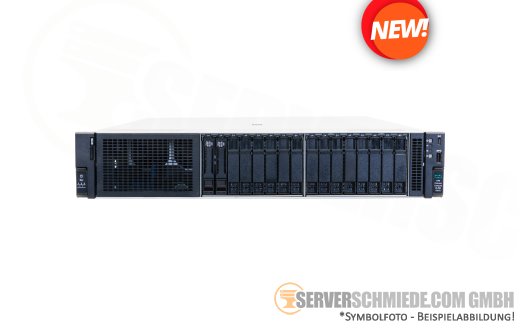

HP ProLiant DL380 Gen12 2U 16x 2,5" SFF SAS NVMe x1 2x Intel XEON 6 Scalable LGA4710 32x DDR5 ECC Server RAID 2x PSU +NEW+
Product description
Vendor: HP
Unit type: Server
Type: 19" 2 HE
Model: Proliant DL380 Gen12
HDD bays: 16x HotSwap HDD Bays SAS/S-ATA / NVMe Backplane
without selected hdds or trays are no hdd trays included in delivery
without selected hdds or trays are no hdd trays included in delivery
Optical drive: ohne
Networking: optional 2x OCP 3.0 module
Internal interfaces:
16x 2,5" SFF SAS SATA NVMe x1 Tri-Mode Backplane
2x FCLGA4710 Intel CPU Socket XEON 6 Intel® Xeon® Processors up to 350W TDP
32x DDR5 ECC DIMM banks, up to 8 TB
embedded TPM 2.0
2x USB 3.0
default OCP configuration:
1x OCP A (x8 lanes)
1x OCP B (x8 lanes)
optional upgradable to x16 each
default Riser configuration:

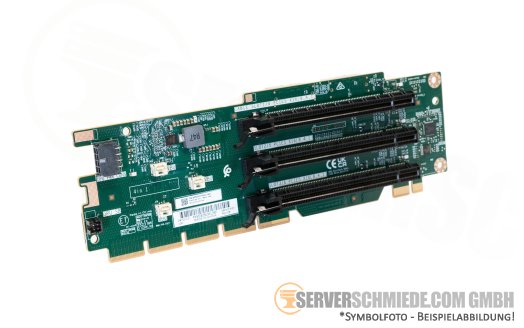

Primary Riser - CPU 1
Slot 1 - 1x x16 (x8 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 2 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 3 - 1x x16 (x8 lanes) PCIe 5.0 Full-Profile / Half-Length
optional selectable Riser:
Primary Riser - CPU 1
Slot 1 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 2 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 3 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Half-Length

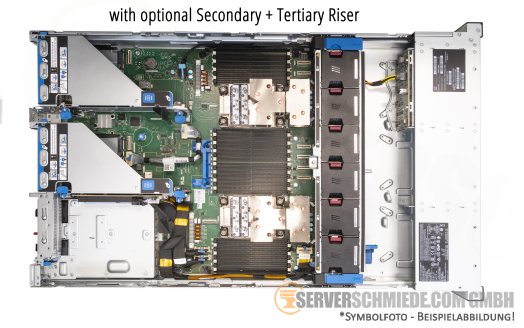

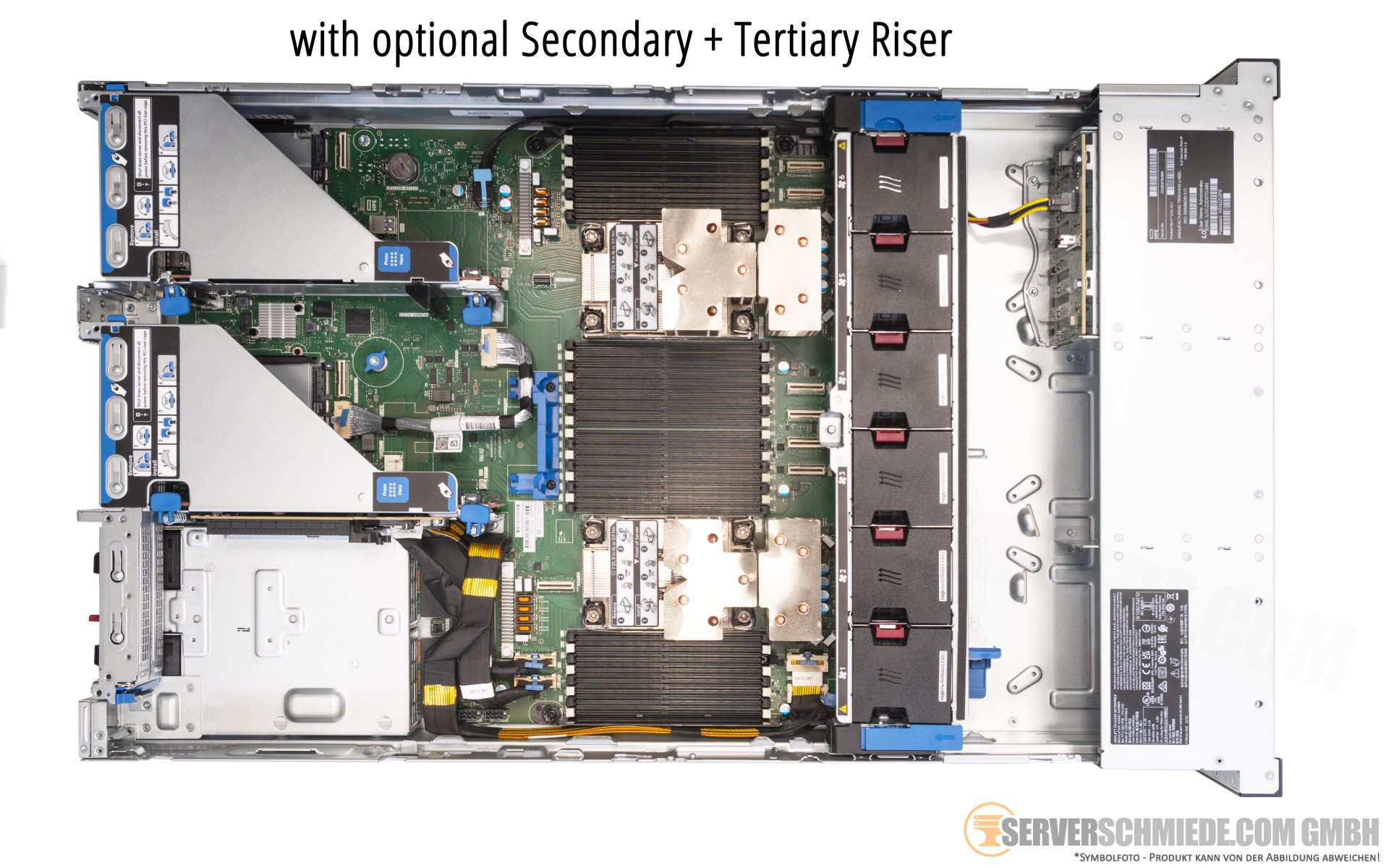

Secondary Riser - CPU 2
Slot 4 - 1x x16 (x8 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 5 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 6 - 1x x16 (x8 lanes) PCIe 5.0 Full-Profile / Half-Length
Secondary Riser - CPU 2
Slot 4 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 5 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 6 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Half-Length
Tertiary Riser - CPU 2
Slot 7 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 8 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
optional up to 3x double-width or 8x single-width GPUs
integrated Storage Controller
Intel VROC NVMe RAID 0, 1, 5, 10*
*requires activation key
16x 2,5" SFF SAS SATA NVMe x1 Tri-Mode Backplane
2x FCLGA4710 Intel CPU Socket XEON 6 Intel® Xeon® Processors up to 350W TDP
32x DDR5 ECC DIMM banks, up to 8 TB
embedded TPM 2.0
2x USB 3.0
default OCP configuration:
1x OCP A (x8 lanes)
1x OCP B (x8 lanes)
optional upgradable to x16 each
default Riser configuration:
Primary Riser - CPU 1
Slot 1 - 1x x16 (x8 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 2 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 3 - 1x x16 (x8 lanes) PCIe 5.0 Full-Profile / Half-Length
optional selectable Riser:
Primary Riser - CPU 1
Slot 1 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 2 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 3 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Half-Length
Secondary Riser - CPU 2
Slot 4 - 1x x16 (x8 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 5 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 6 - 1x x16 (x8 lanes) PCIe 5.0 Full-Profile / Half-Length
Secondary Riser - CPU 2
Slot 4 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 5 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 6 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Half-Length
Tertiary Riser - CPU 2
Slot 7 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
Slot 8 - 1x x16 (x16 lanes) PCIe 5.0 Full-Profile / Full-Length
optional up to 3x double-width or 8x single-width GPUs
integrated Storage Controller
Intel VROC NVMe RAID 0, 1, 5, 10*
*requires activation key
External interfaces:

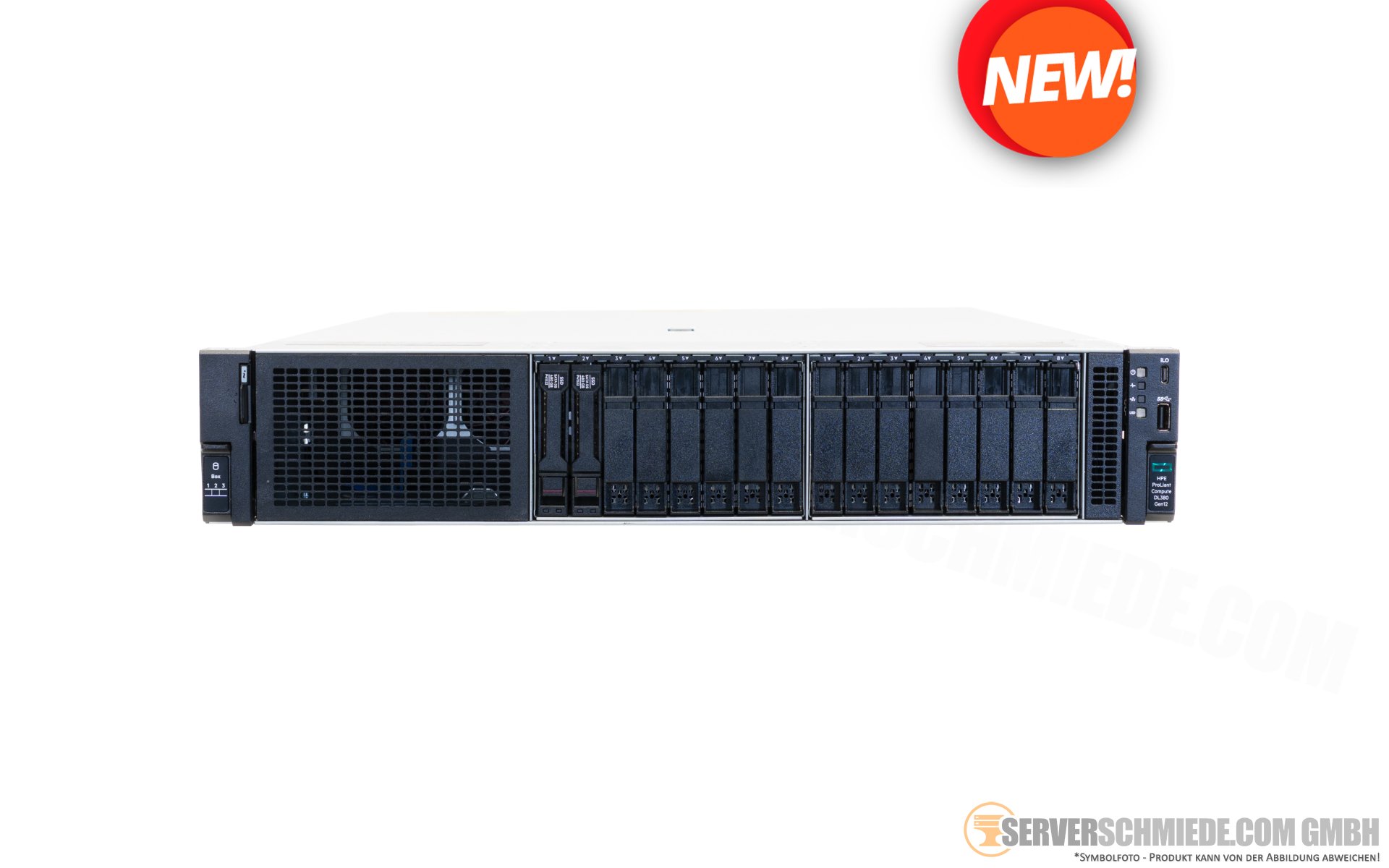

Front:
1x USB 3.0
1x iLO Service USB-C
Optional via Universal Media Bay:
2x USB 3.0
1x DisplayPort

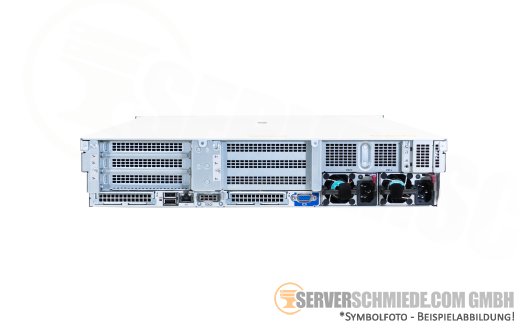

Rear:
2x USB 3.0
1x VGA
1x iLO RJ-45
Front:
1x USB 3.0
1x iLO Service USB-C
Optional via Universal Media Bay:
2x USB 3.0
1x DisplayPort
Rear:
2x USB 3.0
1x VGA
1x iLO RJ-45
Videocard: onboard
Powerunits: up to 2x hot swap HP power supply
Compatible operating systems:
Windows: Windows Server 2016, 2019, 2022*, 2025*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmox; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Windows: Windows Server 2016, 2019, 2022*, 2025*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmox; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Item condition: new product, bulk
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
manufacturer information:
enterprise.kunden@hpe.com
HP Deutschland
Herrenberger Straße 140
71034 Böblingen
Deutschland
Product No.: SK0687
Base price: 4.371,00 €
incl.
19% MwSt | excl. Shipping
Price excl. VAT: 3.673,11 €
Availability:
Shipping time: 2-5 days + shipping time (excl. weekend, excl. business holidays)
Weight KG: 26.00kg
