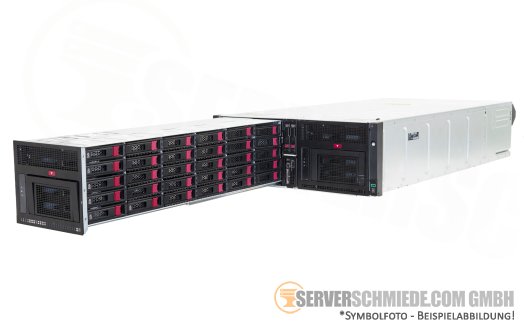

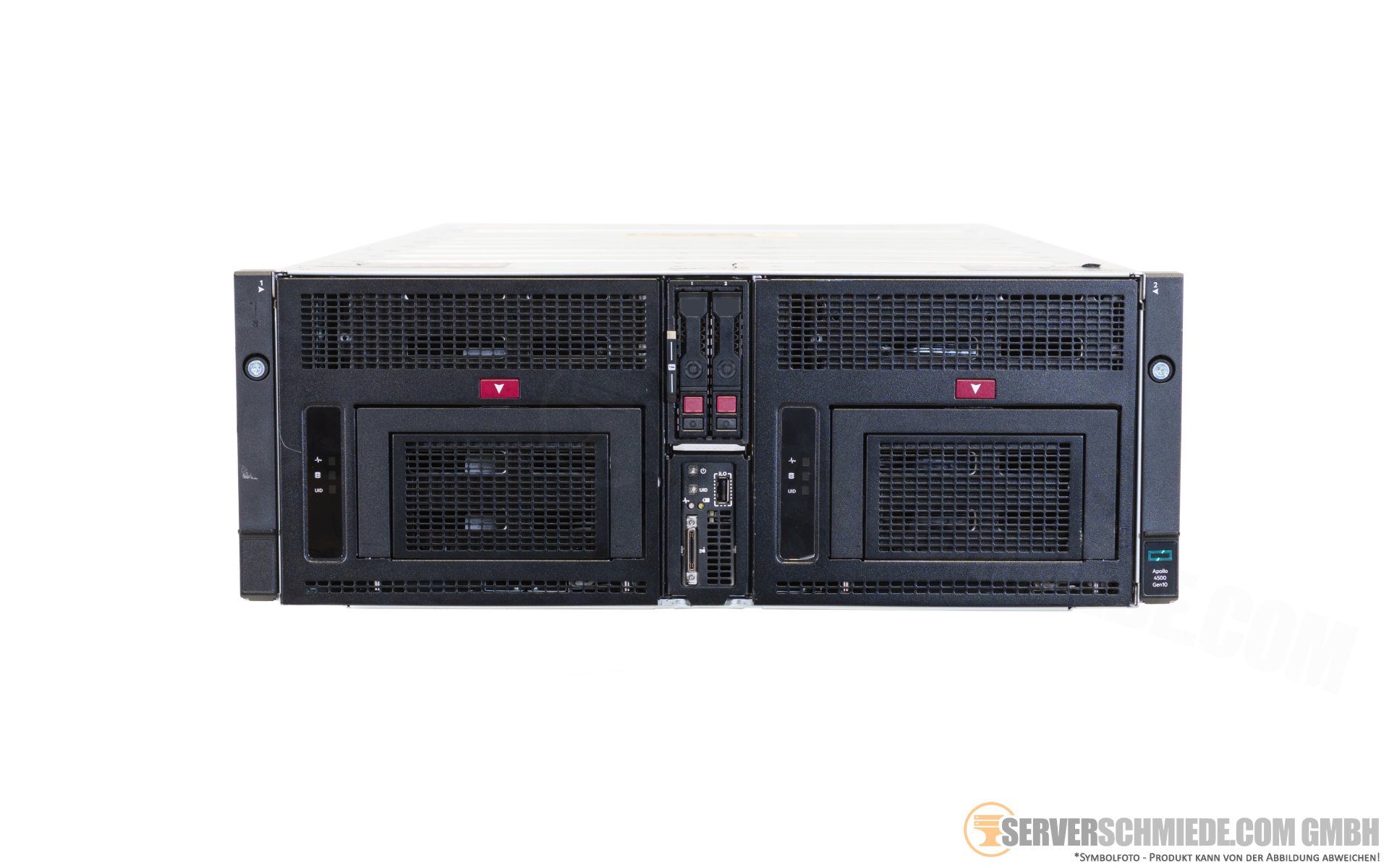

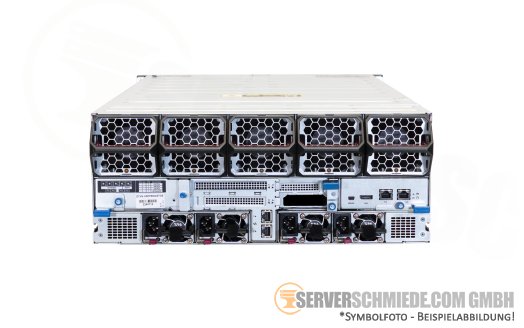

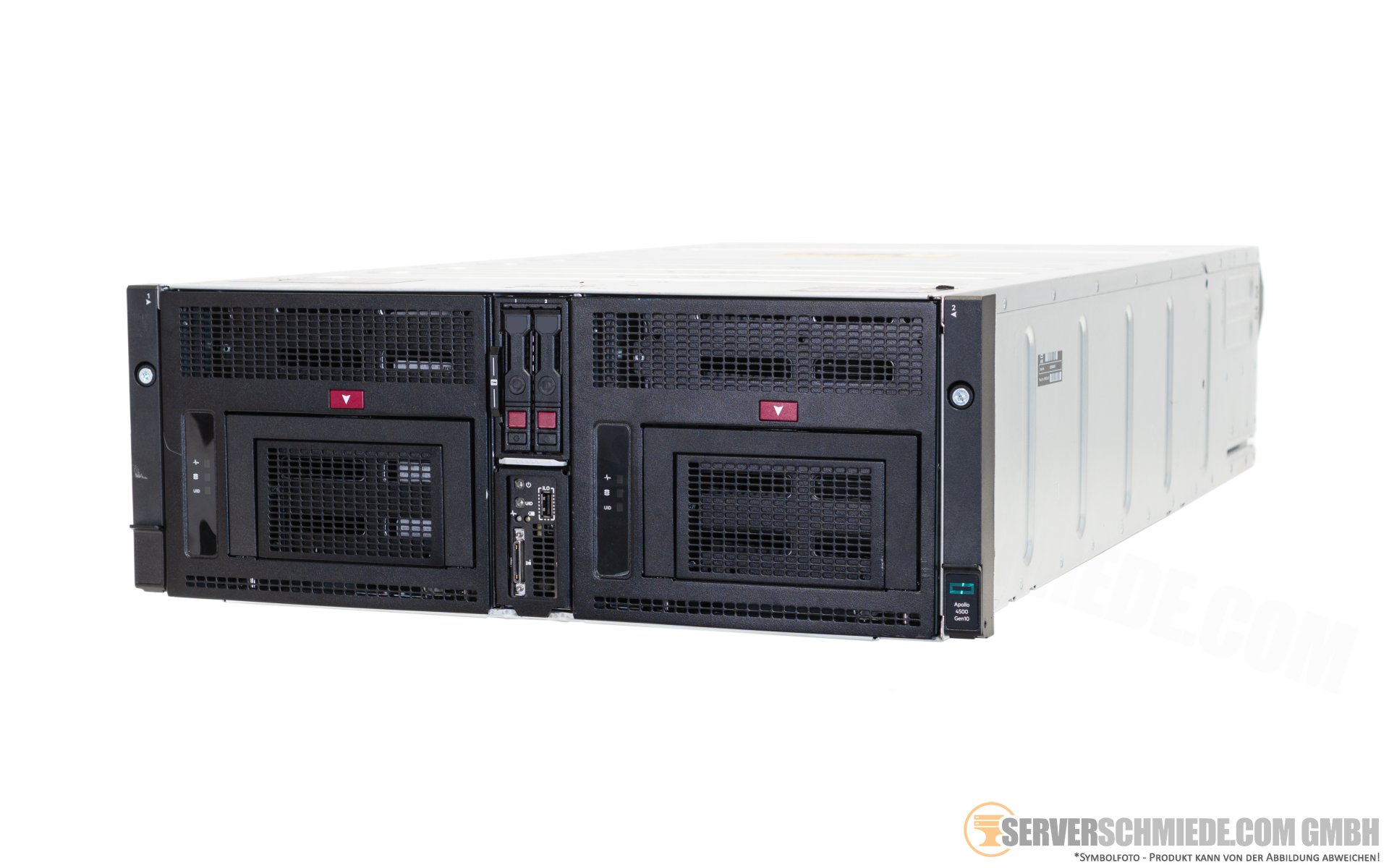

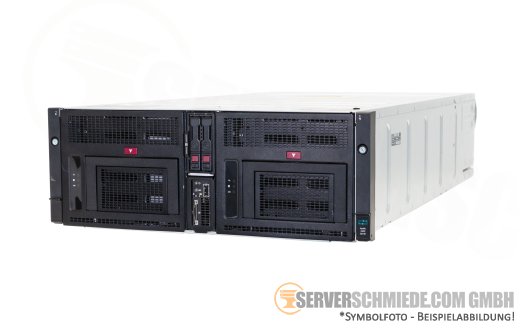

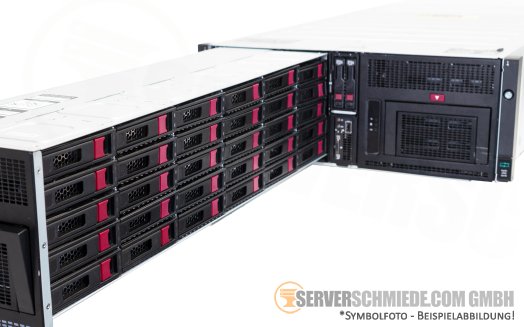

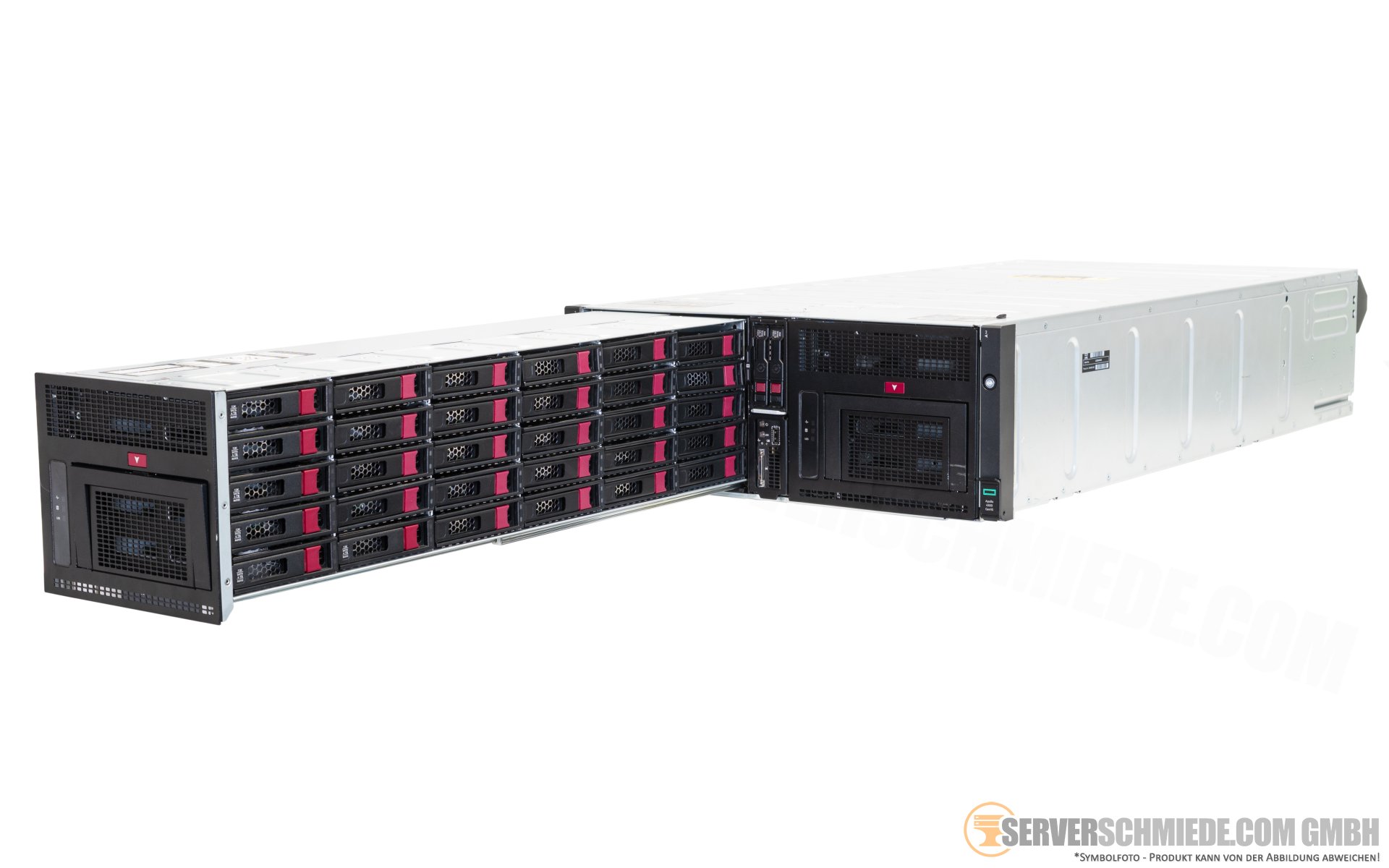

NAS Storage Server with TrueNAS Community Edition and ZFS - HP Apollo 4510 Gen10 G10 19" 4U 60x 3,5" LFF SAS 2x 2,5" SFF 2x Intel 3647 DDR4 ECC Raid 4x PSU
Product description
Included components:
-
SSD
2 x 240GB 2,5" SSD +NEW+
Vendor: HP
Unit type: Server
Type: 19" 4 HE
Model: Apollo 4510 Gen10

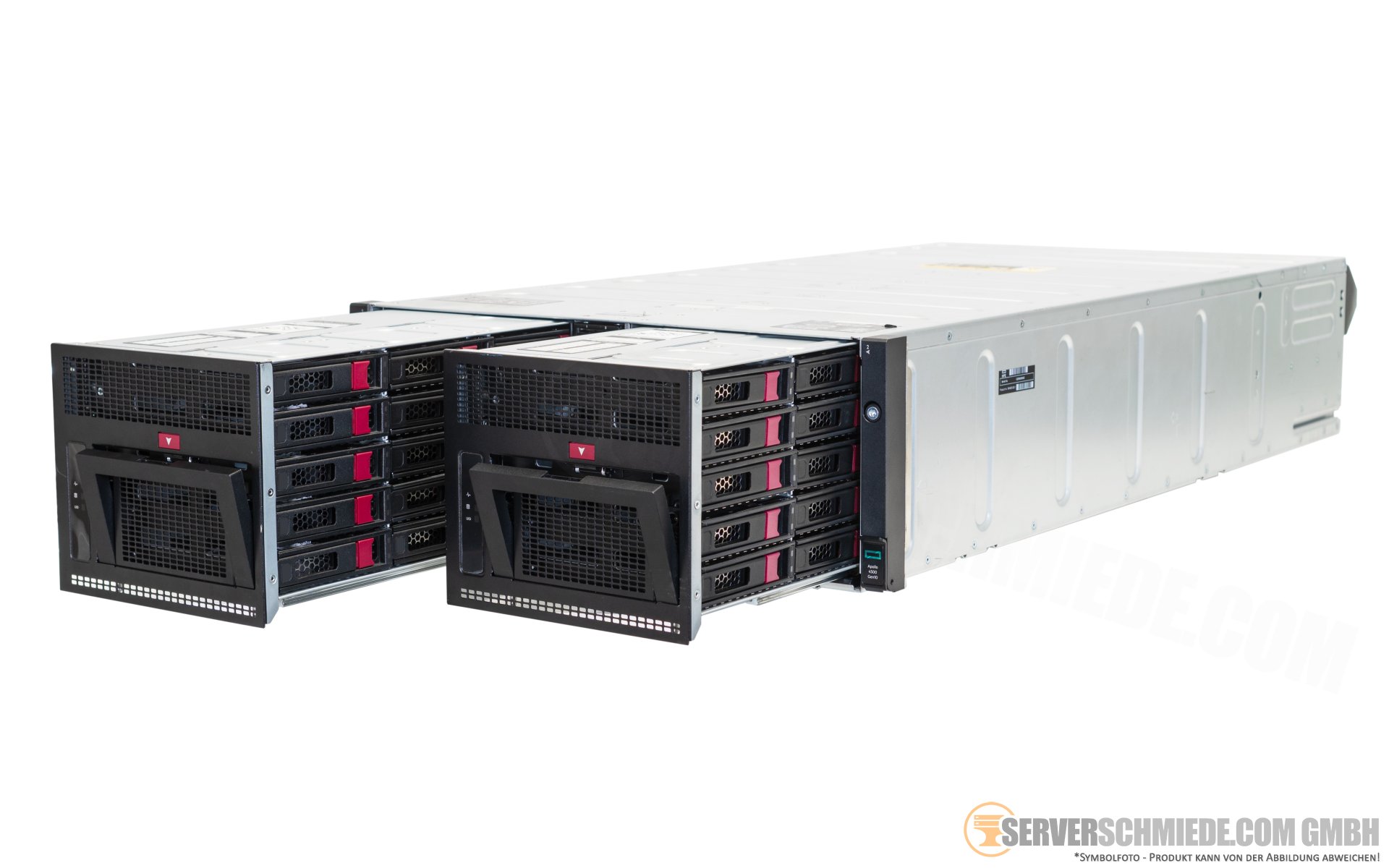

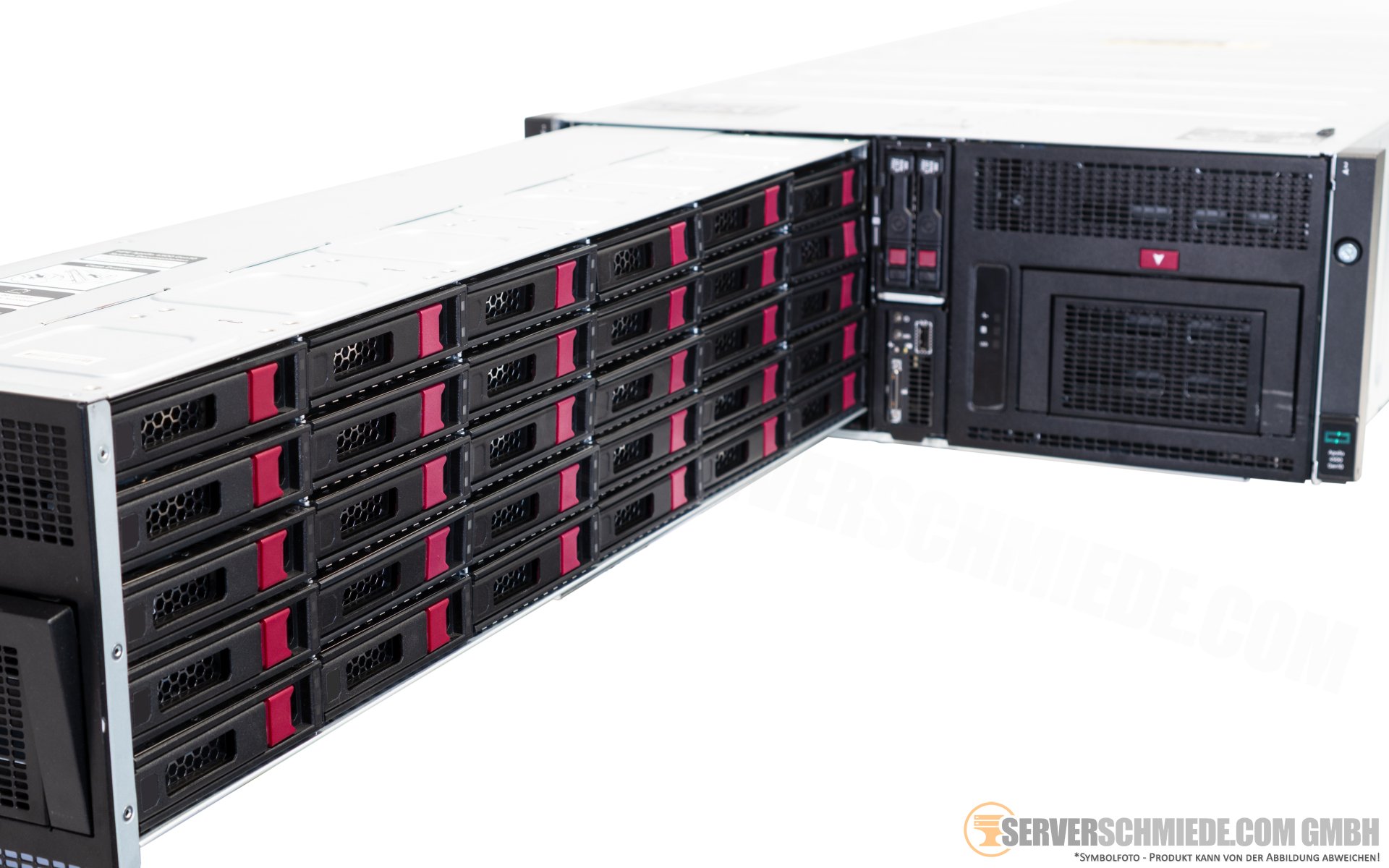

HDD bays: 60x 3,5" HotSwap HDD Bays SAS/SATA 12Gb/6Gb Backplane
2x 2,5" HotSwap HDD Bays SAS/SATA/NVMe
without selected hdds or trays are no hdd trays included in delivery
2x 2,5" HotSwap HDD Bays SAS/SATA/NVMe
without selected hdds or trays are no hdd trays included in delivery
Optical drive: ohne
Networking: HPE Embedded 1Gb Ethernet 2-port Adapter
Internal interfaces:
2x FCLGA3647 Intel CPU Socket Scalable Gen1/2 up to 150W TDP
Intel C621 Series Chipset
16x DDR4 288pin ECC DIMM banks up to 1TB RAM

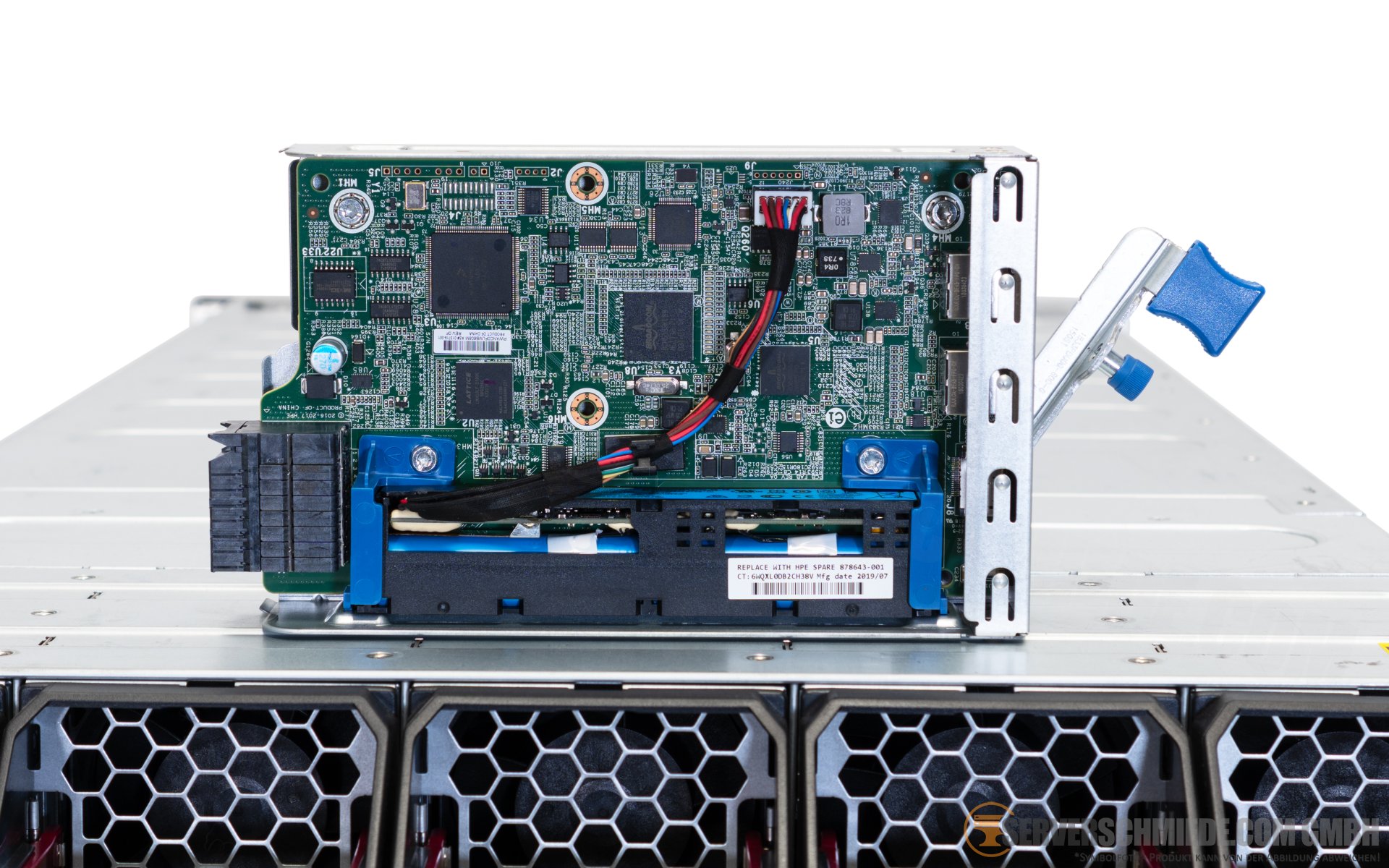

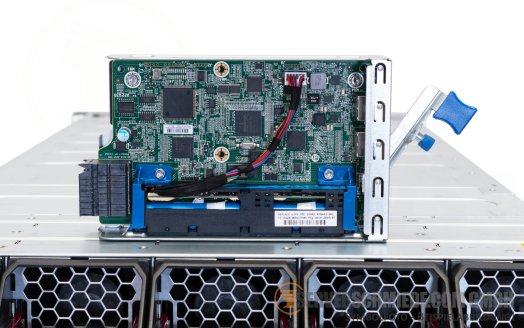

Node: HP XL450 Gen10
default Riser:
2x x16 PCIe 3.0 Full Profile / Half Length
1x x16 PCIe 3.0 Low Profile / Half Length
1x FlexibleLOM slot
2x M.2 PCIe 2280/22110
1x microSD card slot
Front:

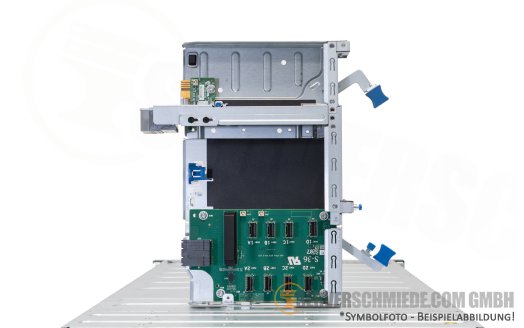

2x 2,5" SFF SAS*/SATA/NVMe
(SATA SW RAID via S100i (Windows only) possible)
(*SAS requires optional AROC controller, selectable under server expansions)
Internal:

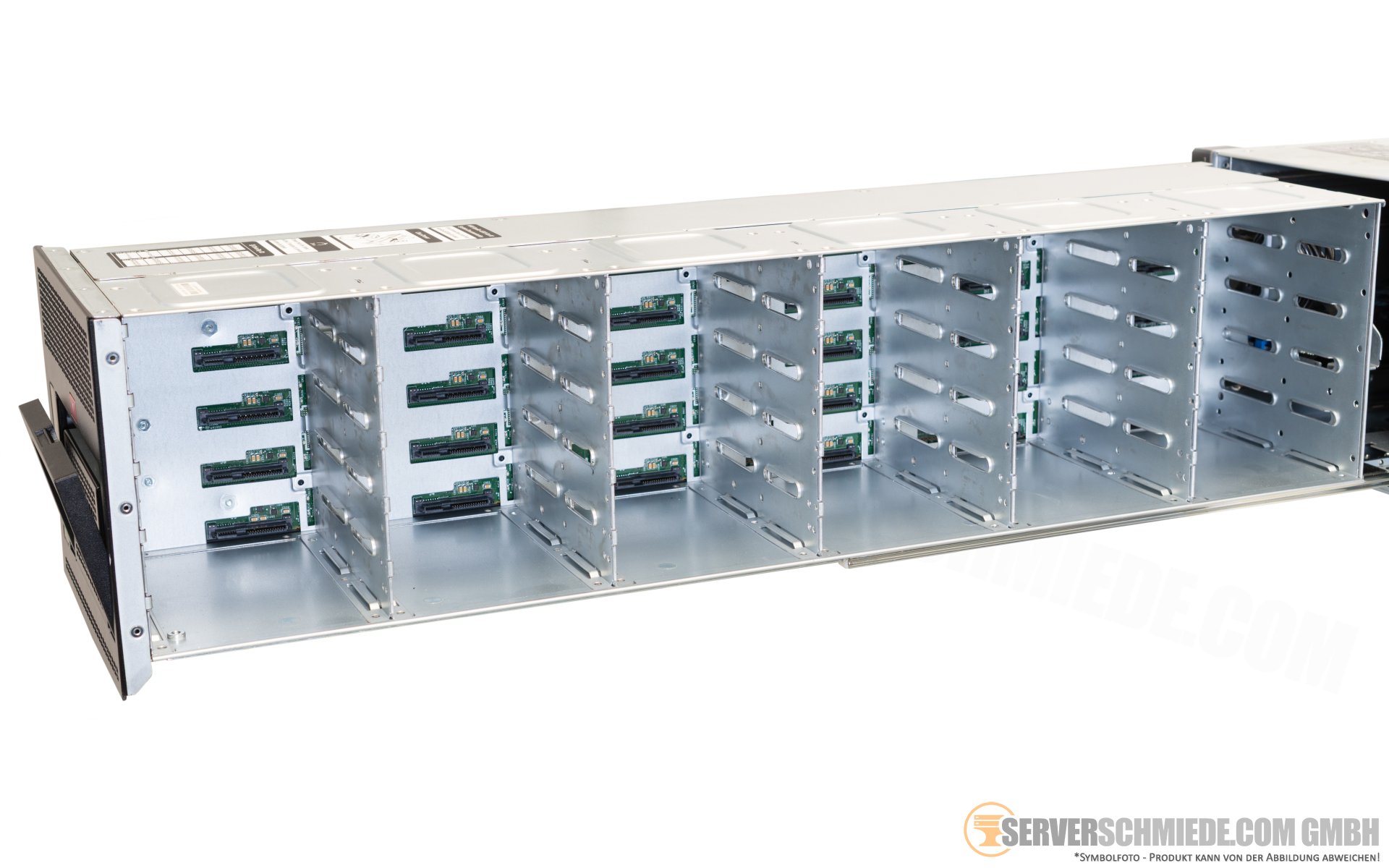

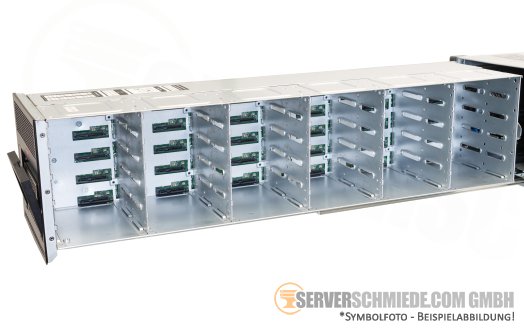

60x 3,5" LFF SAS/SATA via Expander Board*
(*requires SAS controller, selectable under main storage adapter)
2x FCLGA3647 Intel CPU Socket Scalable Gen1/2 up to 150W TDP
Intel C621 Series Chipset
16x DDR4 288pin ECC DIMM banks up to 1TB RAM
Node: HP XL450 Gen10
default Riser:
2x x16 PCIe 3.0 Full Profile / Half Length
1x x16 PCIe 3.0 Low Profile / Half Length
1x FlexibleLOM slot
2x M.2 PCIe 2280/22110
1x microSD card slot
Front:
2x 2,5" SFF SAS*/SATA/NVMe
(SATA SW RAID via S100i (Windows only) possible)
(*SAS requires optional AROC controller, selectable under server expansions)
Internal:
60x 3,5" LFF SAS/SATA via Expander Board*
(*requires SAS controller, selectable under main storage adapter)
External interfaces:
Front:
1x iLO USB
1x SUV diagnostic cable connector

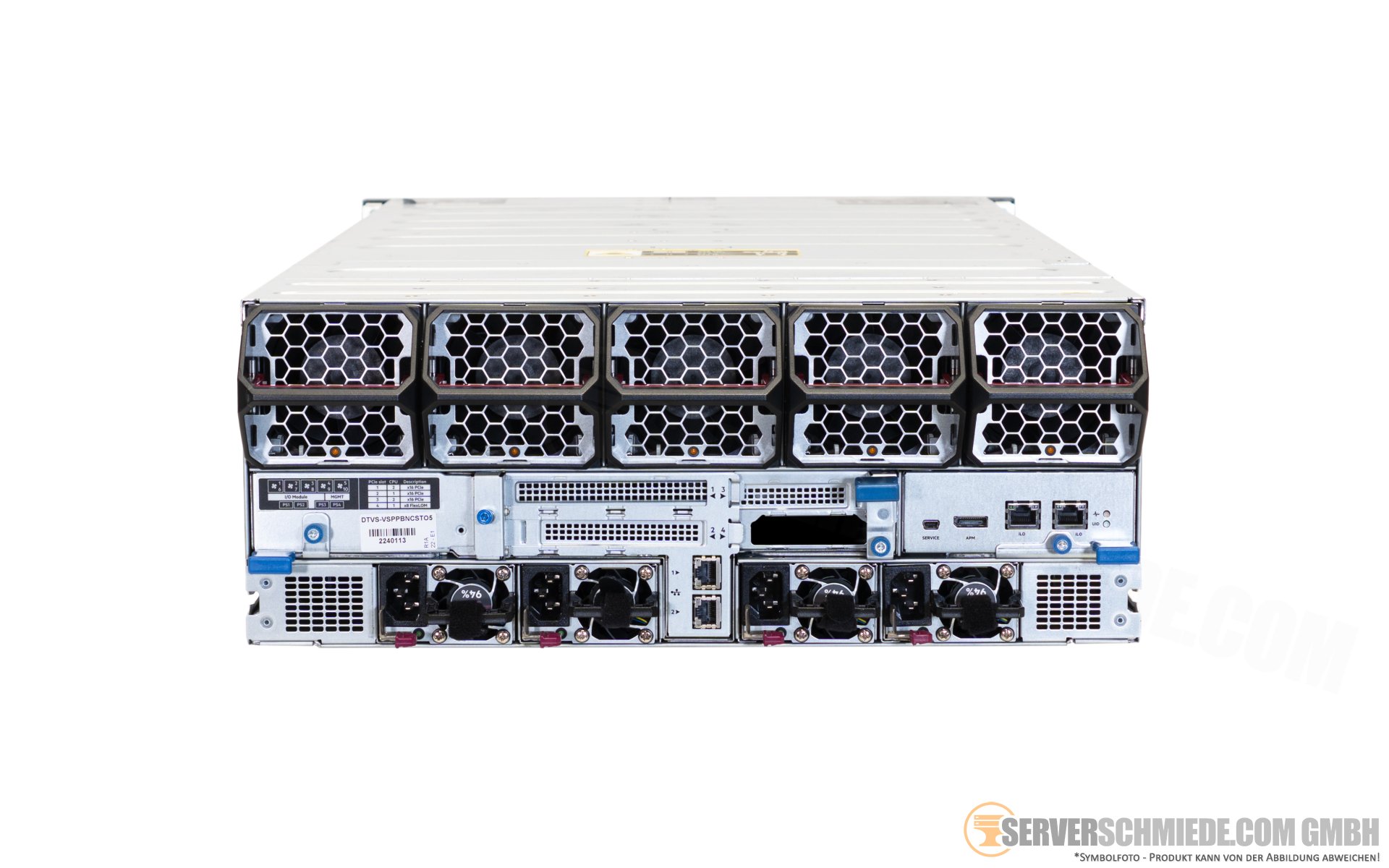

Rear via Management module:
2x iLO RJ-45
1x APM Connector for Apollo Platform Manager Kit
1x Service mini USB
2x 1 Gb RJ-45
Front:
1x iLO USB
1x SUV diagnostic cable connector
Rear via Management module:
2x iLO RJ-45
1x APM Connector for Apollo Platform Manager Kit
1x Service mini USB
2x 1 Gb RJ-45
Videocard: onboard
Powerunits: up to 4x HP HotSwap Power supply
Compatible operating systems:
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Item condition: refurbished, Grade A
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
manufacturer information:
enterprise.kunden@hpe.com
HP Deutschland
Herrenberger Straße 140
71034 Böblingen
Deutschland
Product No.: C-FN107
Base price: 1.006,00 €
incl.
19% MwSt | excl. Shipping
Price excl. VAT: 845,38 €
Availability:
Shipping time: 2-5 days + shipping time (excl. weekend, excl. business holidays)
Weight KG: 55.50kg
