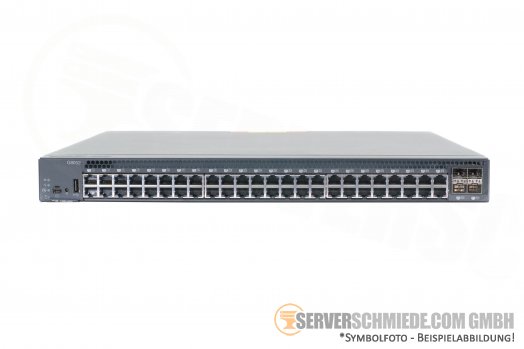

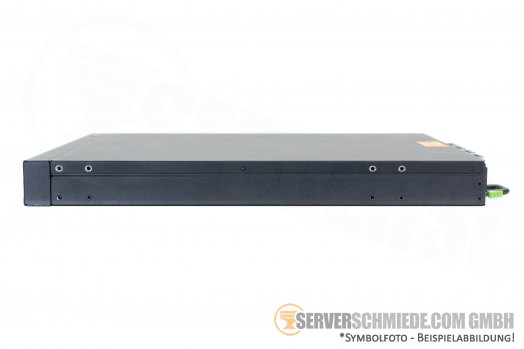

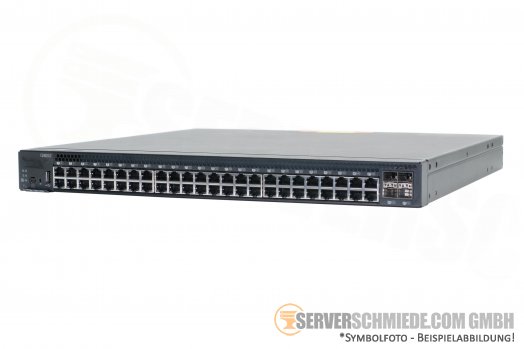

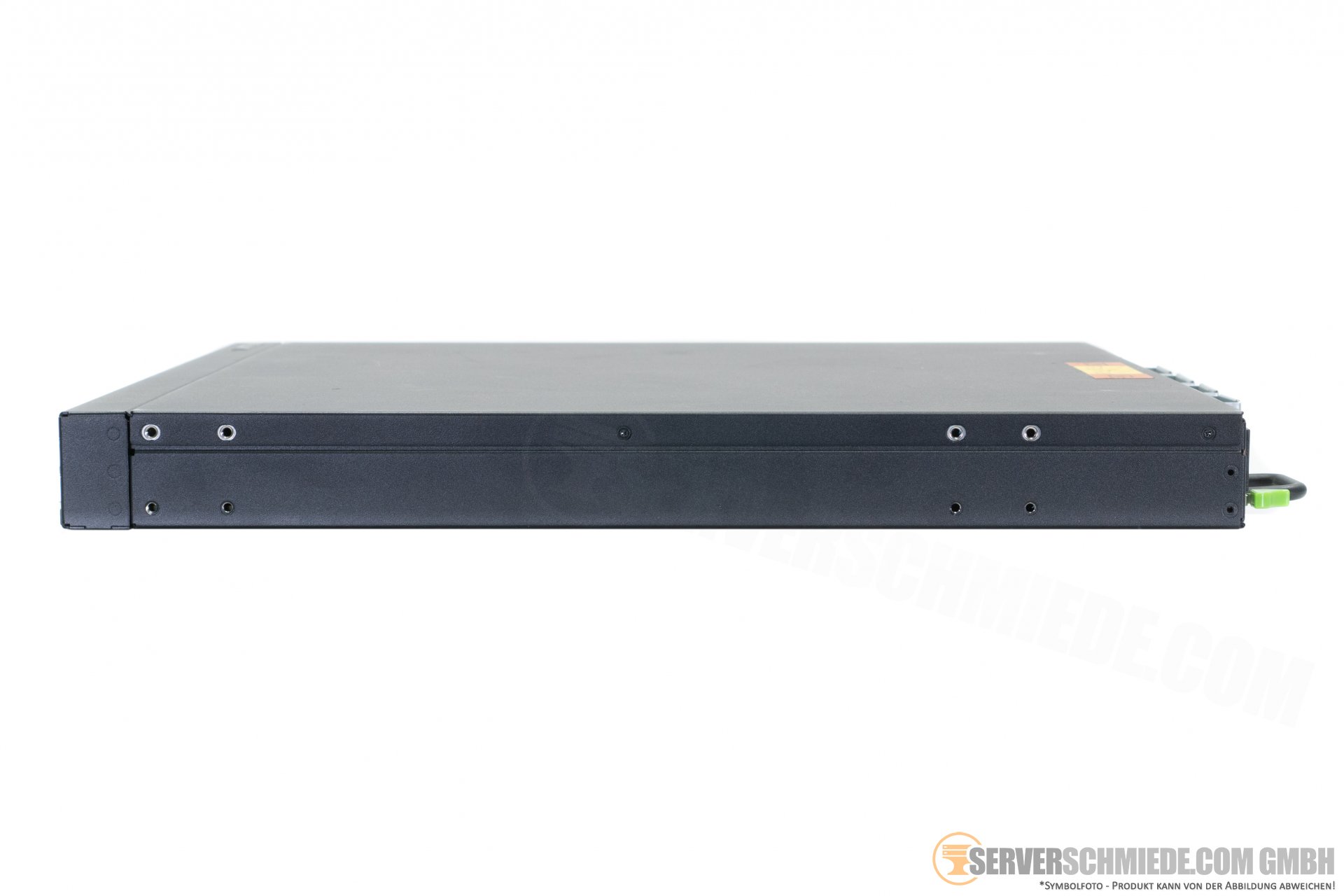

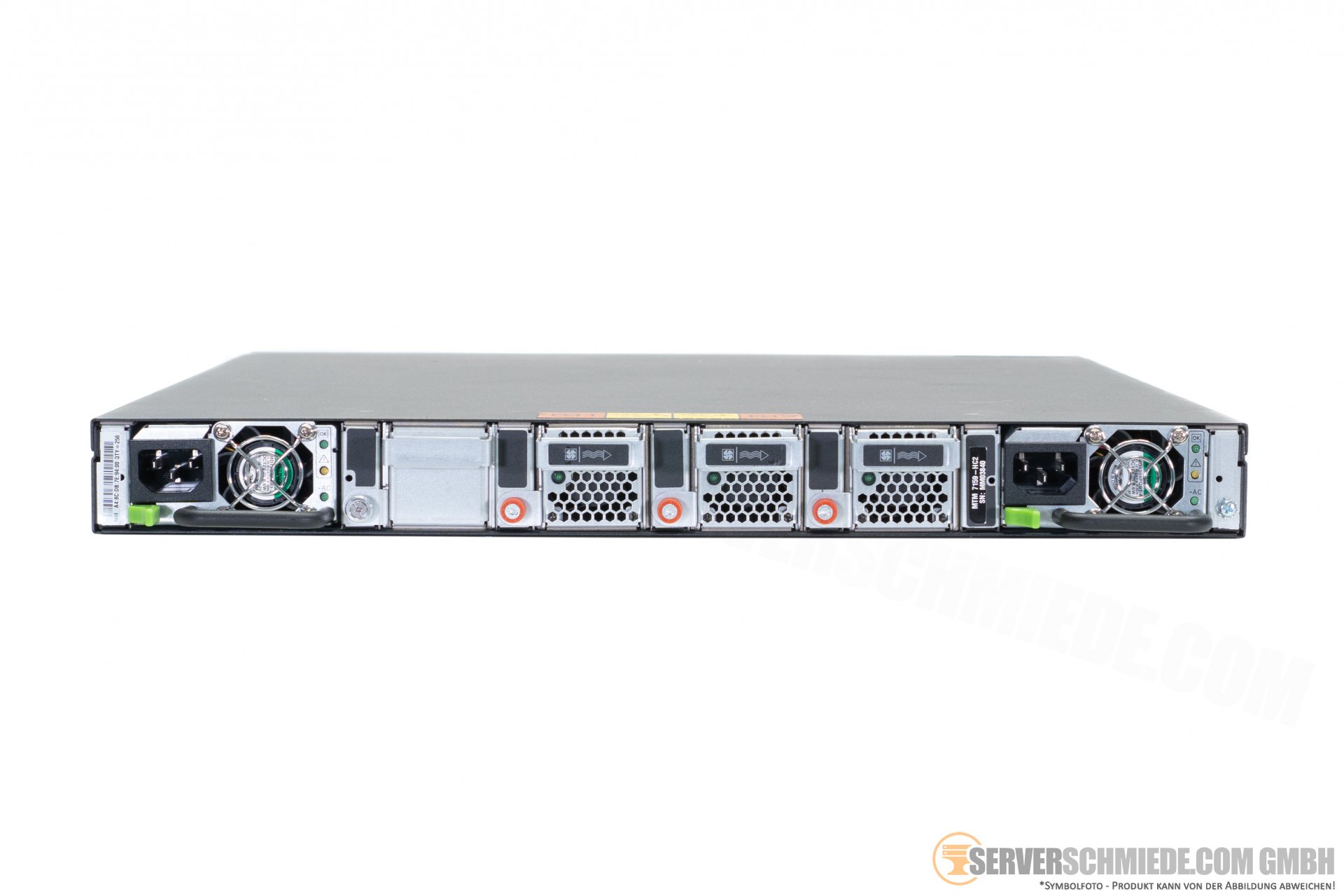

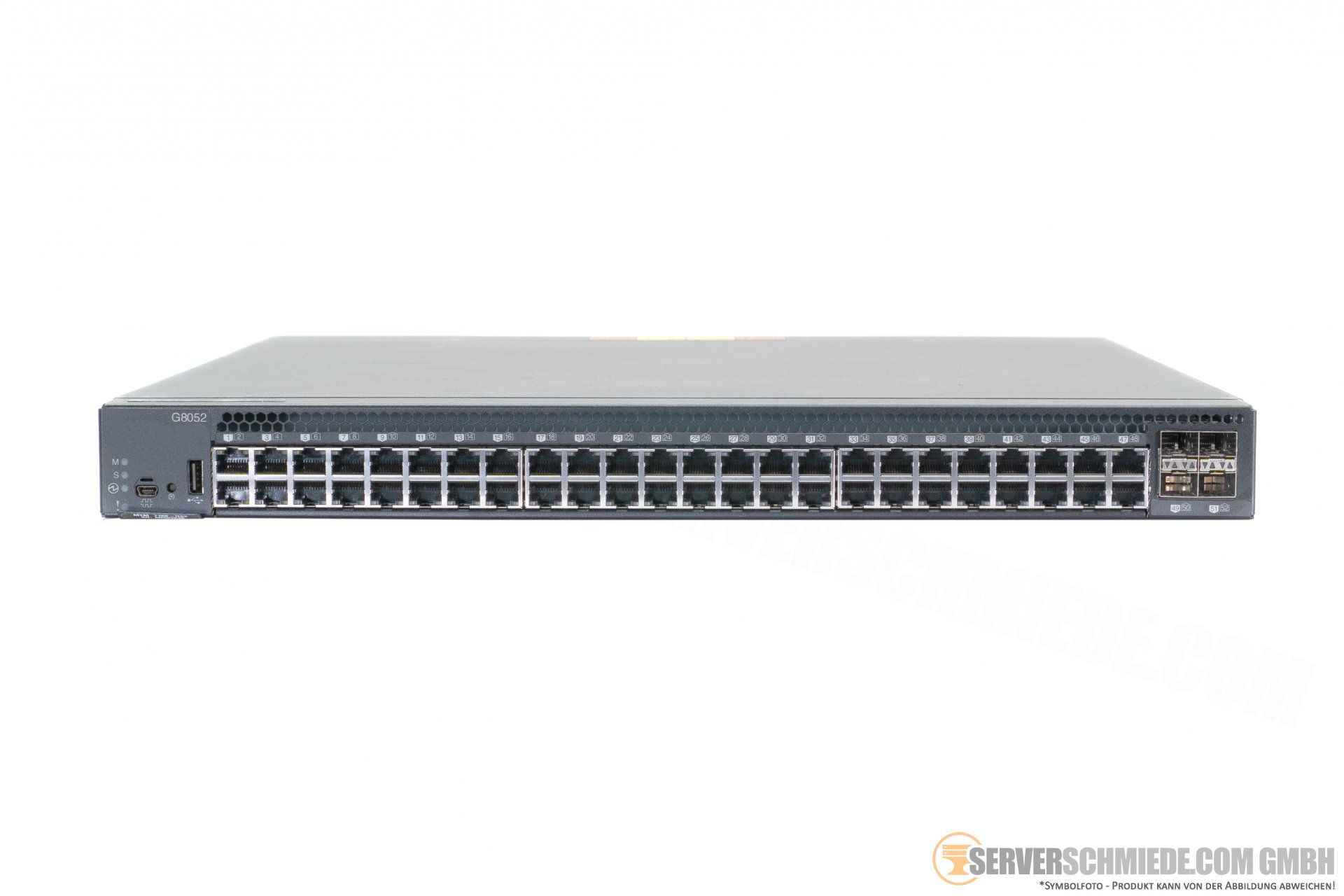

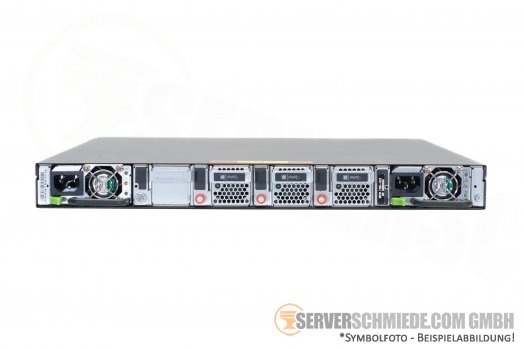

Lenovo 19" RackSwitch G8052 48x 1GbE RJ-45 Kupfer copper 4x SFP+ 10Gb Layer-3 front-to-rear airflow 2x PSU 4x FAN

Hersteller / OEM: IBM

Gerätetyp: Ethernet

Bauart: 19" 1 HE

Modell:

PartNr: RackSwitch G8052 7309-HC2 7159-HC2 / 7309-HC2

Ports: 52 Port 10Gb RJ-45 SFP+

Specs: 48x 1-Gigabit-Ethernet-(GbE-)RJ45-Ports und vier 10-GbE-SFP+-Standard-Ports
Frei wählbare Luftstromrichtung für wesentliche Einsparungen bei den Kühlkosten
Geringe Stromaufnahme von 130 W und variable Lüftergeschwindigkeiten, um den Stromverbrauch zu reduzieren
Integrierte redundante Lüfter, Netzteile und Softwarefunktionen für Hochverfügbarkeit (Standard)

Der Lenovo RackSwitch G8052 verfügt über 48 RJ45-1-Gigabit-Ethernet-(GbE-)Ports und 4 10-GbE-SFP+-Ports in einem flexiblen 1-HE-Switch.
Alle Ports sind standardmäßig vorhanden, die SFP+-Ports können bei Bedarf auch 1-GbE-SFP unterstüzen.
Der G8052 ist auf Höchstleistung ausgelegt und zeichnet sich durch High-Bandwidth-Switching in Leitungsgeschwindigkeit, Filtering und Traffic-Queuing ohne Datenverzögerung sowie große Puffer aus, damit der Datenverkehr im Rechenzentrum reibungslos abläuft.
Redundante, Hot-Swap-fähige Netzteile und Lüfter sorgen neben zahlreichen Hochverfügbarkeitsmerkmalen dafür, dass der G8052 zu jeder Zeit für geschäftskritischen Datenverkehr verfügbar ist.

Scalability and performance:
Media access control (MAC) address learning with automatic updates
Static and LACP (IEEE 802.3ad) link aggregation
Broadcast/multicast storm control
IGMP snooping for limit flooding of IP multicast traffic
IGMP filtering to control multicast traffic for hosts participating in multicast groups
Configurable traffic distribution schemes over trunk links based on source or destination IP or MAC addresses, or both
Fast port forwarding for rapid STP convergence
Availability and redundancy:
IEEE 802.1D STP for providing L2 redundancy
IEEE 802.1s Multiple STP (MSTP) for topology optimization
IEEE 802.1w Rapid STP (RSTP) (provides rapid STP convergence for critical delay-sensitive traffic, such as voice or video)
Per-VLAN Rapid STP (PVRST) enhancements
Layer 2 Trunk Failover to support active/standby configurations of network adapter teaming on servers
Hot Links provides basic link redundancy with fast recovery for network topologies that require Spanning Tree to be turned off
VLAN support:
Port-based and protocol-based VLANs
Up to 4094 VLANs supported per switch (2048 active VLANs), with VLAN numbers 1 - 4094
802.1Q VLAN tagging support on all ports
Ingress VLAN tagging support to tunnel packets through a public domain without altering the original 802.1Q tagging information
802.1x with dynamic guest VLAN assignment
Private VLANs support as defined in RFC 5517
OpenFlow 1.0 and 1.3.1 support
Virtualization:
Virtual link aggregation groups (vLAGs)
Two switches (vLAG peers) act as a single virtual entity for a multi-port aggregation
vLAG Peer Gateway for improved usage of the inter-switch link between the vLAG peers
Two-tier vLAGs with VRRP enables active/active VRRP support to reduce routing latency
Supports 802.1Qbg Edge Virtual Bridging (EVB) which is an emerging IEEE standard for allowing networks to become virtual machine (VM)-aware:
Virtual Ethernet Bridging (VEB) and Virtual Ethernet Port Aggregator (VEPA) are mechanisms for switching between VMs on the same hypervisor.
Edge Control Protocol (ECP) is a transport protocol that operates between two peers over an IEEE 802 LAN providing reliable, in-order delivery of upper layer protocol data units.
Virtual Station Interface (VSI) Discovery and Configuration Protocol (VDP) allows centralized configuration of network policies that persist with the VM, independent of its location.
EVB Type-Length-Value (TLV) is used to discover and configure VEPA, ECP, and VDP.
VMready support:
Up to 1,024 virtual entities (VEs)
Automatic VE discovery
Up to 1,024 local or distributed VM groups for VEs
NMotion® feature for automatic network configuration migration
Stacking: Up to eight switches in a stack; single IP management

Security:
VLAN-, MAC-, and IP-based access control lists (ACLs)
802.1x port-based authentication
Multiple user IDs and passwords
User access control
Radius, TACACS+ and LDAP/LDAPS authentication and authorization
NIST 800-131A Encryption
Selectable encryption protocol
Secure Input/Output Module (SIOM) policy: Secure and Legacy modes
Quality of Service (QoS):
Support for IEEE 802.1p, IP ToS/DSCP, and ACL-based (MAC/IP source and destination addresses, VLANs) traffic classification and processing
Traffic shaping and re-marking based on defined policies
Eight priority queues per port for processing qualified traffic
Weighted random early detection with explicit congestion notification (WRED/ECN)
Control plane protection (CoPP)
IPv4/IPv6 ACL metering
IP v4 Layer 3 functions:
Host management
IP forwarding
IP filtering with ACLs, up to 640 IPv4 ACLs supported
VRRP for router redundancy
Support for up to 128 static routes
Routing protocol support (RIP v1, RIP v2, OSPF v2, BGP)
Support for policy-based routing (PBR)
Support for DHCP Relay
Support for IGMP snooping and IGMP relay
Support for Protocol Independent Multicast (PIM) in Sparse Mode (PIM-SM) and Dense Mode (PIM-DM)
IP v6 Layer 3 functions:
IPv6 host management
IPv6 forwarding
Up to 128 static routes
Support for OSPF v3 routing protocol
IPv6 filtering with ACLs, up to 128 IPv6 ACLs supported
Manageability:
Industry-standard command line interface (isCLI)
Simple Network Management Protocol (SNMP V1 and V3)
Telnet interface for CLI
Secure Shell (SSH) v1 and v2 for CLI
Secure Copy (SCP) for uploading and downloading the switch configuration via secure channels
Service Location Protocol (SLP)
Link Layer Discovery Protocol (LLDP) for discovering network devices
Serial interface for CLI
Scriptable CLI
Dual software images
Firmware image update via TFTP, FTP, Secure FTP (sFTP), or USB storage
Network Time Protocol (NTP) for switch clock synchronization
Netconf (XML)
Lenovo XClarity (optional) for discovery, inventory, monitoring and events

Monitoring:
Switch LEDs for port status and switch module status indication
Remote Monitoring (RMON) agent to collect statistics and proactively monitor switch performance
Port mirroring for analyzing network traffic passing through the switch
Change tracking and remote logging with the syslog feature
Support for sFlow agent for monitoring traffic in data networks (separate sFlow analyzer required elsewhere)
The following features are not supported with IPv6:
Bootstrap Protocol (BOOTP) and DHCP
Stacking
RADIUS, TACACS+ and LDAP
VMware Virtual Center (vCenter) for VMready
Routing Information Protocol (RIP)
Border Gateway Protocol (BGP)
Virtual Router Redundancy Protocol (VRRP)
Protocol Independent Multicast (PIM)
sFlow

The following features are not supported with Stacking (for a full list of features, see the Networking OS Application Guide):
IGMP Relay
IPv6
Policy-based routing
Routing protocols (RIP, OSPF, BGP)
sFlow
Virtual Router Redundancy Protocol (VRRP)
