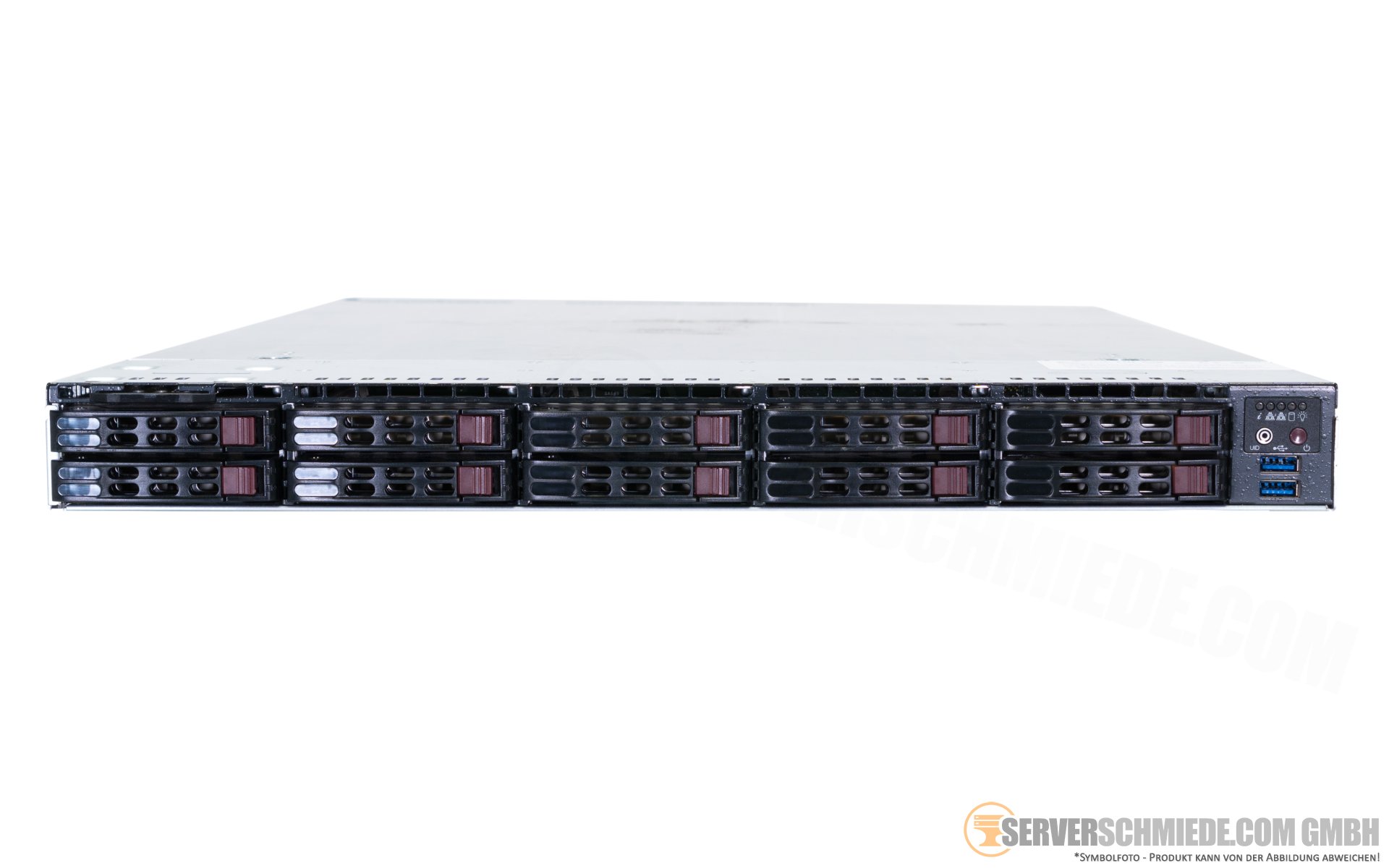

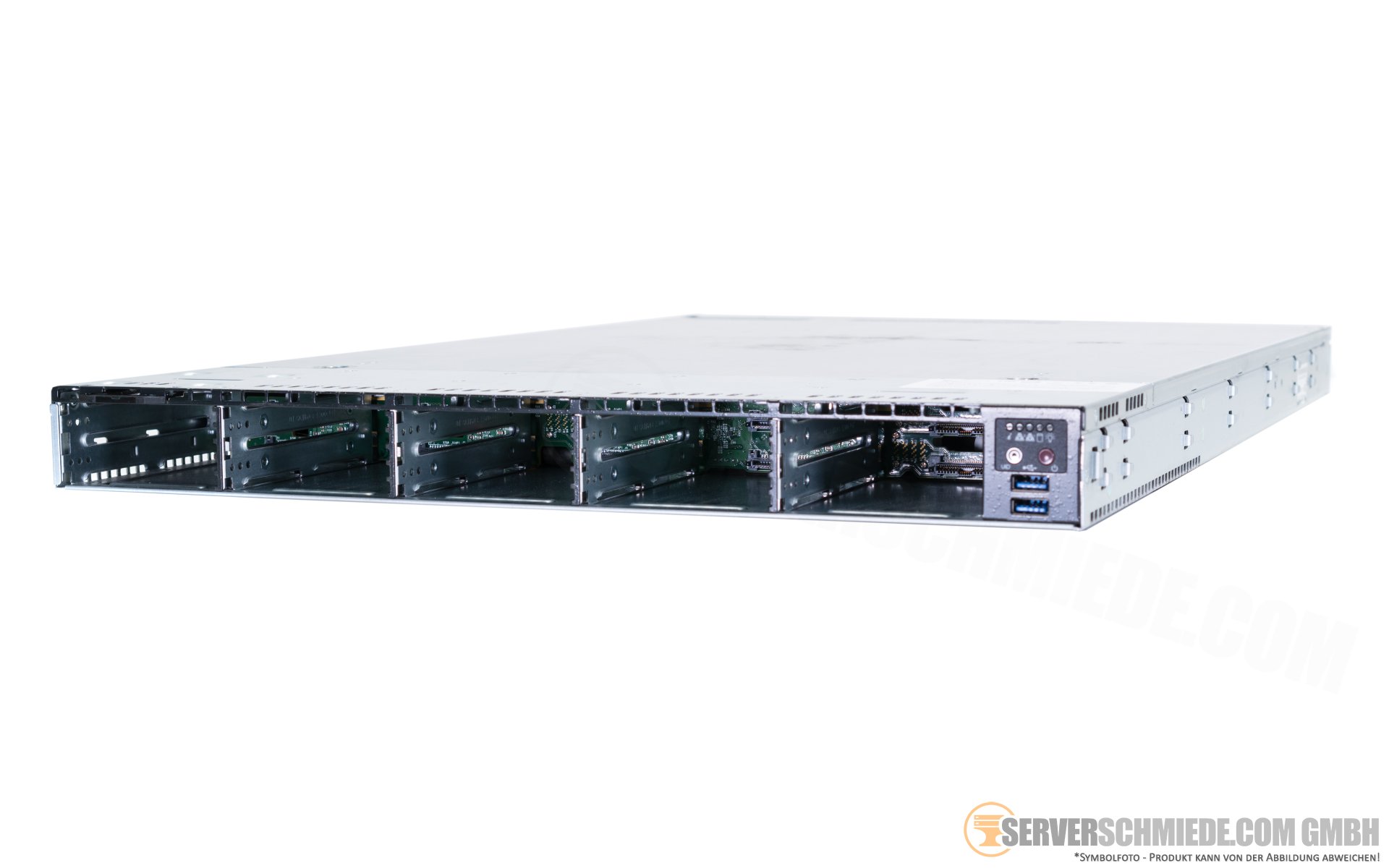

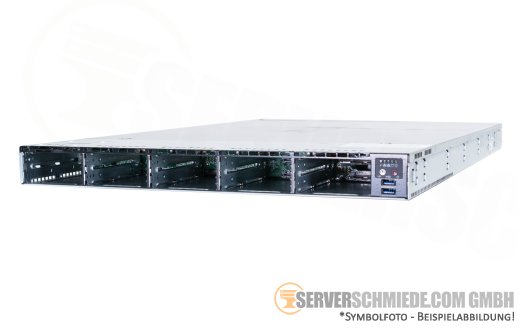

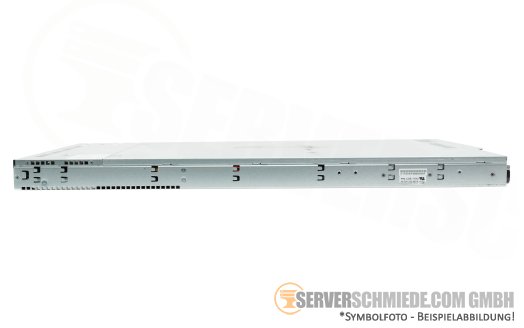

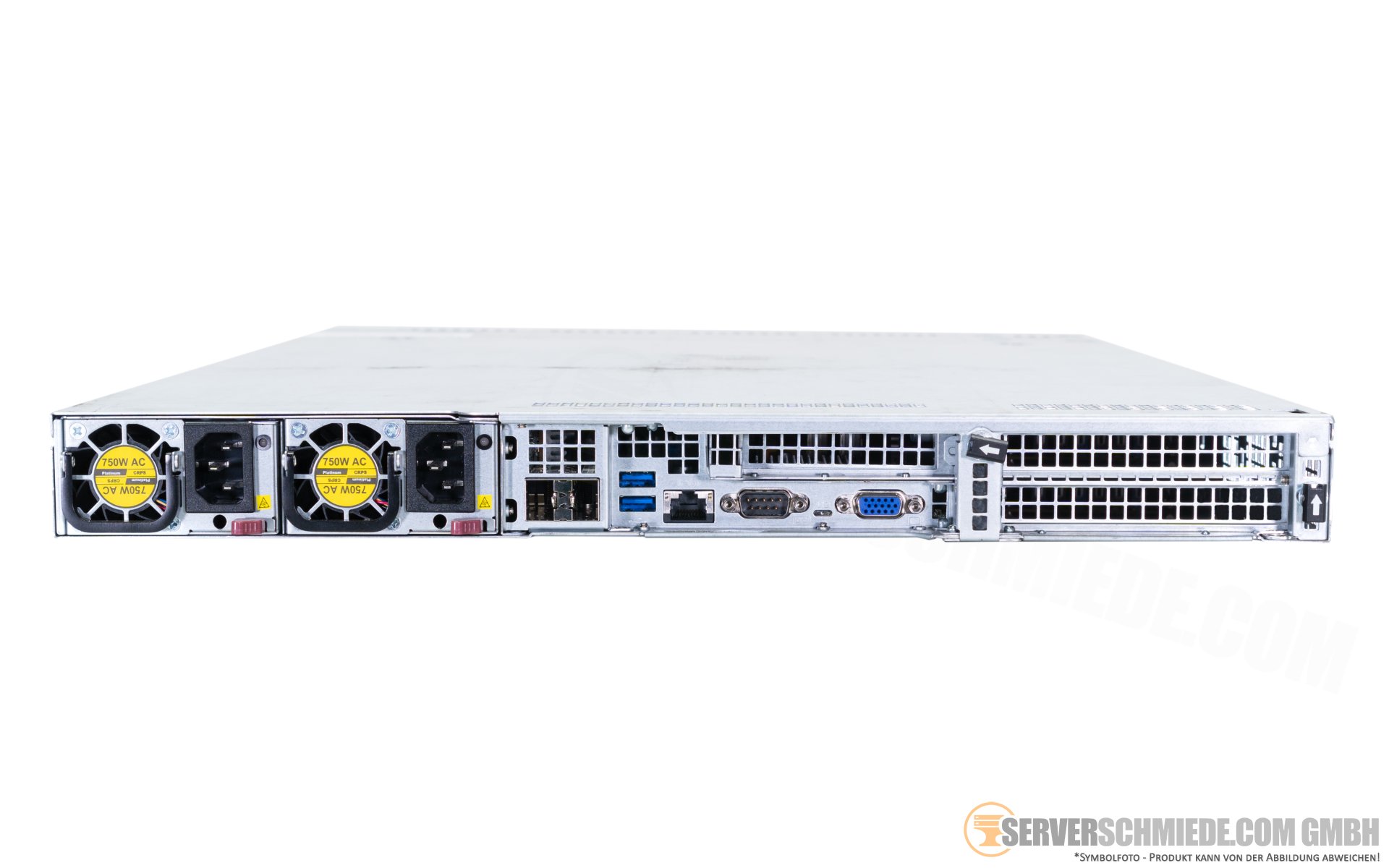

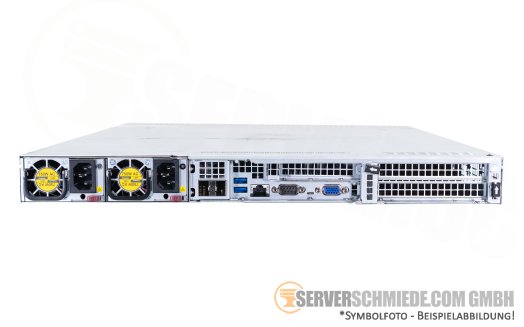

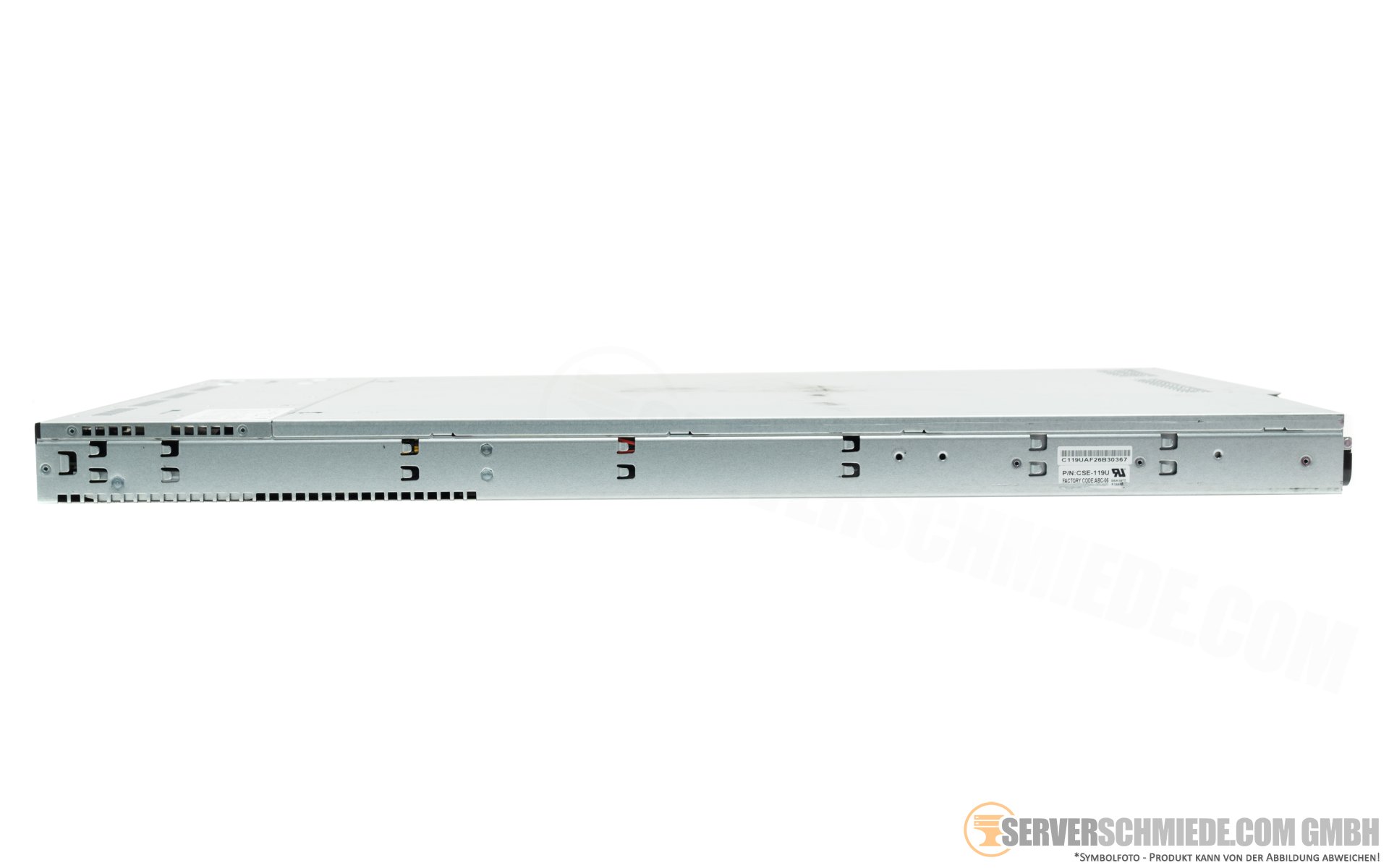

Supermicro CSE-119U 1028U X10DRU-i+ 19" 10x 2,5" SFF 2x U.2 NVMe 1x Intel XEON E5-2630V3 64GB DDR4 2x 240GB SSD 2x 750W Rails
Artikelnummer: M312B02
Basispreis: 1.098,00 €
inkl.
19% MwSt | exkl. Versandkosten
Preis exkl. MwSt.: 922,69 €
Verfügbarkeit:
Lieferzeit: 2-5 Arbeitstage (exkl. Wochenende, exkl. Feiertage) + Versandlaufzeit
Gewicht: 26.00kg
Enthaltene Komponenten:
-
Server
Supermicro CSE-119U 1028U X10DRU-i+ 19" 1U 10x 2,5" SFF 2x U.2 NVMe 2x Intel XEON E5-2600 v3 v4 DDR4 ECC Raid 2x PSU vmware Server -CTO- -
CPU
Intel Xeon E5-2630V3 SR206 8C Server Prozessor 8x 2,40 GHz 20MB Cache 2011-3 CPU -
RAM
64GB Registered ECC DDR4 SDRAM (2x 32GB DIMM) -
StorageController
LSI MegaRAID 9361-8i 12G SAS PCIe x8 1GB Cache RAID Controller for HDD SSD Raid 0, 1, 10, 5, 50, 6, 60 inkl. Cache Vault Module + SuperCap Capacitor -
SSD
2 x 240GB 2,5" Samsung PM883 Datacenter Enterprise 24/7 Raid SATA SSD 98K IOPS ++NEW++ -
HDD-Trays
2 x Supermicro 2,5" SFF Tray HDD Festplatte Caddy MCP-220-00047-0B -
Controller
Supermicro AOC-STG-i2T Intel X540-T2 2x 10GbE Dual Port Network 10 Gigabit LAN Ethernet PCIe x8 Controller -
PowerSupply
2 x Supermicro 750W 80 Plus Platinum PSU Netzteil PWS-751P-1R CSE-819U -
Kabel
Kaltgerätekabel IEC connector ca. 1,40m C13 - Schuko 10A -
RackRails

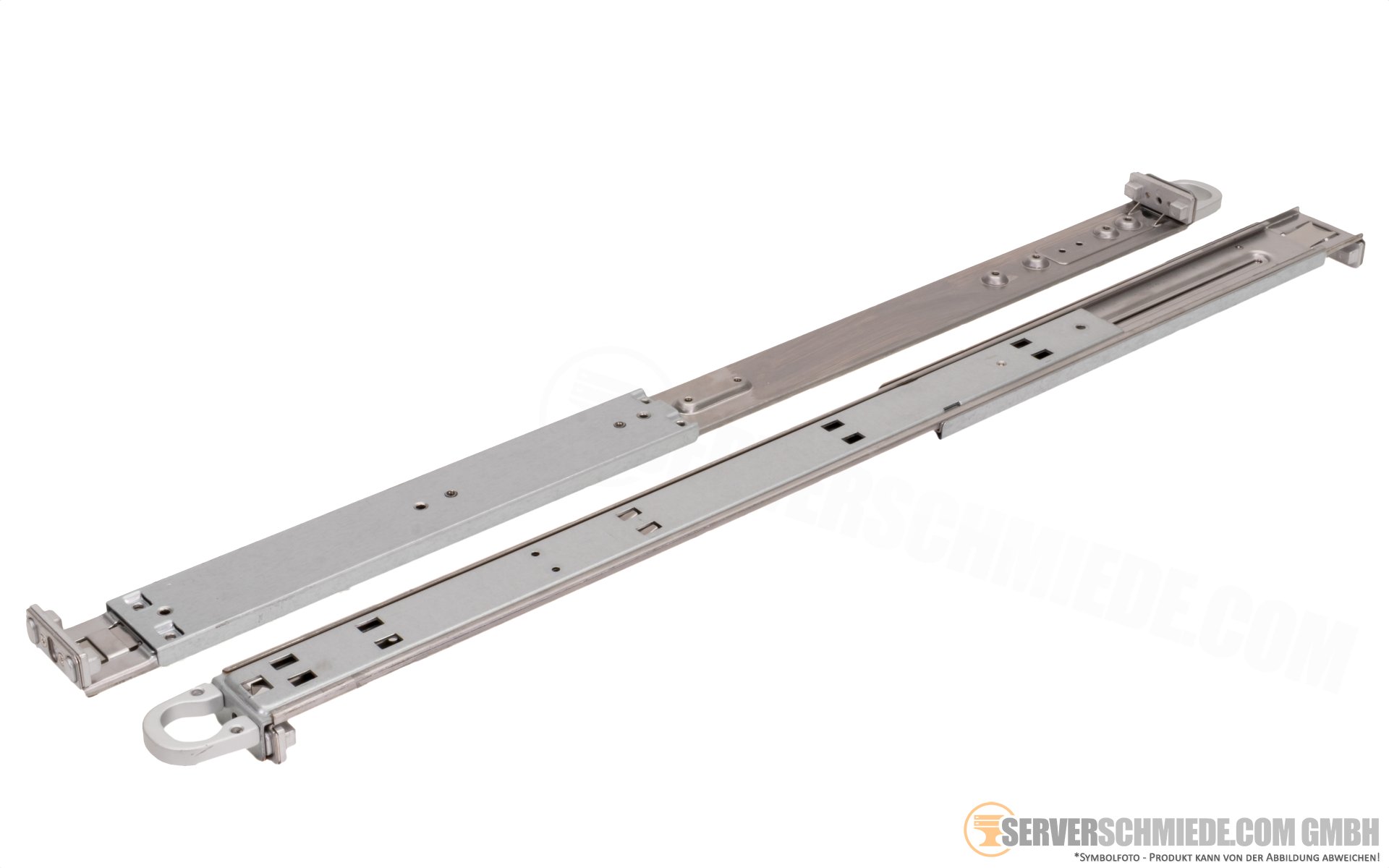

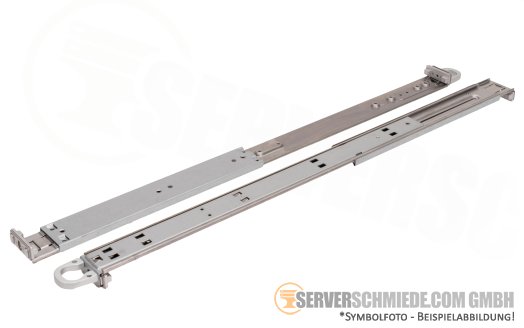

19" 1U Supermicro CSE-118 119 815 813 818 819U Rack Rails Kit Rackschienen MCP-290-00054-0N -
Support
12 Monate Bring In Basis Garantie ohne Vorab Austausch ohne Service ohne Reparaturgarantie *
Hersteller:
Supermicro
Gerätetyp:
Server
Bauart:
19" 1 HE
Modell:
CSE 119U
Festplatten HDD Bays:
10x HotSwap Festplatten Einschub SAS/S-ATA Backplane
Optisches Laufwerk:
ohne
Networking:
2x 10G SFP+ ports via AOC-URN2-I2XS
Interne Schnittstellen:

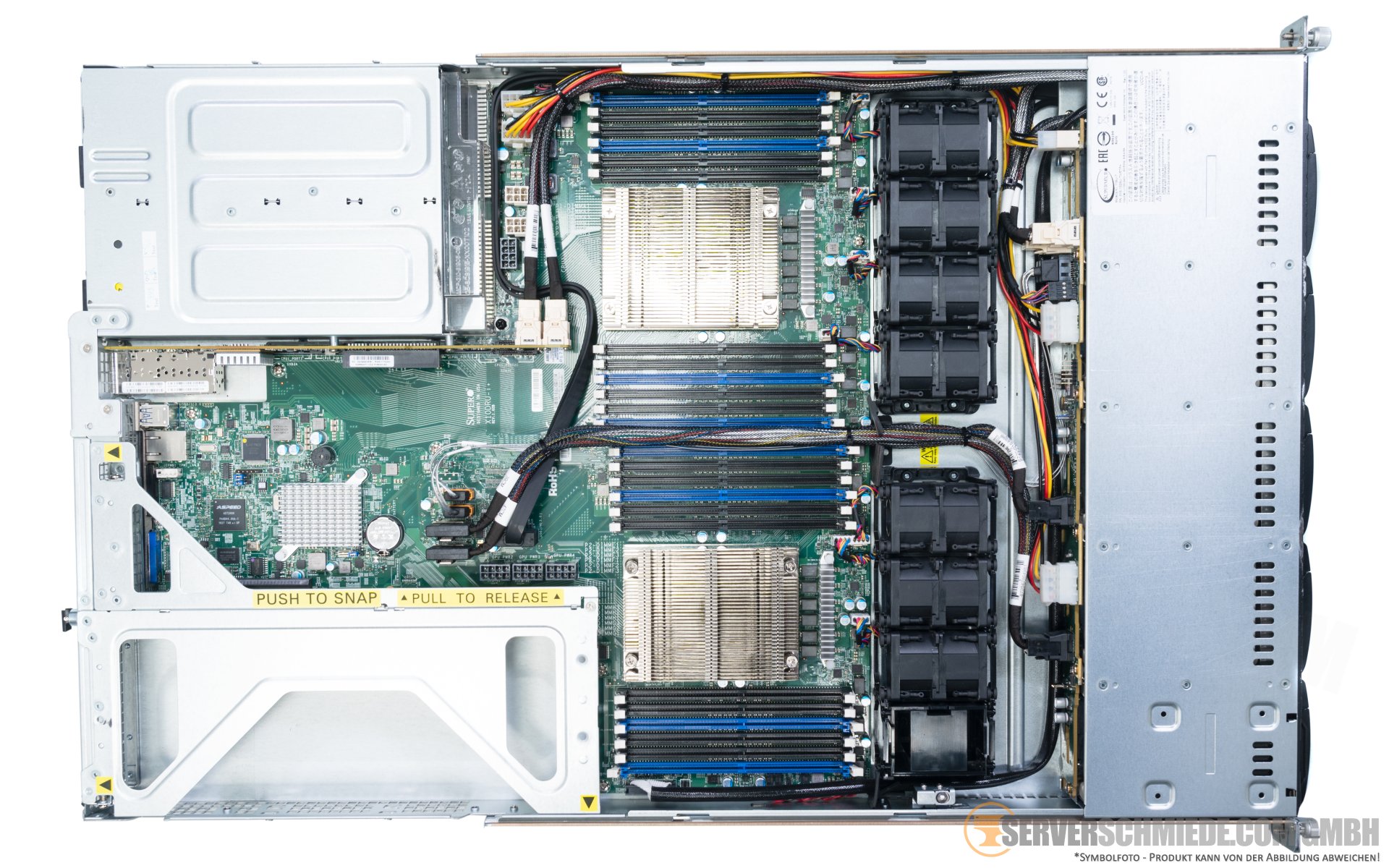

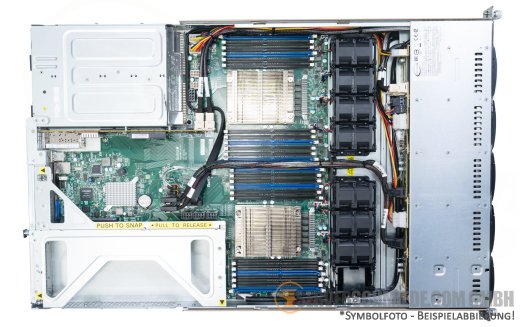

2x CPU Sockel 2011-3 Intel Xeon E5-2600 v3/v4 series processor
24x DDR4 288pin ECC DIMM Banks up to 3 TB RAM
Intel® C612 chipset
Integrated IPMI 2.0 and KVM with Dedicated LAN
1x PCIe 3.0 (x8) Low Profile; 2x PCIe 3.0 (x16) Full Profile
(CPU1 + CPU2 is needed to use PCIe Controllers!)
3x USB 3.0 (2 rear, 1 Type A)
1x TPM Header & Chip both
10x 2,5" SFF HotSwap Bays with BPN-SAS3-116A-N2 Backplane:
- 8x 12G SAS + 2x Hybrid Port U.2/U.3 NVMe
- or 8x 12G SAS + 2x SATA connected to onboard-SATA
- or 8x 12G SAS + 2x SAS – requires 2x 8-Port or 1x 16-Port Controller
(CPU1 + CPU2 is needed to use PCIe Controllers)
24x DDR4 288pin ECC DIMM Banks up to 3 TB RAM
Intel® C612 chipset
Integrated IPMI 2.0 and KVM with Dedicated LAN
1x PCIe 3.0 (x8) Low Profile; 2x PCIe 3.0 (x16) Full Profile
(CPU1 + CPU2 is needed to use PCIe Controllers!)
3x USB 3.0 (2 rear, 1 Type A)
1x TPM Header & Chip both
10x 2,5" SFF HotSwap Bays with BPN-SAS3-116A-N2 Backplane:
- 8x 12G SAS + 2x Hybrid Port U.2/U.3 NVMe
- or 8x 12G SAS + 2x SATA connected to onboard-SATA
- or 8x 12G SAS + 2x SAS – requires 2x 8-Port or 1x 16-Port Controller
(CPU1 + CPU2 is needed to use PCIe Controllers)
Externe Schnittstellen:
2x USB 3.0 (2 rear)
2x 10G SFP+ ports via AOC-URN2-I2XS
1x RJ45 Dedicated IPMI LAN port
1x VGA 15pol. D-SUB
1x Seriell RS232 interface
2x 10G SFP+ ports via AOC-URN2-I2XS
1x RJ45 Dedicated IPMI LAN port
1x VGA 15pol. D-SUB
1x Seriell RS232 interface
Grafikkarte:
onboard Aspeed AST2400 BMC
Powerunits:
up to 2x HotSwap Power Supply
Kompatible Betriebssysteme:
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11* *kompatibles TPM Modul wird benötigt
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
