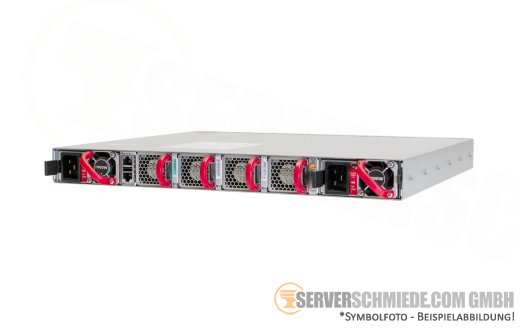

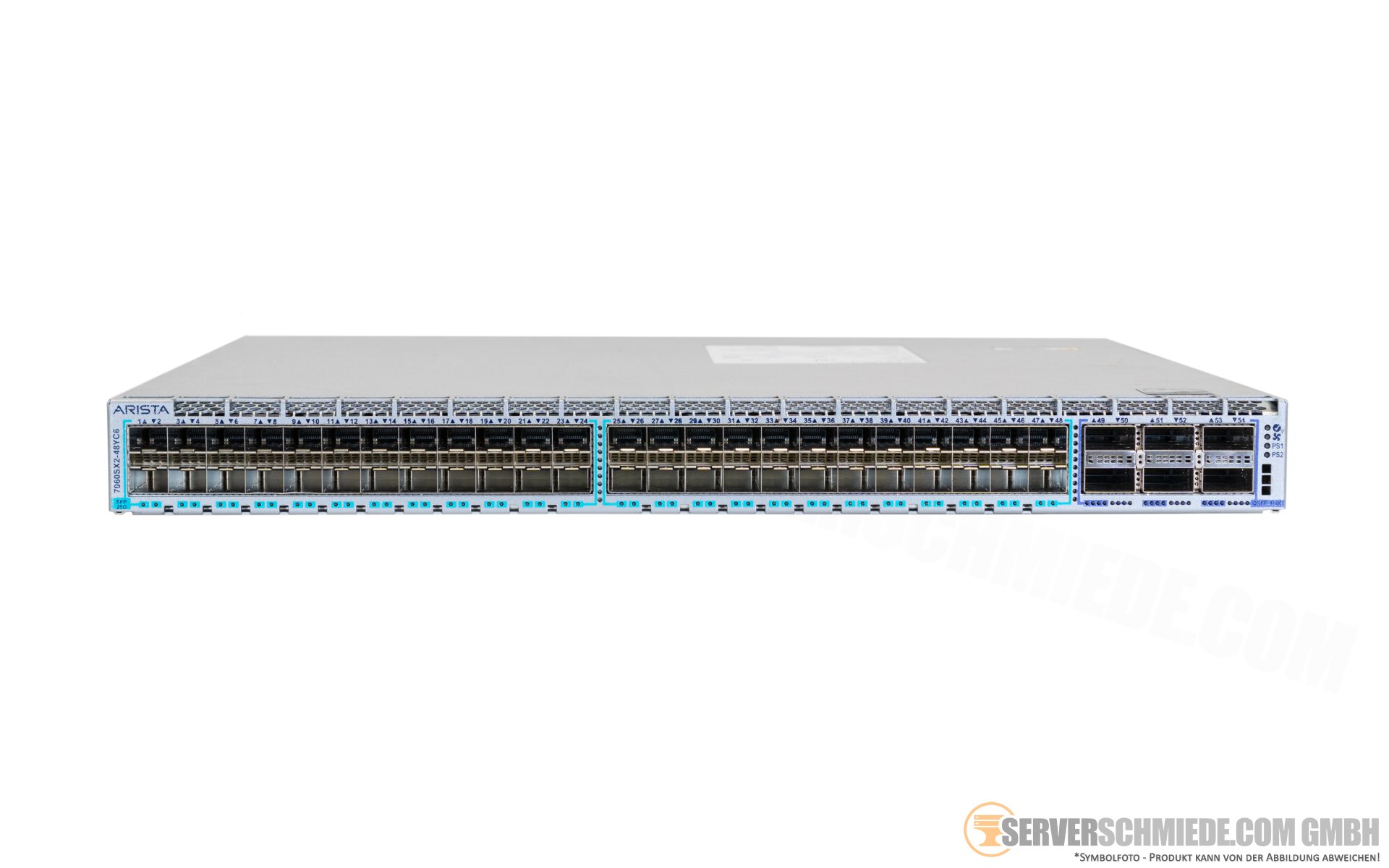

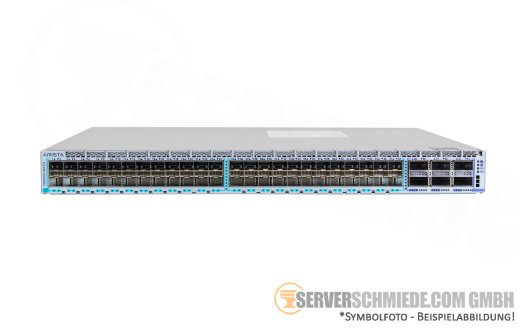

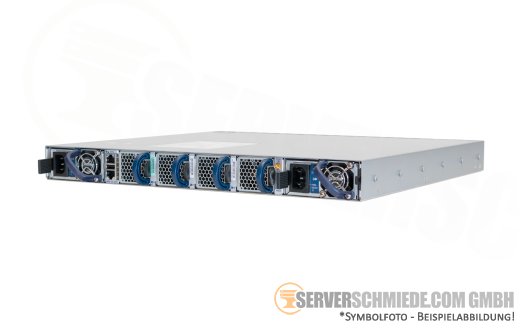

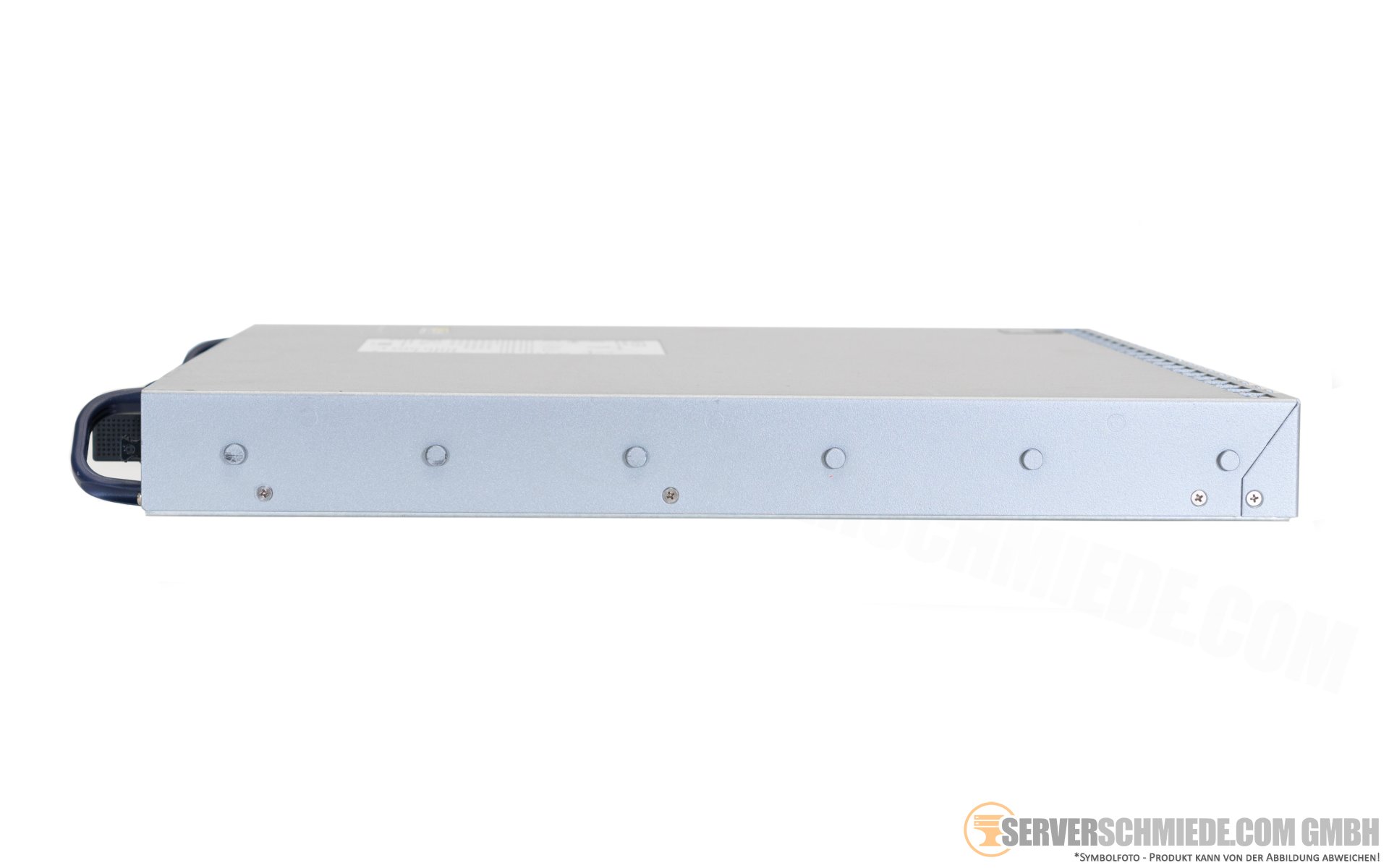

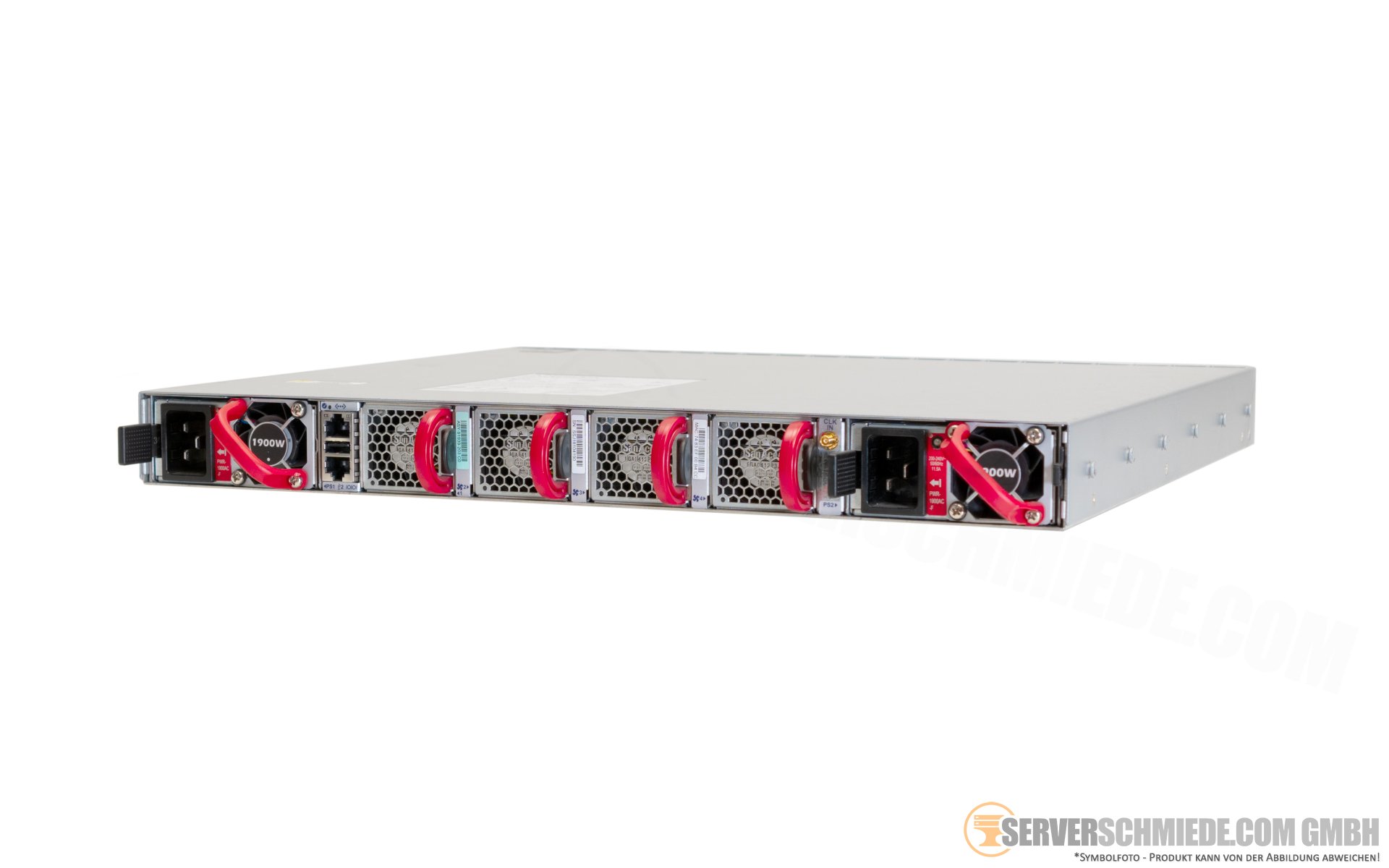

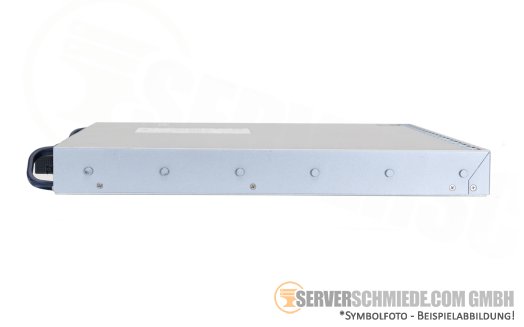

Arista Datacenter Switch DCS-7060SX2-48YC6 48x 10/25GbE SFP28 6x 100GbE QSFP28 ports Layer 3 fully managed
Produktbeschreibung
Hersteller / OEM: Arista
Gerätetyp: Ethernet
Bauart: 19" 1 HE
Modell: Arista DCS-7060SX2-48YC6 25GbE Switch
PartNr: A33743

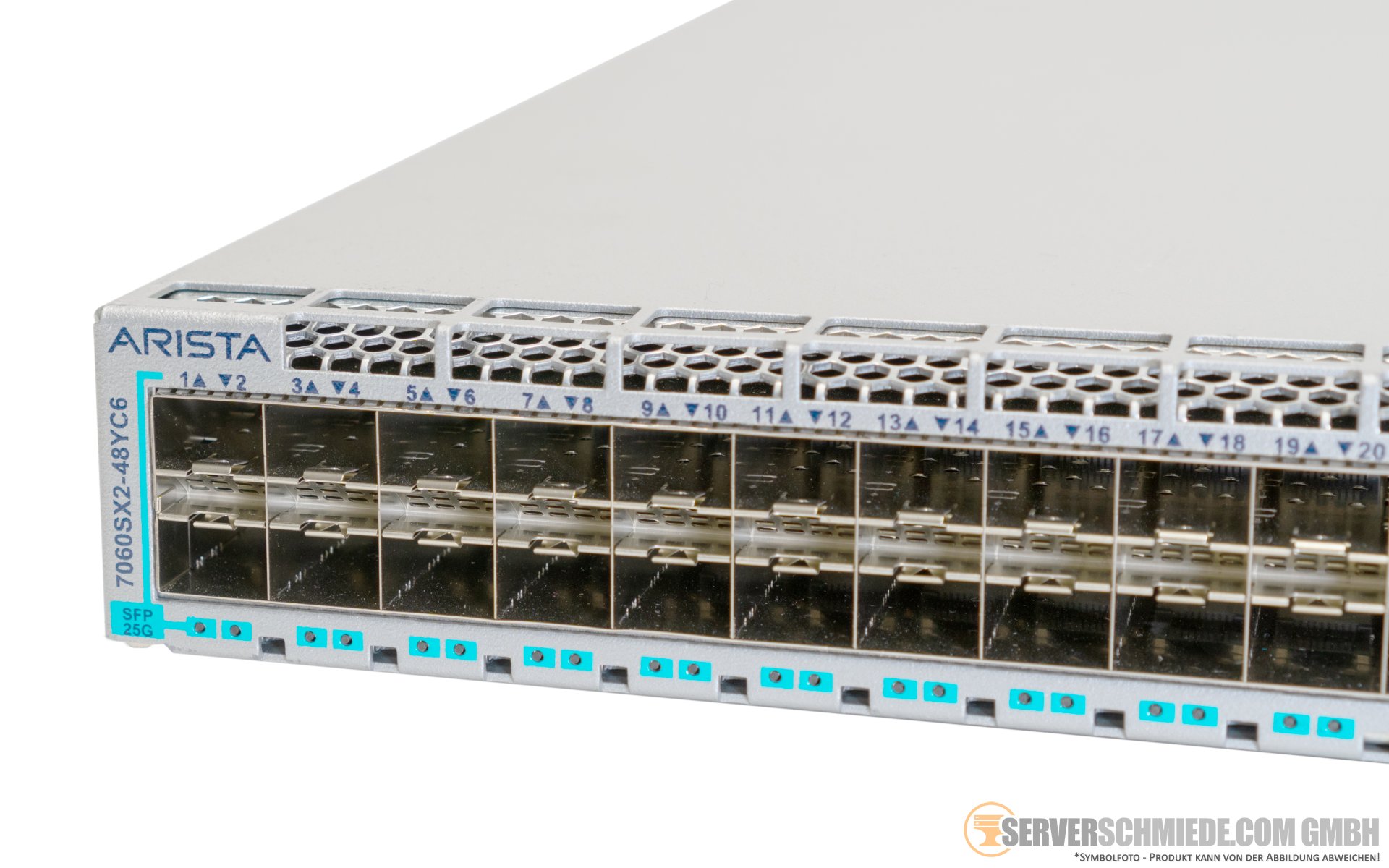

Ports: 48 Port 25Gb SFP28
Specs: 48x 10/25GbE SFP28 ports
6x 100GbE QSFP28 ports
The 7060SX2-48YC6 delivers 48 ports of 25G SFP and 6 ports of 100G QSFP in a 1RU system with an overall throughput of 3.6Tbps
with all ports active. The SFP ports can be configured in groups of 4 to run either at 25G or 10G/1G speeds. and QSFP ports allow for a
choice of 5 speeds including 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x 50GbE and a wide choice of transceivers and cables. All QSFP
ports can operate in any mode without limitation enabling a wide choice of combinations for both top of rack and spine deployment.
Arista 7060SX2-48YC6 supports IEEE 25G and latency as low as 450ns in cut-through mode coupled with a 22 MB shared packet buffer
pool that is allocated dynamically to ports that are congested.
Dynamic Buffer Allocation
In cut-through mode, the Arista 7060X and 7260X switches forward packets with a latency of 450 nanoseconds to 550 nanoseconds.
Upon congestion, the packets are buffered in shared packet memory that has a total size of 16 MBytes to 22 MBytes per port group.
Unlike other architectures that have fixed per-port packet memory, the 7060X and 7260X Series use Dynamic Buffer Allocation (DBA) to
allocate packet memory to a single port for lossless forwarding.
Scaling Data Center Performance
The Arista 7060X and 7260X series deliver line rate switching at layer 2 and layer 3 to enable faster and simpler network designs for data
centers that dramatically lowers the network capital and operational expenses. When used in conjunction with the Arista 7000 series of
fixed and modular switches it allows networks to scale to over 27,000 10G/25G servers in low-latency two-tier networks that provide
predictable and consistent application performance. The flexibility of the L2 and L3 multi-path design options combined with support
for open standards provides architectural flexibility, scalability and network wide virtualization. Arista EOS advanced features provide
control and visibility with single point of management.
6x 100GbE QSFP28 ports
The 7060SX2-48YC6 delivers 48 ports of 25G SFP and 6 ports of 100G QSFP in a 1RU system with an overall throughput of 3.6Tbps
with all ports active. The SFP ports can be configured in groups of 4 to run either at 25G or 10G/1G speeds. and QSFP ports allow for a
choice of 5 speeds including 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x 50GbE and a wide choice of transceivers and cables. All QSFP
ports can operate in any mode without limitation enabling a wide choice of combinations for both top of rack and spine deployment.
Arista 7060SX2-48YC6 supports IEEE 25G and latency as low as 450ns in cut-through mode coupled with a 22 MB shared packet buffer
pool that is allocated dynamically to ports that are congested.
Dynamic Buffer Allocation
In cut-through mode, the Arista 7060X and 7260X switches forward packets with a latency of 450 nanoseconds to 550 nanoseconds.
Upon congestion, the packets are buffered in shared packet memory that has a total size of 16 MBytes to 22 MBytes per port group.
Unlike other architectures that have fixed per-port packet memory, the 7060X and 7260X Series use Dynamic Buffer Allocation (DBA) to
allocate packet memory to a single port for lossless forwarding.
Scaling Data Center Performance
The Arista 7060X and 7260X series deliver line rate switching at layer 2 and layer 3 to enable faster and simpler network designs for data
centers that dramatically lowers the network capital and operational expenses. When used in conjunction with the Arista 7000 series of
fixed and modular switches it allows networks to scale to over 27,000 10G/25G servers in low-latency two-tier networks that provide
predictable and consistent application performance. The flexibility of the L2 and L3 multi-path design options combined with support
for open standards provides architectural flexibility, scalability and network wide virtualization. Arista EOS advanced features provide
control and visibility with single point of management.
Nettogewicht: 8 kg
Rackeinbautiefe: 43 cm
Artikelabmessung: L: 41 cm | B: 45 cm | H: 4,5 cm
Artikelzustand: refurbished / generalüberholt, Grade A. Artikel wurde vom Verkäufer vollständig geprüft / instandgesetzt.
Artikelnummer: A33743
Basispreis: 1.921,00 €
inkl.
19% MwSt | exkl. Versandkosten
Preis exkl. MwSt.: 1.614,29 €
Verfügbarkeit:
Lieferzeit: 2-5 Arbeitstage (exkl. Wochenende, exkl. Feiertage) + Versandlaufzeit
Gewicht: 8.00kg
