High-Performance-Computing-Anwendungen und Virtualisierung
Der CSE-217HQ+ bietet eine dichte und ausgewogene Computing-Plattform.

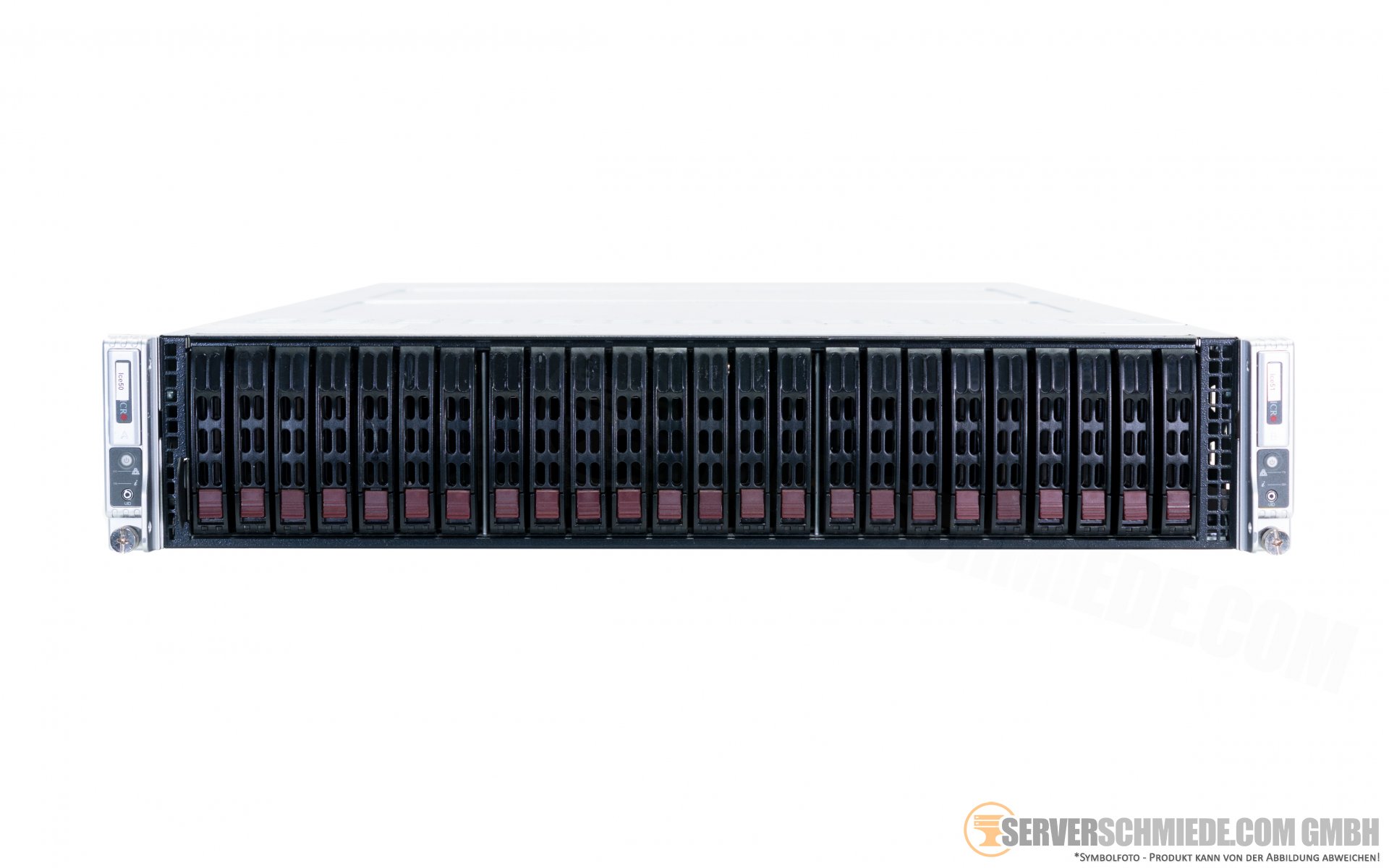

Supermicro CSE-217HD+ X10DRT-P 2-Node Server 2x Intel XEON E5-2600 v3 v4 per node (4x CPU 32x DDR4) vmware Server
Produktbeschreibung
Hersteller: Supermicro
Gerätetyp: Server
Bauart: 19" 2 HE
Modell: CSE-217HD+ X10DRT-P
Festplatten HDD Bays:

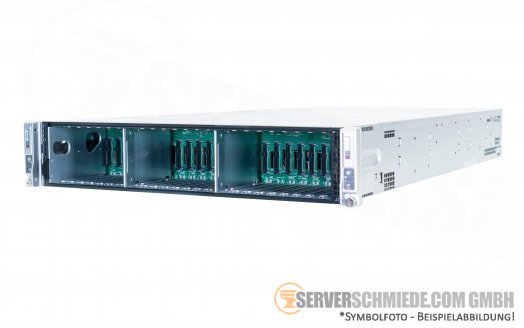

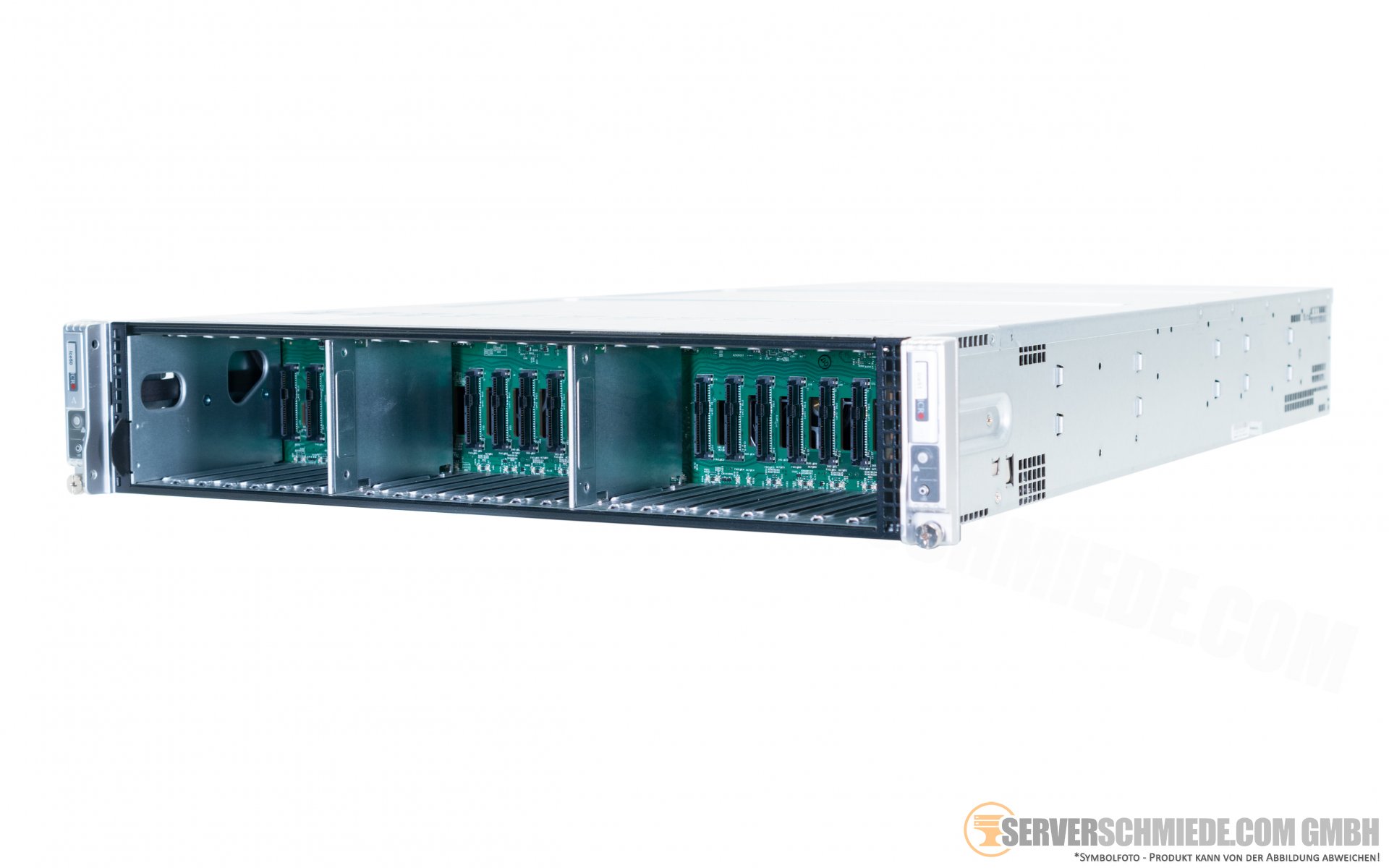

24x HotSwap Festplatten Einschub SAS/S-ATA Backplane
ohne Auswahl von Festplatten oder Trays sind keine HDD Trays im Lieferumfang enthalten
24x HotSwap Festplatten Einschub SAS/S-ATA Backplane
ohne Auswahl von Festplatten oder Trays sind keine HDD Trays im Lieferumfang enthalten
Optisches Laufwerk: ohne
Networking: 4x 1 GbE RJ-45 Gigabit LAN - 2x 56Gb FDR Infiniband QSFP+
Interne Schnittstellen:
2x PSU Bays

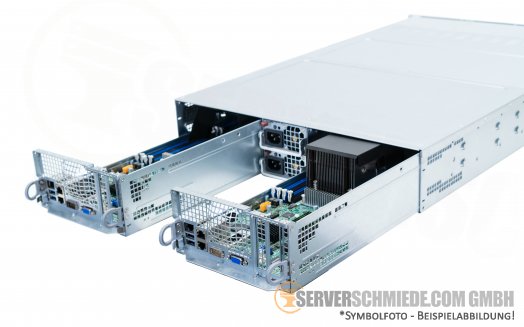

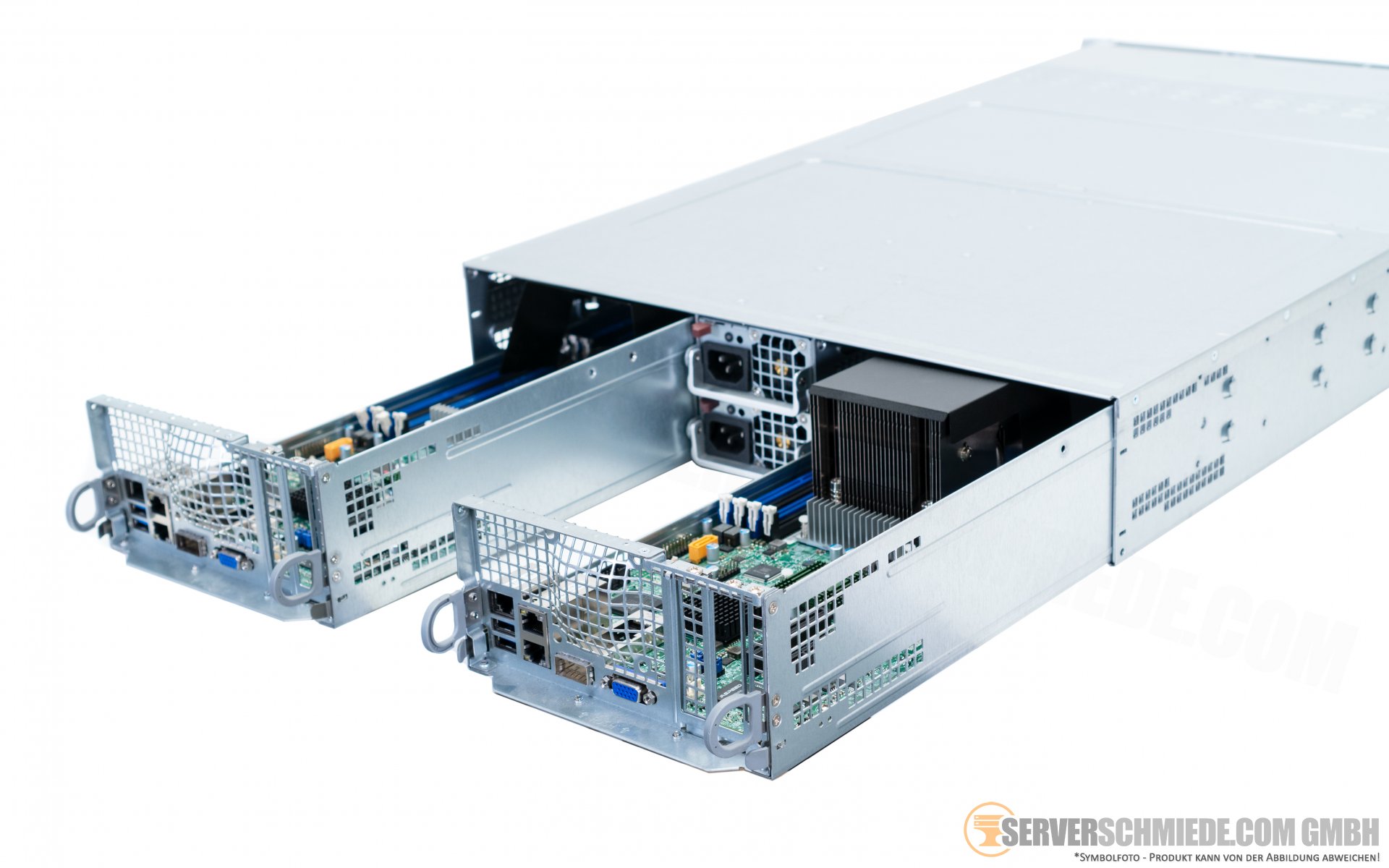

2x Server Node

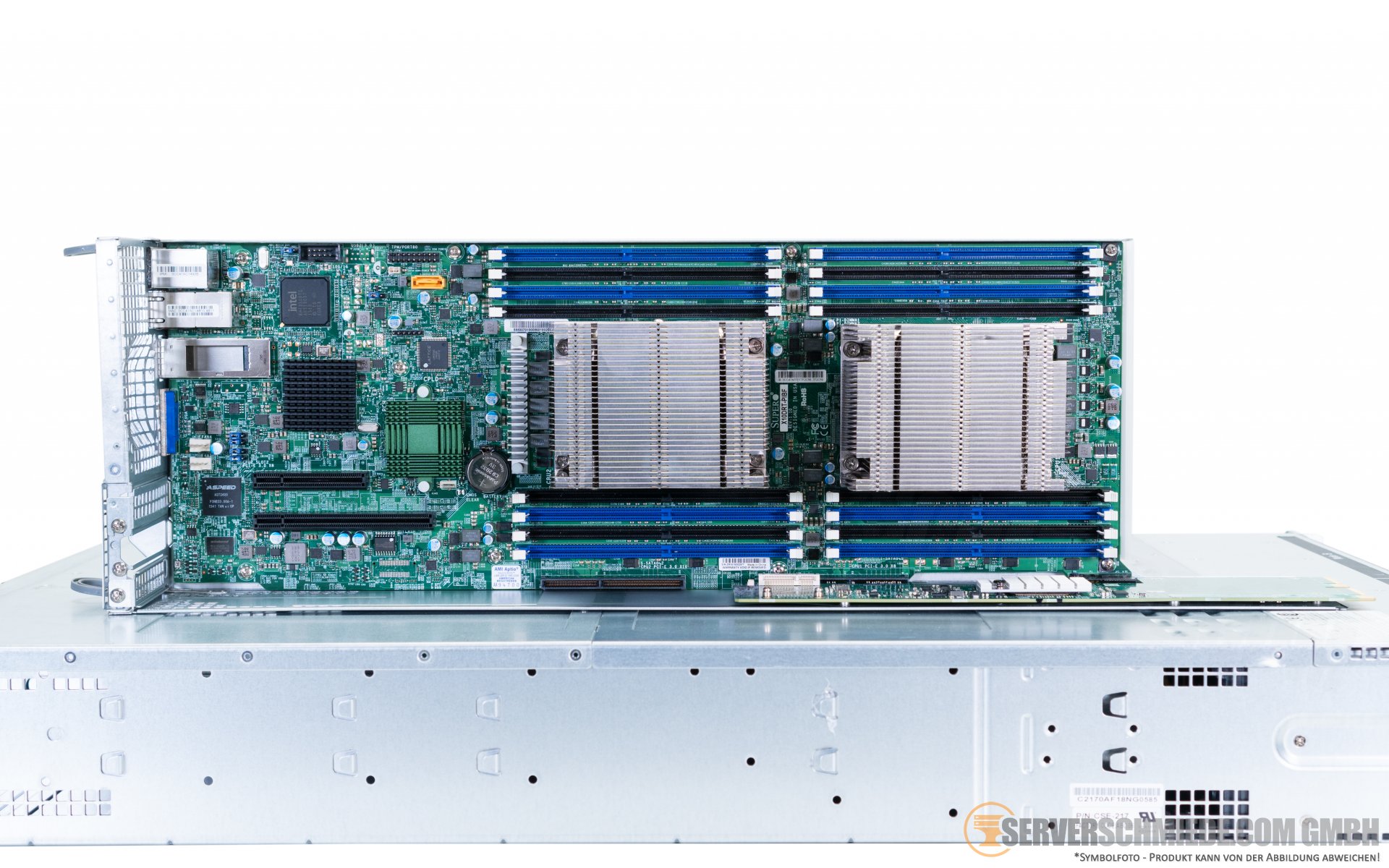

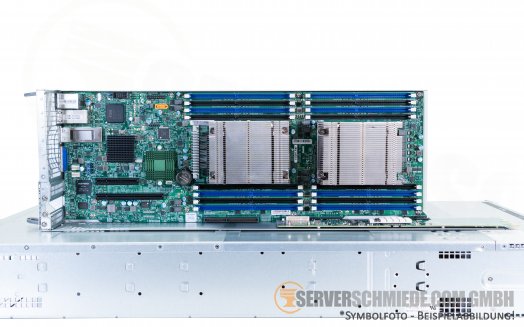

Pro Node X10DRT-PIBF Mainboard:
2x Dual socket (LGA 2011-3 supports Intel® Xeon® processor E5-2600 v4/ v3

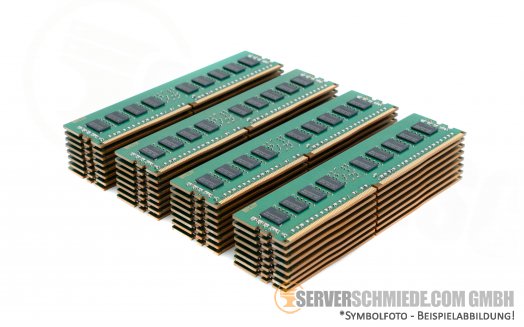

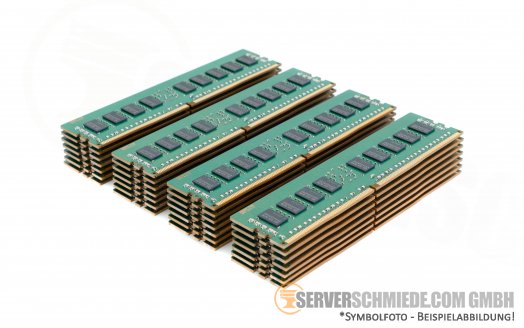

16x DDR4 288pin ECC DIMM banks up to 2TB RAM
1x PCIe 3.0 x16,
1x PCIe 3.0 x8 (Proprietary slot),
1x PCIe 3.0 x8 and 1 PCI-E 3.0 x16
10x SATA3 (6Gbps)
12x Hot-swap 2.5" SAS SATA HDD SSD Bays (24x in total 12x per node*)

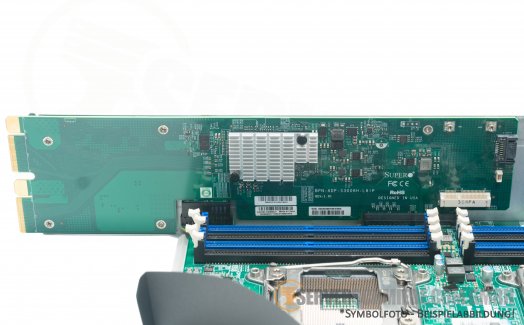

*8 bays connected to LSI 3008 SAS/SATA controller Raid 0,1,1E and 4 bays connectet to Intel® C612 SATA3 controller; RAID 0,1,5,10
Integrated IPMI 2.0 and KVM with Dedicated LAN

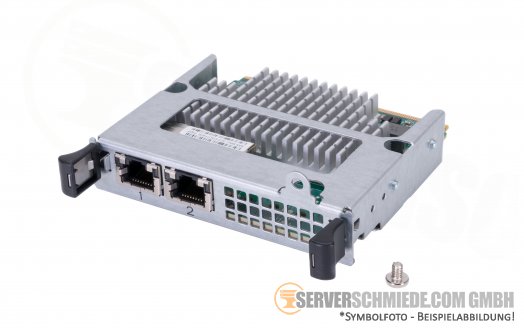

Intel i350-AM2 Dual port GbE LAN
Single port IB (FDR, 56Gbps), w/ QSFP connector
2x PSU Bays
2x Server Node
Pro Node X10DRT-PIBF Mainboard:
2x Dual socket (LGA 2011-3 supports Intel® Xeon® processor E5-2600 v4/ v3
16x DDR4 288pin ECC DIMM banks up to 2TB RAM
1x PCIe 3.0 x16,
1x PCIe 3.0 x8 (Proprietary slot),
1x PCIe 3.0 x8 and 1 PCI-E 3.0 x16
10x SATA3 (6Gbps)
12x Hot-swap 2.5" SAS SATA HDD SSD Bays (24x in total 12x per node*)
*8 bays connected to LSI 3008 SAS/SATA controller Raid 0,1,1E and 4 bays connectet to Intel® C612 SATA3 controller; RAID 0,1,5,10
Integrated IPMI 2.0 and KVM with Dedicated LAN
Intel i350-AM2 Dual port GbE LAN
Single port IB (FDR, 56Gbps), w/ QSFP connector
Externe Schnittstellen:
Grafikkarte: onboard

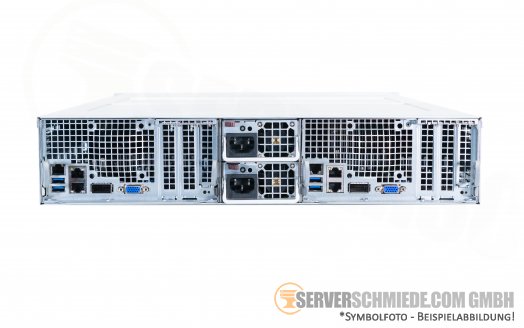

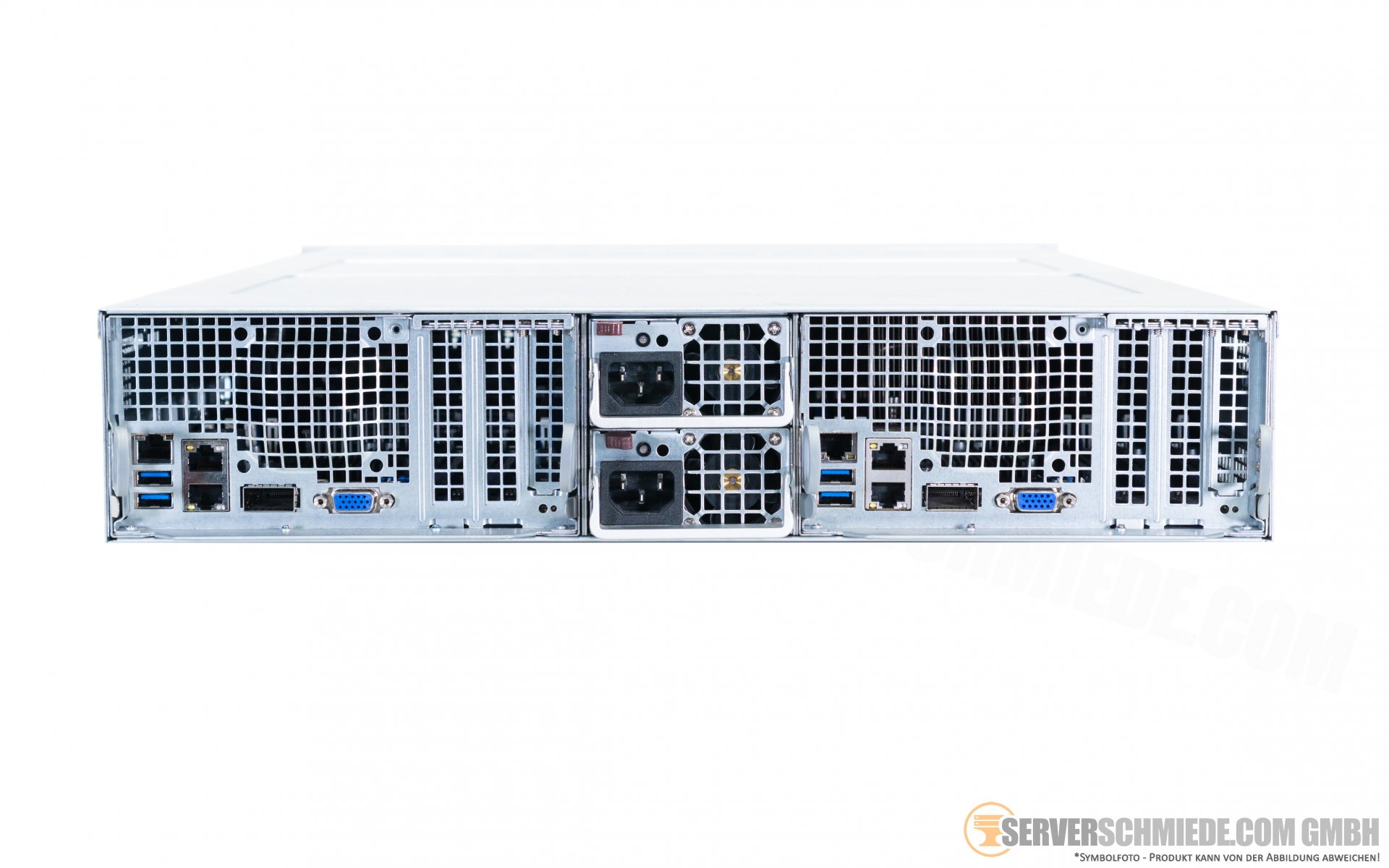

Powerunits: 2x Redundant Power Supplies
Kompatible Betriebssysteme:
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*kompatibles TPM Modul wird benötigt
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*kompatibles TPM Modul wird benötigt
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Artikelzustand: refurbished / generalüberholt, Grade A
Jedes Gerät wird vor Auslieferung gereinigt, und ausgiebig geprüft. Systembios, Storage-, Netzwerk- und Management Controller werden auf die aktuelle Firmware geflasht.
Jedes Gerät wird vor Auslieferung gereinigt, und ausgiebig geprüft. Systembios, Storage-, Netzwerk- und Management Controller werden auf die aktuelle Firmware geflasht.
Der CSE-217HQ+ bietet eine dichte und ausgewogene Computing-Plattform.
Artikelnummer: SK0368
Basispreis: 321,00 €
inkl.
19% MwSt | exkl. Versandkosten
Preis exkl. MwSt.: 269,75 €
Verfügbarkeit:
Lieferzeit: 3-6 Arbeitstage (exkl. Wochenende, exkl. Feiertage) + Versandlaufzeit
Gewicht: 26.00kg
