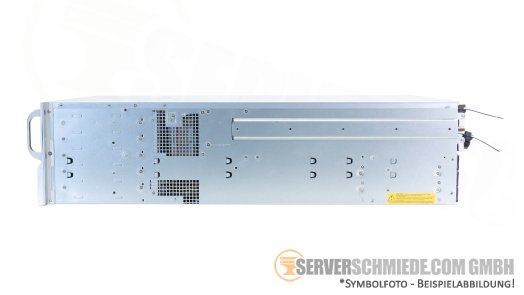

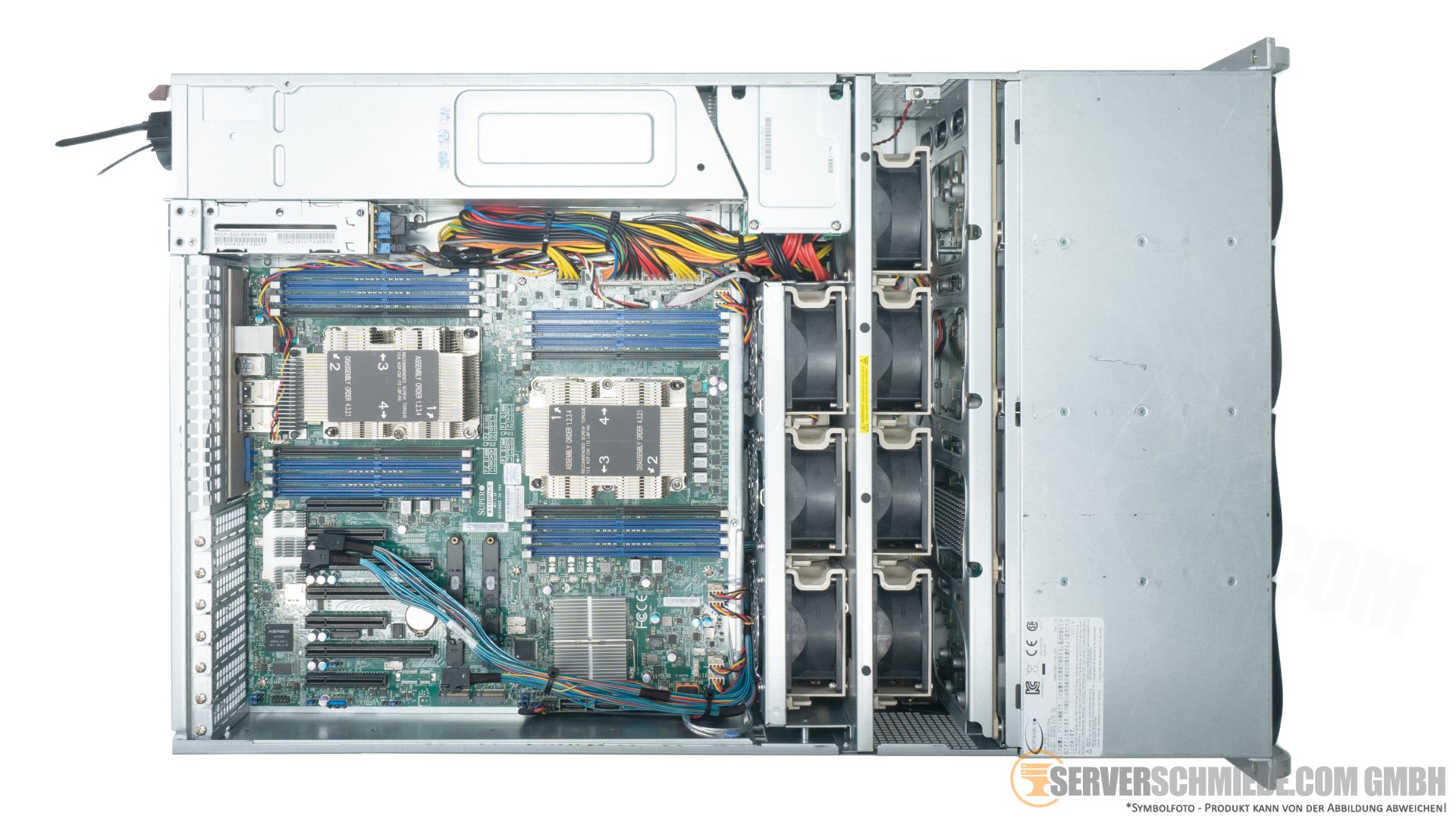

Supermicro CSE-847B X11DPH-T 4U 36x 3,5" SAS 2x Intel XEON Gold 6138 128GB DDR4 2x 240 GB SSD + 2x 10 TB HDD 2x 1200W Rails
Enthaltene Komponenten:
-
Server
Supermicro CSE-847B X11DPH-T 4U Server 36x 3,5" SAS 12G LFF + 2x 2,5" SFF 2x Intel XEON Scalable LGA3647 2x 10GbE 2x PSU -CTO- -
CPU
2 x Intel Xeon Gold 6138 SR3B5 20C Server Prozessor 20x 2,00 GHz 27,5MB Cache 3647 CPU -
RAM
128GB Registered ECC DDR4 SDRAM (4x 32GB DIMM) -
StorageController
LSI MegaRAID 9361-8i 12G SAS PCIe x8 1GB Cache RAID Controller for HDD SSD Raid 0, 1, 10, 5, 50, 6, 60 inkl. Cache Vault Module + SuperCap Capacitor -
SSD
2 x 240GB 2,5" Samsung PM893 Datacenter Enterprise 24/7 Raid SATA SSD 97K IOPS +NEW+ -
HDD
2 x 10TB 7,2k 3,5" LFF SATA 512e WD HGST HC330 Ultrastar DC SE 24/7 Raid Enterprise HDD Festplatte +zero hours+ -
Controller
Supermicro AOC-STG-i2T Intel X540-T2 2x 10GbE Dual Port Network 10 Gigabit LAN Ethernet PCIe x8 Controller -
PowerSupply
2 x Supermicro 1200W PSU Netzteil 80 Plus Titanium PWS-1K23A-1R -
Kabel
2 x Kaltgerätekabel IEC connector ca. 1,40m C13 - Schuko 10A -
RackRails

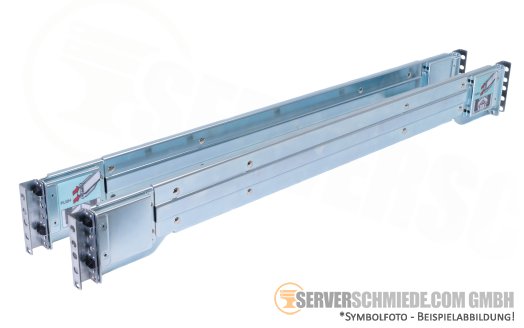

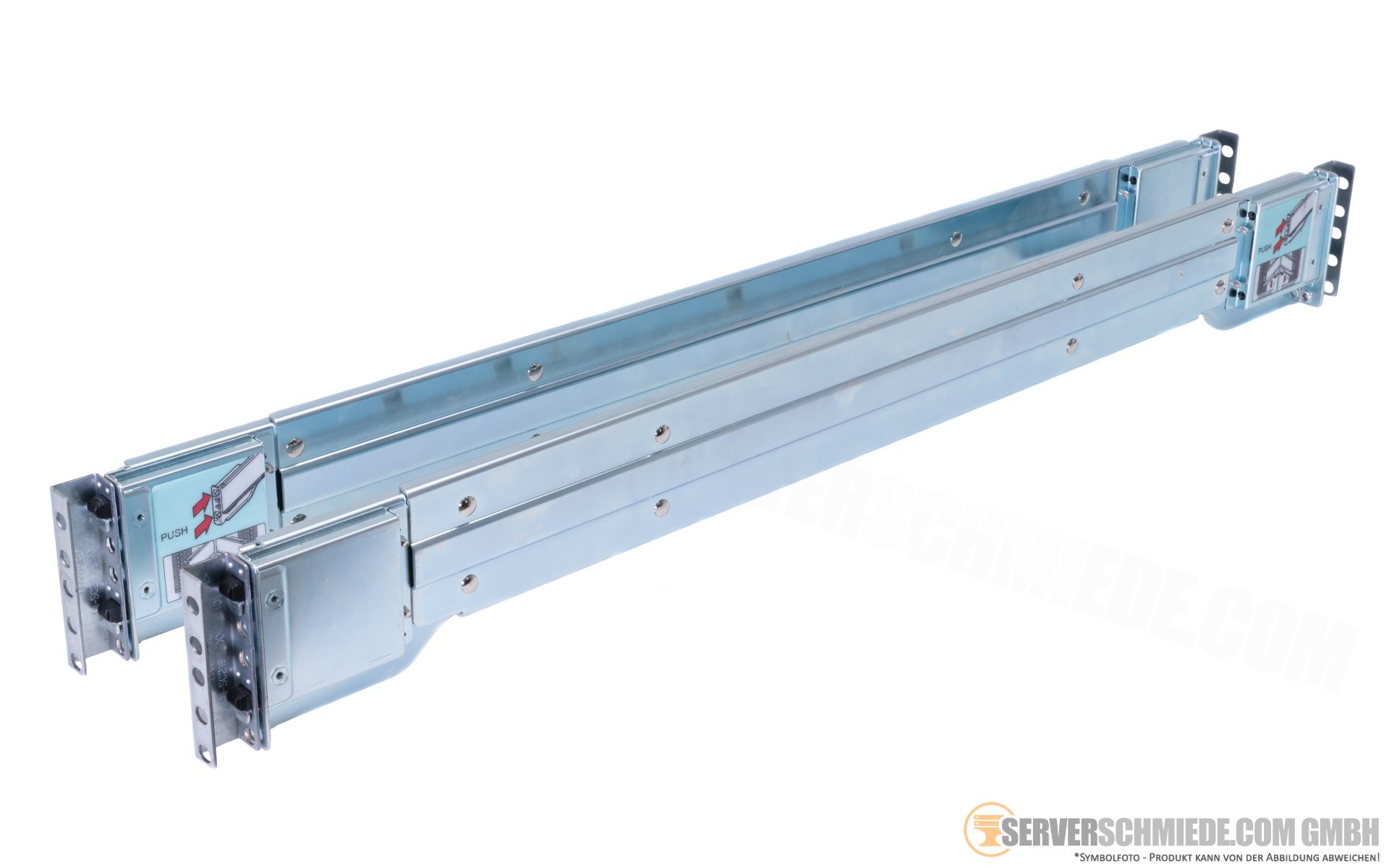

Supermicro 4U-5U Rail Kit MCP-290-00057-0N für CSE-417 CSE-418 CSE-842 CSE-846 CSE-847 CSE-848 19" Rackschienen Rails Teilauszug +NEW+ -
Support
12 Monate Bring In Basis Garantie ohne Vorab Austausch ohne Service ohne Reparaturgarantie *

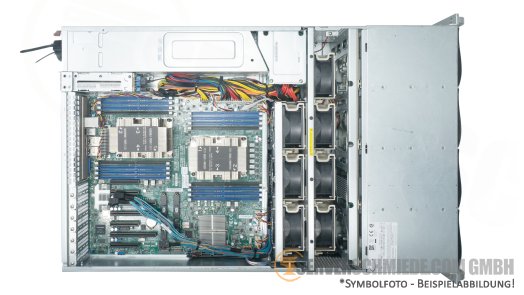

2x CPU Sockel LGA3647 Intel CPU Sockel for 2x Intel Xeon Scalable processors
16x 288-pin DDR4 DIMM slots up to 2 TB RAM
Intel® C622 Series Chipset
PCIe Slots
CPU1:
Slot 1 PCIe 3.0 x8 - x8 Connector Half-height, Half-length
Slot 3 PCIe 3.0 x16 - x16 Connector Half-height, Half-length
Slot 6 PCIe 3.0 x8 - x8 Connector Half-height, Half-length
Slot 7 PCIe 3.0 x8 - x8 Connector Half-height, Half-length
CPU2:
Slot 5 PCIe 3.0 x16 - x16 Connector Half-height, Half-length
Slot 4 PCIe 3.0 x16 - x16 Connector Half-height, Half-length
Slot 2 PCIe 3.0 x16 - x16 Connector Half-height, Half-length
Interfaces
2x NVMe PCIe 3.0 x4 M.2 Interface Form Factor: 2242/2260/2280/22110 (Raid 0 / Raid 1)
2x SFF-8087 SATA only Ports
3x USB 3.2 Gen1 port
1x TPM Header
2x SATA Ports

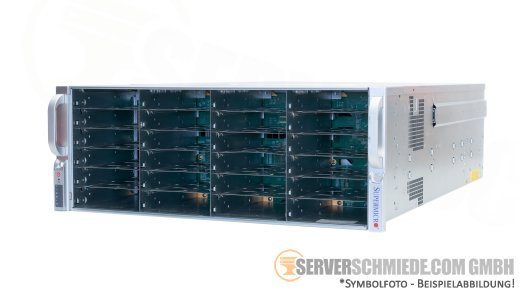

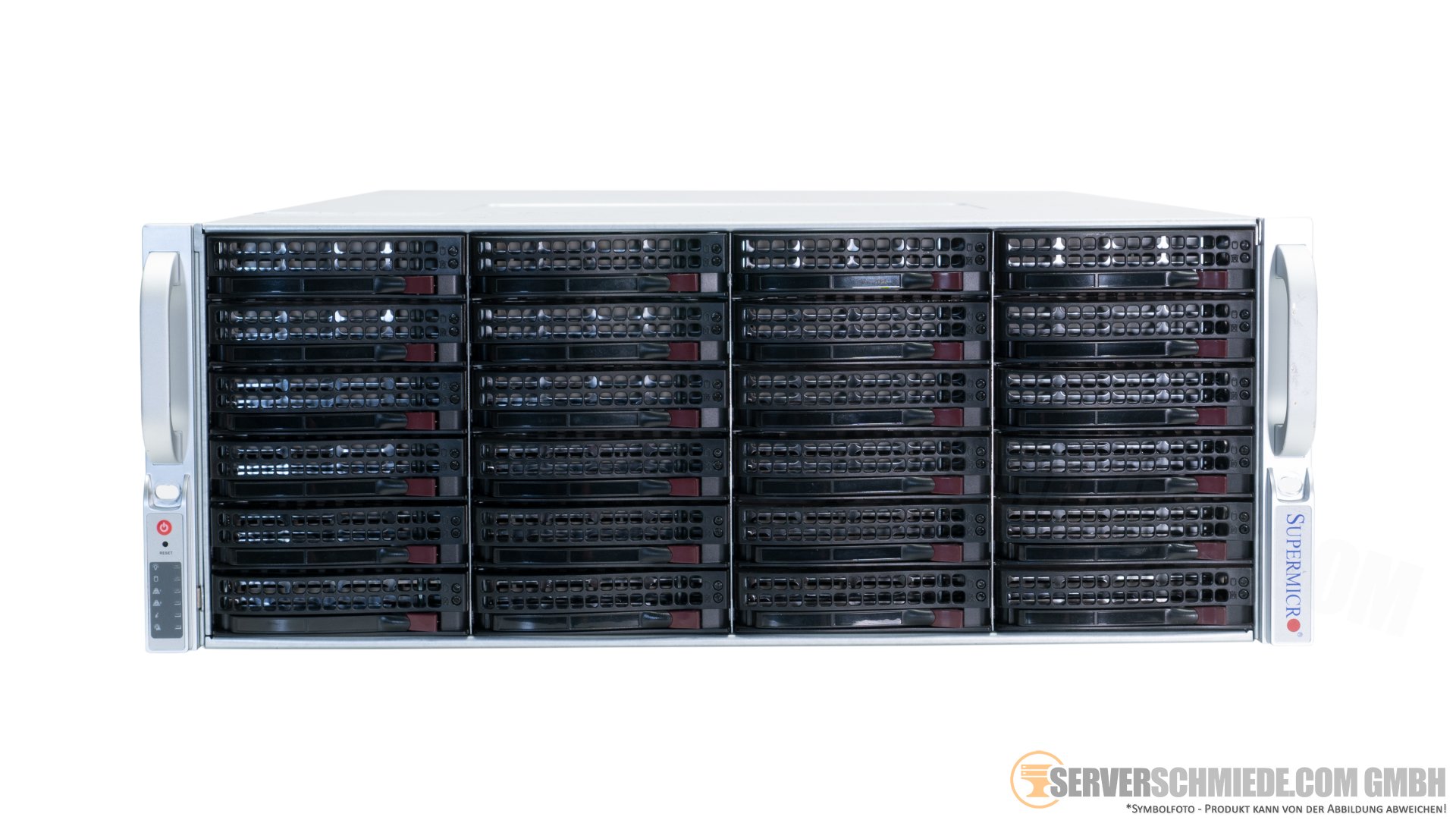

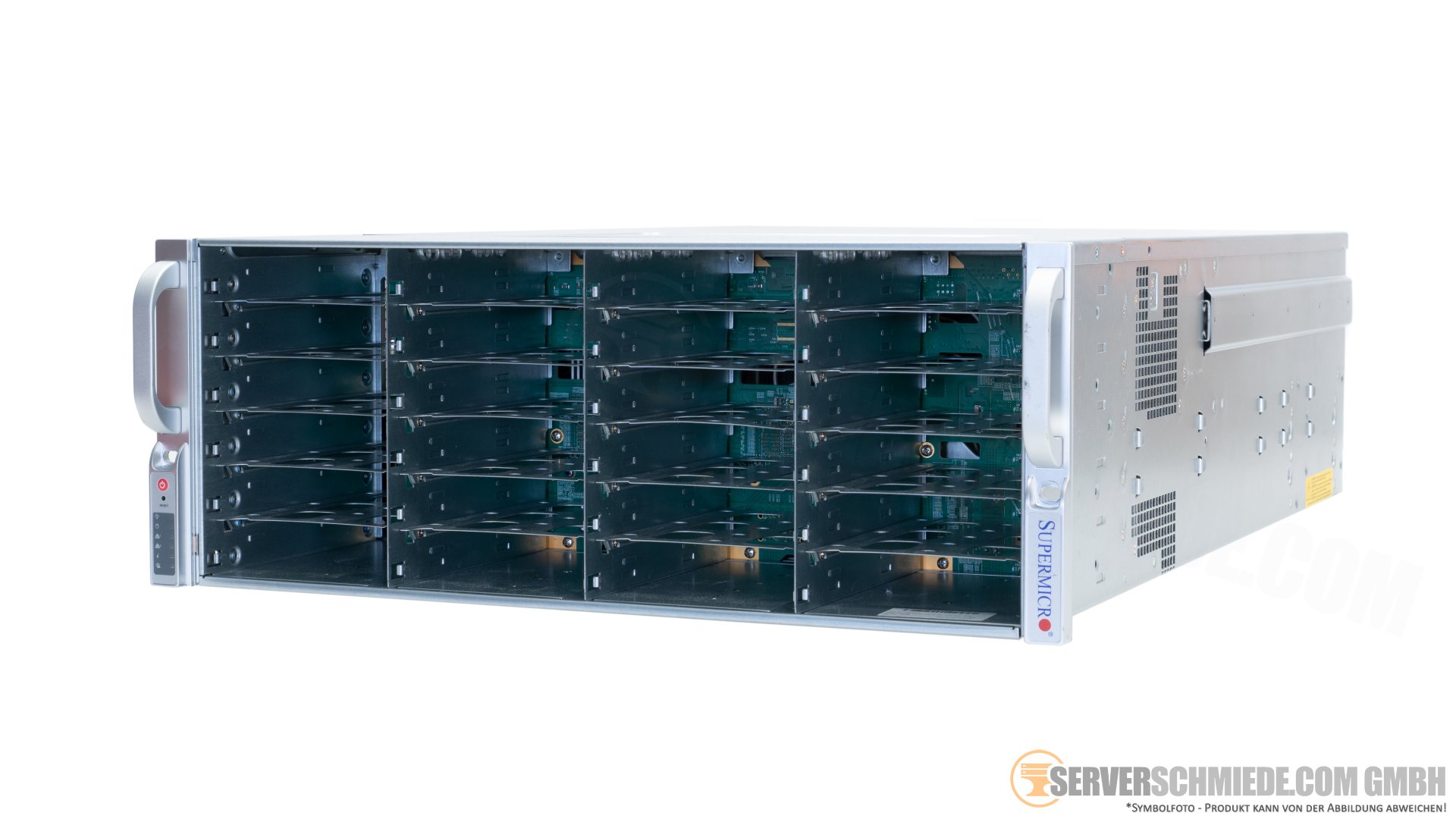

Backplane and Chassis
36 x 3.5" hot-swap SAS/SATA drive bay with SES3
24-port 4U SAS3 12Gbps single-expander backplane (front) SAS3-846EL Rev1.01
12-port 2U SAS3 12Gbps single-expander backplane (rear) SAS3-826EL1
2x 2.5" hot-swap SAS/SATA drive bay

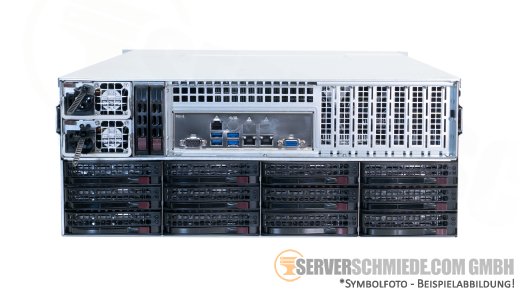

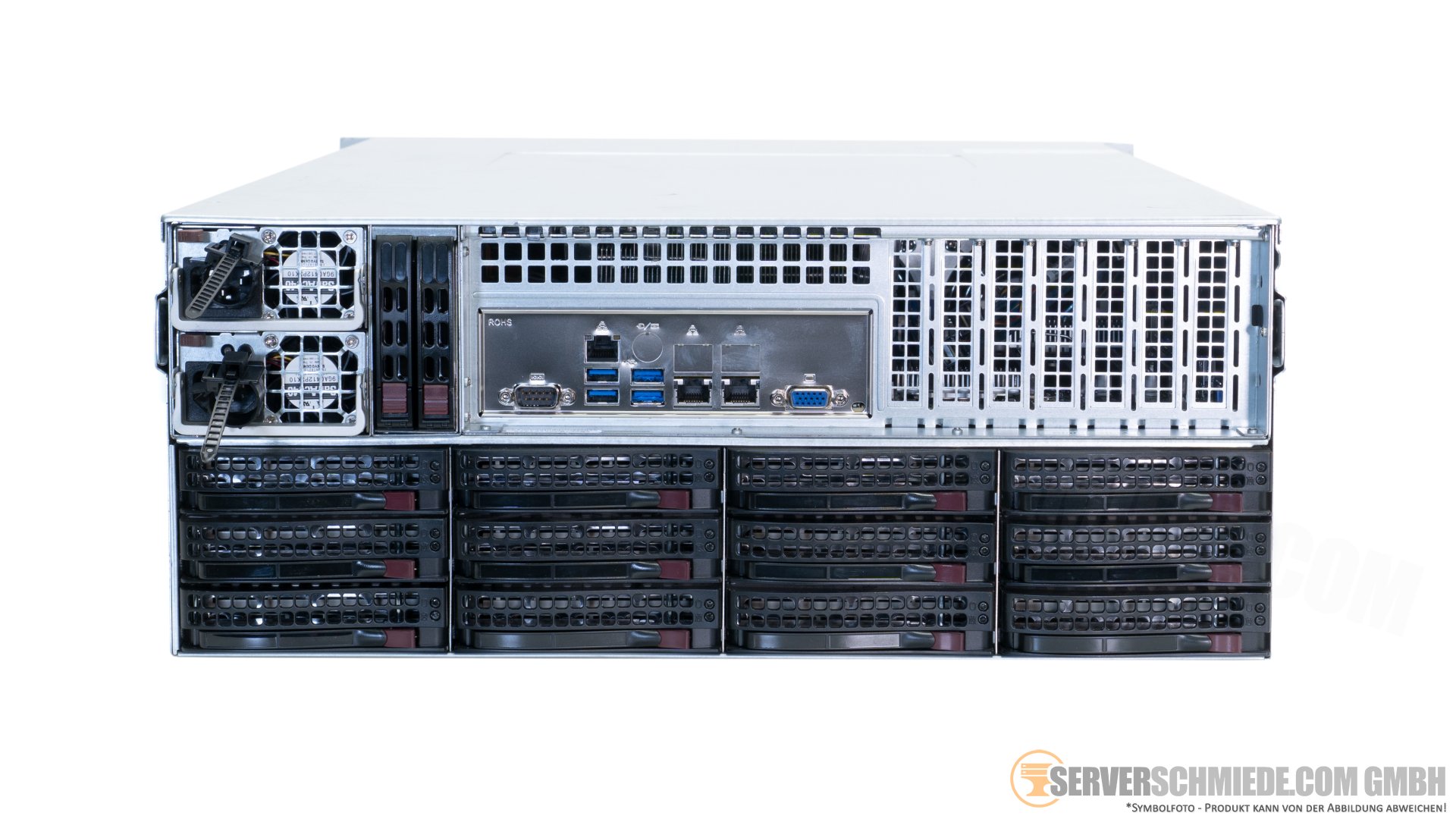

2x RJ45 10GbE RJ-45 ports
1x RJ45 Dedicated IPMI LAN port
1x VGA 15pol. D-SUB
1x Seriell RS232 interface
2x SFF-8644 SAS extern
36x 3.5" Hot-swap SAS/SATA LFF HDD Bay
2x 2,5" Hot-swap SAS/SATA LFF HDD Bay
Dimensions H/W/D: 178mm x 437mm x 699mm
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Angebot konfigurieren / Configure this Offer
(DE)
Supermicro CSE-847B X11DPH-T Server:
- 4U Rackmount für hohe Speicherkapazität
- 2x Intel XEON Gold 6138 CPUs (High Performance)
- 128 GB DDR4 RAM (erweiterbar)
- 36x 3,5" SAS Laufwerkseinschübe
- 2x 240 GB SSD für schnellen Datenspeicher
- 2x 10 TB SAS HDDs im RAID 1
- 2x 1200W Netzteile (redundant)
- Inklusive Rails für einfache Rackmontage
Hochleistungsserver mit großer Speicherkapazität, ideal für datenintensive Anwendungen und vielseitige Einsatzbereiche in Rechenzentren.
