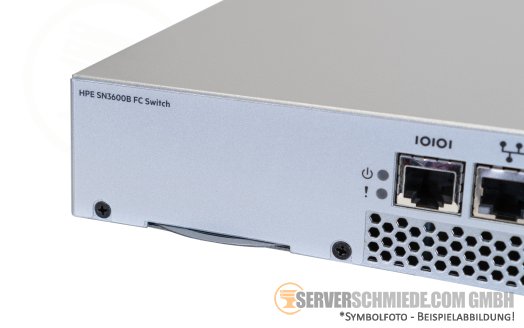

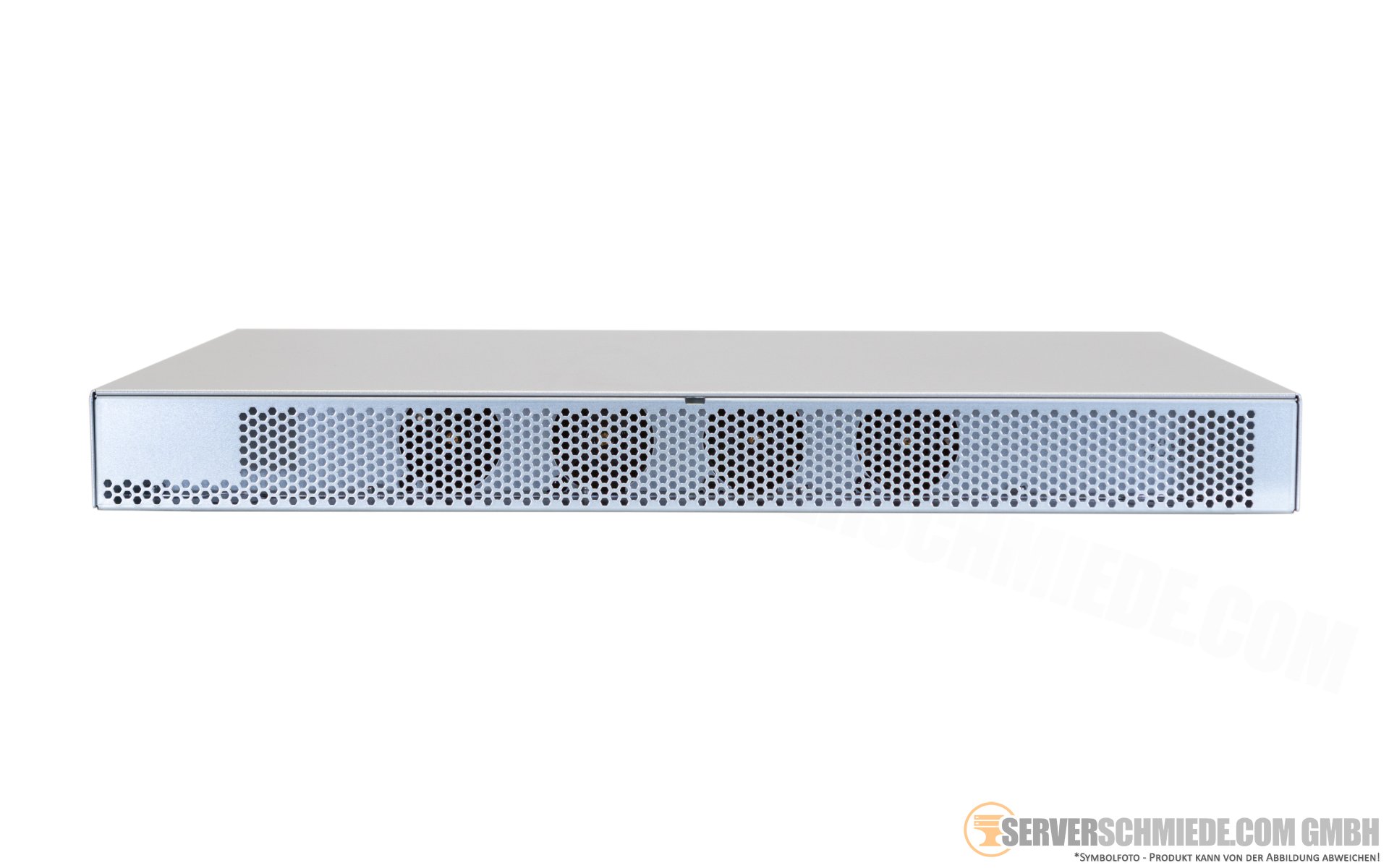

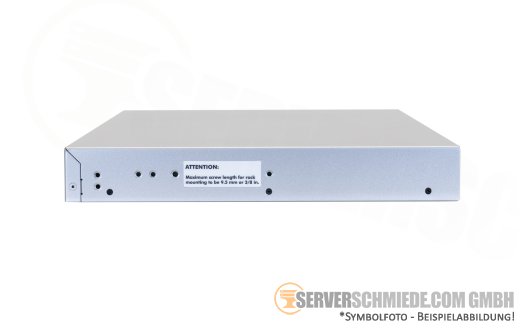

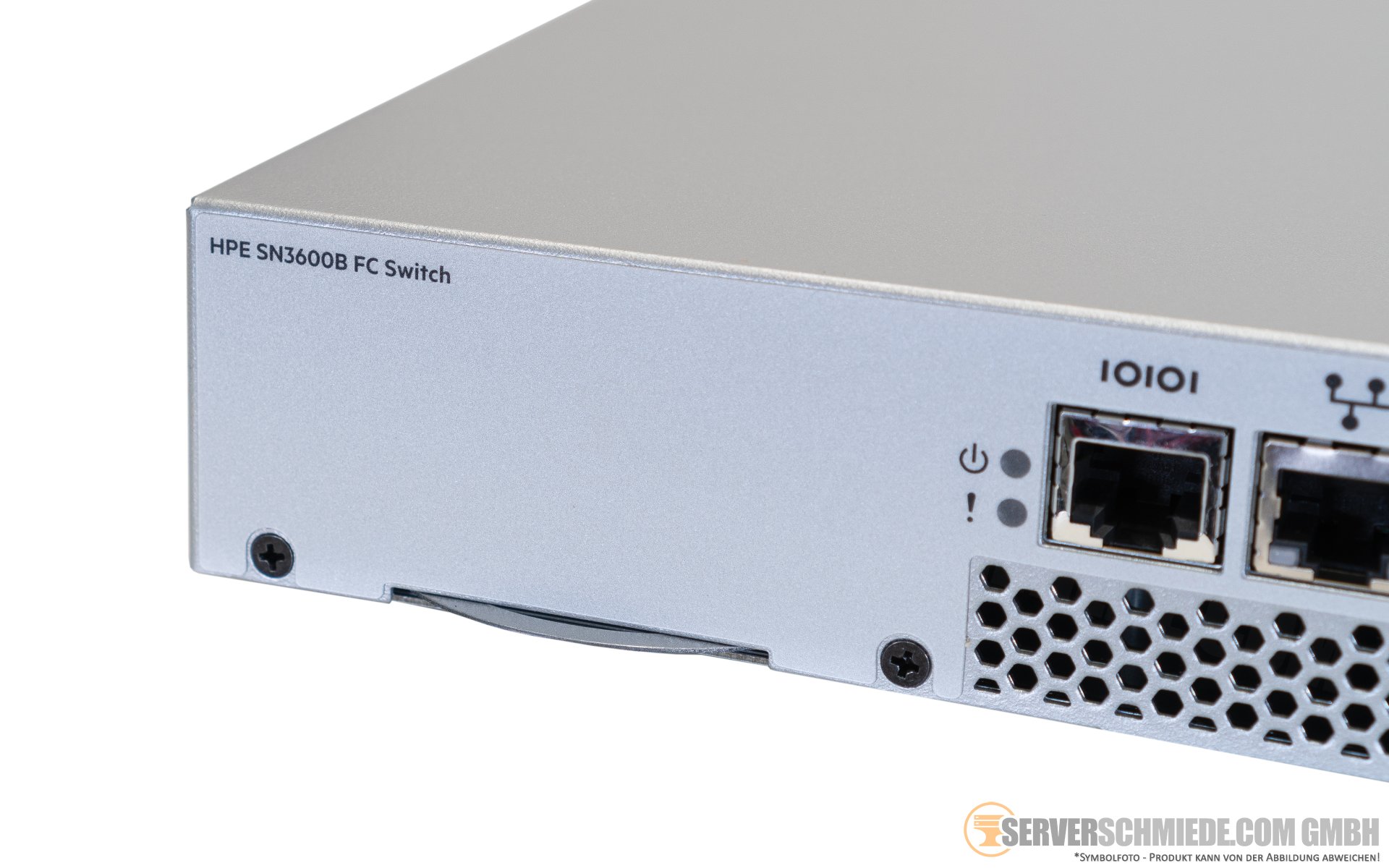

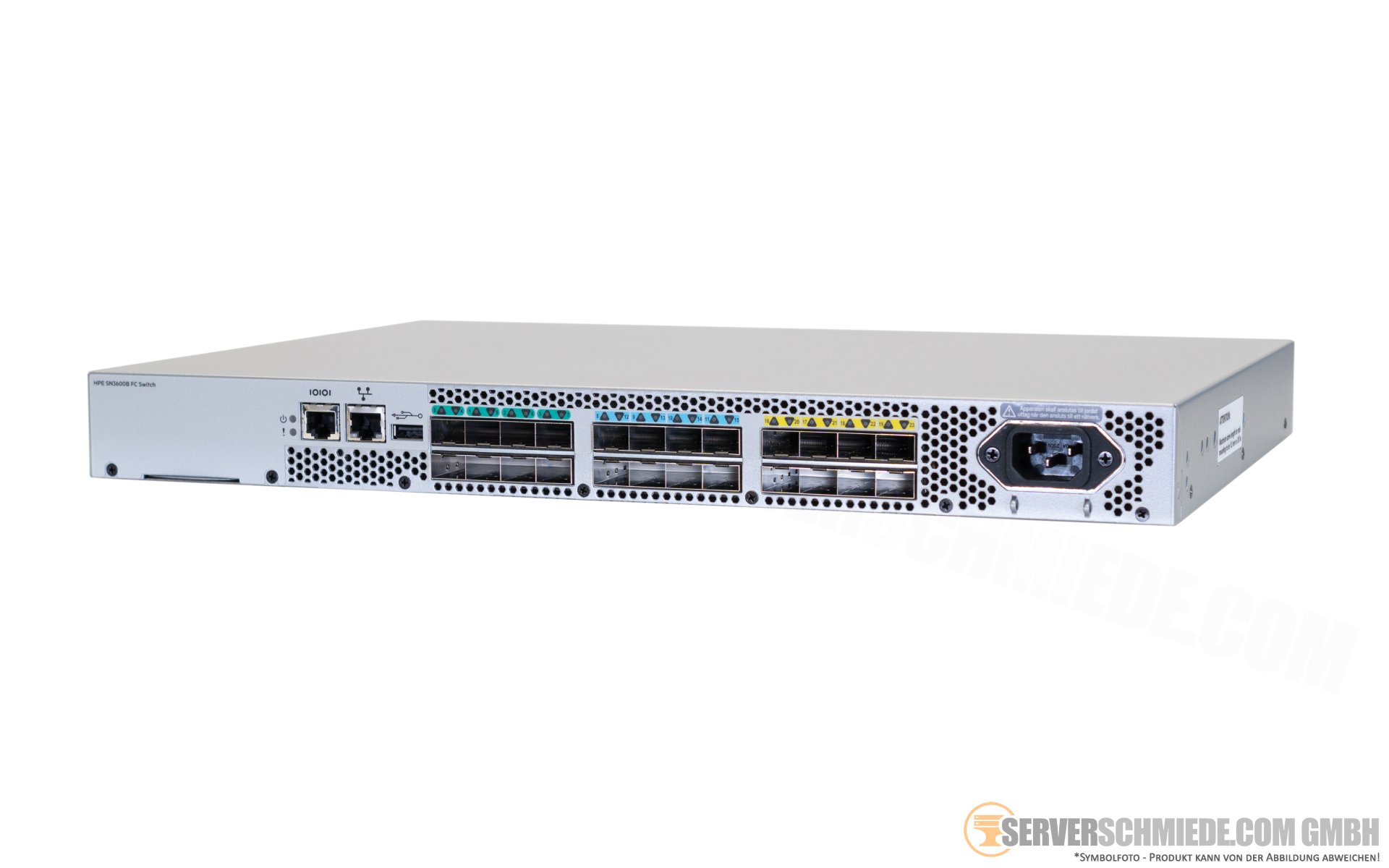

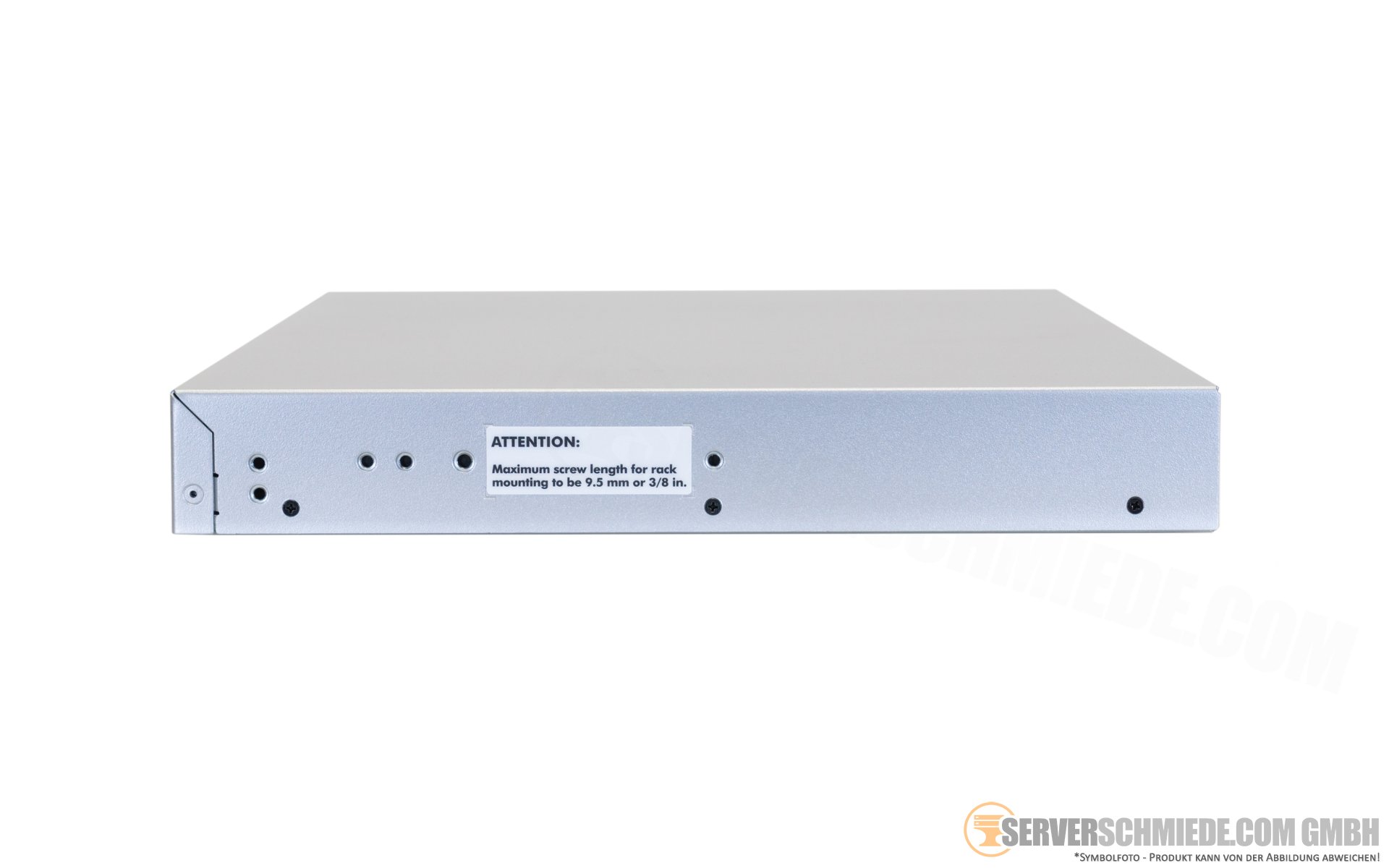

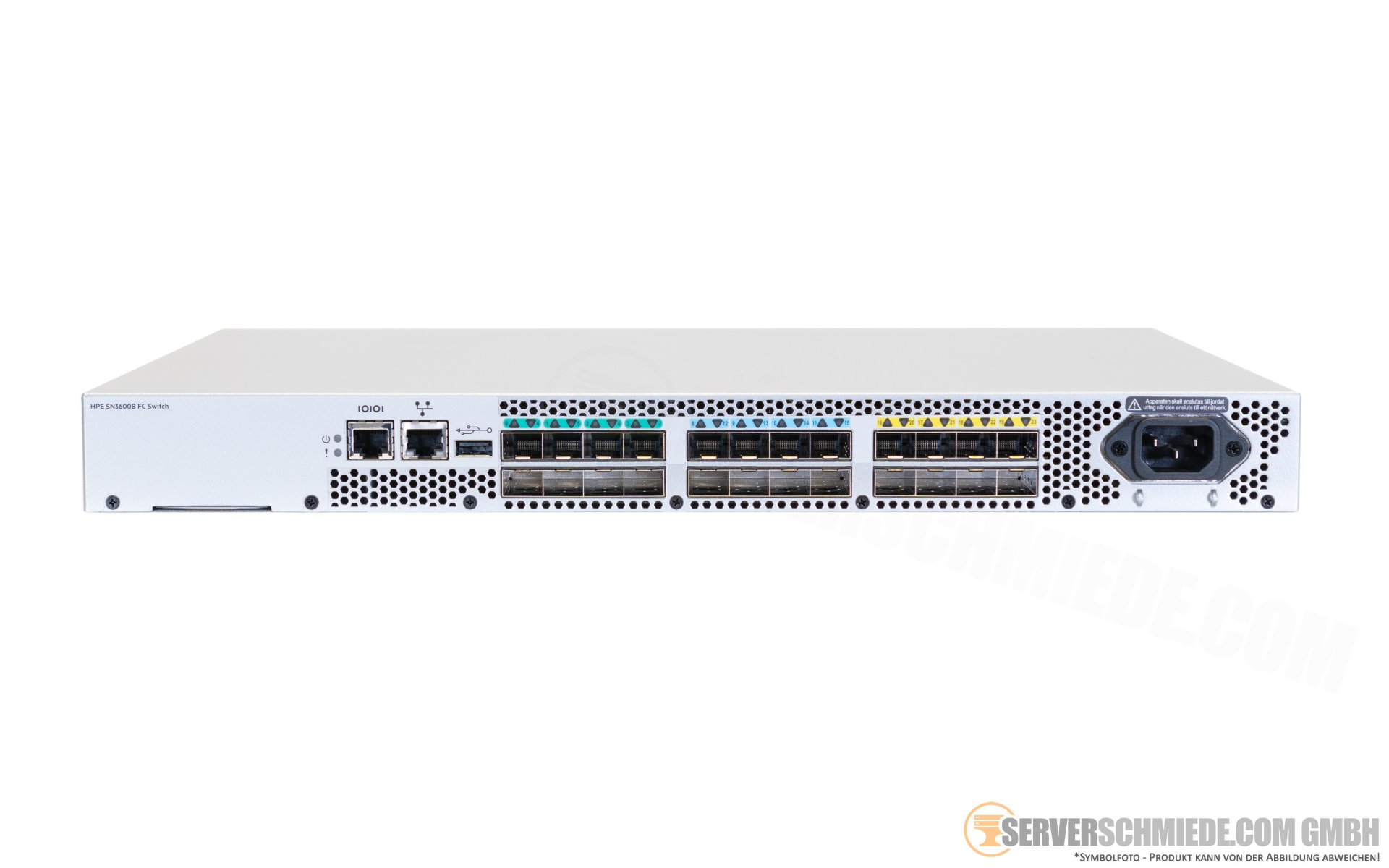

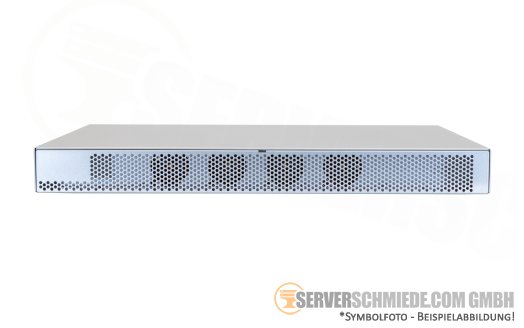

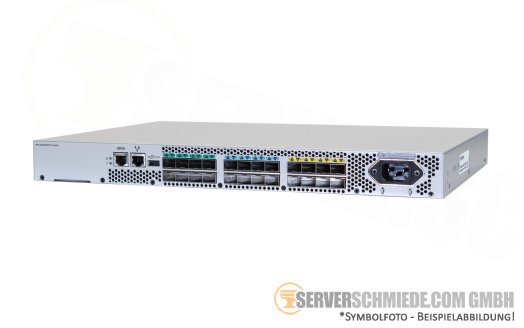

HP SN3600B Brocade 24-Port 32GB FC FibreChannel SAN-Switch 8-Ports active
Produktbeschreibung
Hersteller / OEM: Brocade HP
Gerätetyp: Fibre Channel
Bauart: 19" 1 HE
Modell: SN3600B
PartNr:
Ports: 24 Port 32Gb FC
Specs: 8 ports active
Bandwidth: 768 Gb/s
Certified Maximum: 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required
FC Performance: 4.25Gb/s line speed, full duplex;
8.5Gb/s line speed, full duplex;
10.53Gb/s line speed, full duplex;
14.025Gb/s line speed, full duplex;
28.05Gb/s line speed, full duplex;
auto-sensing of 4/8/10/16/32G port speeds;
10 Gb/s optionally programmable to fixed port speed.
Auto-sensing of 4×32/4×16/4×8/4×4G speeds on the QSFP ports with Brocade FOS v8.2.0
Media types: 32G FC SFP+ LC connector: SWL
16G FC SFP+ LC connector: SWL, LWL, ELWL
10G FC SFP+ LC connector: SWL, LWL
4x32G FC QSFP+ MPO connector: SWL
4x32G FC QSFP+ SMF LC connector: 2 km (fixed at 4x32G only)
4x16G FC QSFP+ MPO connector: SWL
Management: HTTP/HTTPS; SNMP v1/v3 (FE MIB, FC Management MIB); SSH; Brocade Advanced Web Tools; Brocade
SANnav Management Portal and SANnav Global View; EZSwitchSetup; Command Line Interface (CLI);
RESTful API; trial licenses for add-on capabilities.
Security: DH-CHAP (between switches and end devices)
FCAP switch authentication;
HTTPS,
IP filtering
LDAP with IPv6, OpenLDAP
Port Binding
RADIUS,
TACACS+
user-defined Role-Based Access Control
(RBAC), Secure Boot
Secure Copy (SCP)
Secure Syslog
SFTP
SSH v2
SSL
Switch Binding
Trusted Switch
Management access: 10/100/1000Mb/s Ethernet (RJ-45), in-band over Fibre Channel, serial port (mini-USB), and one USB port.
Frame Based ISL: Trunking 256Gb/s frame-based trunk (optional)
Power: 76,52W, non HotSwap fixed power supplies
Size (mm): 440 x 42.9 x 306.6
Certified Maximum: 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required
FC Performance: 4.25Gb/s line speed, full duplex;
8.5Gb/s line speed, full duplex;
10.53Gb/s line speed, full duplex;
14.025Gb/s line speed, full duplex;
28.05Gb/s line speed, full duplex;
auto-sensing of 4/8/10/16/32G port speeds;
10 Gb/s optionally programmable to fixed port speed.
Auto-sensing of 4×32/4×16/4×8/4×4G speeds on the QSFP ports with Brocade FOS v8.2.0
Media types: 32G FC SFP+ LC connector: SWL
16G FC SFP+ LC connector: SWL, LWL, ELWL
10G FC SFP+ LC connector: SWL, LWL
4x32G FC QSFP+ MPO connector: SWL
4x32G FC QSFP+ SMF LC connector: 2 km (fixed at 4x32G only)
4x16G FC QSFP+ MPO connector: SWL
Management: HTTP/HTTPS; SNMP v1/v3 (FE MIB, FC Management MIB); SSH; Brocade Advanced Web Tools; Brocade
SANnav Management Portal and SANnav Global View; EZSwitchSetup; Command Line Interface (CLI);
RESTful API; trial licenses for add-on capabilities.
Security: DH-CHAP (between switches and end devices)
FCAP switch authentication;
HTTPS,
IP filtering
LDAP with IPv6, OpenLDAP
Port Binding
RADIUS,
TACACS+
user-defined Role-Based Access Control
(RBAC), Secure Boot
Secure Copy (SCP)
Secure Syslog
SFTP
SSH v2
SSL
Switch Binding
Trusted Switch
Management access: 10/100/1000Mb/s Ethernet (RJ-45), in-band over Fibre Channel, serial port (mini-USB), and one USB port.
Frame Based ISL: Trunking 256Gb/s frame-based trunk (optional)
Power: 76,52W, non HotSwap fixed power supplies
Size (mm): 440 x 42.9 x 306.6
Artikelzustand: refurbished / generalüberholt, Grade A. Artikel wurde vom Verkäufer vollständig geprüft / instandgesetzt.
Artikelnummer: A33213
Basispreis: 1.221,00 €
inkl.
19% MwSt | exkl. Versandkosten
Preis exkl. MwSt.: 1.026,05 €
Verfügbarkeit:
Lieferzeit: 2-5 Arbeitstage (exkl. Wochenende, exkl. Feiertage) + Versandlaufzeit
Gewicht: 5.76kg
