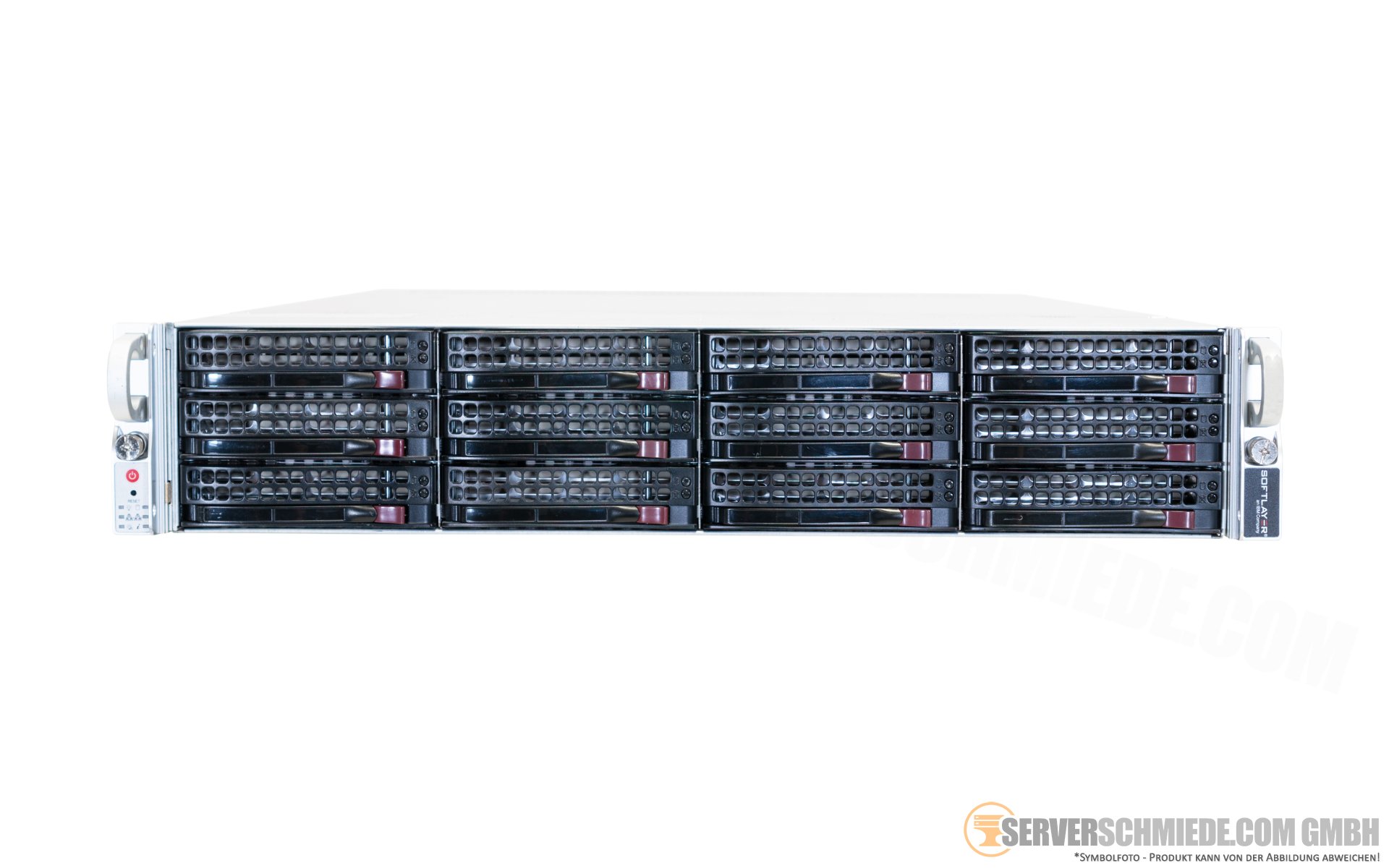

Supermicro CSE-829U X10DRU-X 19" 2U 12x 3,5" LFF 4x NVMe 2x Intel XEON E5-2600 v3 v4 DDR4 ECC Raid 2x 10GbE 2x PSU
Produktbeschreibung
Hersteller: Supermicro
Gerätetyp: Server
Bauart: 19" 2 HE
Modell: CSE 829U X10DRU-X

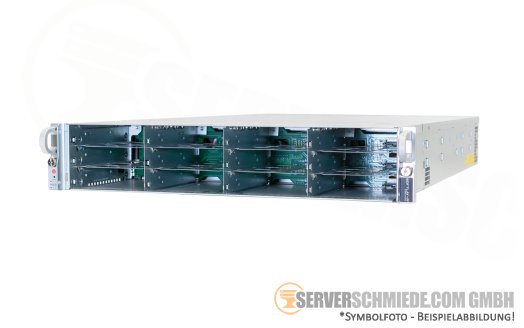

Festplatten HDD Bays:
12x HotSwap Festplatten Einschub SAS/S-ATA /4x NVMe Backplane
ohne Auswahl von Festplatten oder Trays sind keine HDD Trays im Lieferumfang enthalten
12x HotSwap Festplatten Einschub SAS/S-ATA /4x NVMe Backplane
ohne Auswahl von Festplatten oder Trays sind keine HDD Trays im Lieferumfang enthalten
Optisches Laufwerk: ohne
Networking: 2x 10Gb RJ-45 via AOC-2UR8N4-i2XT

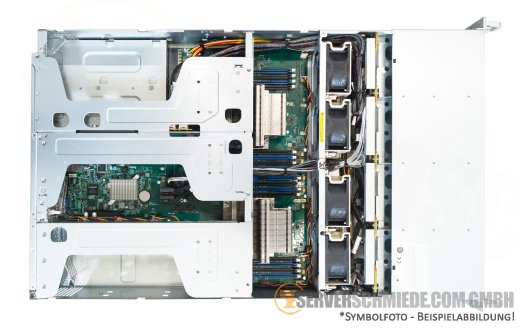

Interne Schnittstellen:
information
2x CPU Sockel 2011-3 Intel Xeon E5-2600 v3/v4 series processor
16x DDR4 288pin ECC DIMM Banks up to 2TB RAM
Intel® C612 chipset
2x PCIe 3.0 x16 - full profile, full length
1x PCIe 3.0 x8, low profile, half length
1x PCIe 3.0 x8, internal
interfaces
1x TPM Header
2x USB 3.0 header
Backplane
12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3*/SATA3 HDD/SSD and 4x SAS3*/SATA3/NVMe Storage Devices
10x SATA onboard cabling included
4x NVMe onboard cabling via AOC-2UR8N4-i2XT included
*SAS requires additional controller
information
2x CPU Sockel 2011-3 Intel Xeon E5-2600 v3/v4 series processor
16x DDR4 288pin ECC DIMM Banks up to 2TB RAM
Intel® C612 chipset
2x PCIe 3.0 x16 - full profile, full length
1x PCIe 3.0 x8, low profile, half length
1x PCIe 3.0 x8, internal
interfaces
1x TPM Header
2x USB 3.0 header
Backplane
12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3*/SATA3 HDD/SSD and 4x SAS3*/SATA3/NVMe Storage Devices
10x SATA onboard cabling included
4x NVMe onboard cabling via AOC-2UR8N4-i2XT included
*SAS requires additional controller

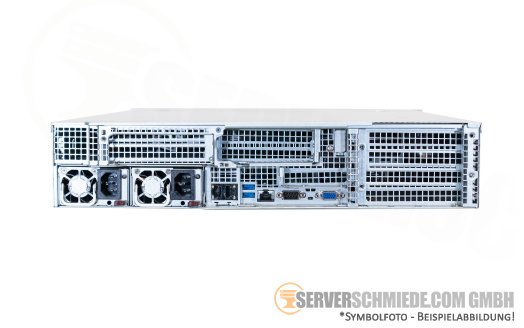

Externe Schnittstellen:
2x USB 3.0
2x 10Gb RJ-45
1x RJ45 Dedicated IPMI LAN port
1x VGA 15pol. D-SUB
1x Seriell RS232 interface
2x USB 3.0
2x 10Gb RJ-45
1x RJ45 Dedicated IPMI LAN port
1x VGA 15pol. D-SUB
1x Seriell RS232 interface
Grafikkarte: onboard Aspeed AST2400 BMC
Powerunits: up to 2x 1000W HotSwap Power Supply
Nettogewicht: 12,79 kg
Rackeinbautiefe: 74 cm
Artikelabmessung: L: 74 cm | B: 44 cm | H: 9 cm
Kompatible Betriebssysteme:
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*kompatibles TPM Modul wird benötigt
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*kompatibles TPM Modul wird benötigt
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Artikelzustand: refurbished / generalüberholt, Grade A
Jedes Gerät wird vor Auslieferung gereinigt, und ausgiebig geprüft. Systembios, Storage-, Netzwerk- und Management Controller werden auf die aktuelle frei verfügbare Firmware geflasht.
Jedes Gerät wird vor Auslieferung gereinigt, und ausgiebig geprüft. Systembios, Storage-, Netzwerk- und Management Controller werden auf die aktuelle frei verfügbare Firmware geflasht.
Herstellerinformationen:
Support_Europe@Supermicro.com
Super Micro Computer, Inc.
Het Sterrenbeeld 28
5215 ML, s-Hertogenbosch
Niederlande
Super Micro Computer, Inc.
980 Rock Avenue
San Jose, CA 95131
USA
Artikelnummer: SK0535
Basispreis: 821,00 €
inkl.
19% MwSt | exkl. Versandkosten
Preis exkl. MwSt.: 689,92 €
Verfügbarkeit:
Lieferzeit: 2-5 Arbeitstage (exkl. Wochenende, exkl. Feiertage) + Versandlaufzeit
Gewicht: 26.00kg
